Wagner Tuning Competition Intercooler Kit
Vehicle fitment: BMW F40 M135i (225 kW / 306 PS), from 2019

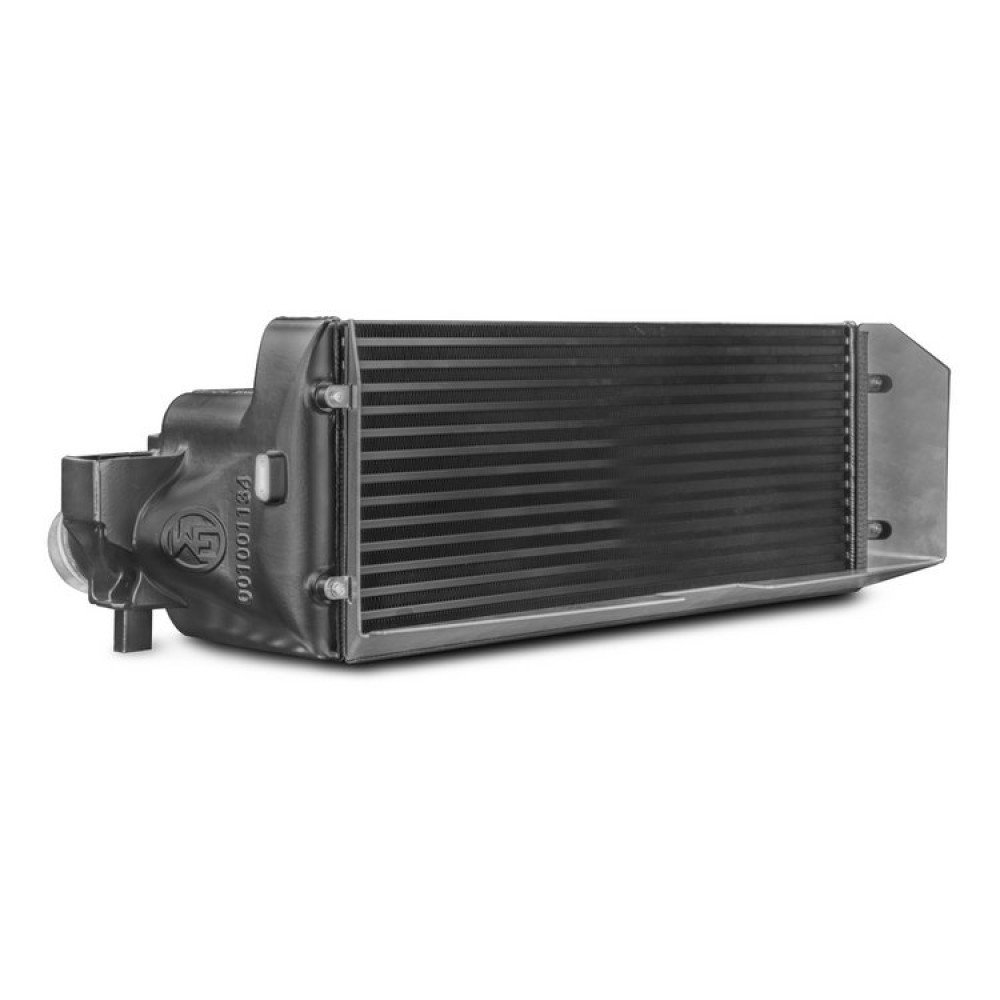

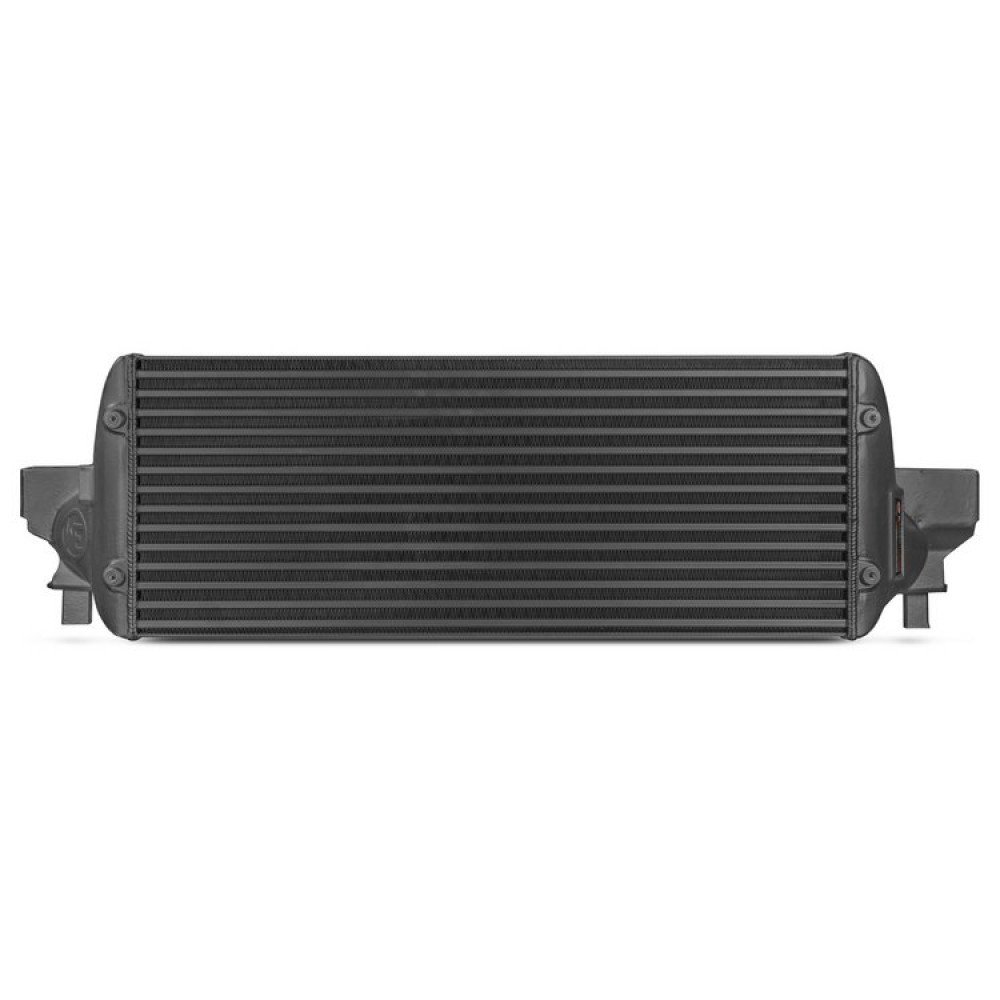

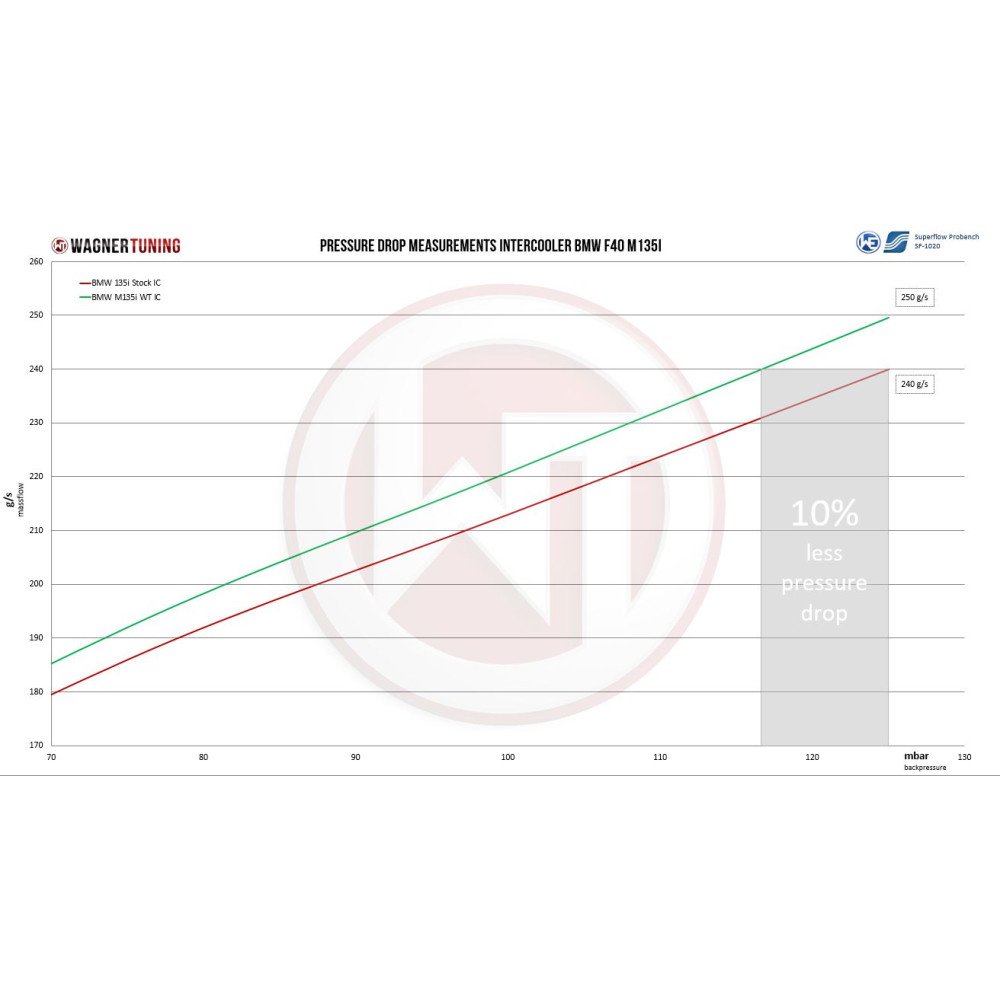

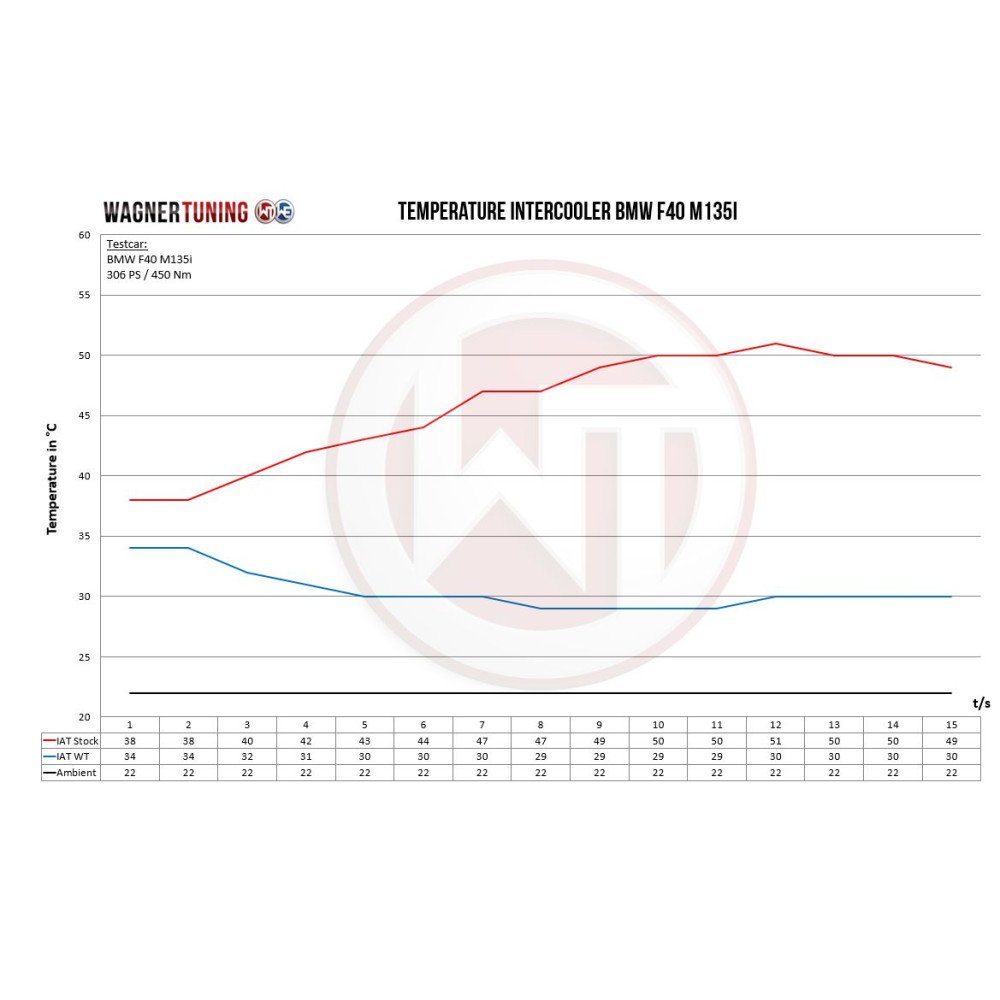

This Competition intercooler is designed as a direct replacement for the factory unit, focusing on higher thermal capacity and reduced charge-air temperature under sustained load. It uses a stepped core and CAD-optimized cast aluminum end tanks to support strong cooling performance with minimal back pressure.
Key features
- Stepped 600 × 235 × 165 mm intercooler core
- Tube-fin core with internal turbulators for efficient heat transfer
- CAD flow-optimized cast aluminum end tanks
- Anti-corrosion coating with heat conduction properties

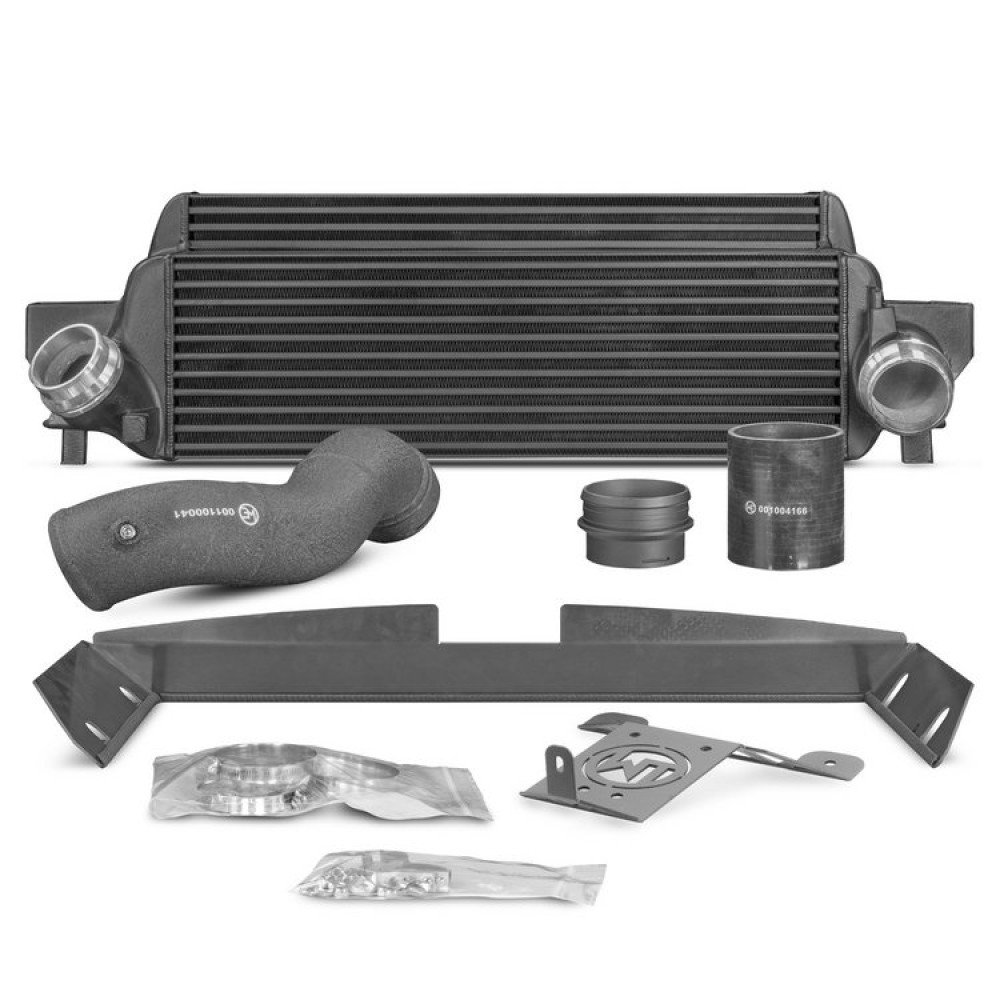

- Ready-to-install kit; plug-and-play replacement for the stock intercooler
- Compatible with original intercooler hoses
Core size comparison
- Compared to stock: +38% flow area, +78% charge-air volume
| Specification | Original intercooler | Wagner Tuning Competition |
|---|---|---|
| Core dimensions | 585 × 175 × 110 mm | 600 × 235 × 165 mm (stepped) |
| Core volume | 11.3 L | 20.1 L |
| Flow area | 1024 cm² | 1410 cm² |
| Weight | 6.79 kg | |
| Volume | 39.60 cm³/kg |
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| BMW | M135i | F40 | - |

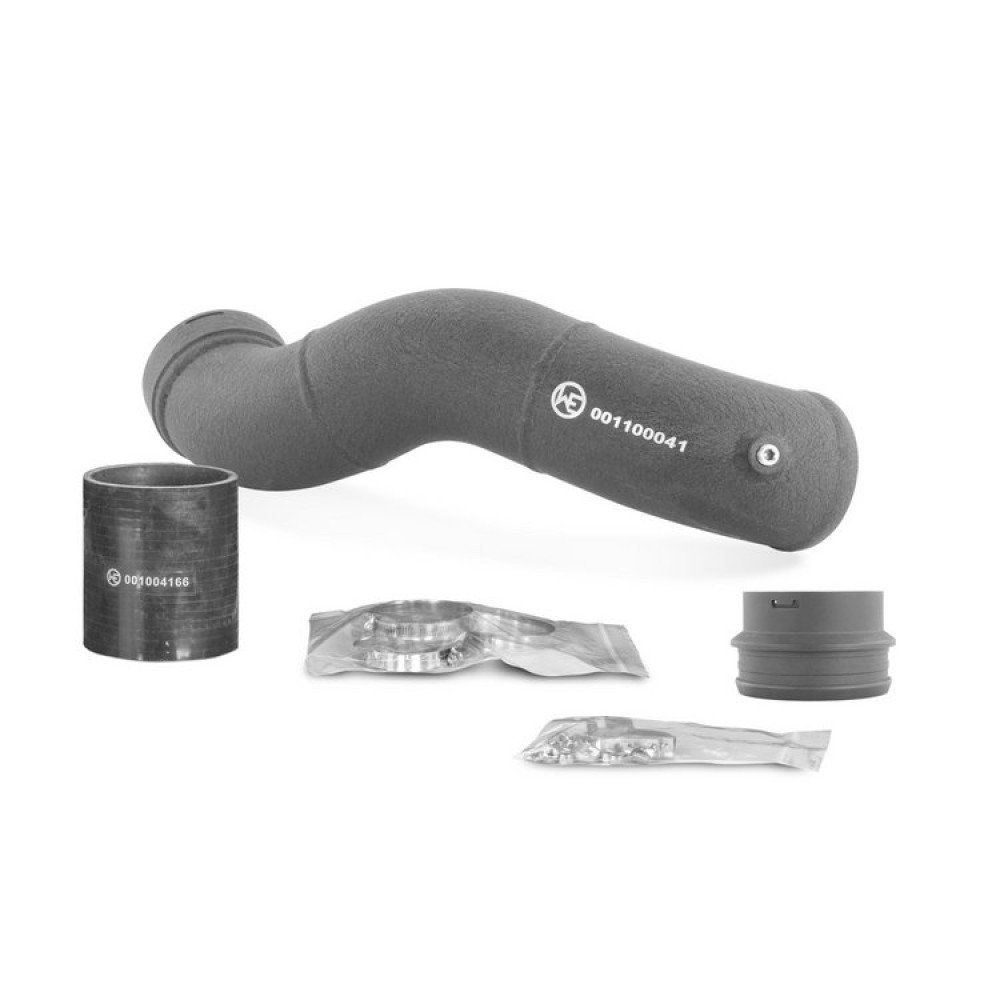

Comp. Intercooler Kit with Charge Pipe ACC-modul Wagner Tuning for BMW M 135i
- Brand: Wagner Tuning
- Product id: 81435
- Availability: In Stock
-
1,269.02€
- Excl. VAT: 1,048.78€
EU Shipping – No Import Taxes
| Brand | Model | Generation | Engine |
|---|---|---|---|
| BMW | M135i | F40 | - |
Wagner Tuning
