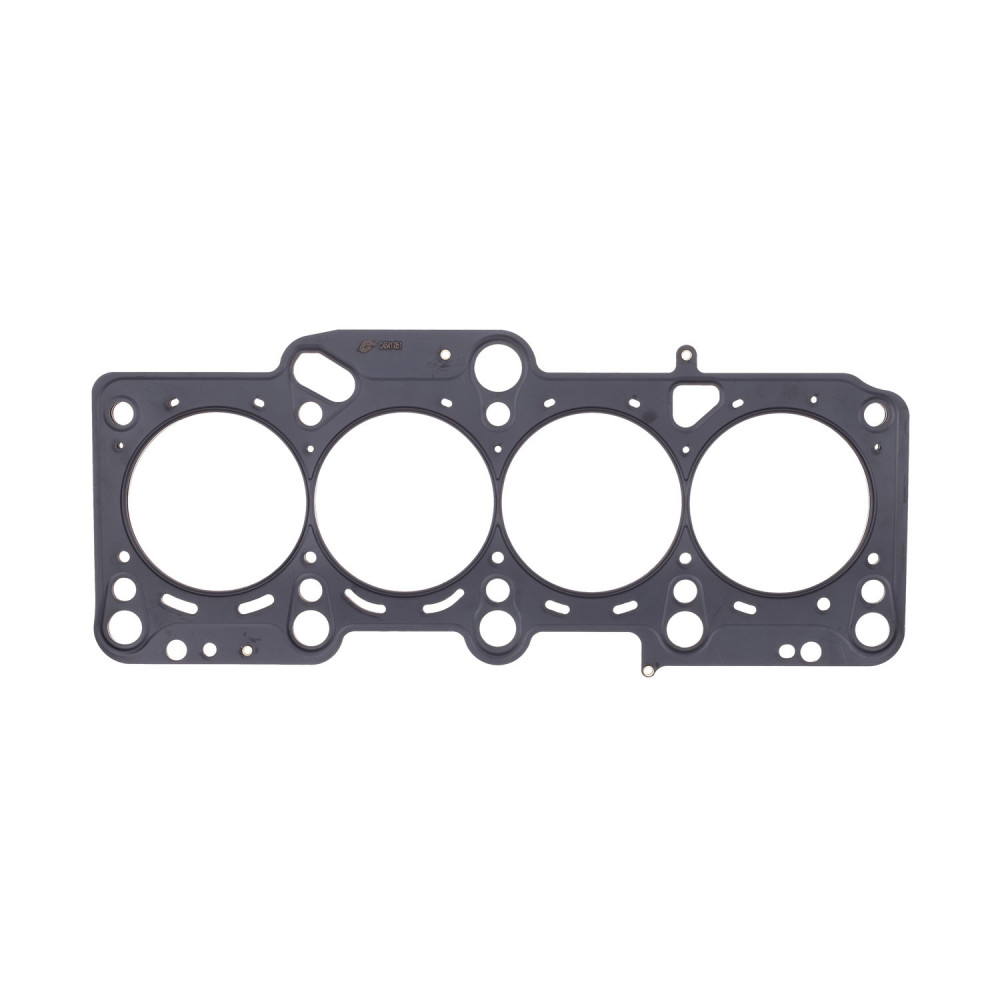

Head Gasket

Part No: C4541-092

Specifications

• Material: MLS (Multi-Layer Steel)
• Compressed Thickness: .092
• Bore Shape: Round
• Bore Size: 83.5 mm
• Layers: 5
• Orientation: None

Design Notes

Embossed outer layers are designed to handle demanding sealing environments, varying clamp loads, and different surface finishes. The MLS design uses an active combustion seal across multiple layers.

Applications

• Audi
  • A3 (2006-2008)
  • A4 (2007-2009)
  • A4 Quattro (2007-2009)
  • TT (2008-2009)
• Volkswagen
  • Eos (2007-2009)
  • GTI (2006-2008)
  • Jetta (2006-2008)
  • Passat (2006-2008)
