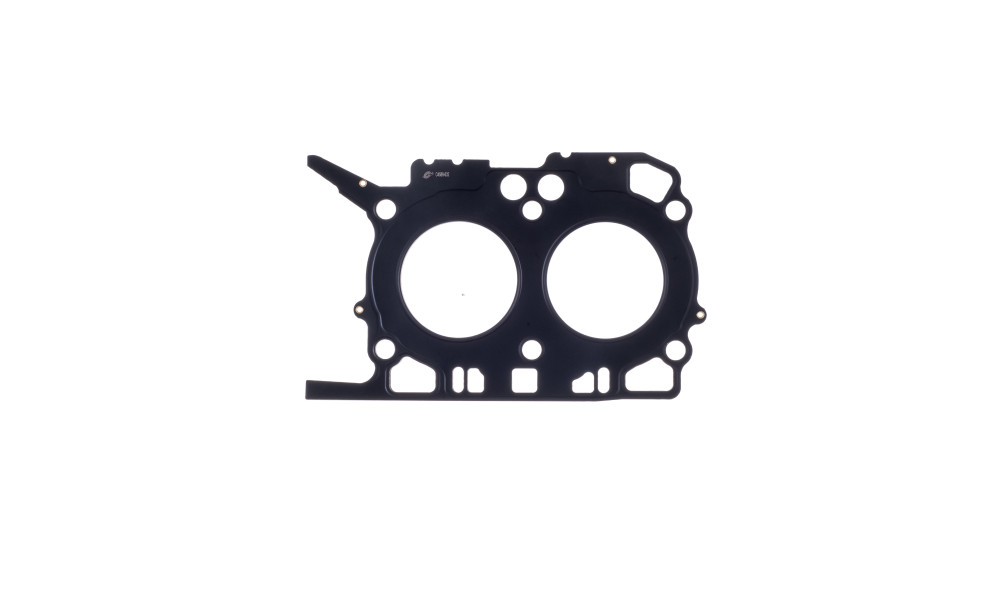

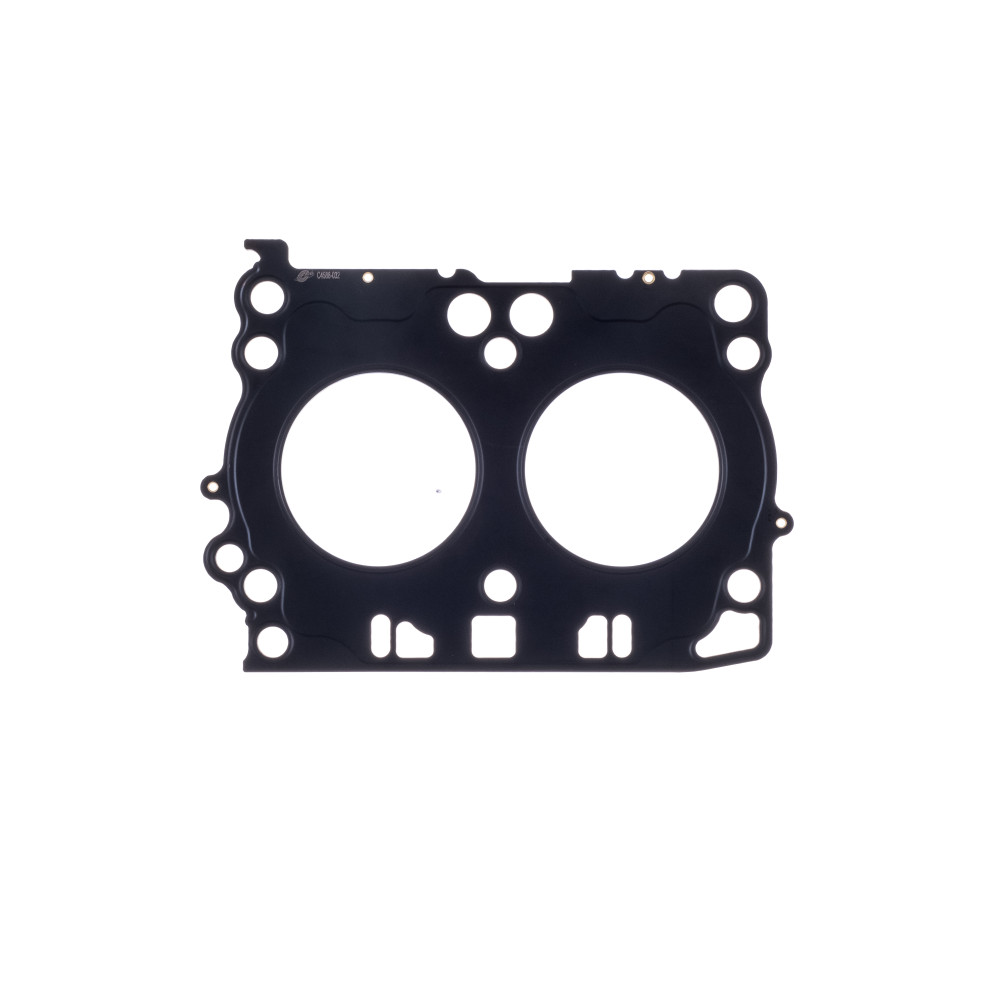

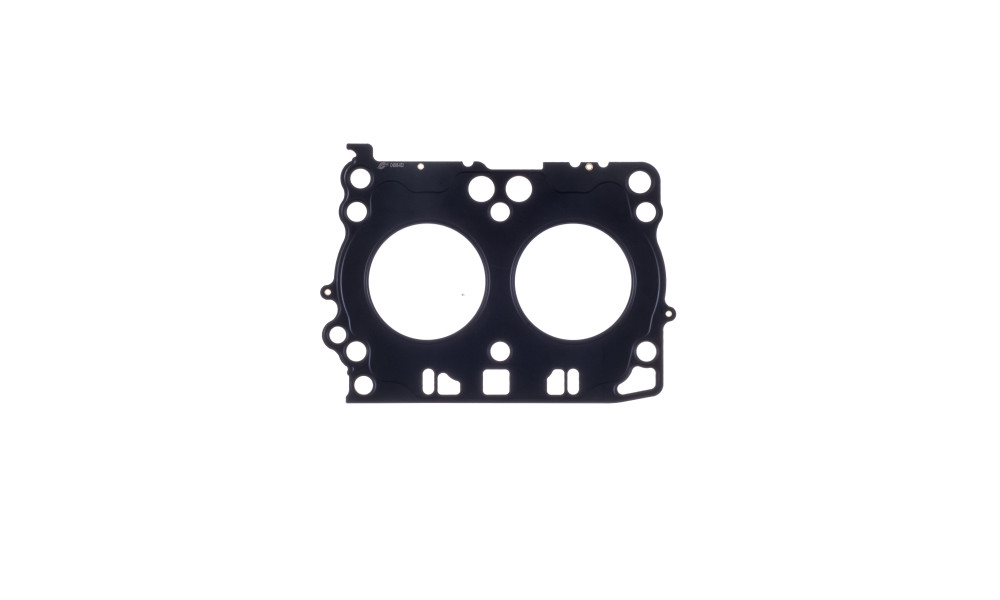

MLX Head Gasket – Part No: C4588-032
- Material: MLX (Multi-Layer Steel Stopper)
- Compressed Thickness: 0.032"
- Bore Shape: Round
- Bore Size: 89.5 mm
- Number of Layers: 3
- Orientation: None
Applications
- Scion FR-S (2013–2016)
- Subaru BRZ (2013–2020)
- Toyota 86 (2017–2020)
The MLX gasket features a multi-layer steel stopper design with an additional fold-over layer to provide a torque-limiting surface, preventing yielding of the combustion seals. High-temperature polymer and embossments ensure a micro seal for fluids between the head and block surfaces.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Scion | 86 | - | FA20D, 4U-GSE |
| Scion | BRZ | - | FA20D, 4U-GSE |
| Scion | FR-S | - | FA20D, 4U-GSE |
| Subaru | 86 | - | FA20D, 4U-GSE |
| Subaru | BRZ | - | FA20D, 4U-GSE |
| Subaru | FR-S | - | FA20D, 4U-GSE |
| Toyota | 86 | - | FA20D, 4U-GSE |
| Toyota | BRZ | - | FA20D, 4U-GSE |
| Toyota | FR-S | - | FA20D, 4U-GSE |
Cometic Gasket
Cometic Gasket, founded in 1989 in Concord, Ohio, USA, manufactures over 85,000 high-performance gasket SKUs for automotive and motorsport applications, all made in the USA.
Their sealing solutions cover street performance through professional-level drag, road race, and sport compact engine builds.
Official page: www.cometic.com
Their sealing solutions cover street performance through professional-level drag, road race, and sport compact engine builds.
Official page: www.cometic.com
Cometic head gasket for Subaru FA20D; Toyota 4U-GSE .032" MLX 89.5mm C4588-032
97.39€
96.42€
Excl. VAT: 79.69€
Tags: Default Category|Engine and turbo|Head and engine gaskets,
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Scion | 86 | - | FA20D, 4U-GSE |
| Scion | BRZ | - | FA20D, 4U-GSE |
| Scion | FR-S | - | FA20D, 4U-GSE |
| Subaru | 86 | - | FA20D, 4U-GSE |
| Subaru | BRZ | - | FA20D, 4U-GSE |
| Subaru | FR-S | - | FA20D, 4U-GSE |
| Toyota | 86 | - | FA20D, 4U-GSE |
| Toyota | BRZ | - | FA20D, 4U-GSE |
| Toyota | FR-S | - | FA20D, 4U-GSE |
Their sealing solutions cover street performance through professional-level drag, road race, and sport compact engine builds.
Official page: www.cometic.com
