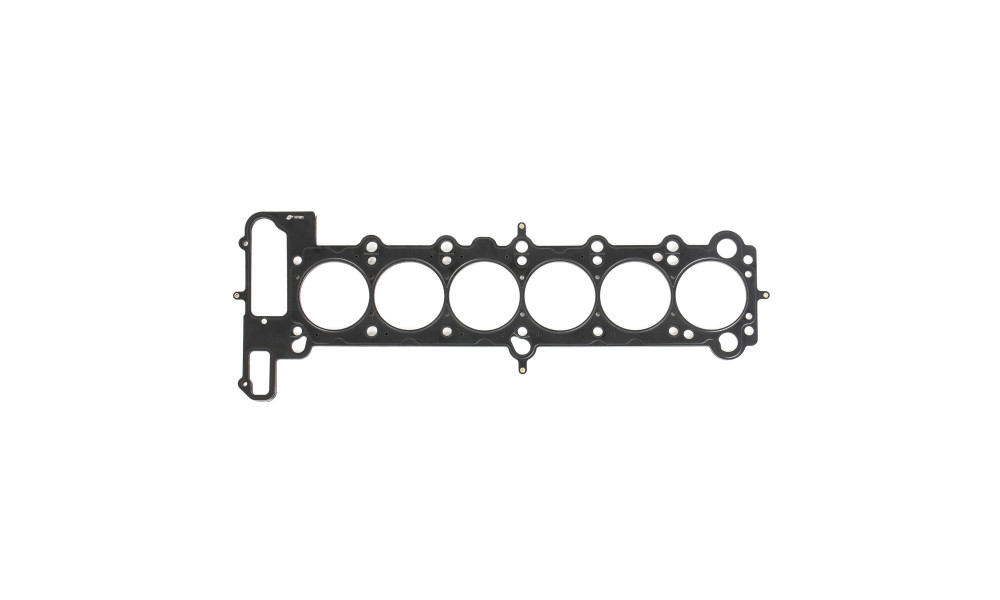

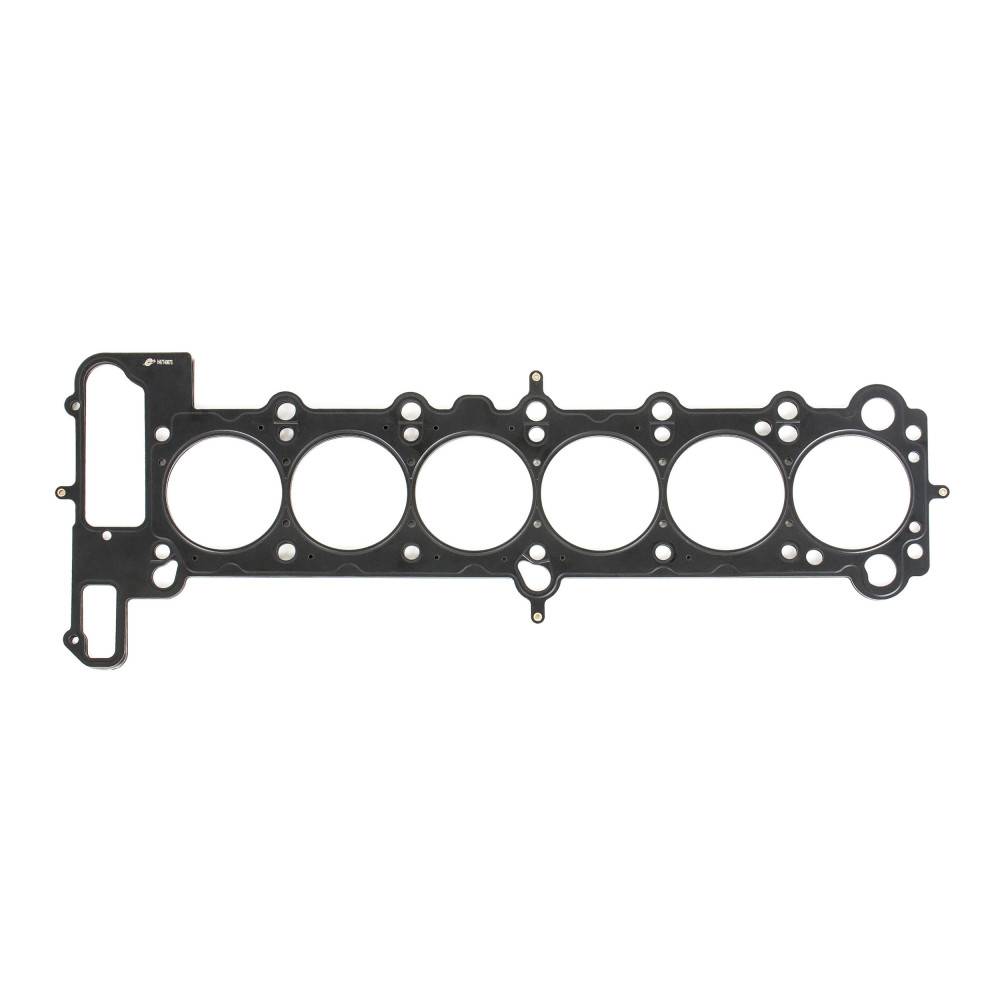

MLX Head Gasket

Part No: C14010-142

Specifications

• Material: MLX
• Compressed Thickness: .142
• Bore Shape: Round
• Bore Size: 85 mm
• Layers: 5
• Orientation: None

Design Notes

This MLX (Multi-Layer-Steel-Stopper) gasket uses an extra stopper fold-over layer to provide a torque-limiting surface intended to help prevent yielding at the combustion seals. High-temperature polymer and embossments are used to support micro-sealing for fluids between the head and block surfaces.

Applications

• BMW
  • 323i (1997–2000)
  • 325i (1991–1995)
  • 325is (1991–1995)
  • 328i (1996–1999)
  • 328is (1996–1999)
  • 525i (1990–1995)
  • 528i (1996–2000)
  • M3 (1994–1999)
  • Z3 (1996–2000)
