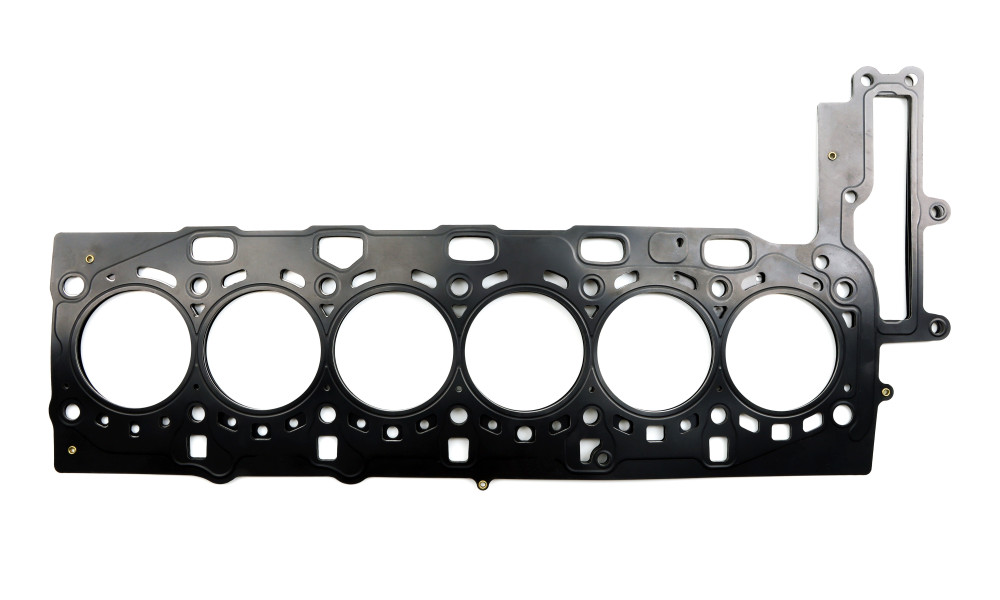

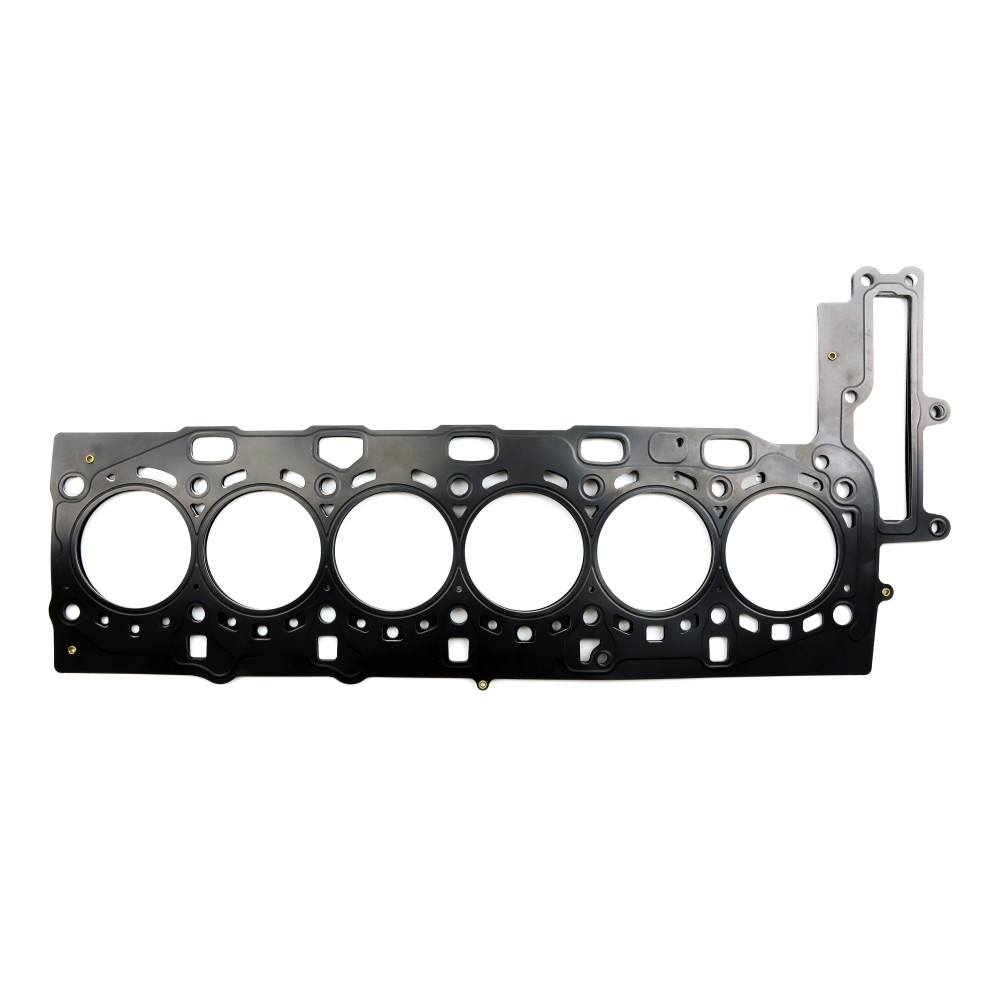

MLX Head Gasket

Part No: C14121-036

Specifications

• Material: MLX
• Compressed Thickness: .036
• Bore Shape: Round
• Bore Size: 83 mm
• Layers: 4
• Orientation: None

Design Notes

This MLX Gasket (Multi-Layer-Steel-Stopper) uses an extra “stopper” fold-over layer to provide a torque-limiting surface that helps prevent yielding of the combustion seals. A high-temperature polymer coating and embossments support micro-sealing for fluids between the head and block surfaces.

Vehicle Applications

• BMW
  • 340i (2016-2018)
  • 340i GT xDrive (2017-2019)
  • 340i xDrive (2016-2018)
  • 440i (2017-2020)
  • 440i Gran Coupe (2017-2020)
  • 440i xDrive (2017-2020)
  • 440i xDrive Gran Coupe (2017-2020)
  • 530i (2017-2019)
  • 540i (2017-2019)
  • 540i xDrive (2017-2018)
  • 640i (2016-2017)
  • 640i xDrive (2016-2017)
  • 640i xDrive Gran Coupe (2016-2018)
  • 640i xDrive Gran Turismo (2017-2018)
  • 740i (2016-2019)
  • 740i xDrive (2017-2019)
  • M240i (2017-2020)
  • M240i xDrive (2017-2020)
  • X3 (2018-2019)
  • X4 (2019)
