PMC Motorsport Custom Flywheel Toyota JZ 1JZ 2JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen) - 240mm / 9.45"

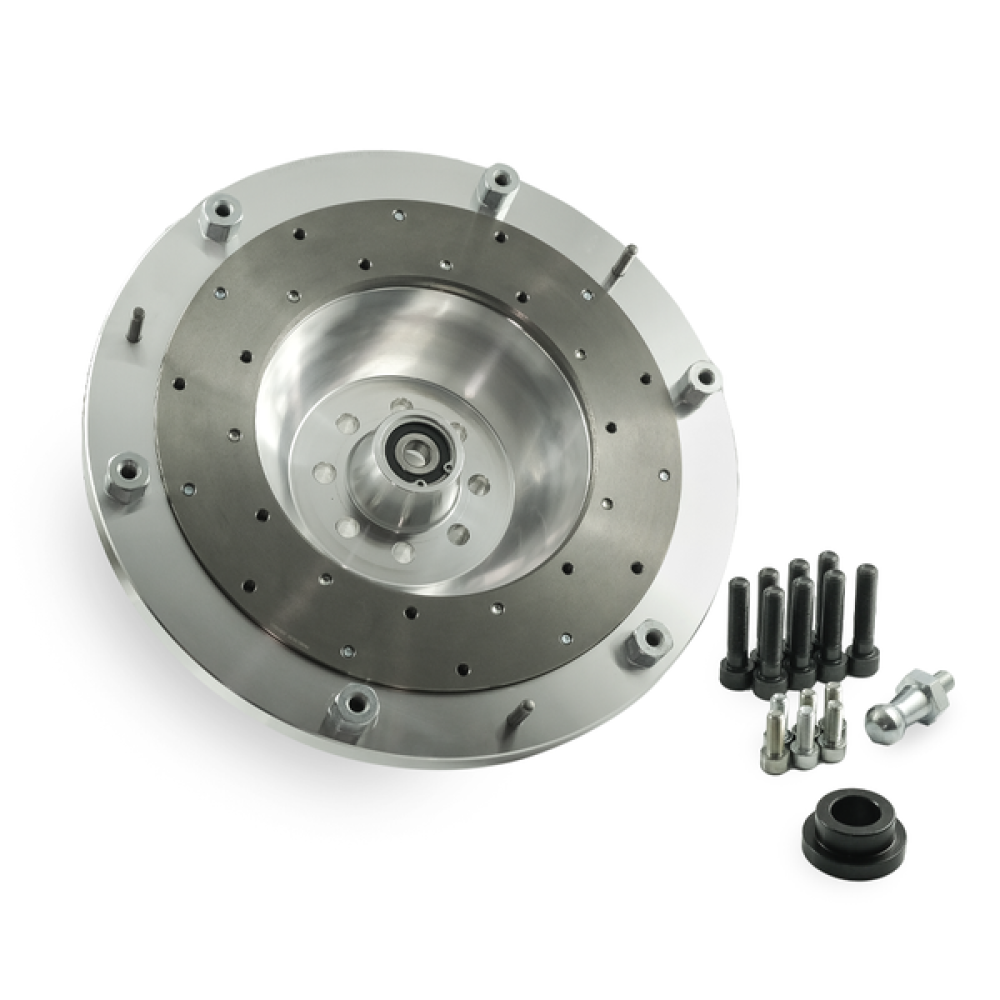

Aluminium custom flywheel designed to connect the Toyota JZ 1JZ 2JZ engine to the Toyota Aisin J160 gearbox.

What sets us apart:

The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner in the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox

State-of-the-art CNC machinery and qualified staff.
Certified materials

Matching engines:
Toyota 1JZ (non VVT-i / VVT-i version)
Toyota 1JZ-FSE
Toyota 1JZ-GE
Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)
Toyota 2JZ-FSE
Toyota 2JZ-GE
Toyota 2JZ-GTE
Matching gearboxes:
Lexus IS200 J160 First gen Aisin AZ6 (2.0 L 1G-FE AS200)

Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel/rim from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the rim.
Tighten the flywheel with the same torque as the OE.
