Xtreme 230mm Race Clutch -2E

The Xtreme 230mm Race Clutch -2E is engineered for high-performance applications, delivering reliable power transfer for street, circuit, drift, or dedicated race cars. Designed for versatility, this clutch system offers a range of internal hydraulic and pull-push conversion options to suit custom setups.

Key Features

  • Push type billet alloy cover for reduced pedal effort
  • 4140 Chromoly pressure and intermediate plates
  • Chromoly adapter ring for enhanced durability
  • Low inertia design for faster engine response
  • Serviceable components for extended product life
  • SFI certified design meeting motorsport safety standards

Technical Specifications

Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm Flat Bearing
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Included Components

  • 230mm Xtreme Race Clutch assembly
  • Bearing (flat or rolled diaphragm as specified)
  • All necessary hardware for installation

This clutch is built for enthusiasts and racers who demand consistent performance and durability under extreme conditions. Ensure compatibility with your vehicle and application before purchase.

Vehicle Compatibility

Brand Model Generation / Chassis Engine
Toyota SUPRA JZA80 -
Xtreme Clutch

Xtreme Clutch

Founded in 1989 in Adelaide, Australia, Xtreme Clutch is the performance clutch brand of Australian Clutch Services. Xtreme Clutch offers a comprehensive range of clutch kits, flywheels, and hydraulic components for street, circuit, drag, and off-road applications, engineered and tested in Australia and distributed globally.

Official page: xtremeclutch.com.au

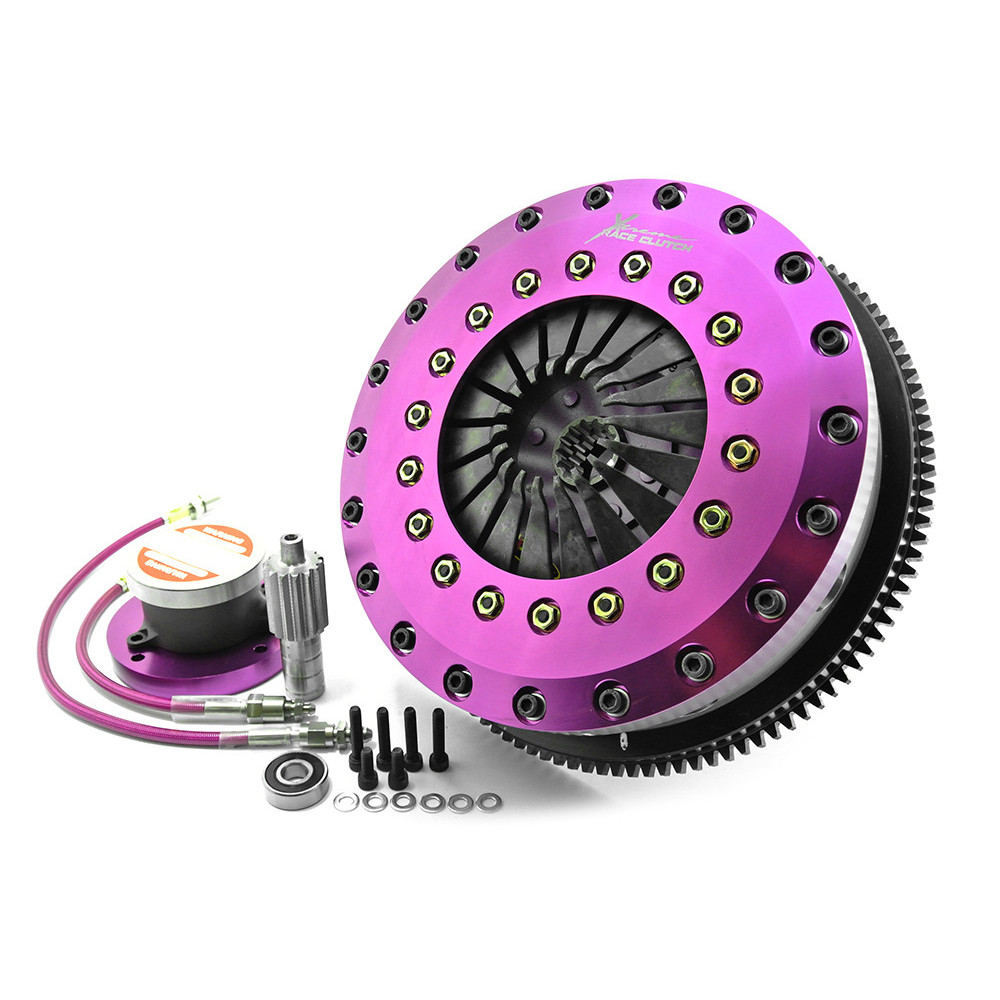

Clutch kit Xtreme Clutch Ceramic Twin Plate Toyota SUPRA 3.0 i Bi-Turbo (JZA80_) 243KW (1993-2002)

Brand: Xtreme Clutch Product id: 78438 MPN: KTY23682-2E
Availability: Ready to ship
2,120.73€
2,099.52€ Excl. VAT: 1,735.14€
