Vehicle-Specific CANchecked MFD15 Gen2 Data Display for Seat Leon 1P

The MFD15 Gen2 features an OLED screen for optimal readability in direct sunlight. This kit includes a vehicle-specific bezel and connection kit, and is operated via two push buttons on the faceplate, with an optional rotary knob available for enhanced control.

Key Features

• Compact design: 52 mm in diameter and only 12.5 mm deep
• Faceplate-mounted LED: Can function as a shift light and/or warning LED
• Can Bus: Supports Can Bus ECUs, custom Can streams, and OBD2 from 2008 onwards for VAG vehicles
• WiFi: Connect to a smartphone or PC for configuration via a Web App
• Additional inputs: Connect up to 6 analog sensors or an ethanol sensor directly
• Preset Alarms: Easily activate and customize predefined alarms, such as alerts for exhaust gas temperatures exceeding 900 degrees
• Customization: Personalize with your own startup logo and color scheme
• Online logging: Log data with a smartphone or PC for later analysis
• Flex Fuel: Display ethanol content and temperature
• Can Switching: Use display buttons to switch Can switches and forward readings from analog inputs to the Can bus

Customizable Display Views

Choose from up to eight customizable display pages to suit your preferences:

• Analog pointer
• Double value
• Gear indicator
• 4-fold values
• 6-fold values
• Bar + double display
• Round display
• Bar graph (double across)
• Performance Meter
• Bar chart (1-6-fold upright)
• Single value

Configuration via Online Display Setup Software - oDSS

The MFD15 Gen2 allows setup via WiFi, enabling configuration through a smartphone or PC. With oDSS, you can fully customize your display, log values (license required), upload a startup image, and update the display.

Supported Values

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284, allowing access to all values sent via the CAN bus interface, as determined by ECU manufacturers. Up to 64 sensors can be queried depending on the manufacturer. OBD2 queries via Can Bus (11bit/29bit) and vehicle-specific protocols like UDS or TP2 are also supported.

Included by default are:
- OBD2 - 11 and 29bit
- Ecumaster - Classic and Black
- VAG PQ34
- Haltech v2
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 and 3

For VAG vehicles from 2008 onwards, in-depth data queries are available, including oil temperature, boost pressure, transmission temperature, and more.

Integrated LED

The internal LED serves as both a shift light and a warning LED. You can assign up to 8 colors and speed limits for the shift light, while the warning LED can be configured with minimum and maximum values for each sensor, flashing in the assigned color when thresholds are exceeded.

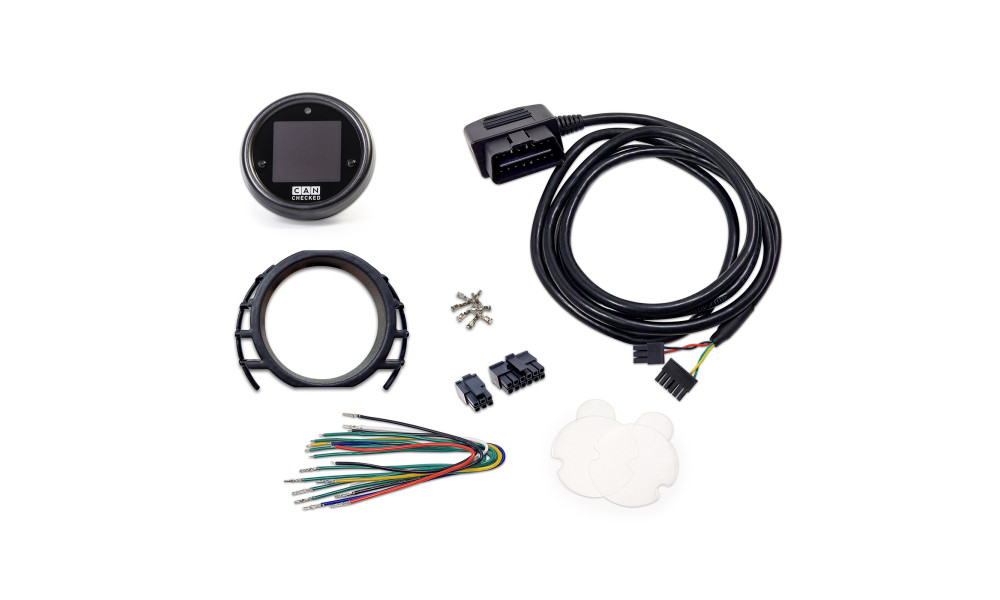

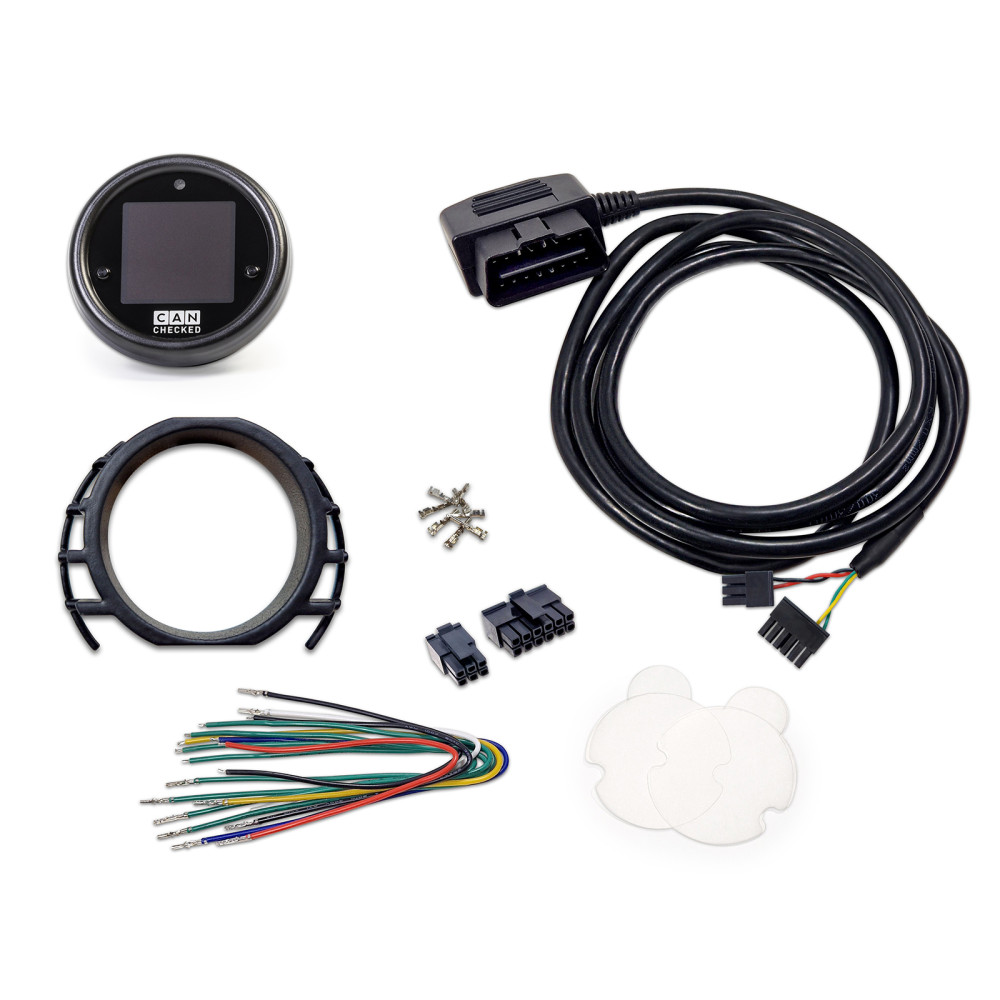

Scope of Delivery

Included with every delivery:

• MFD15 Gen2 Data Display
• Vehicle-specific bezel for LHD/RHD vehicles
• Vehicle-specific connection cable
• Quickstart Guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Pre-assembled connection cables (20 cm length) for power supply, Can Bus, analog inputs, 5V, sensor ground
• Pins for crimping
• Two 1K resistors (for NTC sensors)

Six analog inputs support linear 0-5V and NTC sensors, with factory default characteristic curves for in-house CANchecked sensors.

Optional Accessories

• CC22501 ETK01 - External rotary knob with PnP 50 cm connection cable
• CC22100 CBD08 - Eight-way Can Distribution Hub
• CC22780 ANC04 - Four-way AIN-harness
• CC22902 NTC01 - Temperature sensor for liquids 1/8 inch NPT
• CC22903 TCC01 - Type K transducer 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5.5 Bar absolute (80psi)

Additional Licenses

Live Logging of the MFD15 Gen2

With the "Live Logging" license, the display can log sensor data
