CANchecked MFD28 Gen2 Vent Display for VW Golf MK6

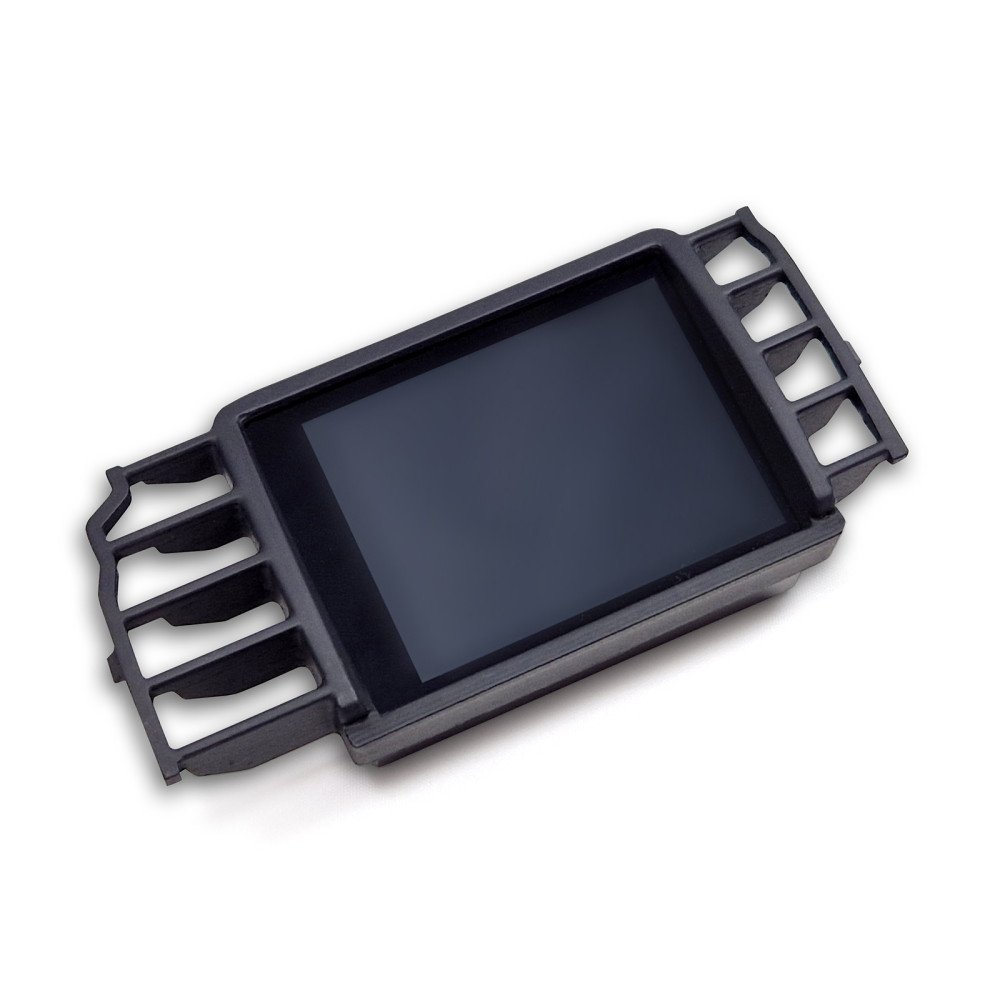

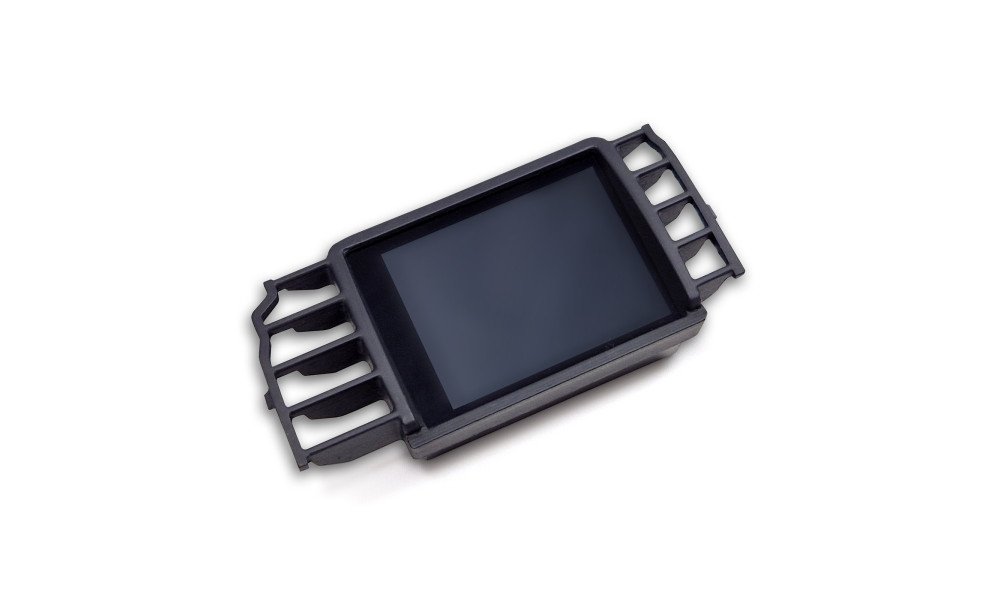

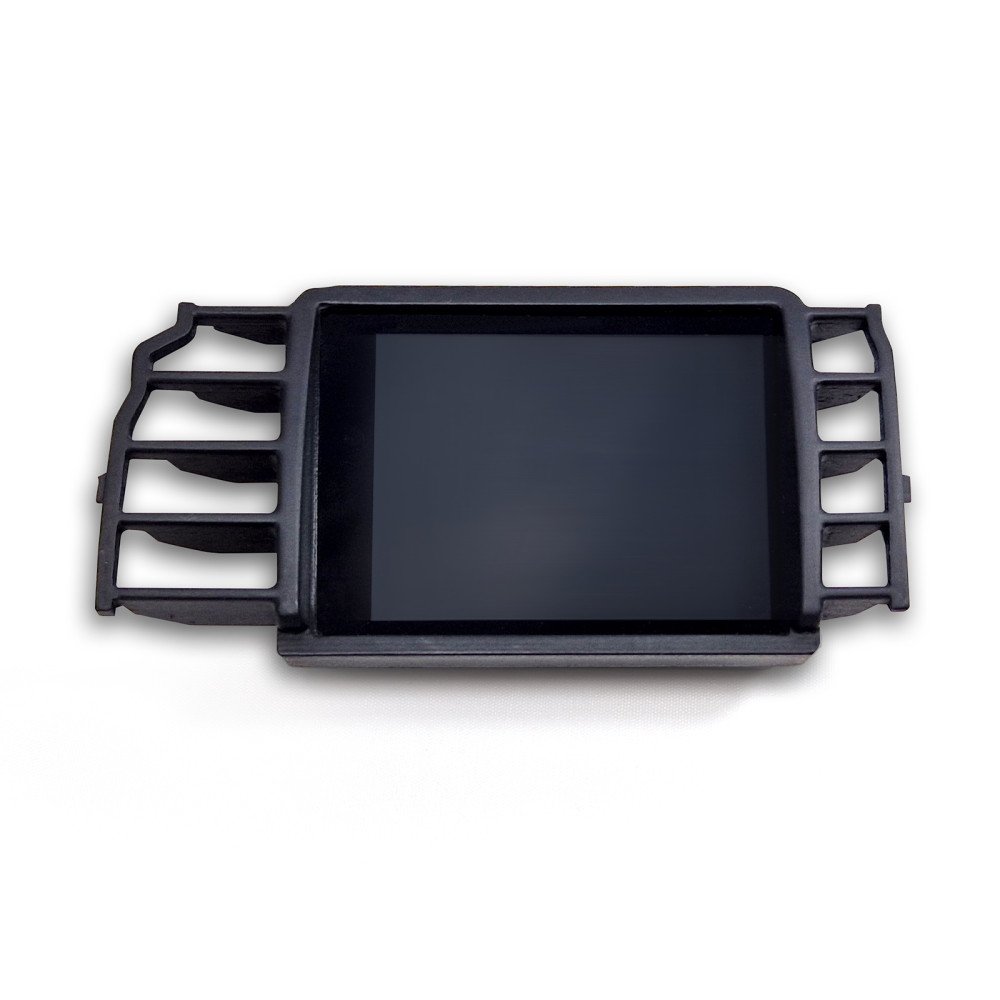

The CANchecked MFD28 Gen2 replaces the air-vent insert with a neatly integrated data display while still allowing airflow. It’s designed for DIY installation, and illustrated instructions are available for most versions.

Key features

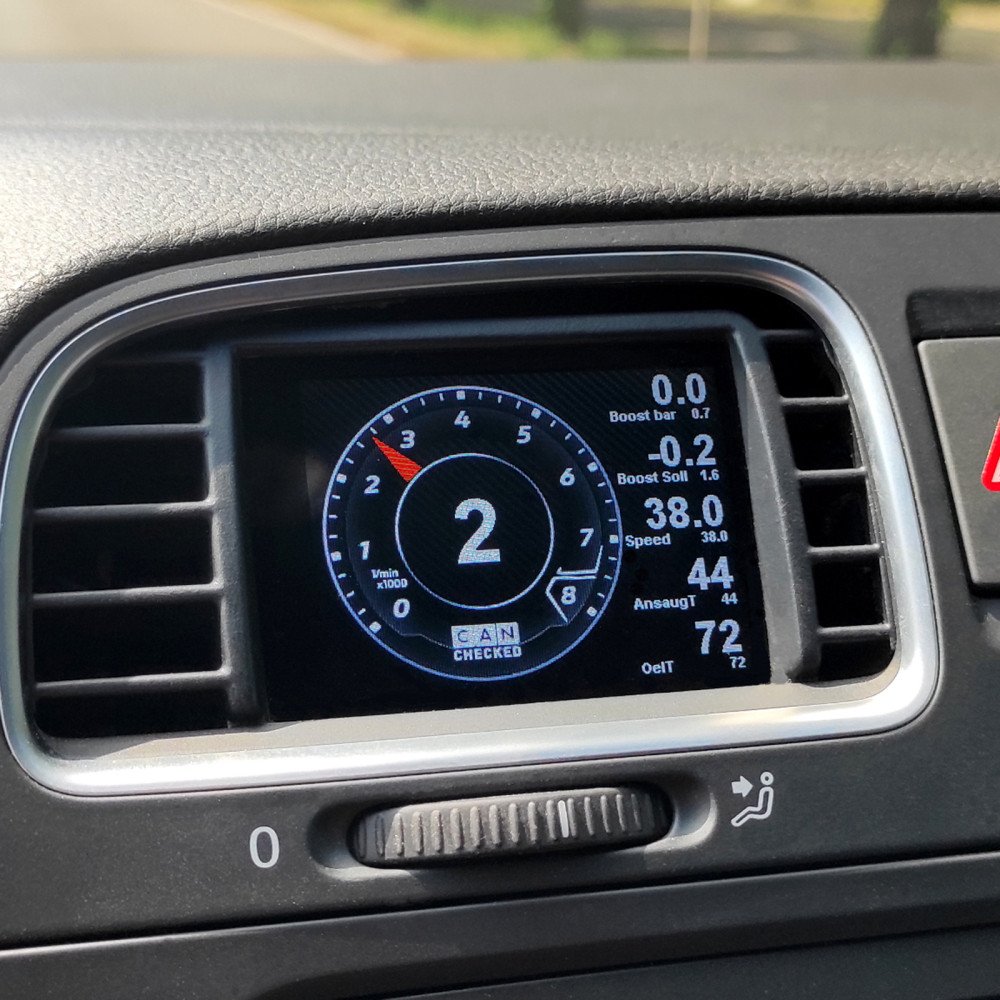

• Vehicle-specific integration: Bezel keeps ventilation function with airflow past the display
• CAN Bus data: Access in-depth vehicle data similar to manufacturer diagnostic tools
• Gear display: Via CAN Bus or calculated from speed and RPM
• Touchscreen control: Page navigation via swipe gestures
• Custom pages: Create your own layouts, add images, or use a start animation
• Inputs: Connect up to 4 analog inputs plus an ethanol sensor directly to the display
• CAN switching: Use the display as a keypad and send custom CAN messages
• Alarms: Configurable warnings (e.g., prominent alert if EGT exceeds 900°C)
• Logging: Save logs to the internal SD card for later analysis
• Performance meter: Built-in 0–100, 100–200, and 0–200 timing without additional hardware
• DTC*: Read and clear faults from engine ECU, transmission, ABS, and all-wheel drive
• Dimming*: Automatic dimming with the instrument panel

*Not available on all protocols.

Pages and display layouts

• Delivered with predefined sample pages
• Create your own pages (up to 10)
• 20 widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning and scalable widget sizing
• Fully adjustable widget colors
• Up to 64 widgets per page

Display Setup Software (DSS)

CANchecked DSS is used to configure pages and display behavior. It includes a log viewer for downloading and reviewing log files and an integrated CAN logger. The built-in TRI Editor allows sensor adjustments for both CAN Bus and internal channels, including setting min/max warning thresholds and renaming sensors.

Supported ECU values

The display supports CAN Bus data queries via UDS, TP2, and manufacturer-specific protocols. It ships with predefined TRI/TRX files that define which sensors are queried (varies by engine). Examples include:

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

If values are missing, they can be added later.

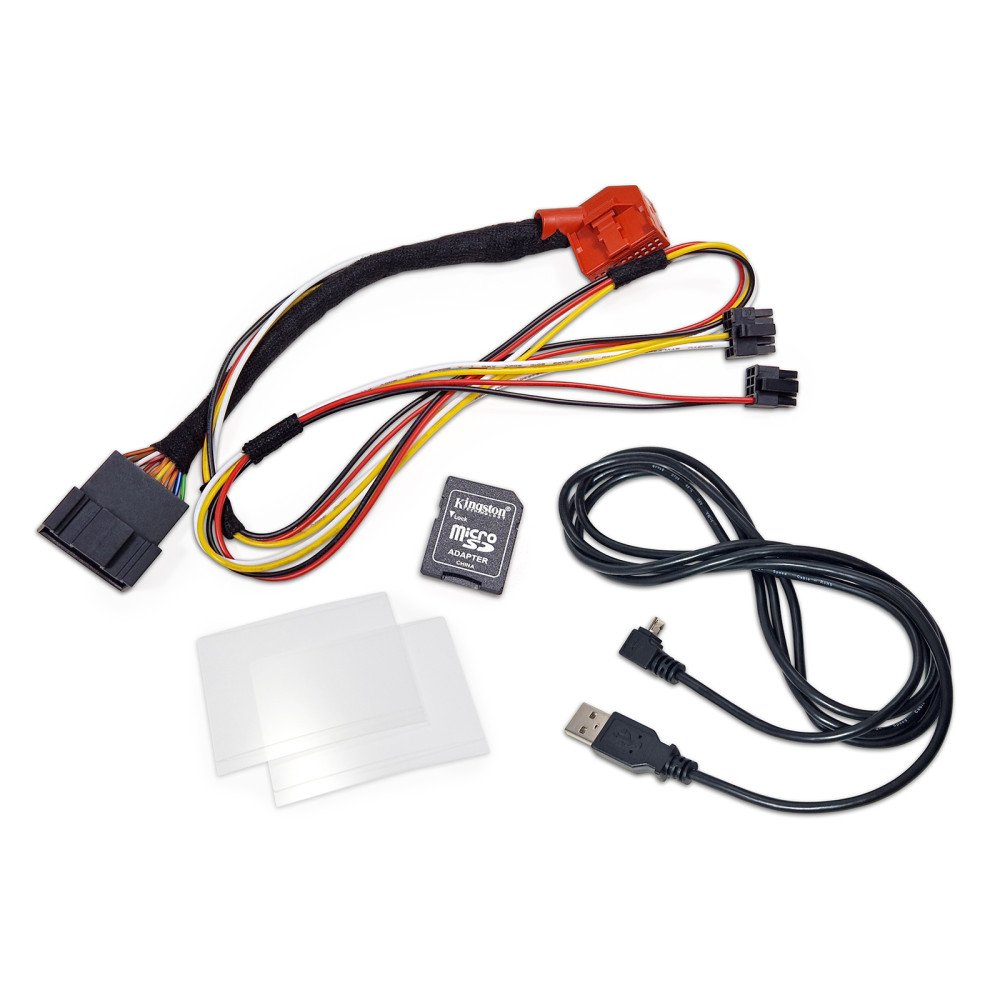

What’s included

• MFD28 Gen2 data display integrated in the ventilation insert for LHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Anti-reflection display foil

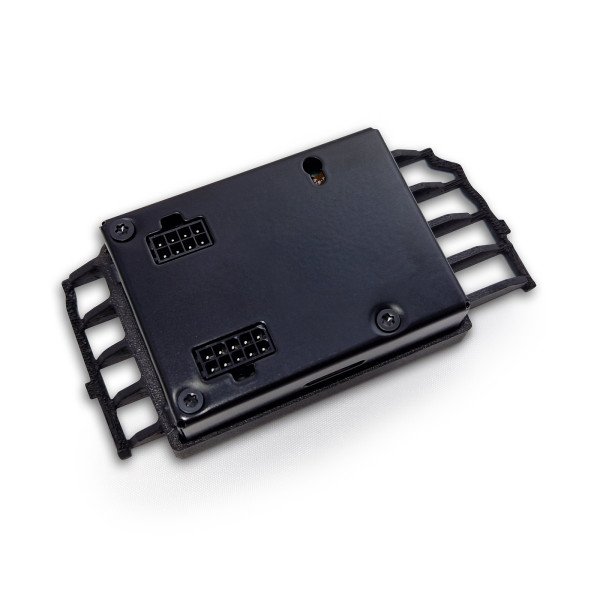

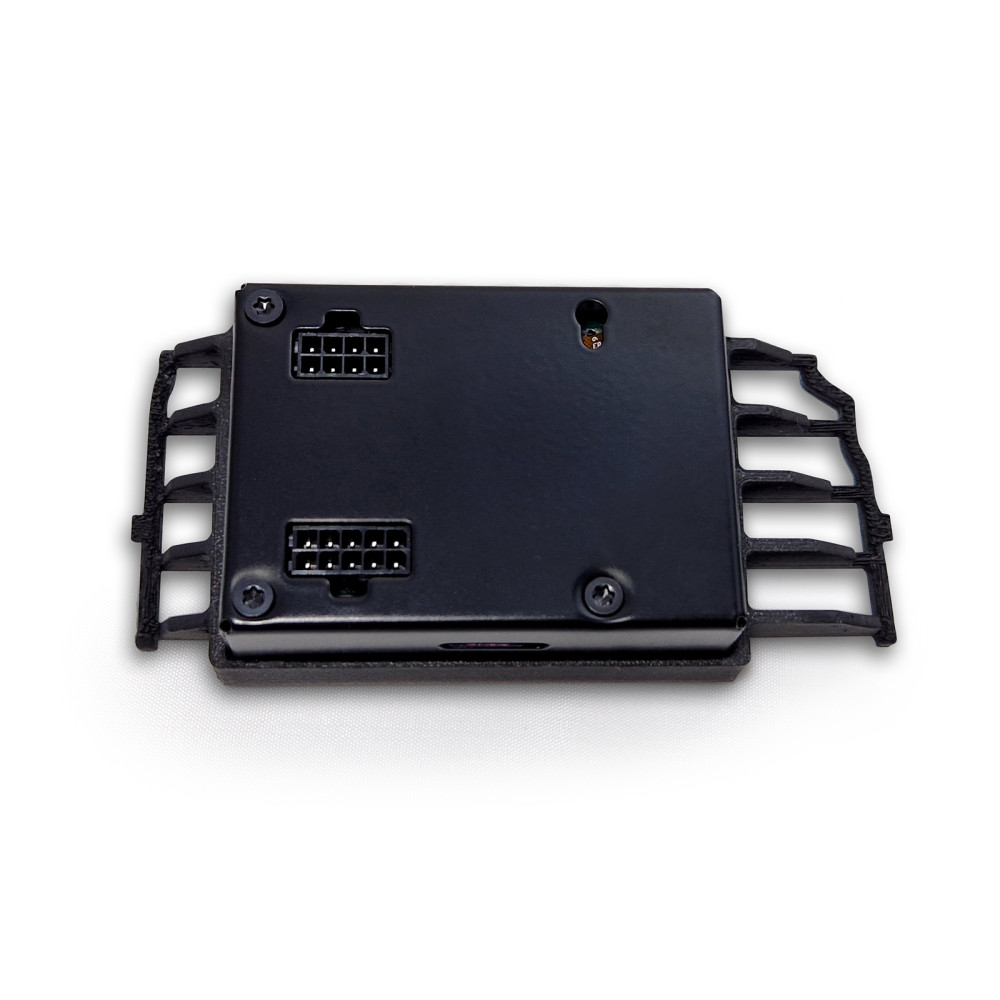

Connections and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked sensors are pre-defined in the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K EGT converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)

A pre-assembled AIN wiring harness can be used for connection.

An external 8-LED shift light can also be connected; flash colors, RPM limits, and behavior are configured directly on the display.

An ethanol sensor connects directly to the display. A 10k pull-up resistor between 5V and signal is required to view and log ethanol content and temperature.

Advanced functions

• Math channels: Calculate sensors from other sensor channels
• User table: Create additional sensors using 2D or 3D maps

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST10 – pressure sensor 6.5 bar relative (95 psi)
