CANchecked MFD28 Gen2 for VW Golf MK5

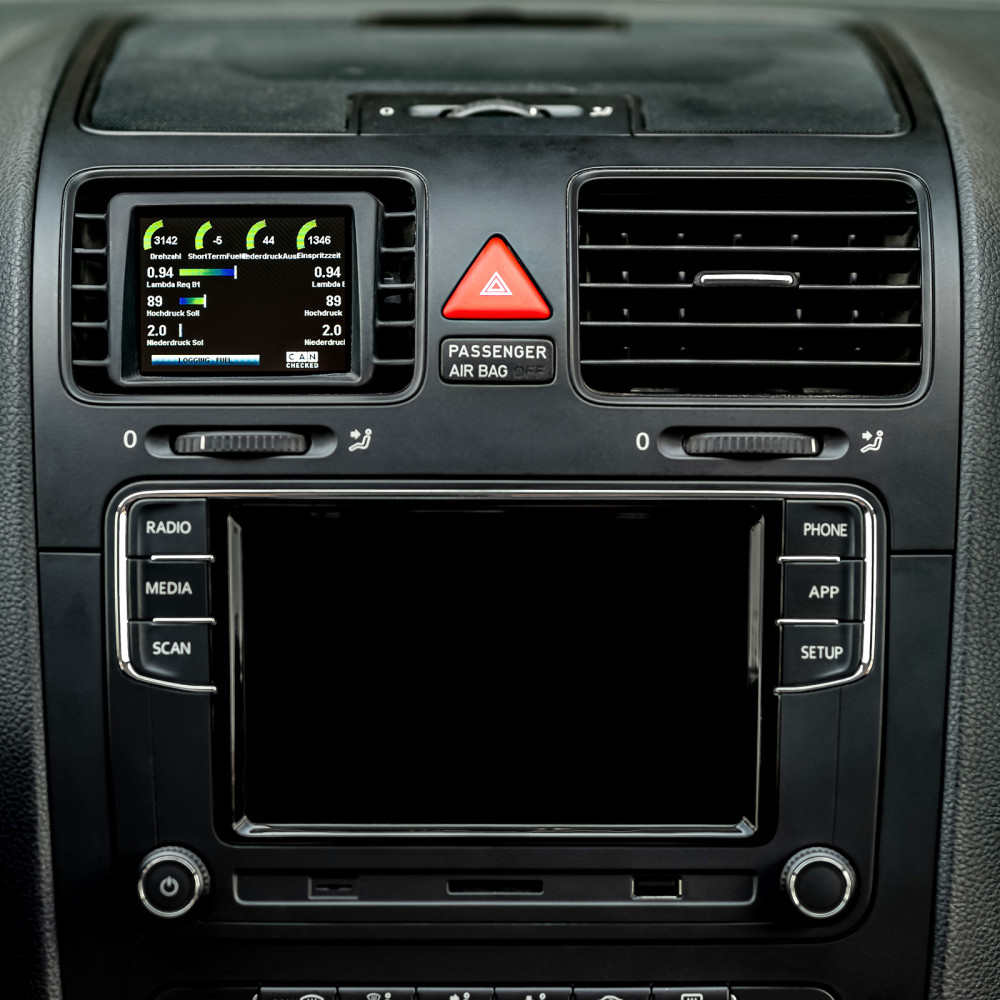

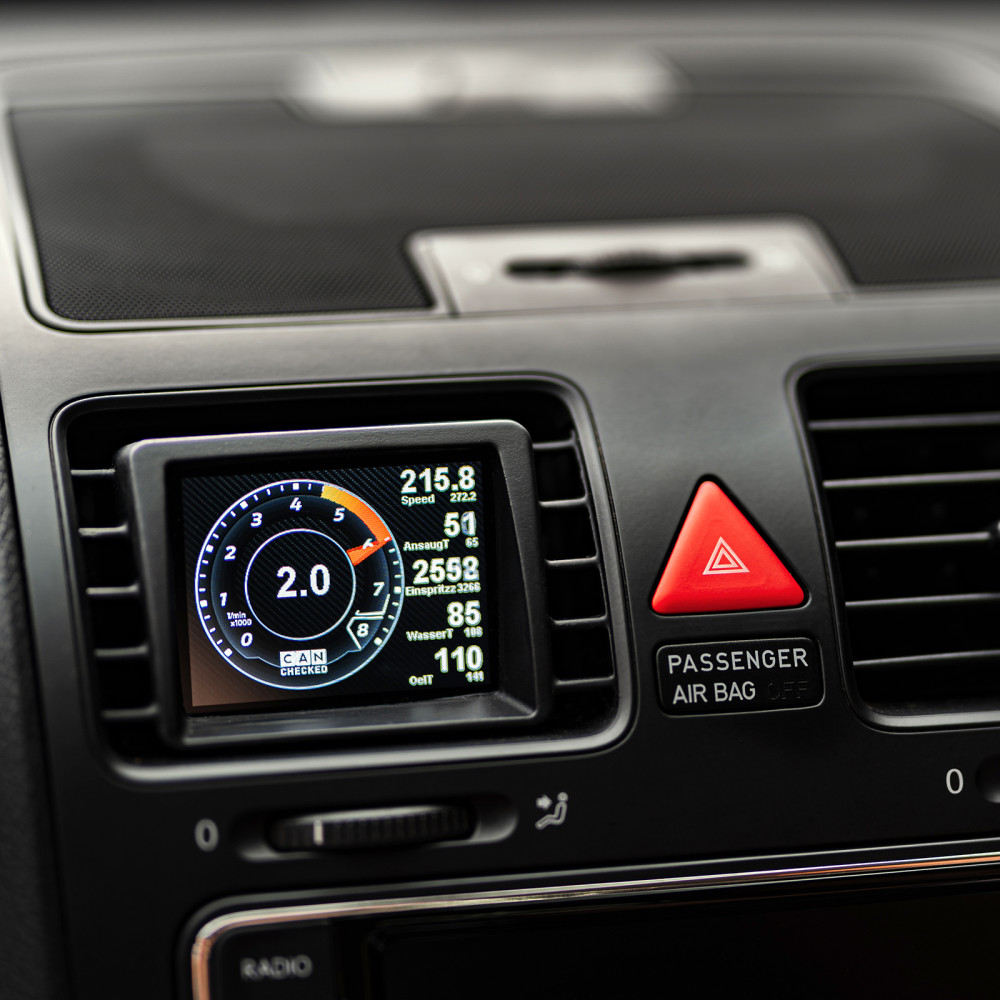

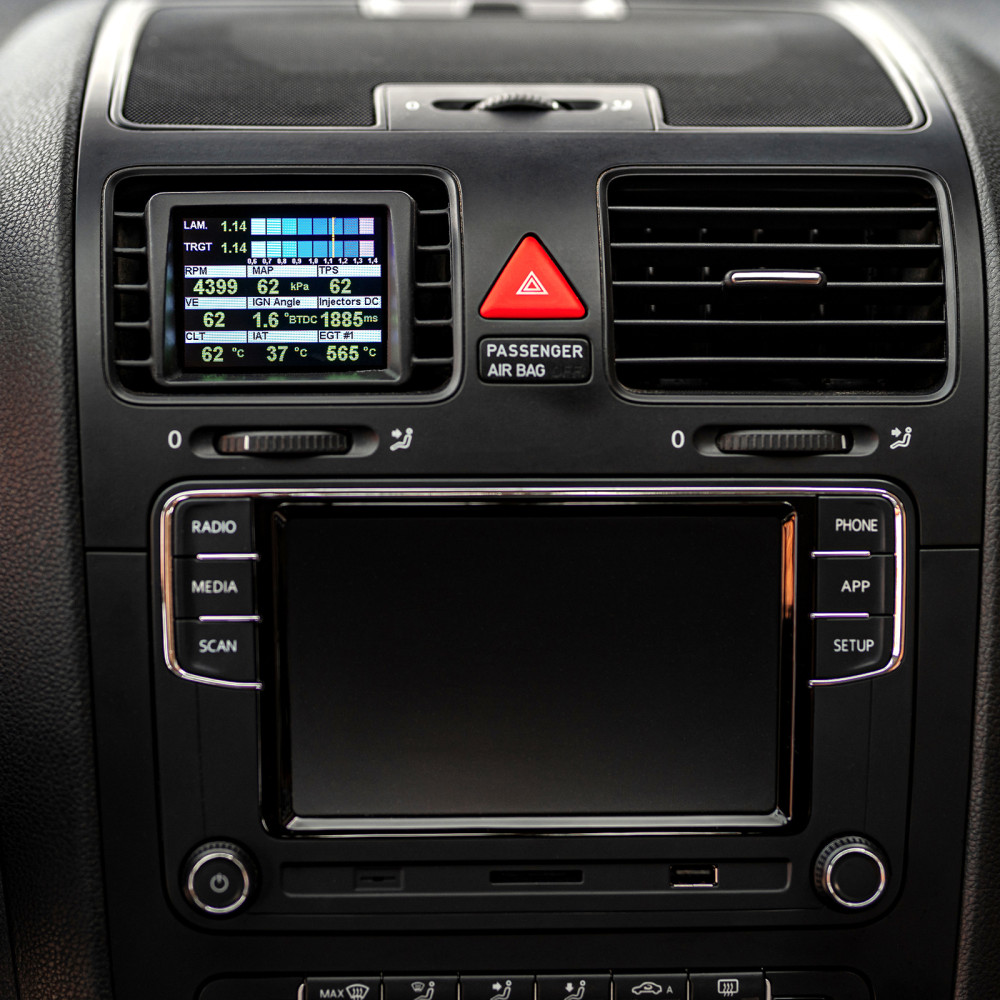

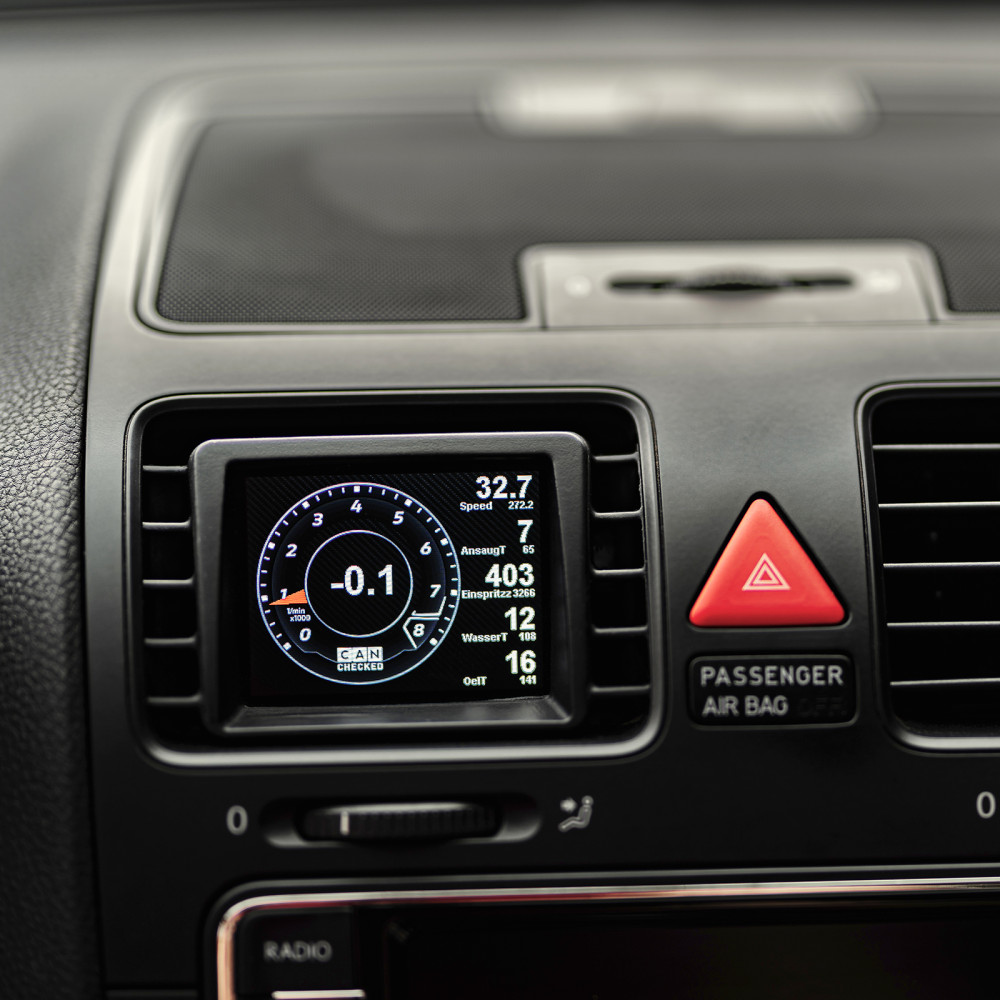

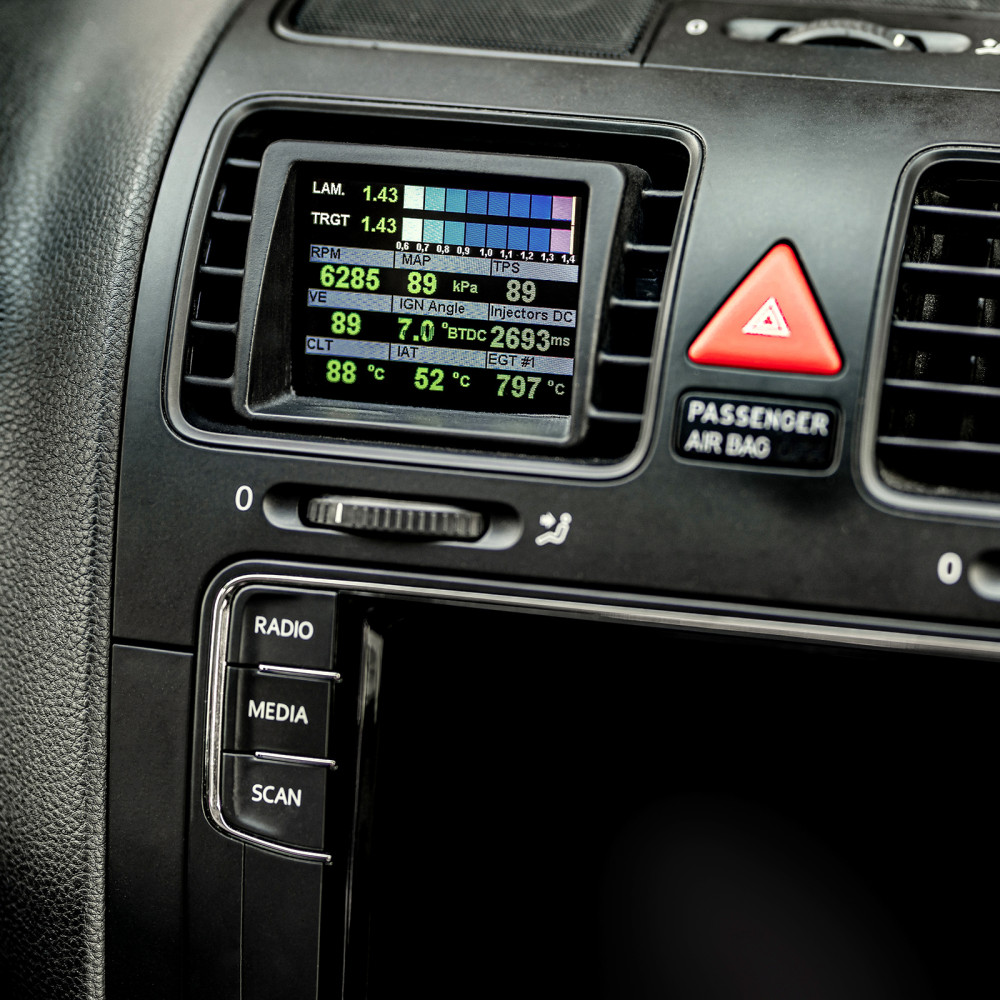

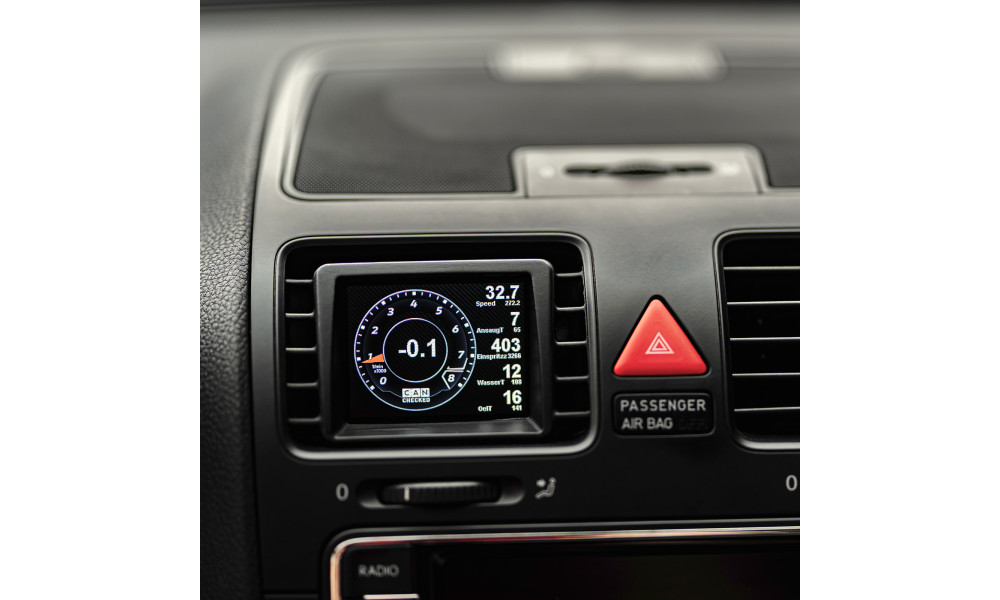

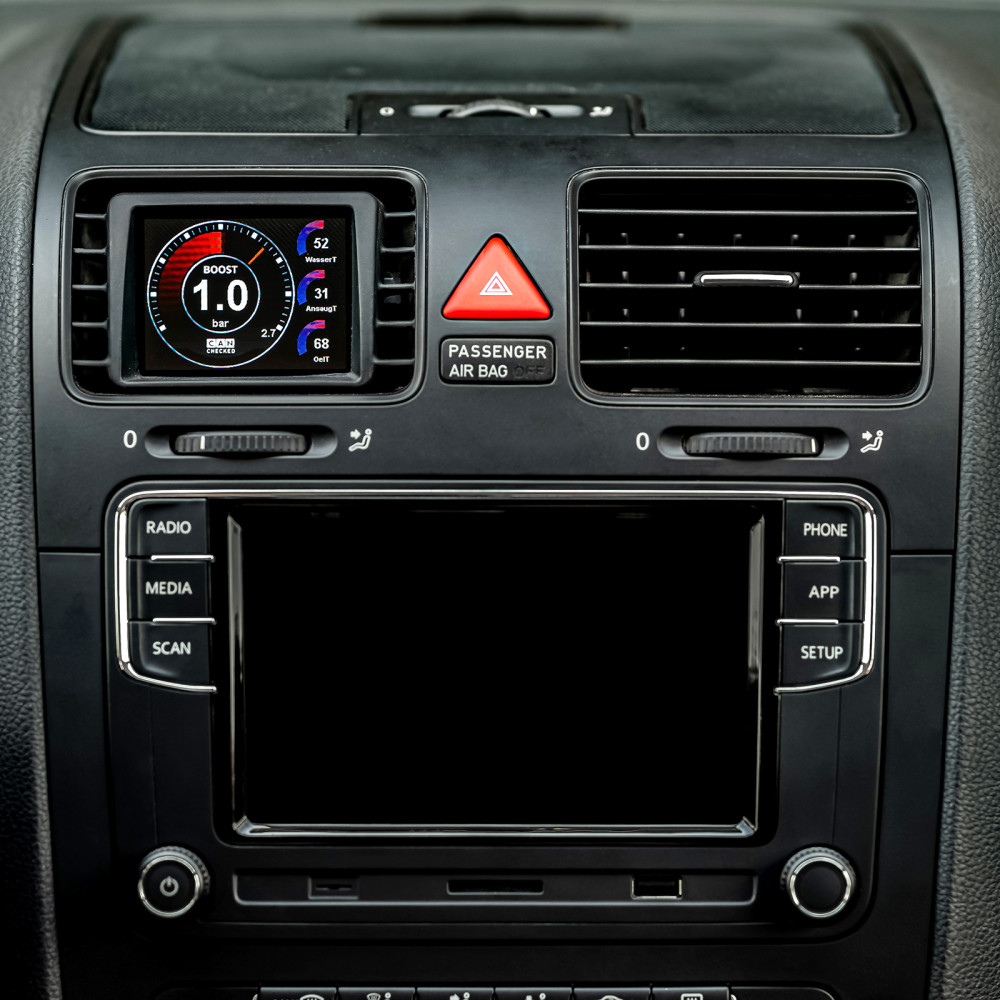

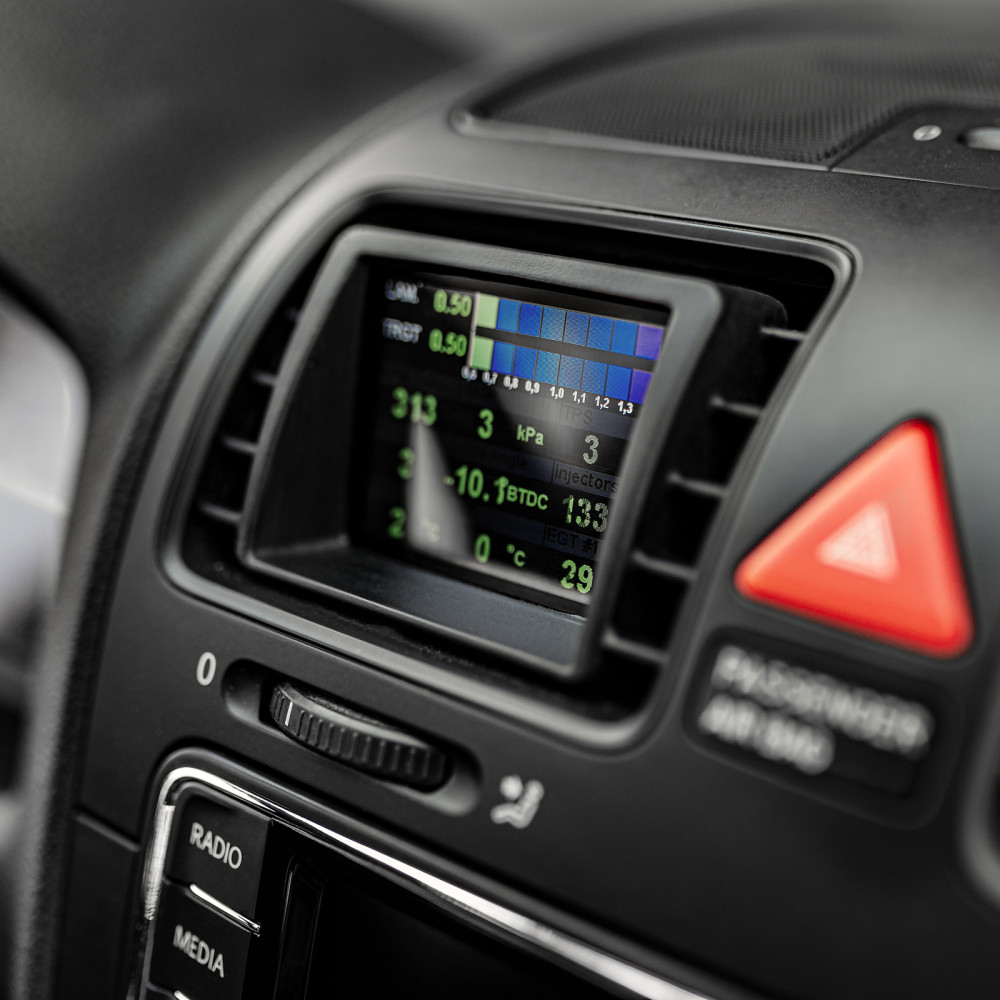

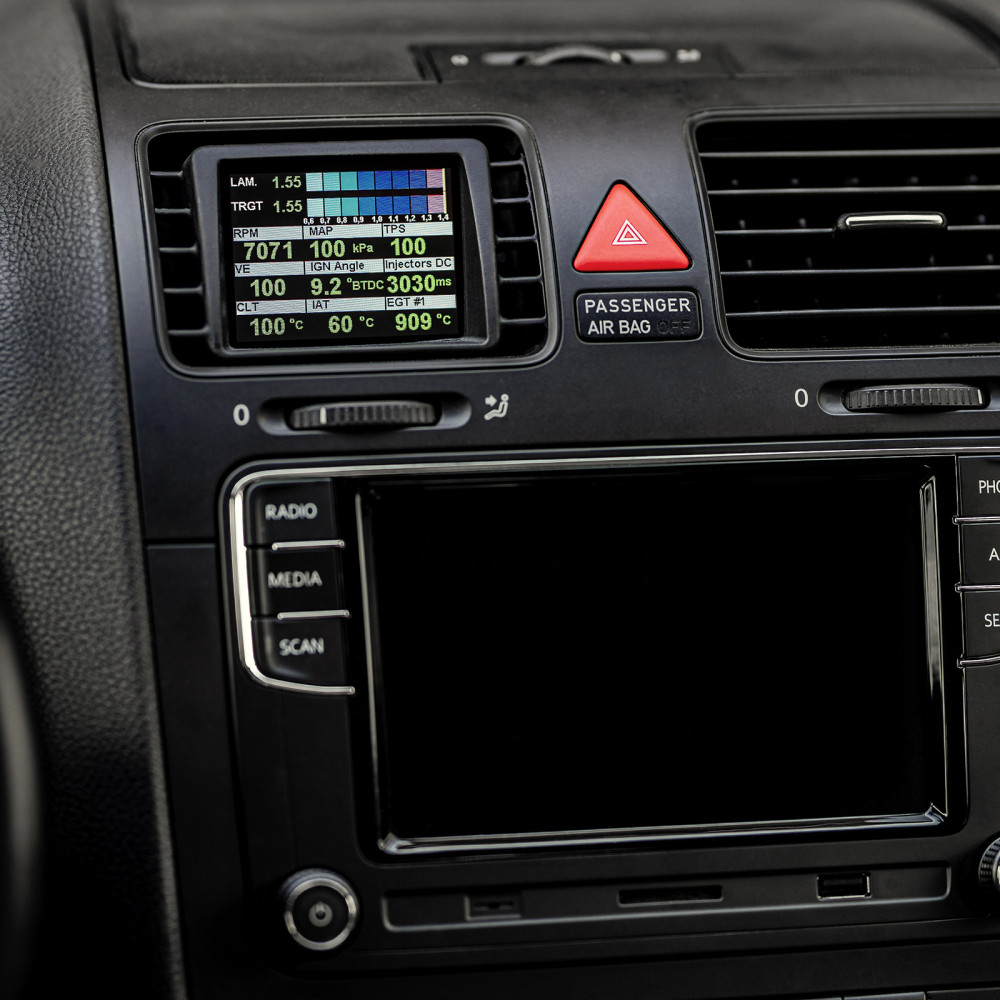

The vehicle-specific MFD28 Gen2 replaces an air vent with a fully integrated data display while still allowing airflow past the screen. Installation is designed to be DIY-friendly, with illustrated instructions available for most displays.
Key features

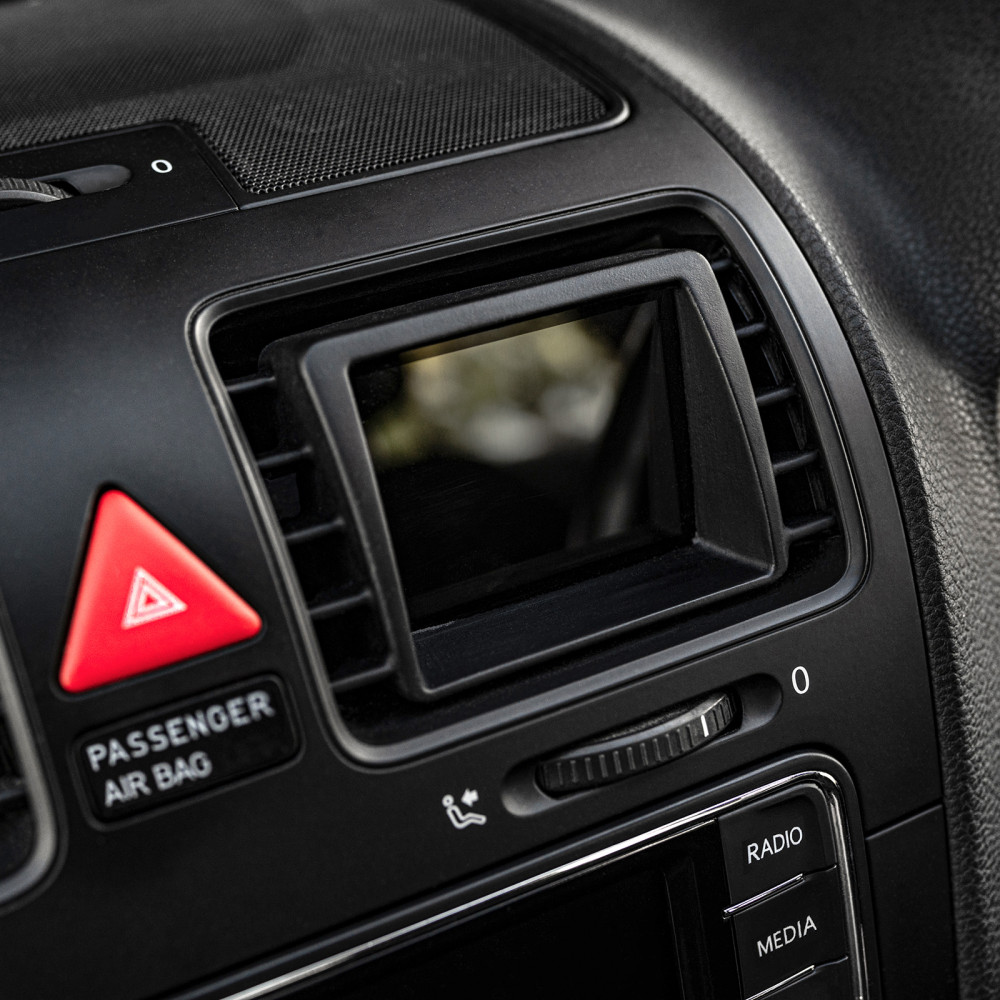

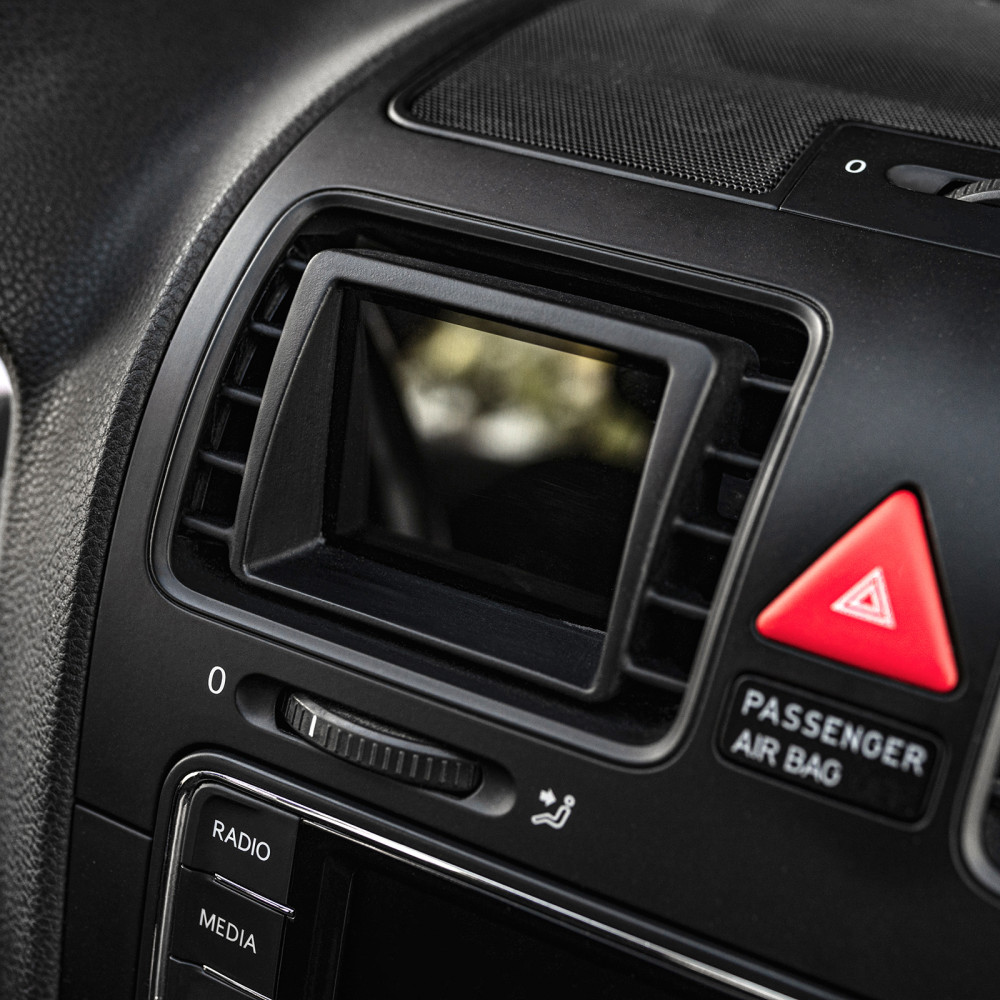

- OEM-style integration: Vehicle-specific bezel with retained vent airflow
- CAN bus data: In-depth vehicle readouts comparable to manufacturer diagnostic tools
- Gear display: Via CAN bus or calculated from speed and RPM
- Touchscreen operation: Page navigation with swipe gestures

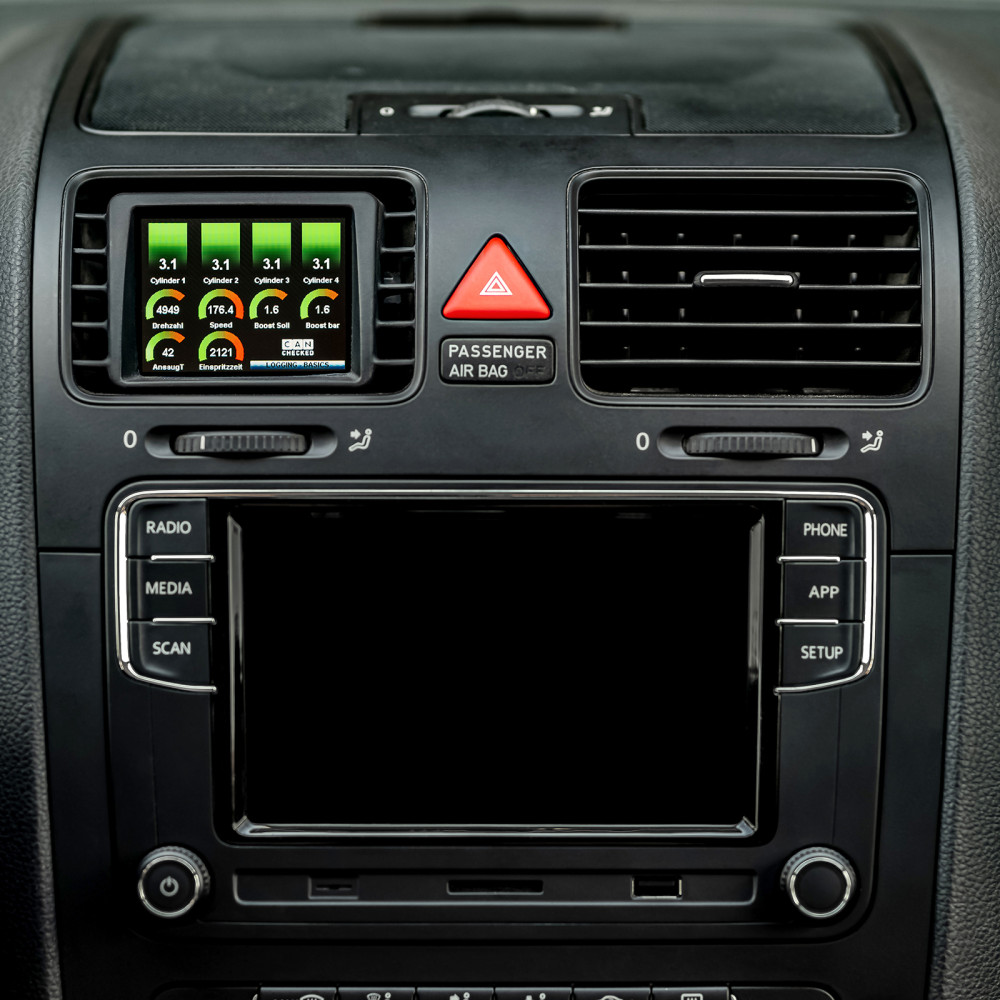

- Custom pages: Create layouts, add images, or use a start animation
- Sensor inputs: Up to 4 analog inputs plus direct ethanol sensor connection
- CAN switching: Use the display as a keypad to send custom CAN messages
- Configurable alarms: Set warning thresholds (e.g., exhaust gas temperature > 900°C)
- Data logging: Save logs to the internal SD card

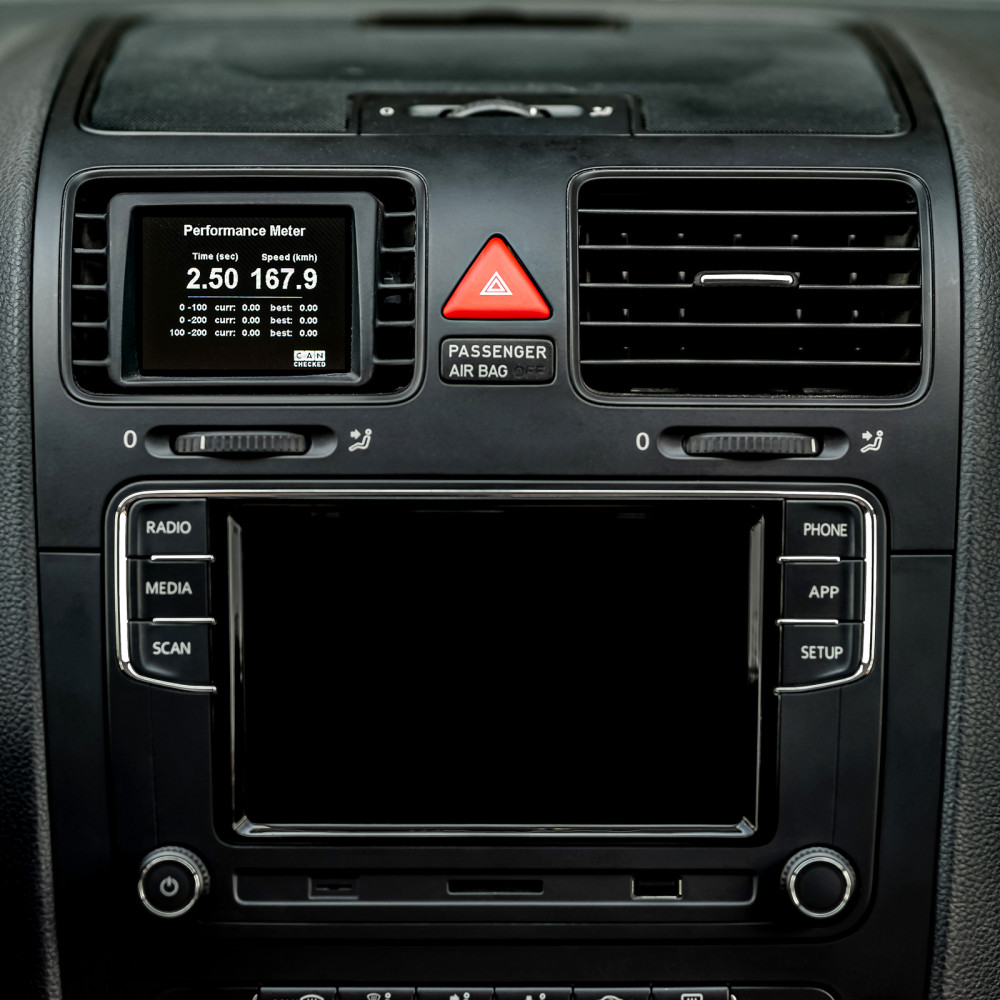

- Performance meter: 0–100, 100–200, and 0–200 timing without extra hardware
- DTC support*: Read/clear faults for engine, transmission, ABS, and all-wheel drive
- Auto dimming*: Dims with the instrument panel
*Not available on all protocols.
Pages and layouts
- Delivered with predefined sample pages
- Create your own pages (up to 10 total)
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop positioning and scalable widget sizing
- Fully adjustable widget colors
- Up to 64 widgets per page
Display Setup Software (DSS)
DSS is used to fully customize the display. It includes a log viewer to download and review log files, an integrated CAN logger, and a TRI Editor to manage sensors (CAN bus or internal), set min/max warning limits, and rename sensors.
Supported ECU values
The display supports CAN bus data queries (UDS, TP2, manufacturer-specific protocols). It ships with predefined TRI/TRX files that define which sensors are queried; coverage depends on engine, and values can be added later.
Examples of available channels
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda / mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

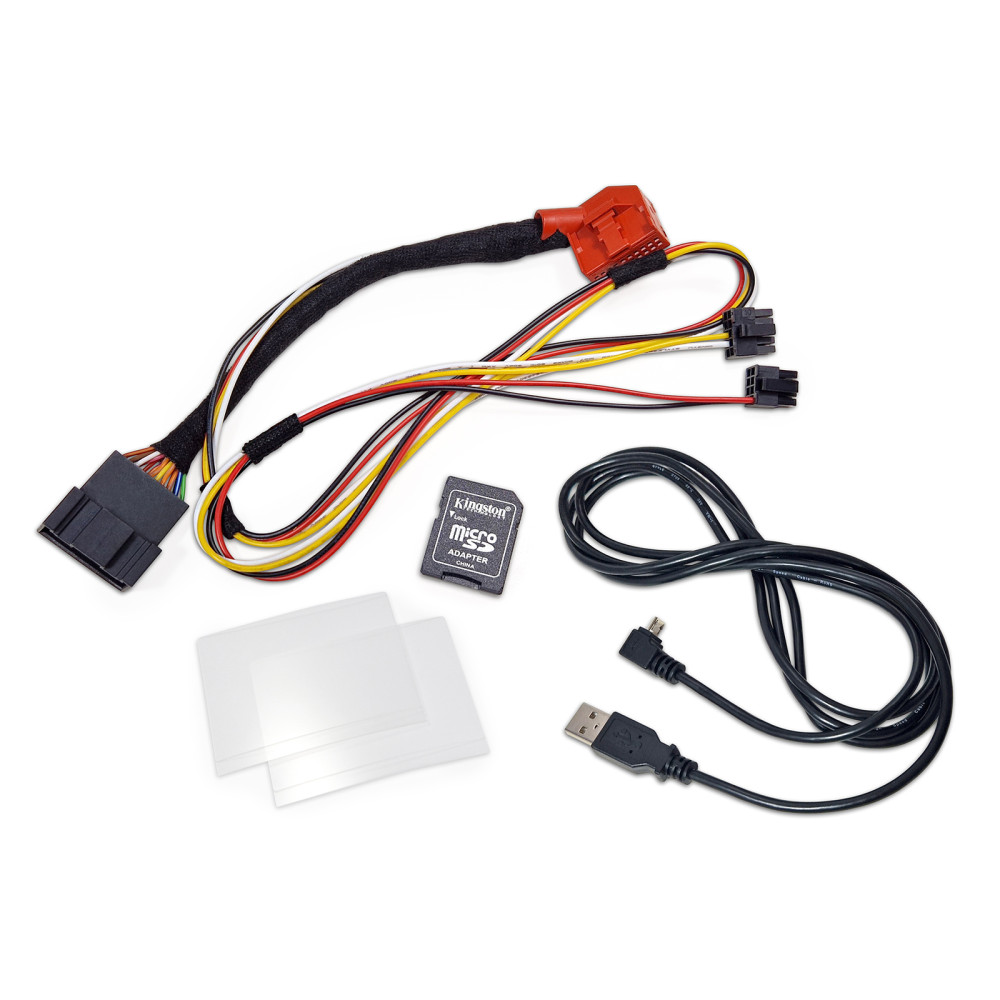

What’s included
- MFD28 Gen2 data display integrated in the ventilation insert (LHD & RHD vehicles)
- Vehicle-specific connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Anti-reflection display foil
Connections and expansion
Connect sensors via four analog inputs. Linear 0–5V and NTC sensors are supported. CANchecked sensors are predefined in the TRI/TRX files and only need to be wired:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K exhaust gas temperature converter (TCC01)
- AIN3: 0–10 bar pressure sensor (FLP01)
- AIN4: 0–5.5 bar absolute boost pressure sensor (BST10)
A pre-assembled AIN wiring harness can be used for connection. An external shift light with eight LEDs can also be connected, with colors and shift points configurable on the display.
An ethanol sensor connects directly to the display; a 10K pull-up resistor between 5V and signal is required to view and log ethanol content and temperature.
Advanced functions
- Math channels: Calculate values using multiple sensors
- User table: Generate additional sensors using 2D or 3D maps
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – temperature sensor for liquids, 1/8" NPT
- CC22903 TCC01 – type K converter, 0–1250°C
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST10 – pressure sensor 6.5 bar relative (95 psi)
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Volkswagen | Golf | MK5, 1K, 2003 - 2008 | - |
| VW | Golf | MK5, 1K, 2003 - 2008 | - |
