CANchecked MFD28 Gen2 Vent Display for Toyota GT86 (ZN6)

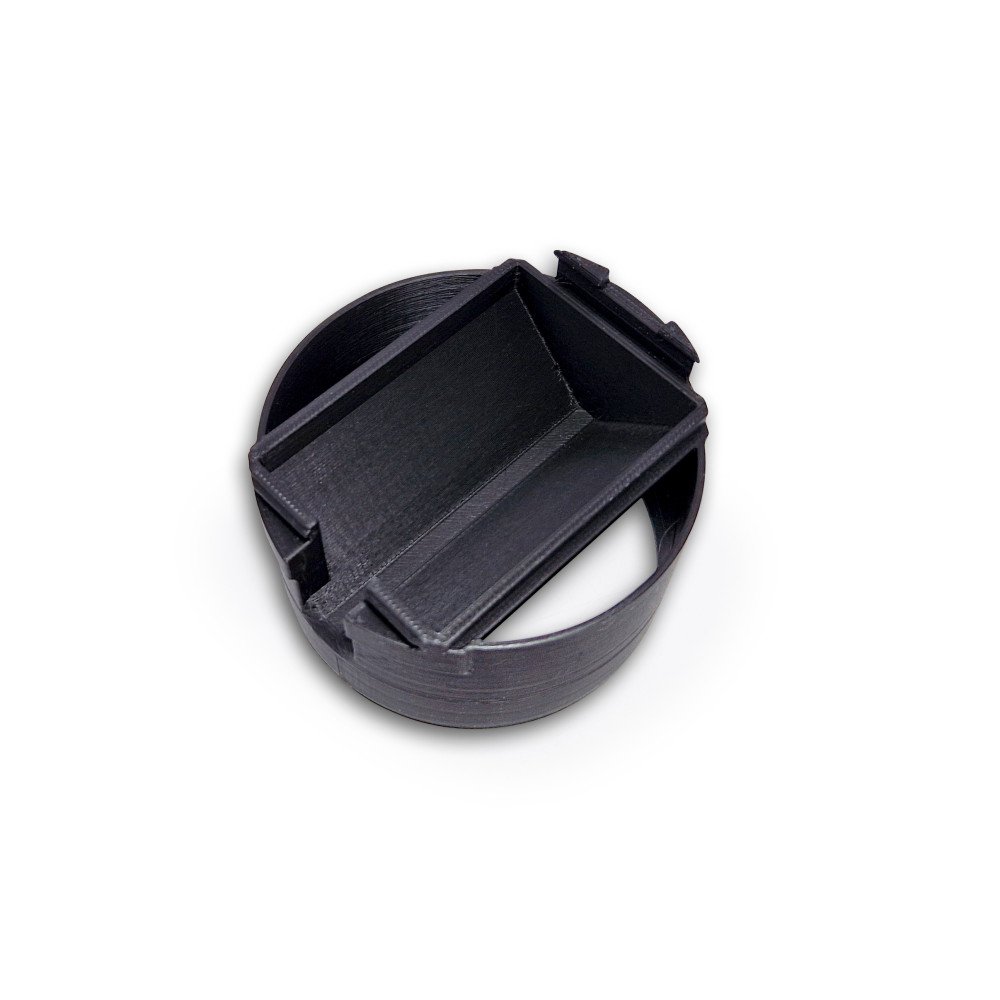

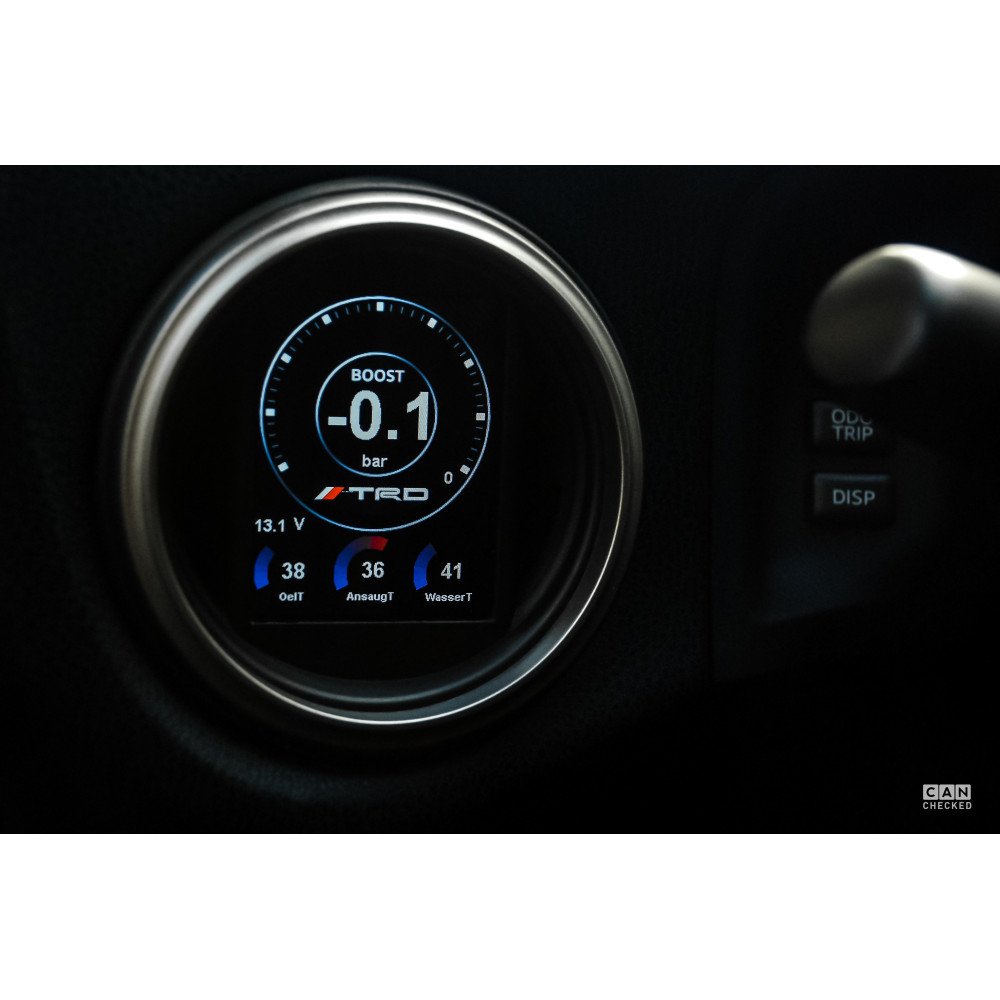

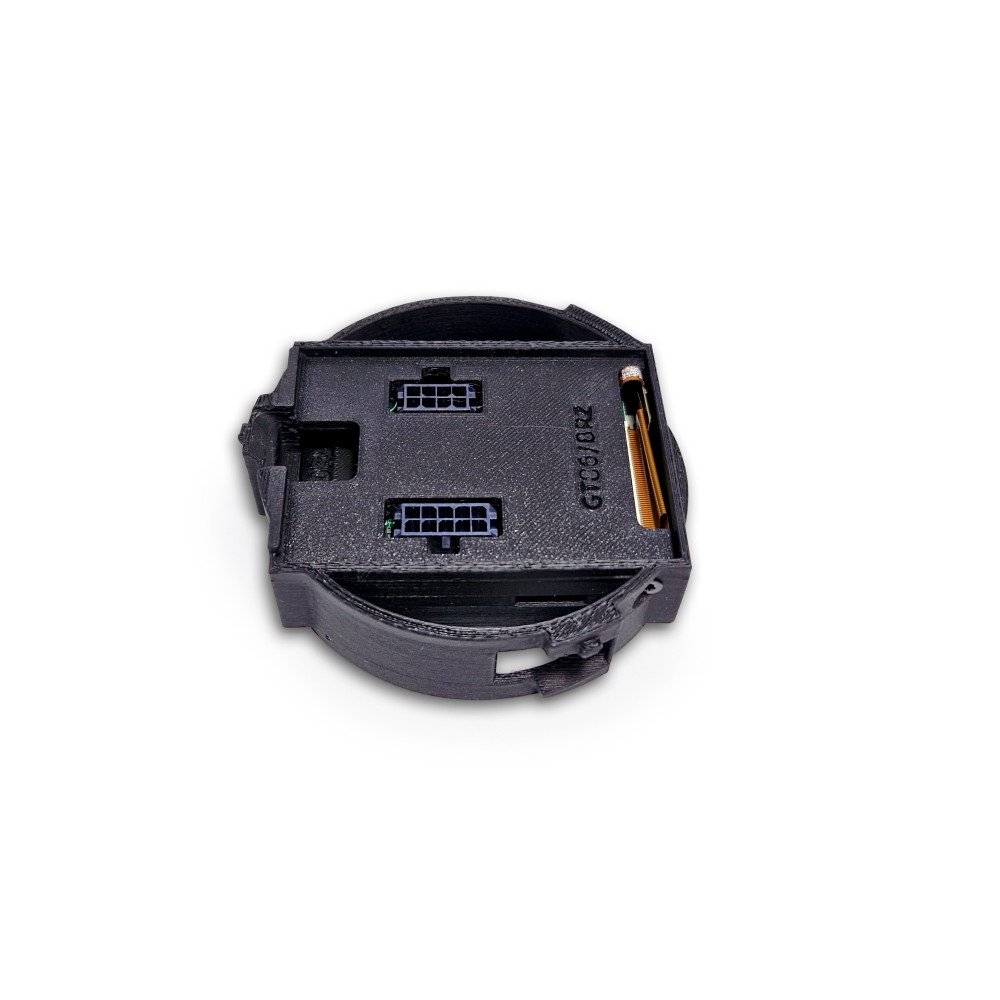

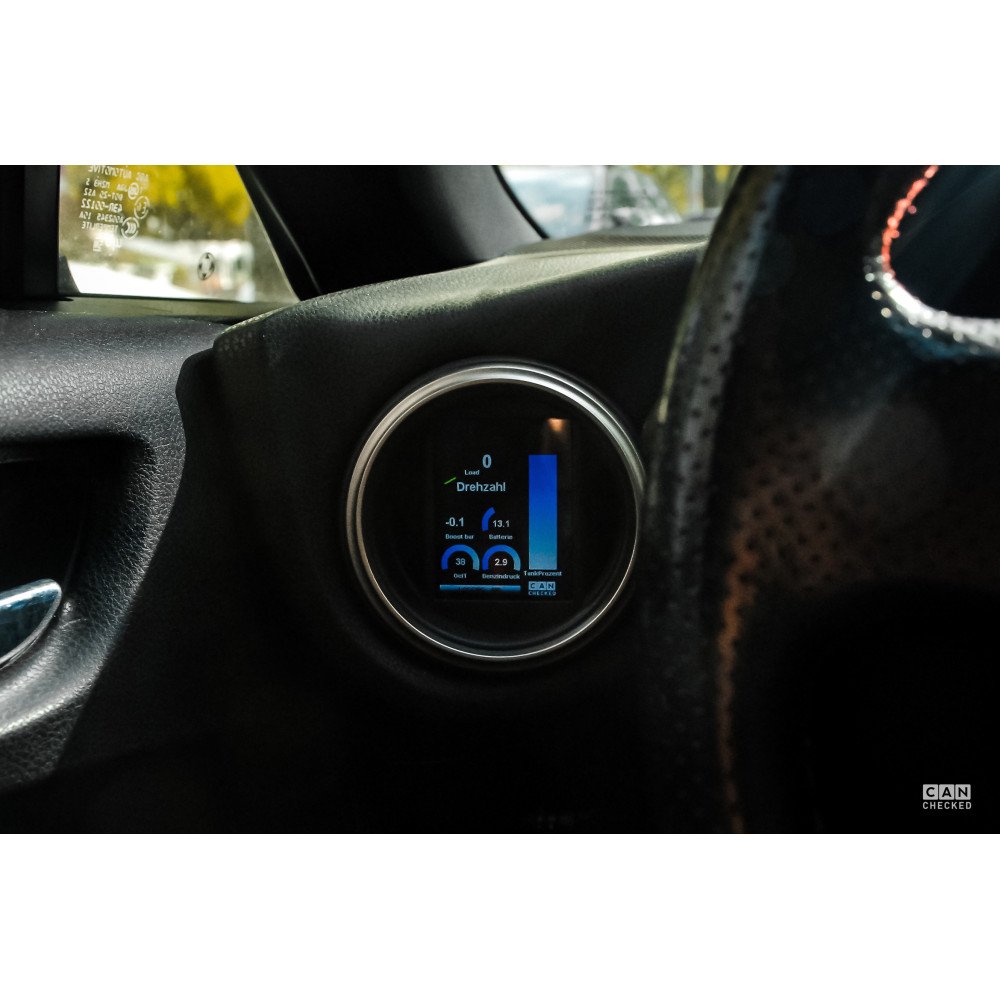

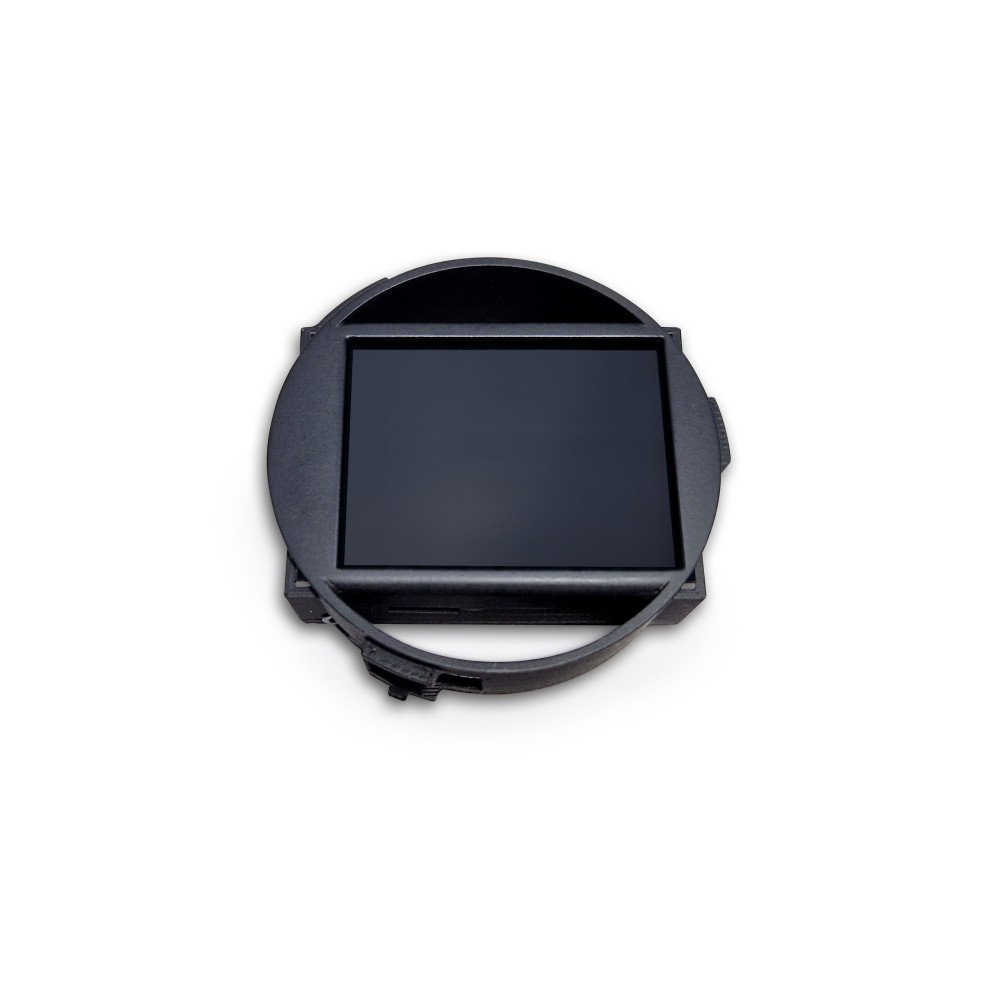

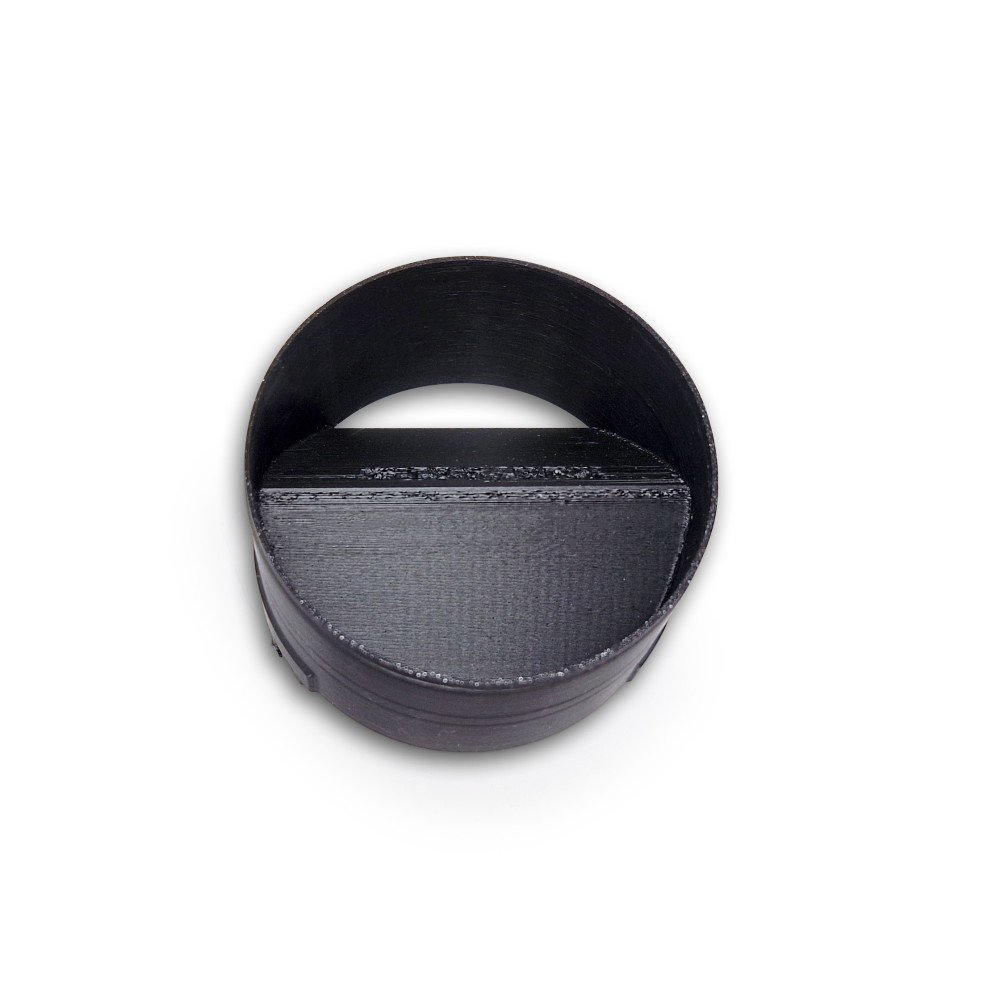

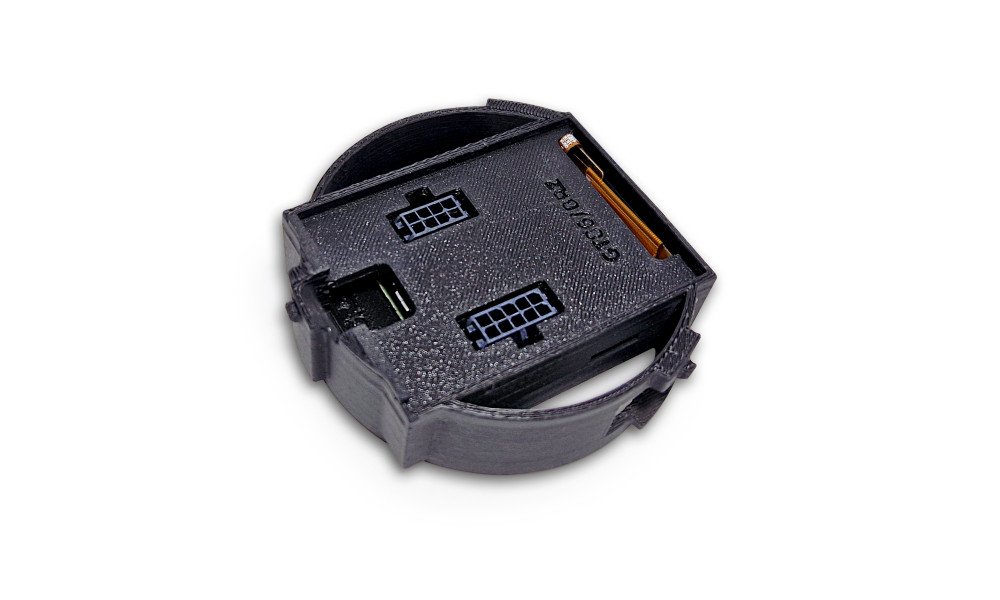

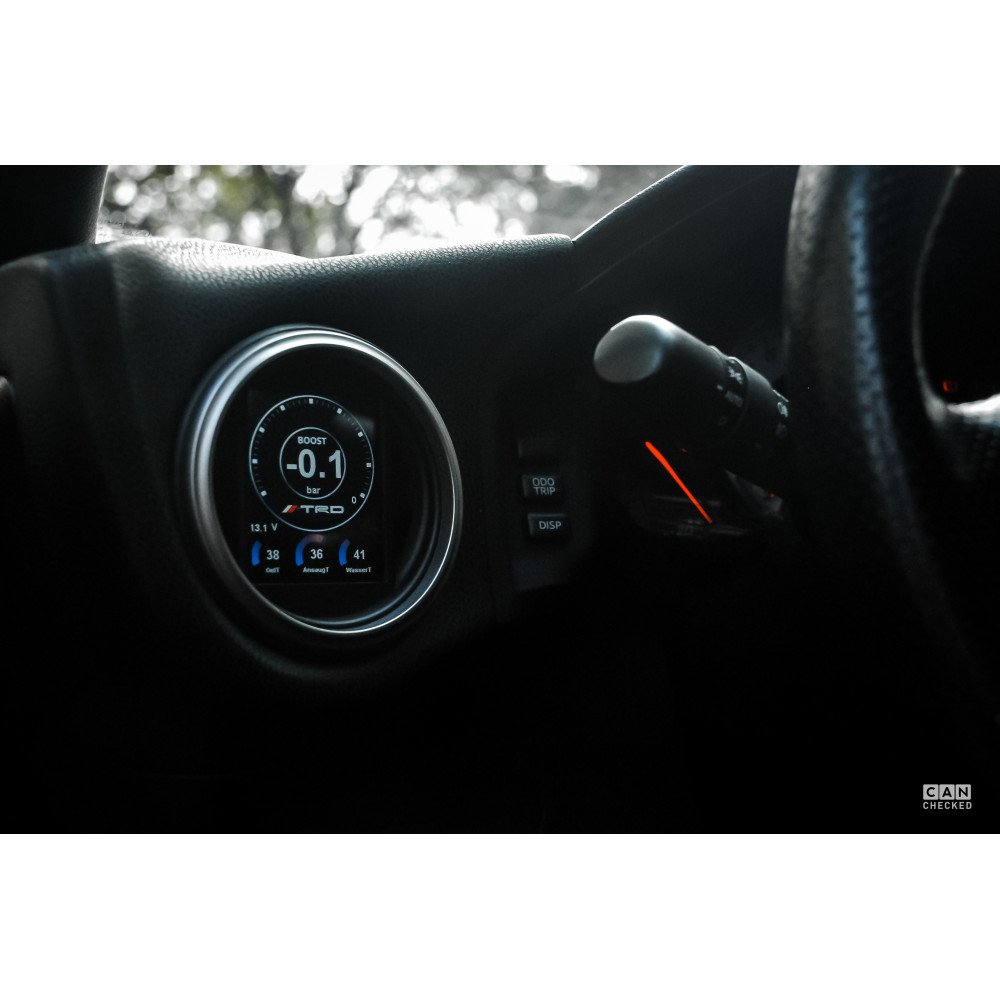

The MFD28 Gen2 replaces an air-vent insert with a vehicle-specific display solution designed to fit cleanly while still allowing airflow past the screen. It’s intended for straightforward installation and is commonly supported by illustrated installation instructions.

Key features

• Vehicle-specific integration: Bezel design keeps ventilation function.
• CAN bus data: In-depth ECU data access comparable to manufacturer diagnostic readouts.

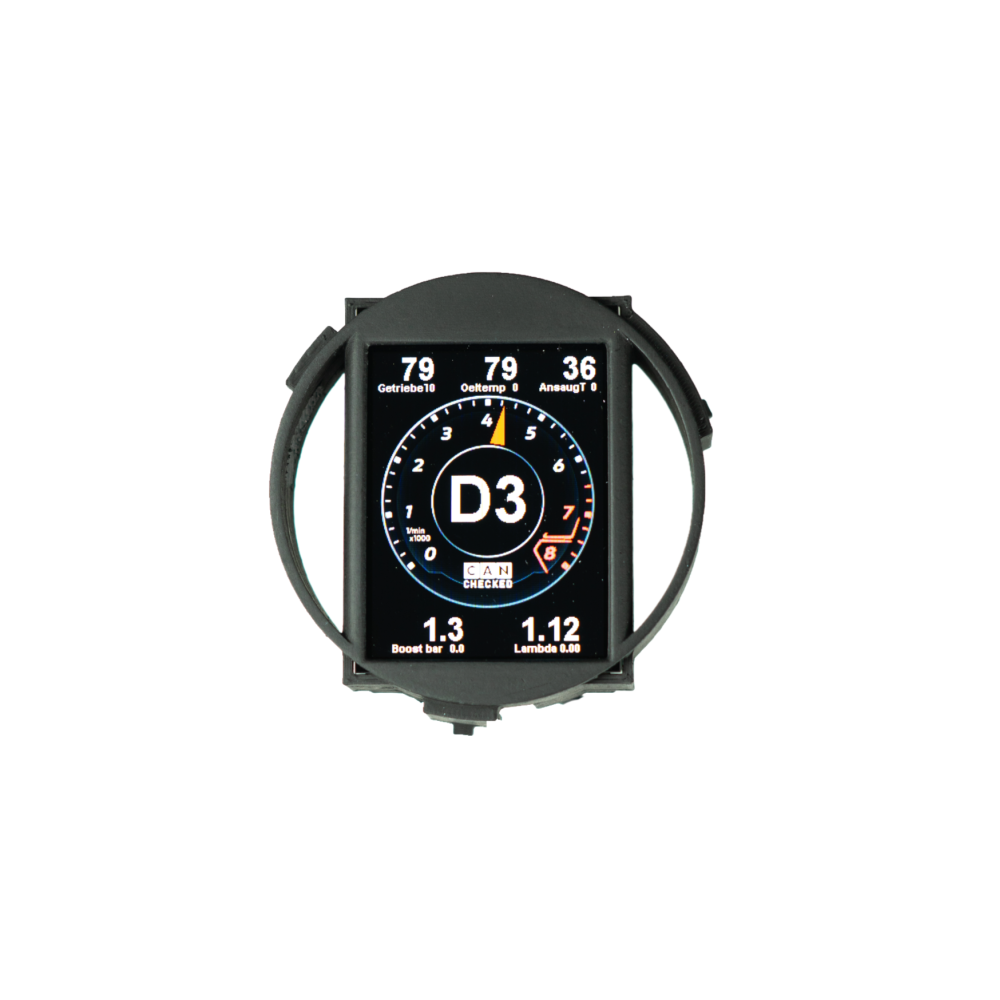

• Gear display: Via CAN bus or calculated from speed and RPM.
• Touchscreen operation: Page navigation with swipe gestures.
• Page customization: Create your own pages, add pictures, and set a start animation.
• Inputs: Up to 4 analog inputs plus direct ethanol sensor input.
• CAN switching: Use the display as a keypad and send custom CAN messages.
• Configurable alarms: User-defined warnings (e.g., prominent alert at exhaust gas temperature > 900°C).
• Logging: Save logs to the internal SD card for later analysis.
• Performance meter: Measure 0–100, 100–200, and 0–200 times without additional hardware.
• DTC reading/clearing*: Engine ECU, transmission, ABS, and all-wheel drive.
• Auto dimming*: Dims with the instrument panel.

Display pages & views

• Delivered with predefined sample pages.
• Create and edit your own pages (up to 10 pages).
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop layout with scalable widgets.
• Fully adjustable widget colours.
• Up to 64 widgets per page.

Display Setup Software (DSS)

DSS is used to customize the display, download and review log files, and use the integrated CAN logger. The integrated TRI Editor lets you configure sensors (CAN bus or internal), set min/max warning thresholds, and rename sensors.

Supported data & vehicle communication

The display supports CAN bus data query (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). It ships with predefined TRI/TRX files that define which sensors are queried (varies by engine). If values are missing, they can be added later.

Example ECU values (extract)

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Connection & expansion

External sensors can be connected via four analog inputs. Supported sensor types include linear 0–5V and NTC. CANchecked in-house sensors are already stored in the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

A pre-assembled AIN wiring harness can be used for connection.

An external 8-LED shift light can be connected; flash colours and RPM limits are configurable on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor between 5V and the signal is required to view and log ethanol content and temperature.

Advanced functions

• Math Channels: Calculate values from multiple sensors.
• User Table: Create additional sensors using 2D or 3D maps.

What’s included

• MFD28 Gen2 data display integrated into a ventilation insert for LHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Anti-reflective display foil

Optional accessories

• CC24000 SLM08 — external switching lightning module
• CC22780 ANC04 — four-way AIN harness
• CC22100 CBD08 — eight-way CAN distribution hub
• CC22902 NTC01 — liquid temperature sensor, 1/8" NPT
• CC22903 TCC01 — Type K converter, 0–1250°C
• CC22901 FLP01 — pressure sensor, 0–10 bar (145 psi), M10x1
• CC22900 BST01 — pressure sensor, 0–5.5 bar absolute (80 psi)

* Not available on all protocols.
