BMW E46 CAN-Bus Display (MFD28 Gen2)

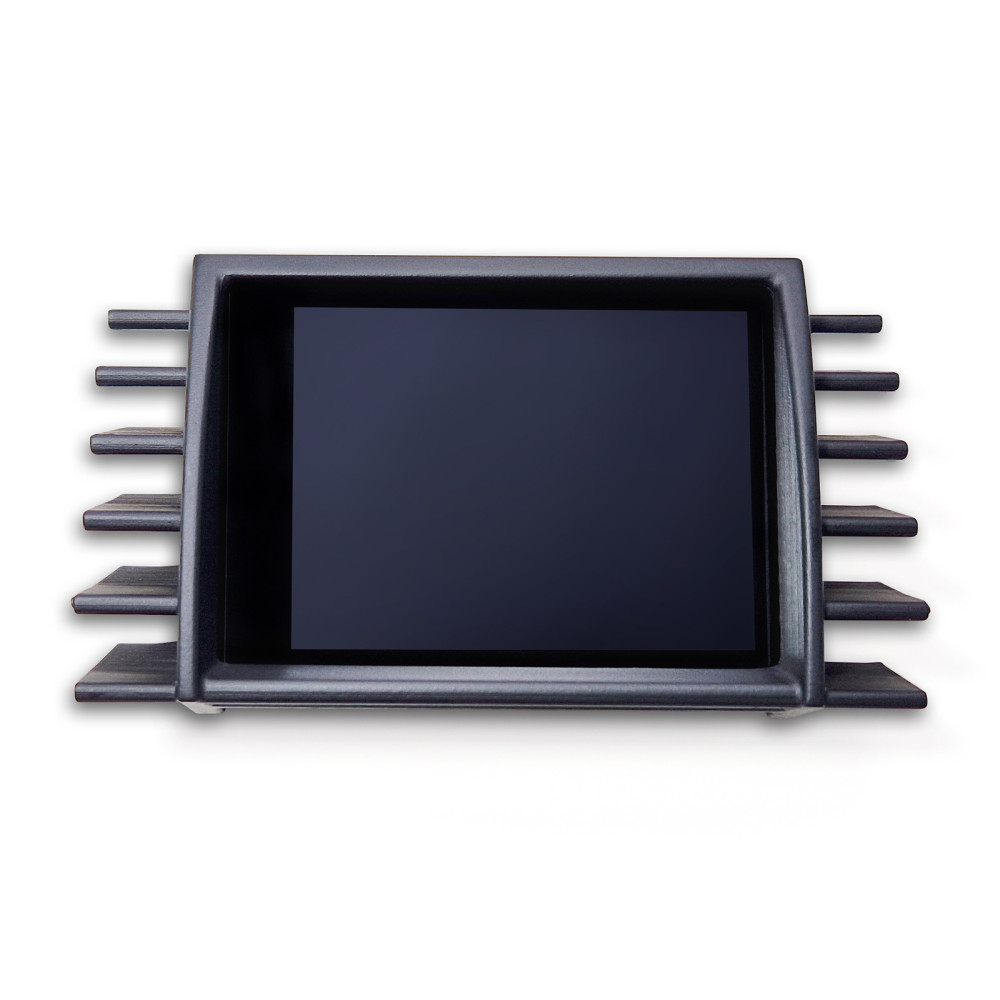

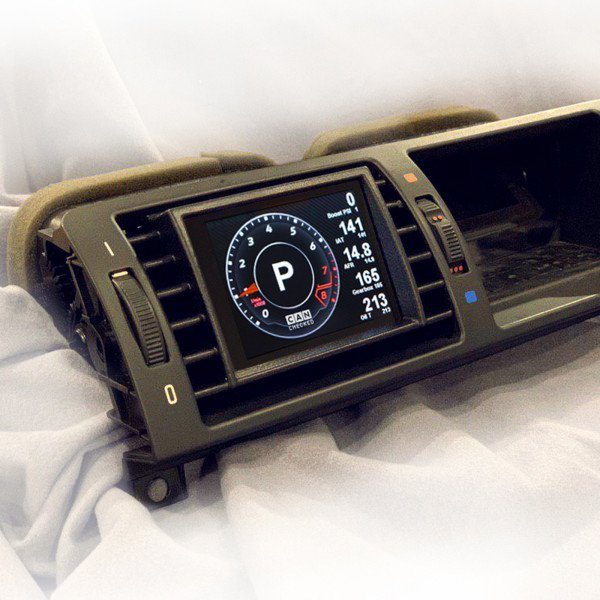

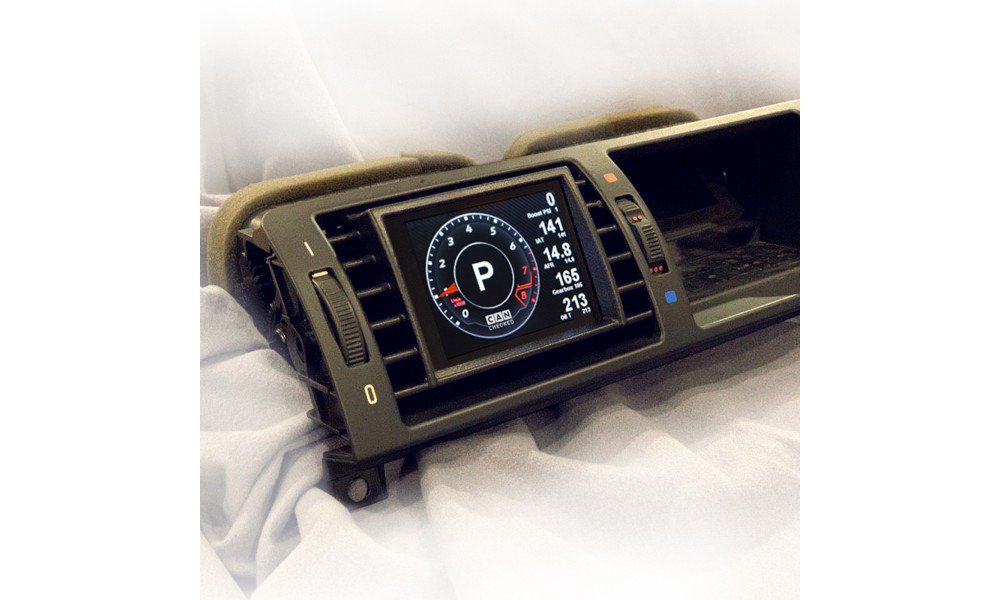

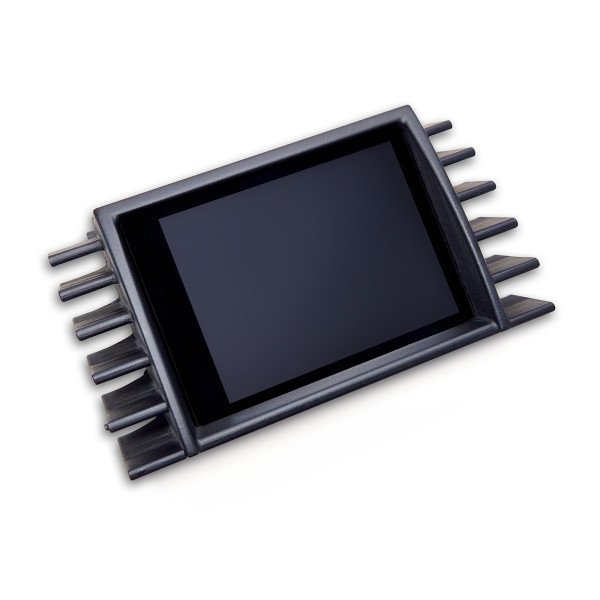

This in-dash display is designed for BMW E46 models and reads vehicle data directly via the CAN-Bus protocol. It installs with a vehicle-specific cable set and uses a model-specific bezel to match the factory cockpit layout.

Key Features

• OEM-style cockpit integration with custom bezel
• CAN-Bus sensor access (up to 128 sensors, depending on vehicle/engine)
• 10 configurable pages/modes via DSS (Display Setup Software), plus pre-configured pages for quick setup
• Page switching via the original cruise control switch
• Data logging to internal SD card (continuous or on-demand); last trip is saved
• Customizable alerts (example: exhaust gas temperature threshold at 900 °C)
• ECU fault reading and clearing on the display
• Optional anti-glare protection film for improved readability

What You Can Monitor (examples)

A pre-configured TRI file is included by default, listing available queries. Not every engine provides all values.

• Temperatures: coolant, intake air, exhaust gas, transmission
• Pressures: boost, ambient, oil
• Lambda/Fueling: lambda target/actual, short- and long-term lambda adjustment, MAF, engine load, torque
• Driver dynamics: brake pressure, vehicle speed, throttle angle / pedal position
• Other: RPM, total ignition angle, gear, battery voltage, ignition correction per cylinder

Performance & Display Functions

• Performance meter: acceleration timing for 0–100, 100–200, and 0–200
• Personalization: configurable start screen and selectable widgets

Analog Inputs, Sensors & Expansion

• 4 analog inputs supporting linear 0–5 V and NTC sensors (for oil temperature, fuel pressure, oil pressure, exhaust gas temperature, exhaust backpressure, and more)
• Ethanol sensor support via a digital input (flex-fuel): requires a 10K pull-up resistor between 5 V and signal; ethanol content and temperature can be displayed and logged
• CANchecked display sensors are integrated in the TRI/TRX files and can be connected directly:
  • AIN1: Temperature sensor
  • AIN2: Type K exhaust gas temperature probe
  • AIN3: Pressure sensor 0–10 bar
  • AIN4: Boost pressure sensor 0–5.5 bar absolute
• External 8-LED flash module support; configurable colors and RPM-limit indication

Advanced Configuration

• Math channels to combine sensor data
• User tables for additional virtual channels using 2D or 3D maps

Compatibility

• Suitable for BMW E46 models
• Frame versions for left-hand drive and right-hand drive are referenced

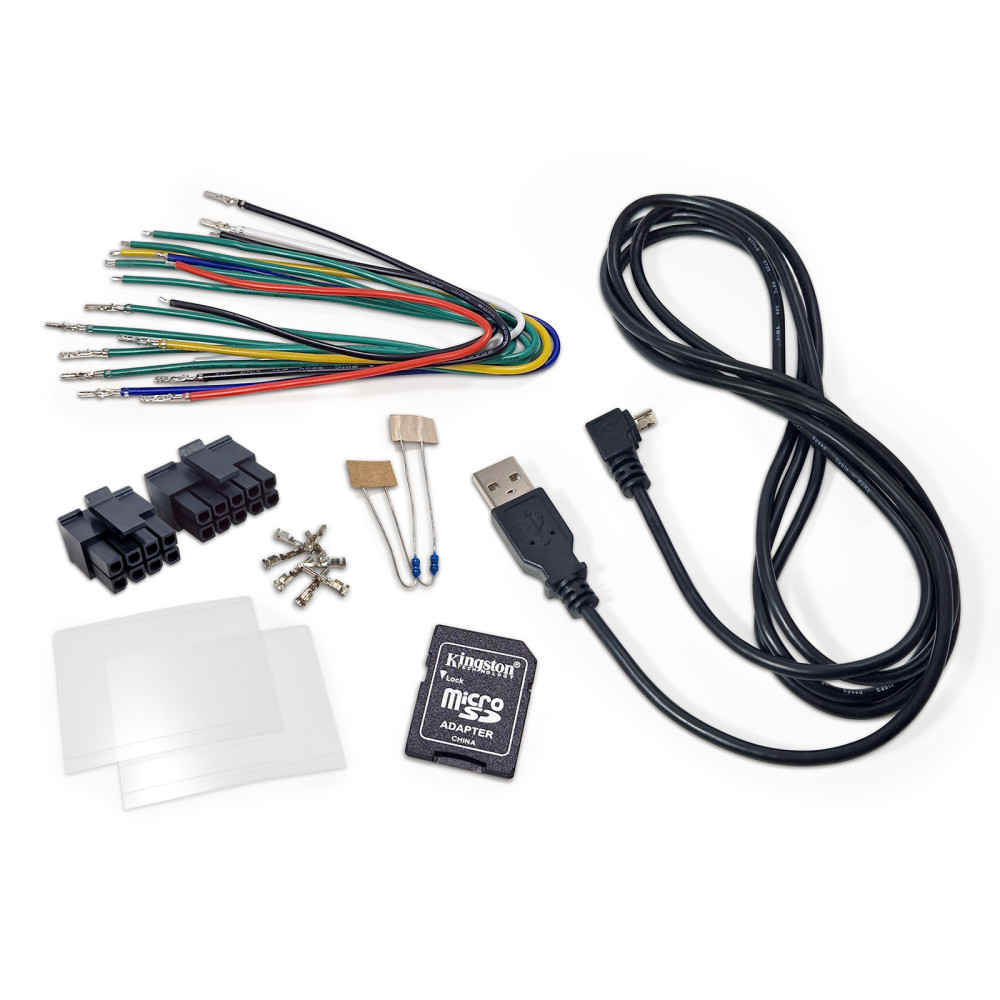

Package Contents

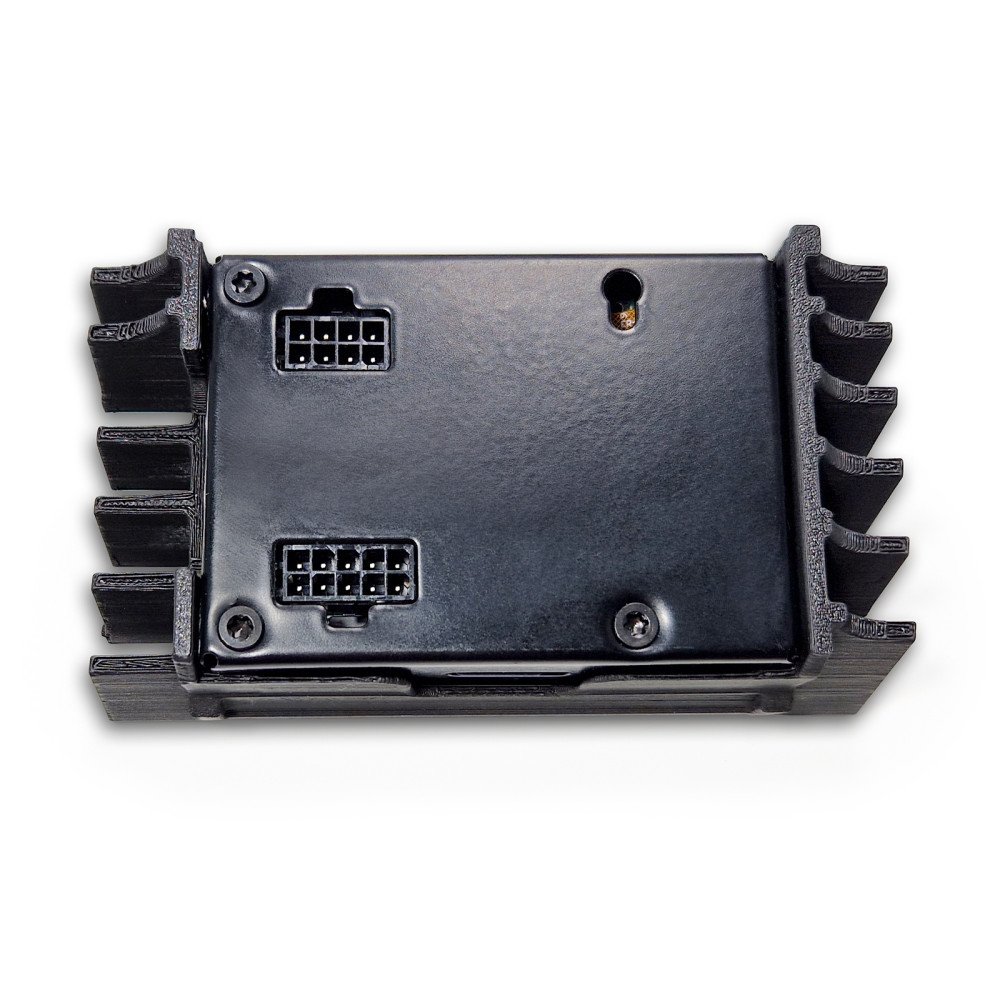

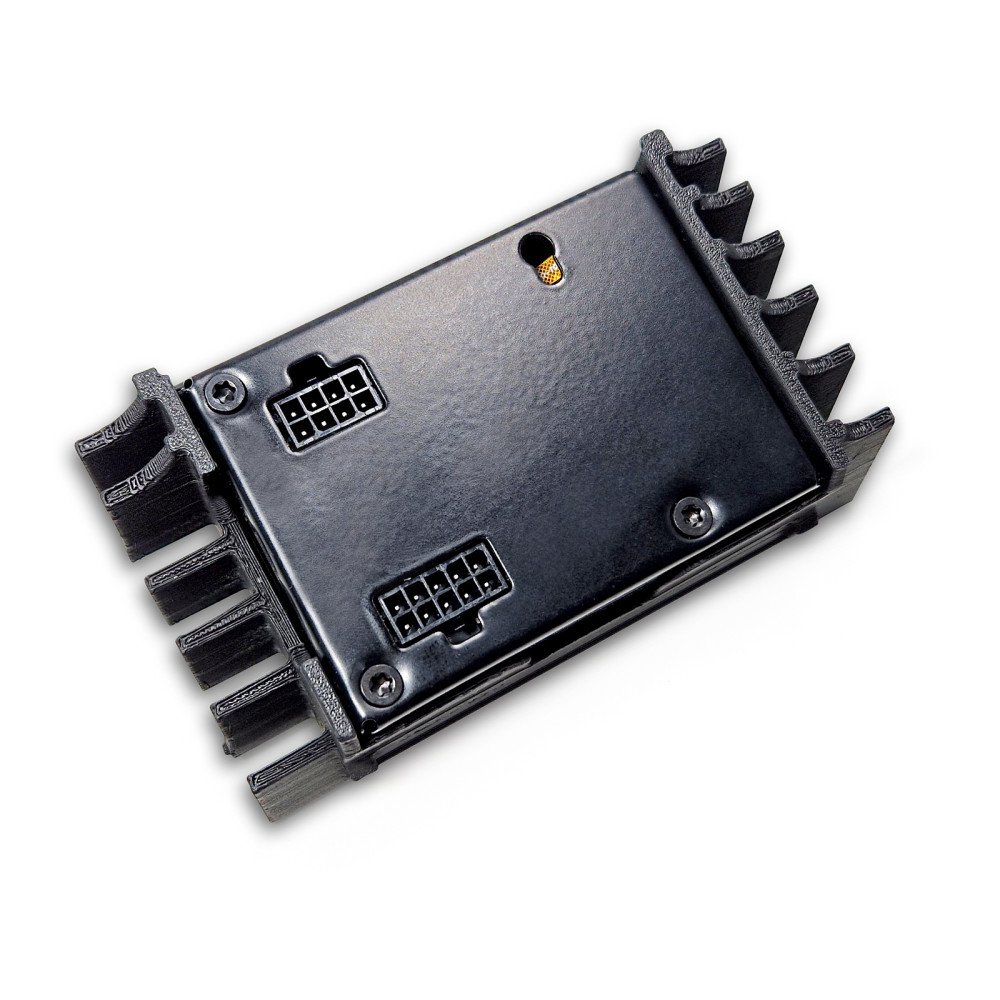

• MFD28 Gen2 data display integrated for dashboard installation
• Vehicle-specific connection cable
• Quick start guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display protection film (anti-reflection)

Optional Accessories

• CC24000 SLM08 – External flash module
• CC22100 CBD08 – Eight-channel CAN distributor
• CC22902 NTC01 – Temperature sensor for liquids, 1/8" NPT
• CC22903 TCC01 – Type K converter, 0–1250 °C
• CC22901 FLP01 – Pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 – Pressure sensor 0–5.5 bar absolute (80 psi)

Installation

An illustrated installation guide is provided.
