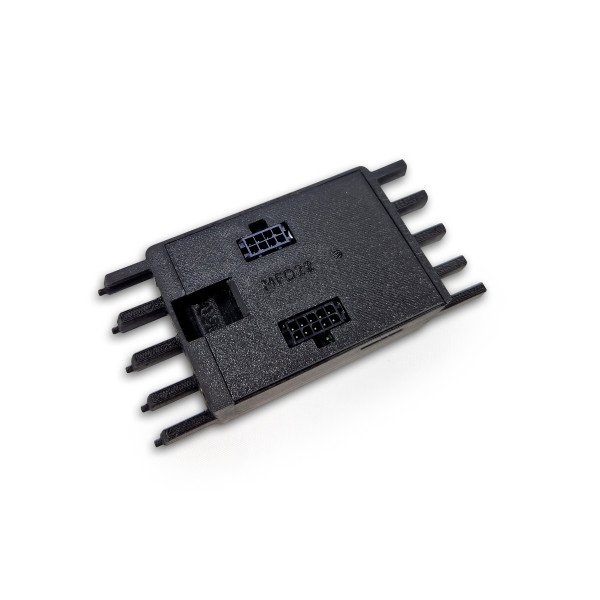

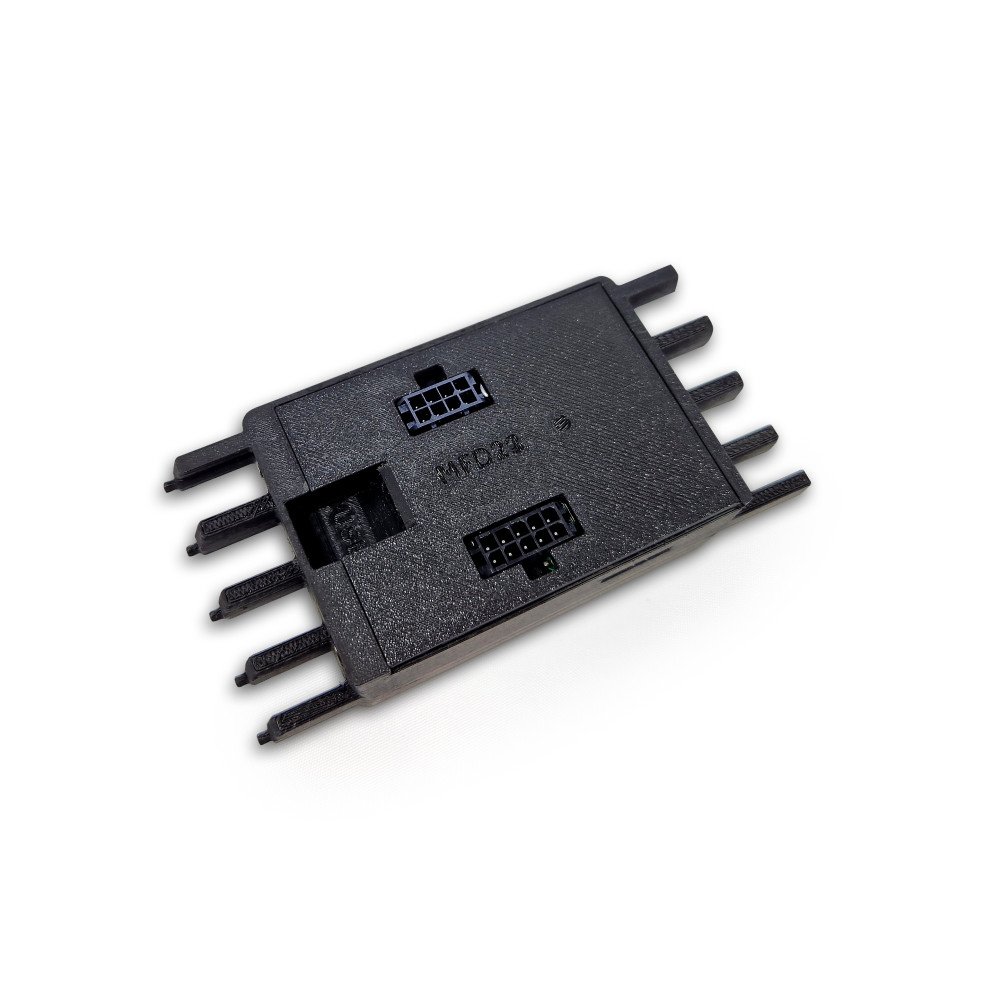

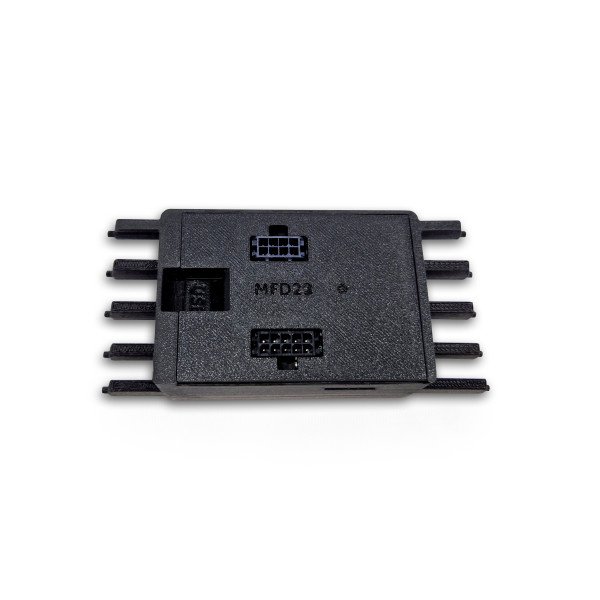

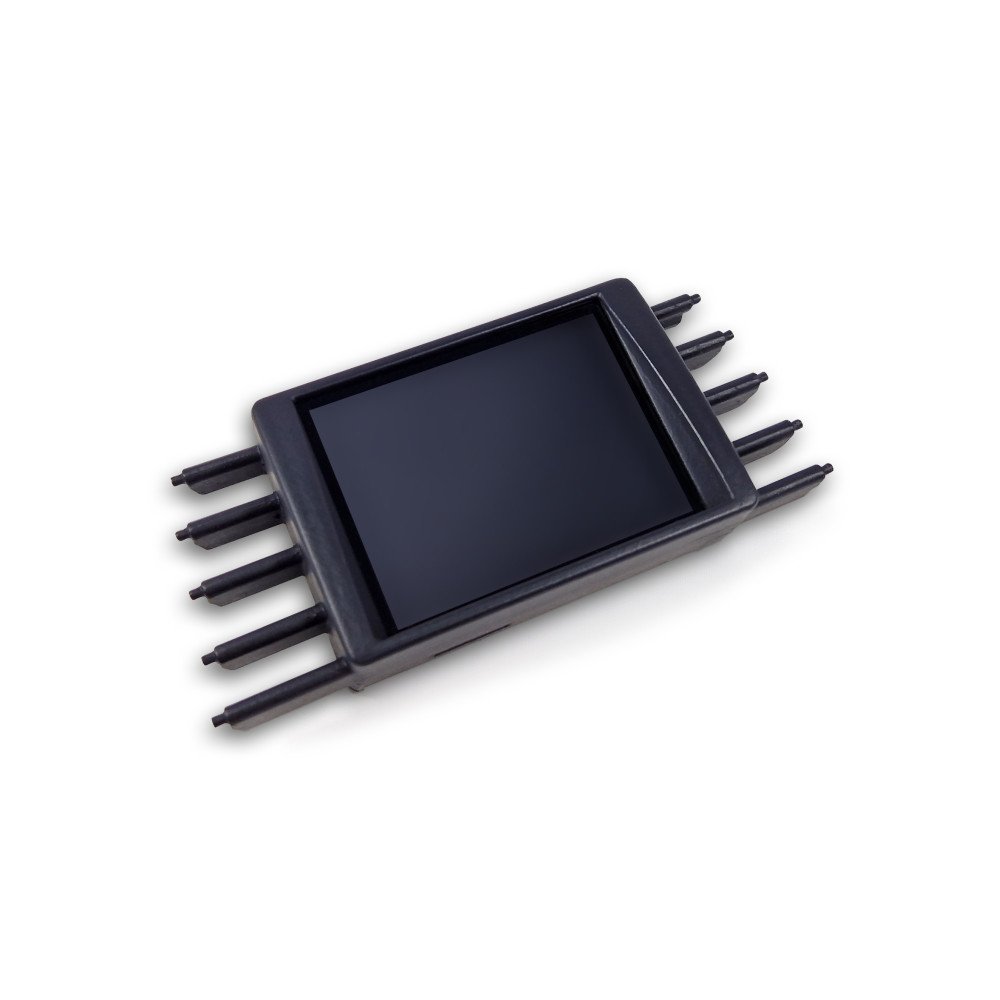

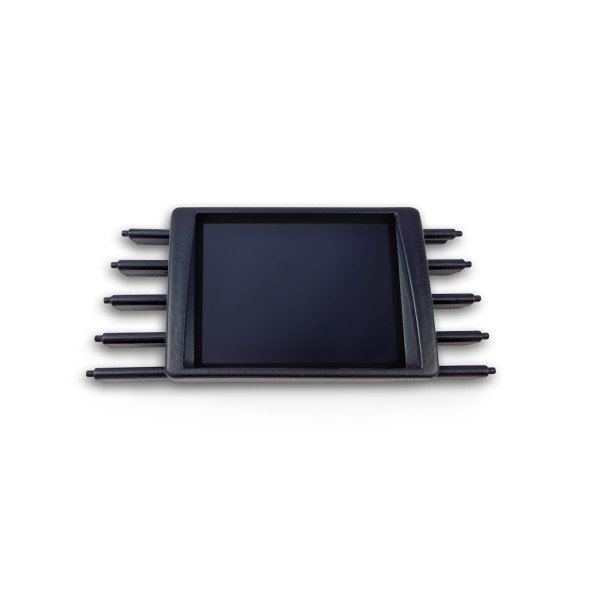

BMW 5-Series E6x LHD Display (MFD28 Gen2)

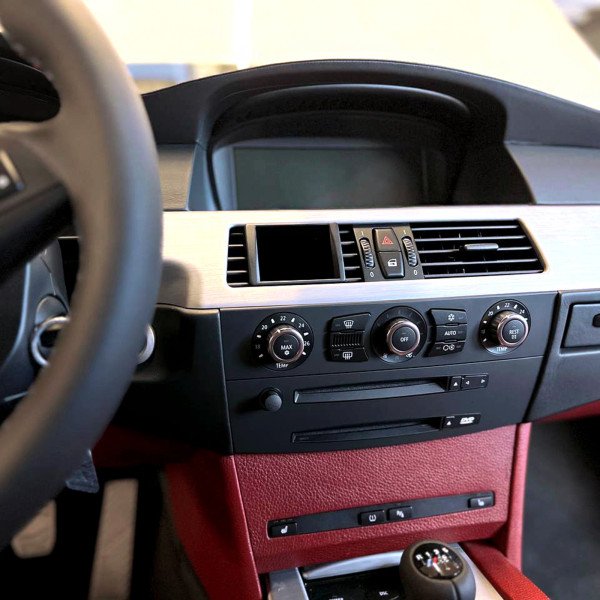

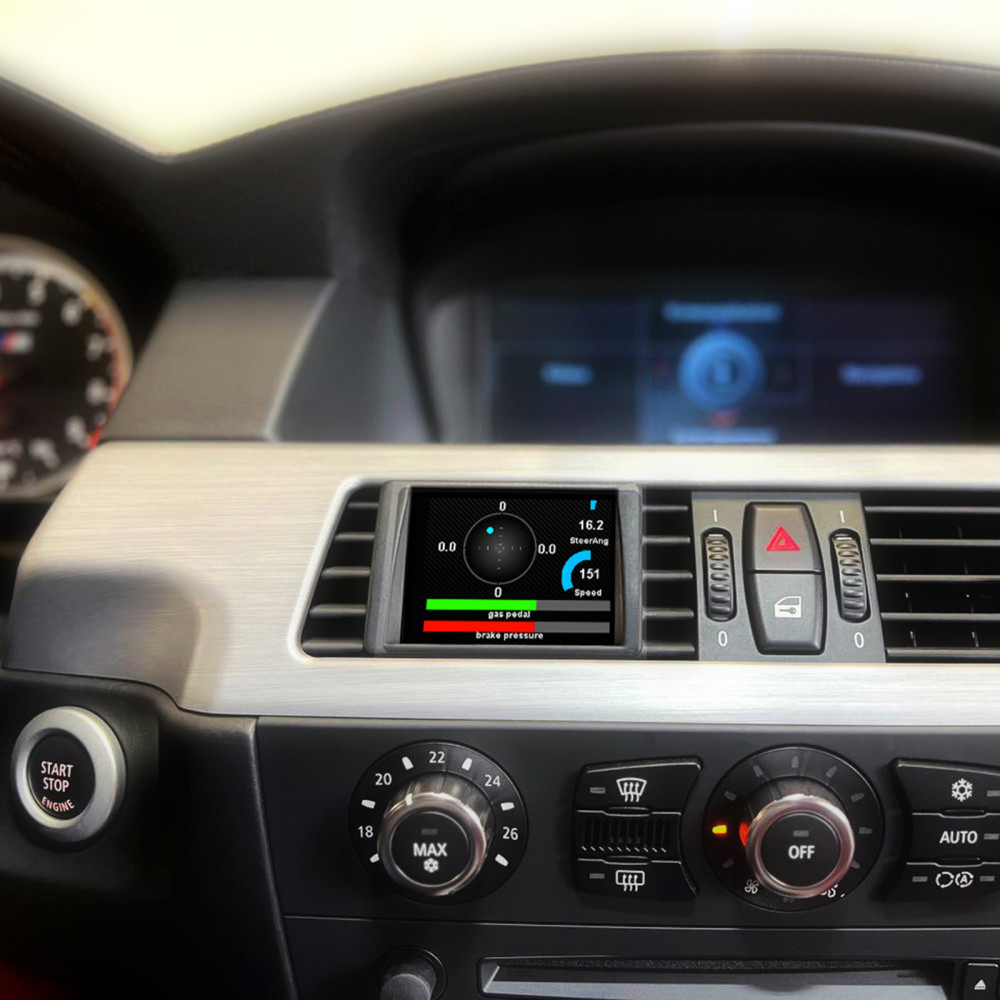

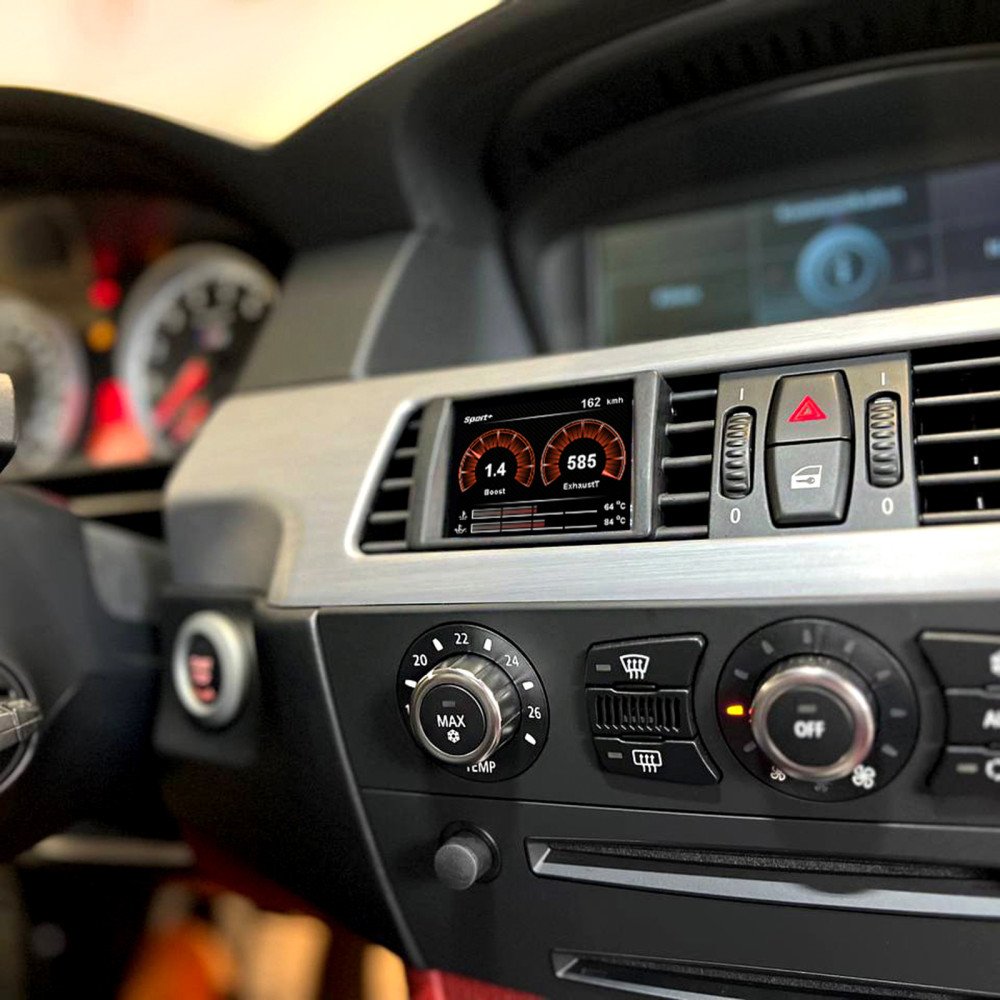

This vehicle-specific display for BMW 5-Series E6x left-hand-drive (LHD) models integrates into the factory cockpit using a custom bezel. It reads vehicle data directly via a specially adapted CAN-Bus protocol for fast polling and presents it on an integrated MFD28 Gen2 display.

Key Features

• OEM-style cockpit integration for BMW 5-Series E6x LHD
• Reads data via CAN-Bus protocol (fast query speed)
• Supports up to 128 sensors
• 10 individually configurable display modes via DSS (Display Setup Software)
• Pre-installed display modes for quick setup
• Plug-and-play installation using the included vehicle-specific cable set
• Four additional analog inputs for external sensors (linear 0–5V and NTC supported)
• Direct connection option for an ethanol sensor (pull-up resistor 10K required between 5V and signal)
• Optional anti-glare/protective film for improved readability
• Mode switching using the original cruise control switch
• Data logging to internal SD card (continuous or on-demand); last trip data is saved

Functions

• Performance meter: acceleration timing for 0–100, 100–200, and 0–200
• Customizable alerts: configurable warnings (example: exhaust temperature threshold at 900°C)
• ECU diagnostics: read and clear engine control unit error messages
• Personalization: customizable startup screen and selectable widgets
• Math channels & user tables: build derived channels and additional sensors using 2D/3D maps

Vehicle Data (via included pre-configured TRI file)

Included by default: a pre-configured TRI file containing all queryable sensors. Availability depends on engine/vehicle.

• Temperatures: engine coolant, intake air, exhaust gas, transmission
• Pressures: boost, ambient, oil pressure
• Lambda/fueling: lambda target/actual, short-term and long-term lambda adaptation, MAF, engine load, torque
• Driver dynamics: brake pressure, vehicle speed, throttle angle/pedal position
• Other: RPM, total ignition angle, gear, battery voltage, ignition angle correction per cylinder

Analog Inputs & Supported CANchecked Sensors

The TRI/TRX files already include CANchecked display sensors; connect and configure as needed:

• AIN1: temperature sensor
• AIN2: Type K exhaust gas temperature probe
• AIN3: 0–10 bar pressure sensor
• AIN4: 0–5.5 bar absolute boost pressure sensor

Expansion Options

• External 8-LED flash module connection (multi-color RPM limit indication; configured via the display)
• Ethanol content and temperature logging via direct ethanol sensor connection

Compatibility

Fits BMW 5-Series E6x LHD models, including M models. A right-hand-drive (RHD) version is also available.

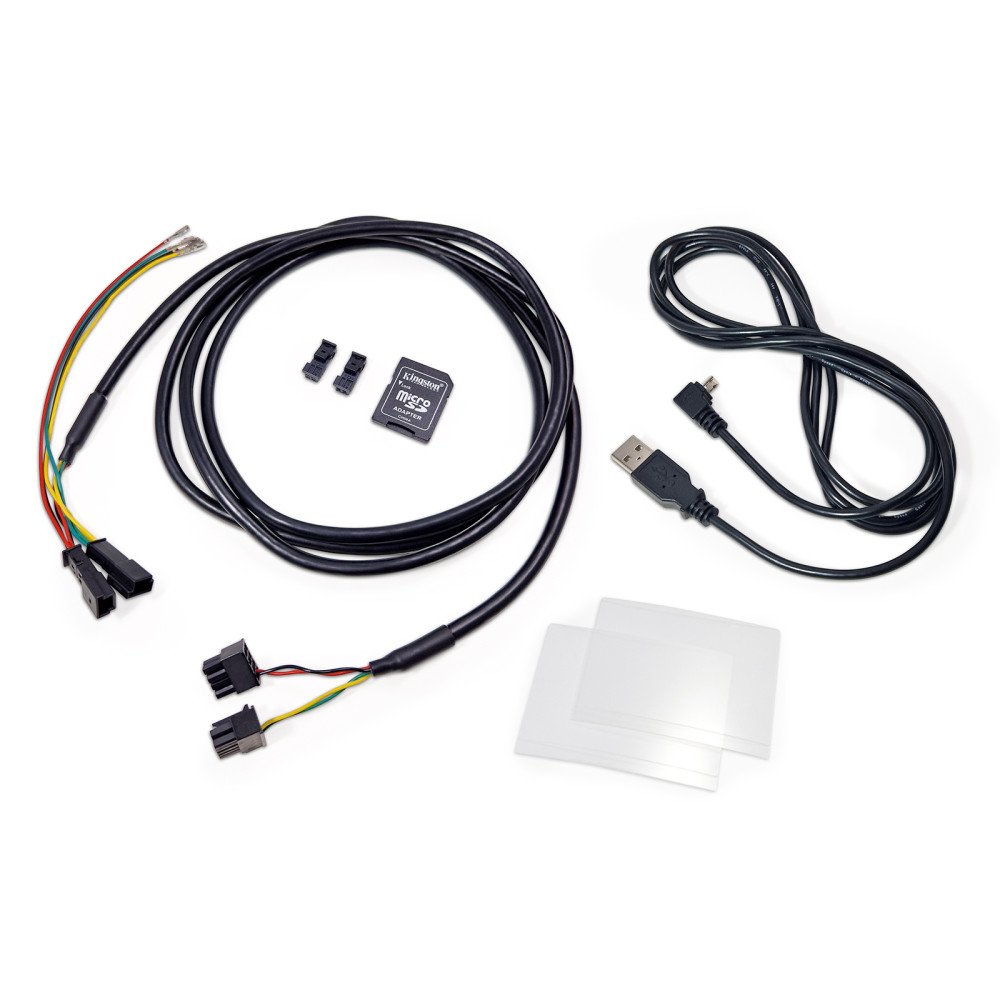

What’s Included

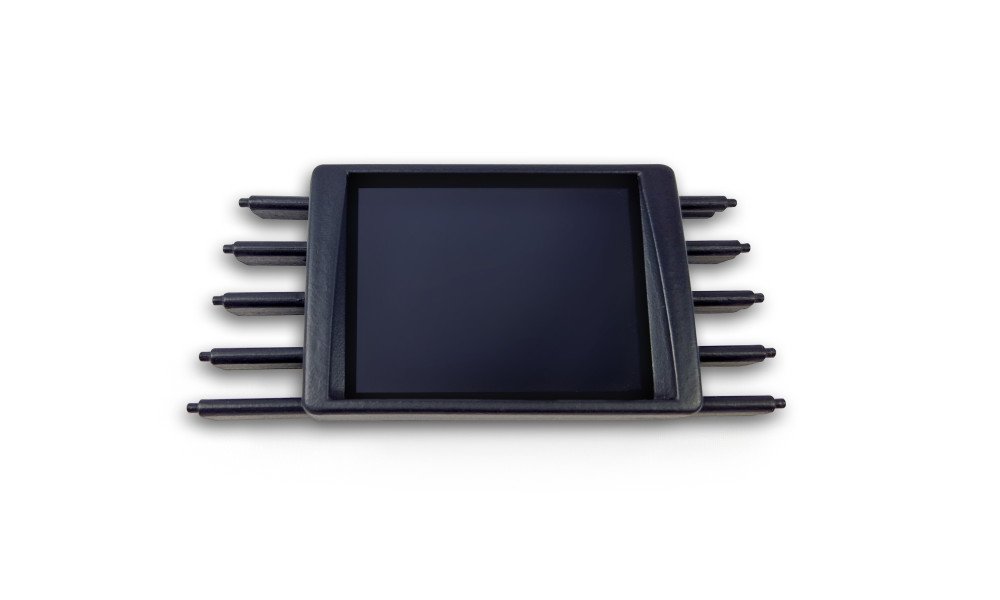

• MFD28 Gen2 data display integrated into the dashboard
• Vehicle-specific connection cable
• Quick start guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display protective/anti-reflection film

Optional Accessories

• CC24000 SLM08 – External Flash Module
• CC22100 CBD08 – 8-port CAN Distributor
• CC22902 NTC01 – Temperature Sensor for Liquids 1/8" NPT
• CC22903 TCC01 – Type K Converter 0–1250°C
• CC22901 FLP01 – Pressure Sensor 0–10 Bar (145psi) M10x1
• CC22900 BST01 – Pressure Sensor 0–5.5 Bar Absolute (80psi)

Installation

An illustrated installation guide is provided for setup.
