Dodge RAM MK5 MFD28 Gen2 CAN-Bus Data Display (2021+)

This vehicle-specific display integrates an MFD28 Gen2 data screen into the ventilation grille of Dodge RAM MK5 models (from 2021). It reads vehicle data directly via a specially adapted CAN-Bus protocol for fast polling and presents key engine and drivetrain information at eye level using a custom-fit bezel.

Key Features

• Integrated fitment in the vehicle design (vent grille installation with custom bezel)
• CAN-Bus data reading from up to 128 sensors
• 10 individually configurable display pages via DSS (Display Setup Software)
• Pre-installed display pages for quick setup
• Plug-and-play installation using the included cable kit
• 4 additional analog inputs (supports linear 0–5 V and NTC sensors)
• Ethanol sensor connection option (requires a 10 kΩ pull-up between 5 V and signal)
• Optional screen protector for reduced reflections
• On-screen ECU error reading and clearing
• Data logging to internal SD card (continuous or on demand)

Functions

• Performance tracker: acceleration timing for 0–100, 100–200, and 0–200
• Custom alerts: configurable warnings (example: exhaust temperature threshold at 900 °C)
• Personalization: configurable start screen and selectable widgets
• Compatibility: supports left-hand drive and right-hand drive vehicles

Vehicle Data (via CAN-Bus)

A pre-configured TRI file is supplied by default. Available channels may vary by engine.

• Temperatures: engine coolant, intake air, exhaust, transmission, rear differential, 4x tire temperature
• Pressures: boost, ambient, oil pressure, 4x tire pressure
• Lambda/Fuel mixture: lambda target/actual, short-term and long-term lambda adaptation, MAF, engine load, torque
• Driver dynamics: brake pressure, vehicle speed, throttle angle/pedal position
• Other: RPM, total ignition timing, gear, battery voltage

Analog Inputs & Expansion

Four analog inputs allow additional monitoring (for example: oil temperature, fuel pressure, oil pressure, exhaust temperature). An ethanol sensor can be read and logged when connected.

Supported pre-integrated sensor assignments in the TRI/TRX files:

• AIN1: temperature sensor
• AIN2: Type K exhaust temperature probe
• AIN3: pressure sensor 0–10 bar
• AIN4: boost pressure sensor 0–5.5 bar absolute

An external 8-LED flash module can be connected for RPM-based shift/limit indication, with colors configurable through the display.

Advanced Features

• Math Channels: combine and process sensor values
• User Tables: create additional channels using 2D or 3D maps

Compatibility

Fits all Dodge RAM MK5 models from 2021 onward.

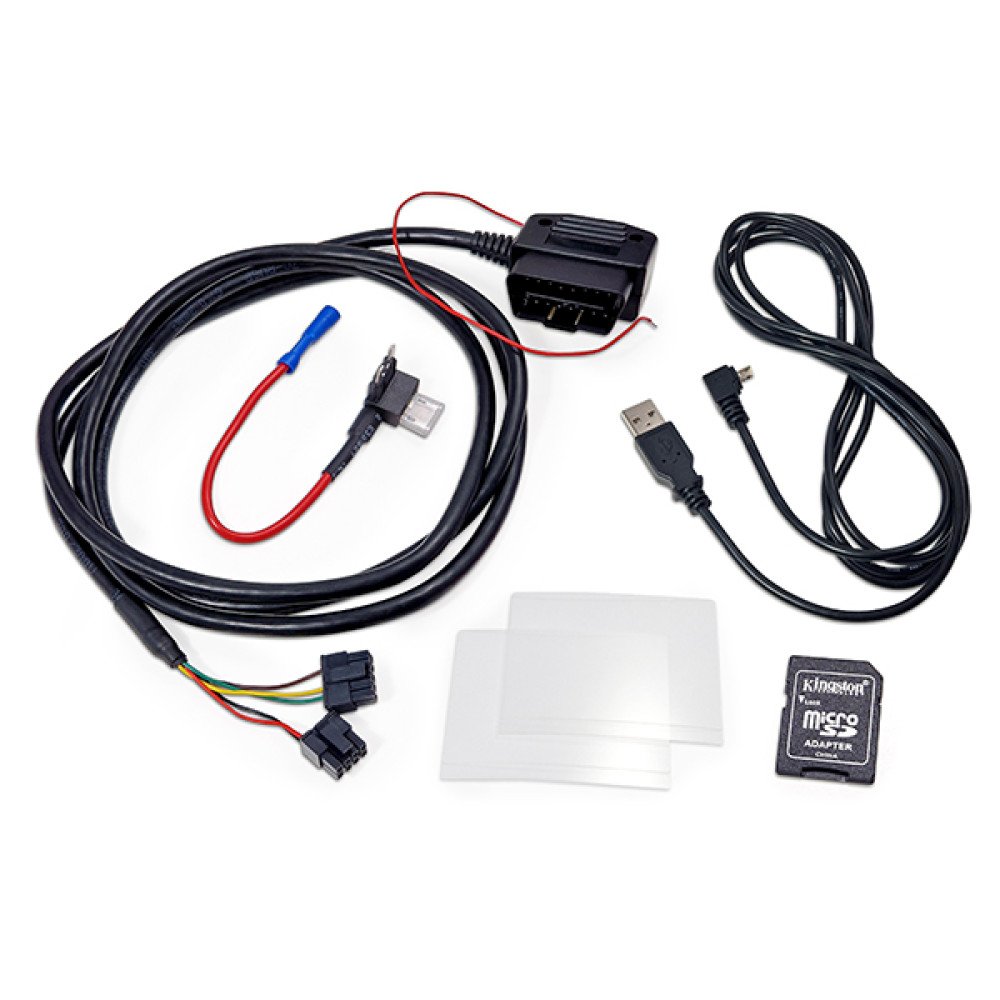

Package Contents

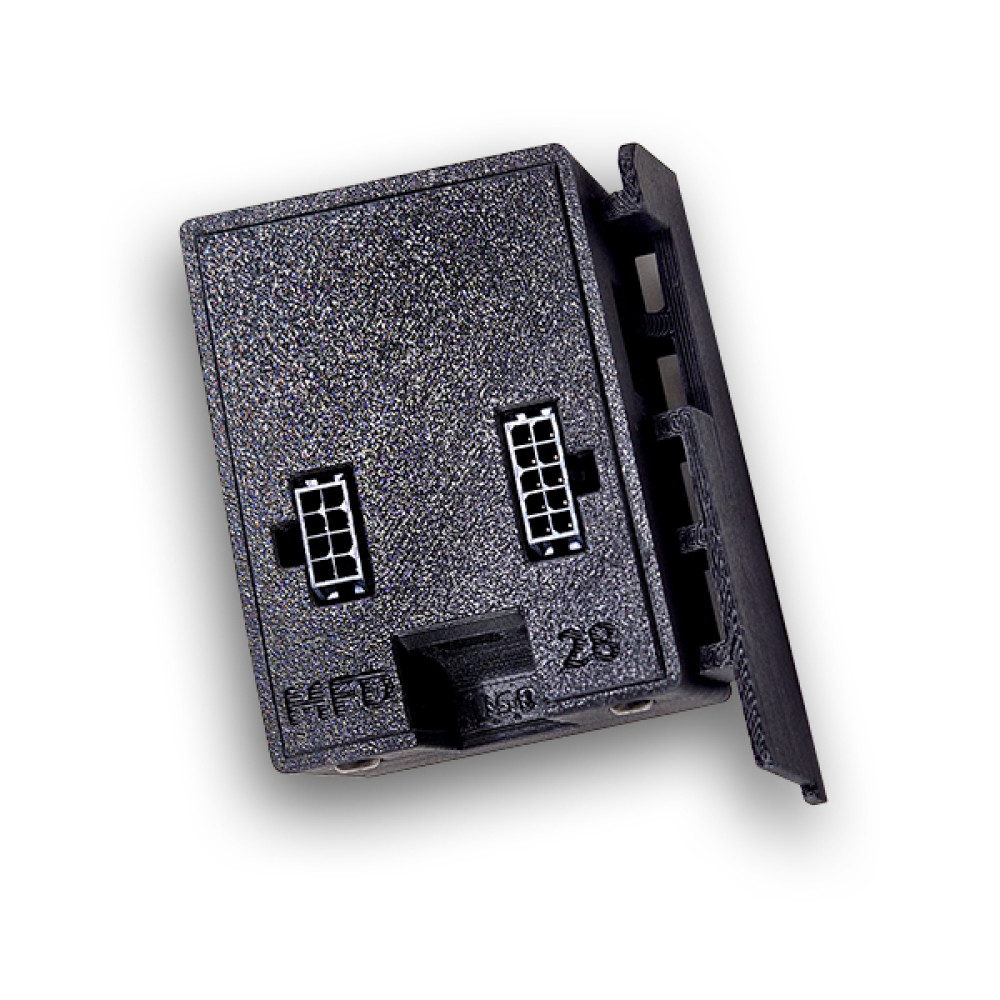

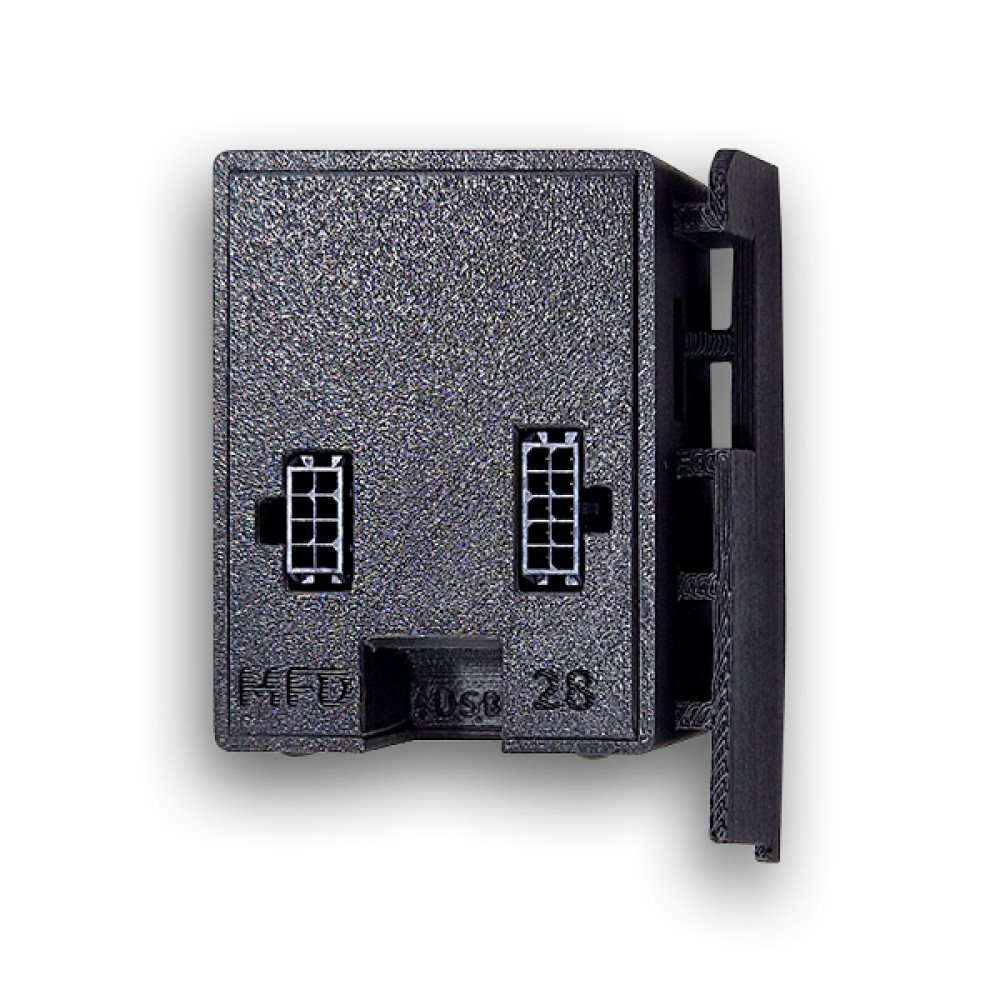

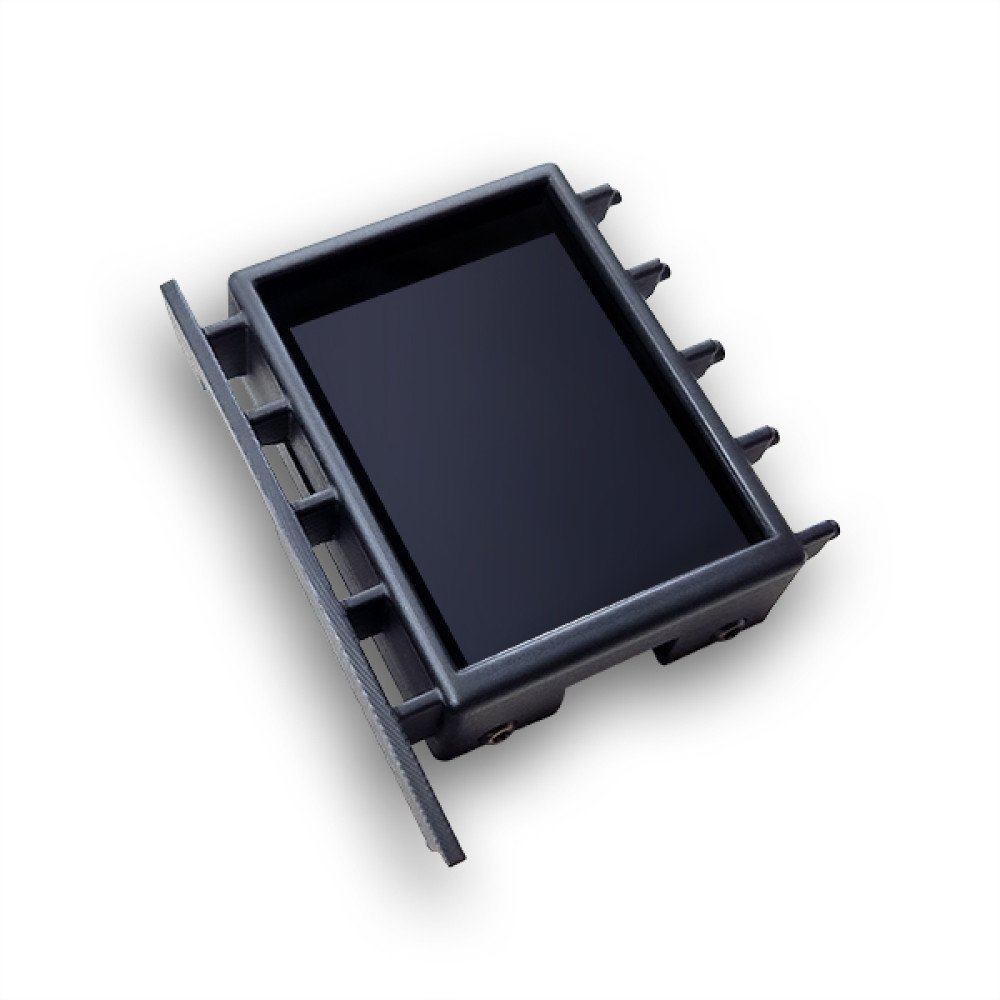

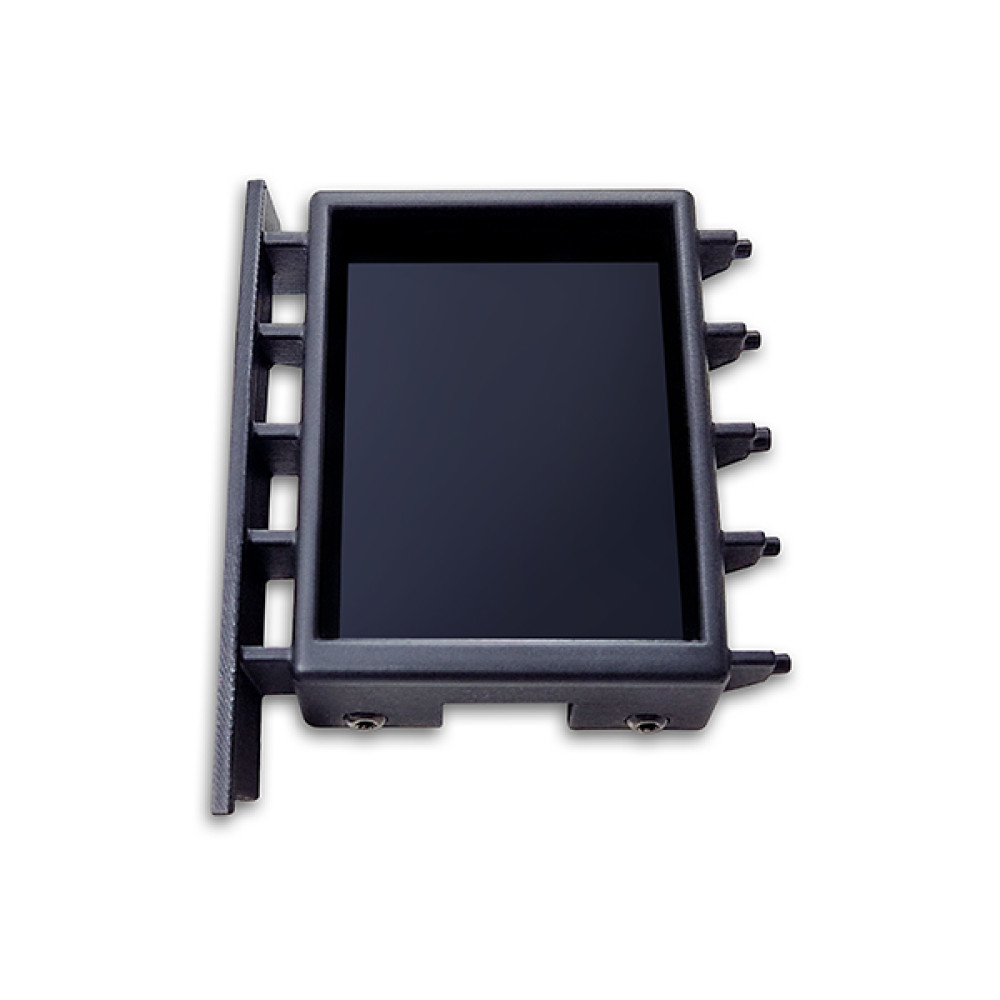

• MFD28 Gen2 data display integrated in the ventilation grille
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display screen protector (anti-reflection)

Optional Accessories

• CC24000 SLM08 - External flash module
• CC22100 CBD08 - Eight-channel CAN distributor
• CC22902 NTC01 - Temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 - Type K converter 0-1250 °C
• CC22901 FLP01 - Pressure sensor 0-10 bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5.5 bar absolute (80psi)

Installation

An illustrated installation guide is provided.
