Dodge Charger Display – Data Display for ECU/CAN Bus Monitoring

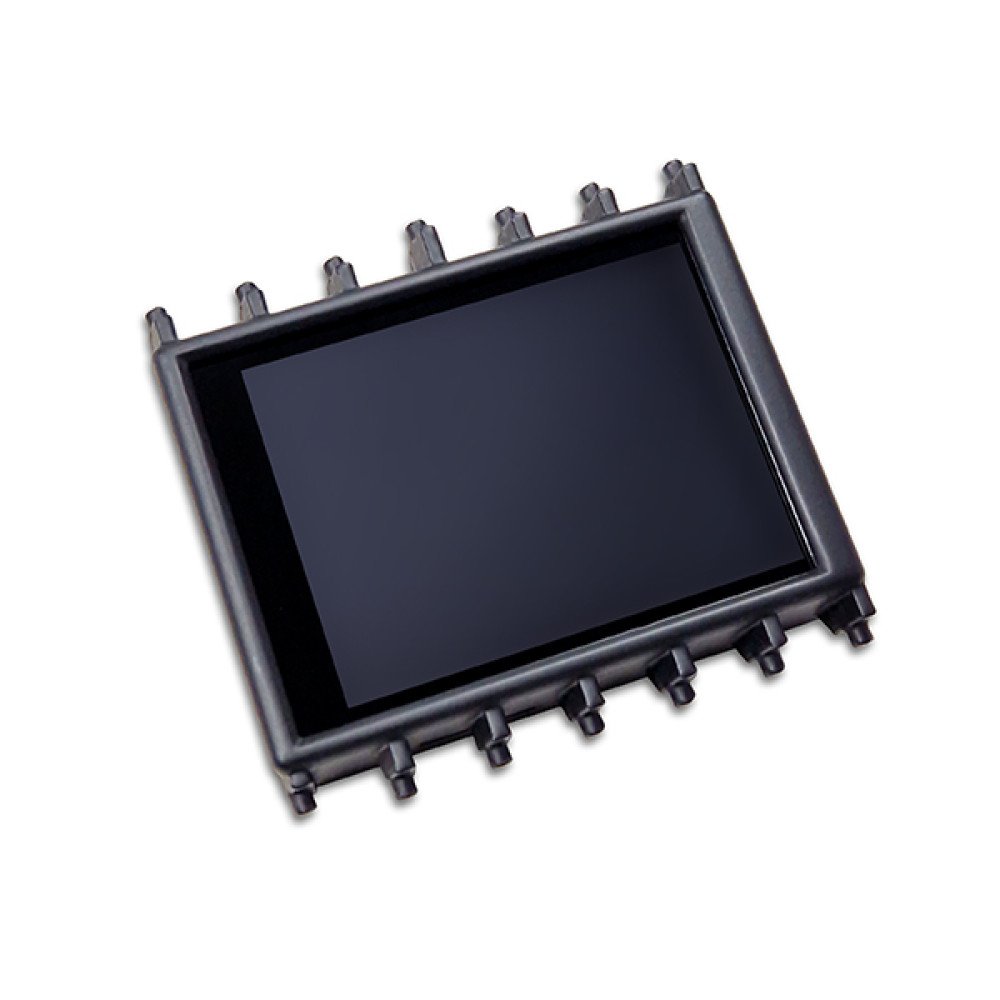

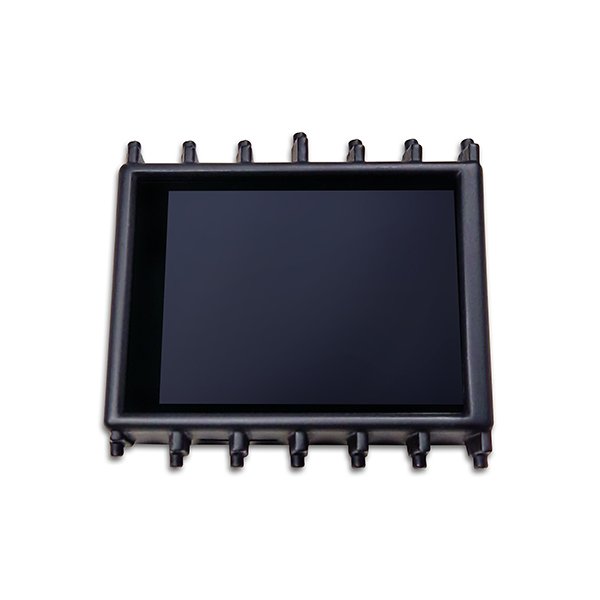

This in-cluster display for Ford Dodge Charger models reads ECU data directly via the manufacturer-specific CAN bus protocol and shows it on the MFD28 display. A custom-made frame is designed to integrate cleanly into the interior with an OEM-style look. The CAN bus protocol is fine-tuned for maximum query speed.

Key features

• OEM-style integration with custom-made frame
• Queries up to 128 sensors
• 10 individually configurable pages via DSS (Display Setup Software)
• Pre-configured views for quick setup
• Plug-and-play installation using the supplied OBD connection cable
• 4 analog inputs for additional sensors (e.g., EGT, oil pressure)
• Direct ethanol sensor integration
• Optional anti-glare film for improved readability
• Sensor query performance comparable to manufacturer diagnostic tools

Functions

• Performance meter: Acceleration timing (0–100, 100–200, 0–200).
• Data logging: Logs to internal SD card (on-demand or continuous). Data from the last drive is stored.
• Alarms: Pre-set warnings can be enabled and customized (example: EGT warning at 900 degrees).
• DTC read/clear: Reads ECU faults in plain text and allows deletion.
• Customization: Startup screen and widget selection can be tailored.

ECU data access (pre-configured TRI file)

A pre-configured TRI file defines the sensors that can be queried. Examples include:

• Temperatures: coolant, intake air, exhaust, transmission
• Pressures: boost, ambient, oil
• Lambda/mixture: lambda target/actual, short-term and long-term lambda adaptation, MAF, engine load, torque
• Driver dynamics: brake pressure, vehicle speed, throttle angle/gas pedal position
• Other: RPM, total ignition angle, gear, battery voltage, ignition angle correction per cylinder

Not every engine provides every value.

Vehicle fitment

• Frame fits all left-hand drive Ford Dodge Charger
• Right-hand drive version available

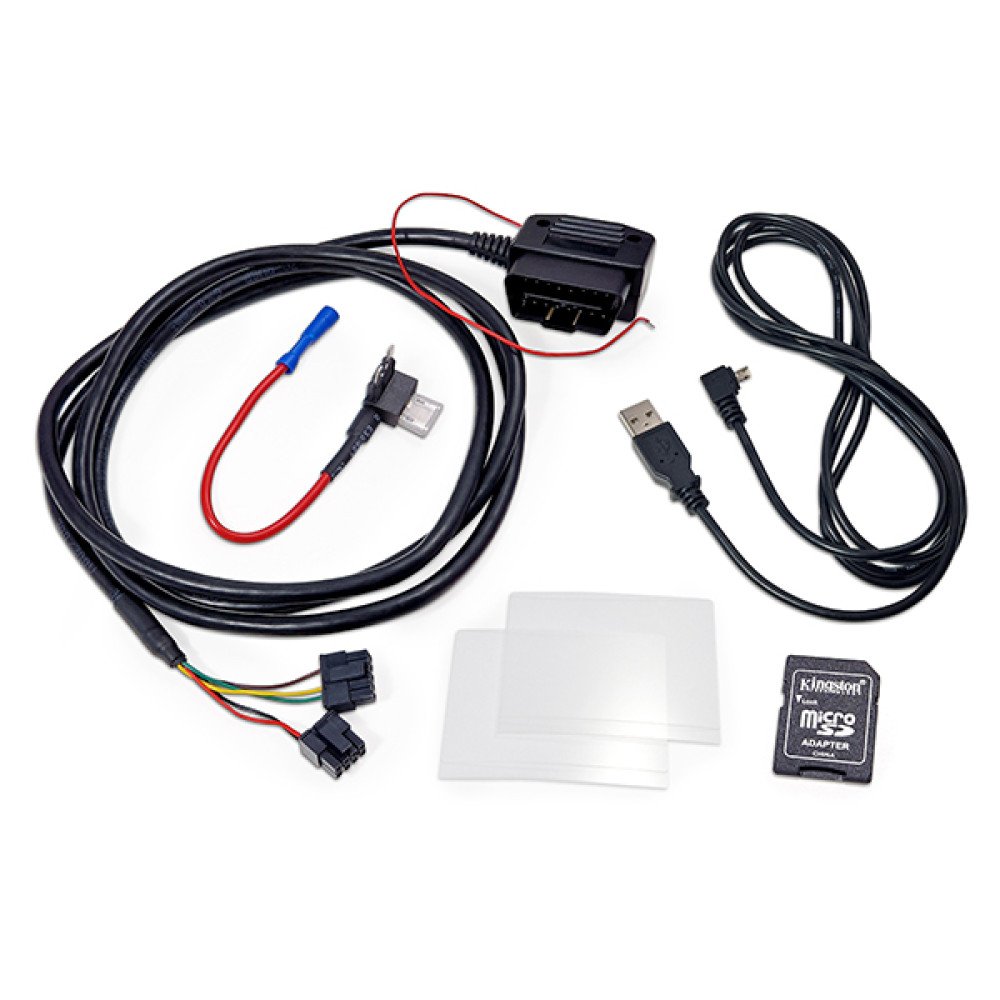

What’s included

• MFA28 Gen2 data display integrated in the cluster
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display foil (anti-reflection)
• Plug-and-play OBD connection cable

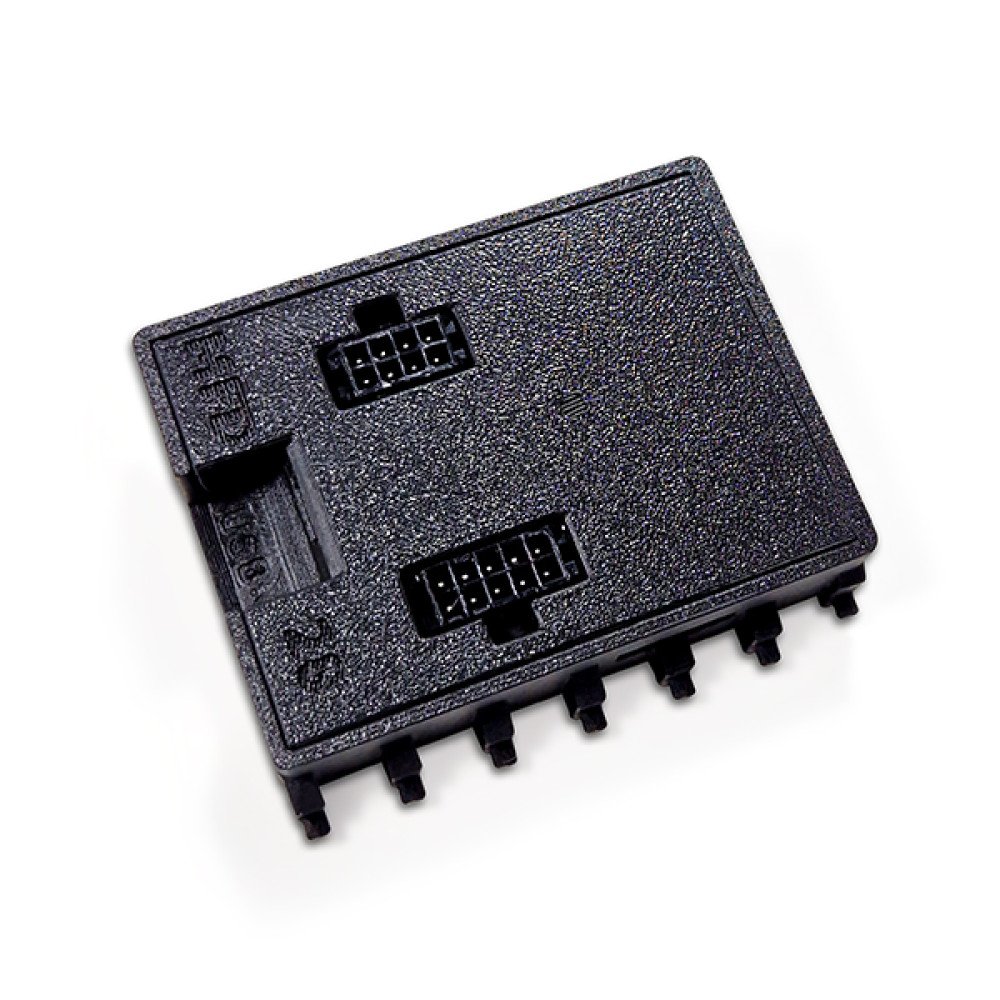

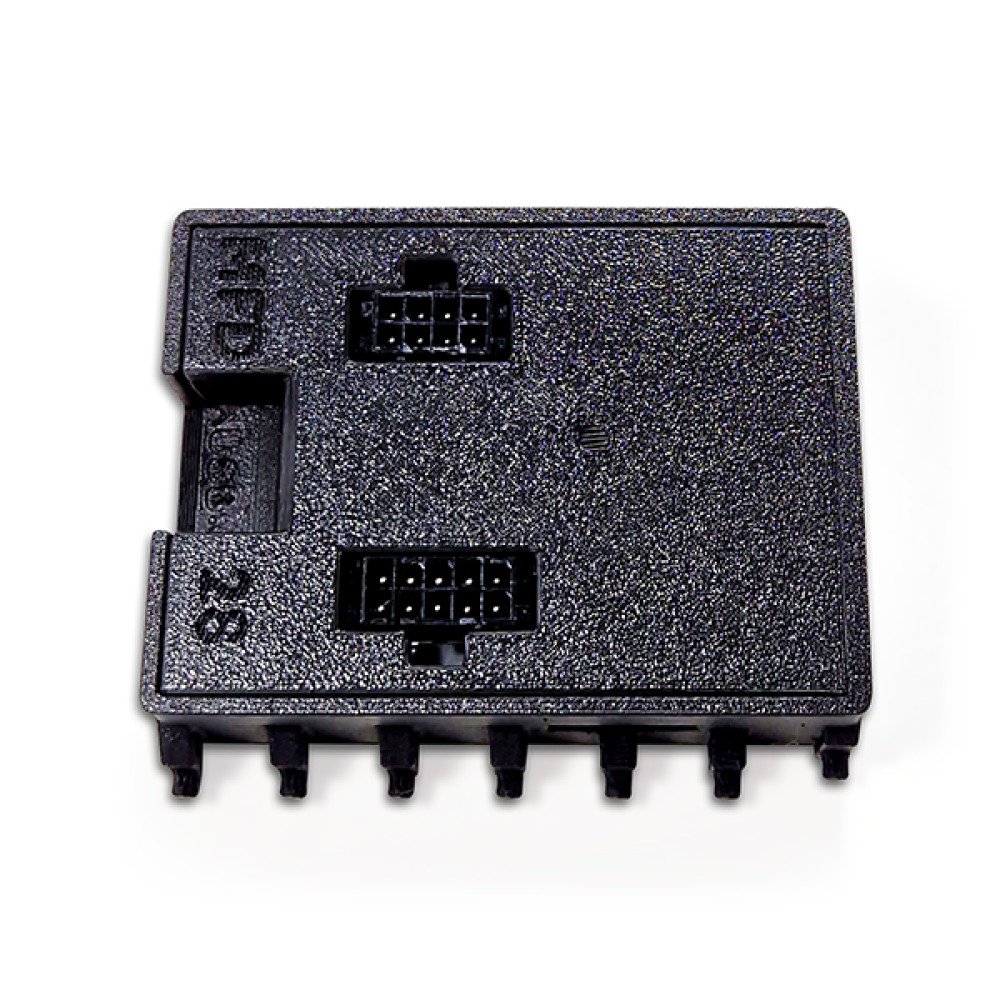

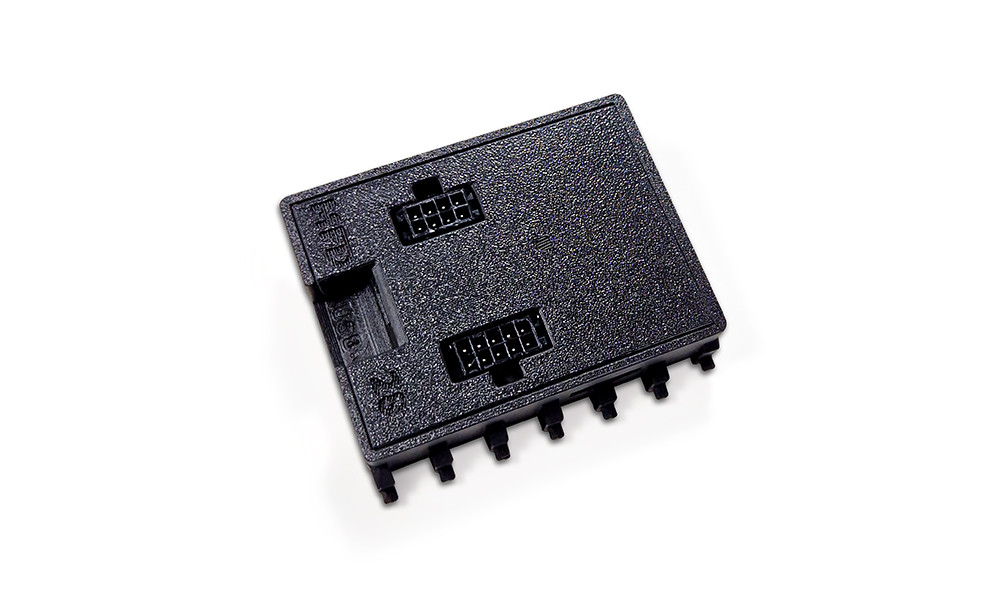

Connections and expansion

Four analog inputs support linear 0–5V and NTC sensors. Supported sensor assignments stored in TRI/TRX files:

• AIN1: Temperature sensor
• AIN2: Type-K exhaust gas temperature transducer
• AIN3: Pressure sensor 0–10 bar
• AIN4: Boost pressure sensor 0–5.5 bar absolute

An external 8-LED shift light can be added. Flash colors and RPM limits are configurable on the display.

Ethanol sensor connection is direct to the display; a 10K pull-up resistor is required between 5V and signal. Ethanol content and temperature can be displayed and logged.

Advanced functions

• Math-Channels: Calculate channels from multiple sensors
• User-Table: Create additional channels using 2D or 3D maps

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22100 CBD08 – eightfold CAN distribution hub
• CC22902 NTC01 – liquid temperature sensor 1/8" NPT
• CC22903 TCC01 – type K converter 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi) M10x1
• CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)

Installation

An illustrated installation guide is provided.
