CANchecked MFD15 Gen2 Display for Nissan GT-R33 RHD
The CANchecked MFD15 Gen2 is a compact OLED display designed to keep key ECU and sensor data in your line of sight. The OLED screen remains easy to read even in direct sunlight. With a 52 mm outer diameter and just 12.5 mm depth, it fits common 52 mm interior bezels, including the included vehicle-specific air-vent bezel. Control is via the two windshield-mounted push buttons, or optionally with an external rotary knob.
Key features
- Compact packaging: 52 mm diameter, 12.5 mm depth
- Configurable front LED: shift light and/or warning LED
- CAN bus support: works with CAN bus ECUs, OBD2 (from 2008), and user-defined CAN streams
- WLAN setup: connect by Wi-Fi to a smartphone or PC and configure via Web UI (oDSS)
- Six analog inputs: supports linear 0–5 V and NTC sensors; ethanol sensor input supported with license
- Alarms: enable and customize preset warnings (example given: EGT above 900 °C)
- Personalization: custom startup logo/background image
- Online logging (license required): log via smartphone/PC and save for later analysis
- Flex Fuel display (license required): ethanol content and temperature
- CAN switching & AIN forwarding (license required): switch CAN functions using the display buttons/knob and forward analog readings to the CAN bus
Display layouts
Select up to eight pages and build them from the available view types:
- Analog pointer
- Single value
- Double value
- 4-fold values
- 6-fold values
- Gear indicator
- Bar + double display
- Round display
- Bar graph (double across)
- Performance Meter
- Bar chart (1–6-fold upright)
oDSS (Online DSS) via WLAN
Wi-Fi access lets you set up and manage the MFD15 Gen2 from a smartphone or PC. With oDSS you can configure the display, upload a startup image, update firmware, and (with a license) log sensor values.
ECU/OBD support and supported values
The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. The values available depend on what your ECU broadcasts on CAN; documentation such as a DBC file can be imported via DSS. Depending on the ECU manufacturer, up to 64 sensors can be queried.
OBD2 requests via CAN bus (11-bit/29-bit) are supported, and vehicle-specific protocols such as UDS and TP2 are available.
Default support includes:
- OBD2 (11-bit and 29-bit)
- ECUMaster (Classic and Black)
- VAG PQ34
- Haltech v2
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 and 3
If your ECU isn’t listed, the appropriate TRI/TRX can be downloaded or requested via the database.
For VW/Audi model year 2008+, in-depth protocol-based queries are available for values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, wastegate actuation, and more.
Internal LED (shift light / warning)
The internal LED can be configured as either a shift light or a warning LED.
- Shift light: assign up to 8 colors, set RPM limits, and define the RPM where flashing begins.
- Warning LED: set per-sensor minimum/maximum thresholds in oDSS (Sensors) and enable LED alerts; when a warning is active, the shift light function is disabled.
Connections and expansion

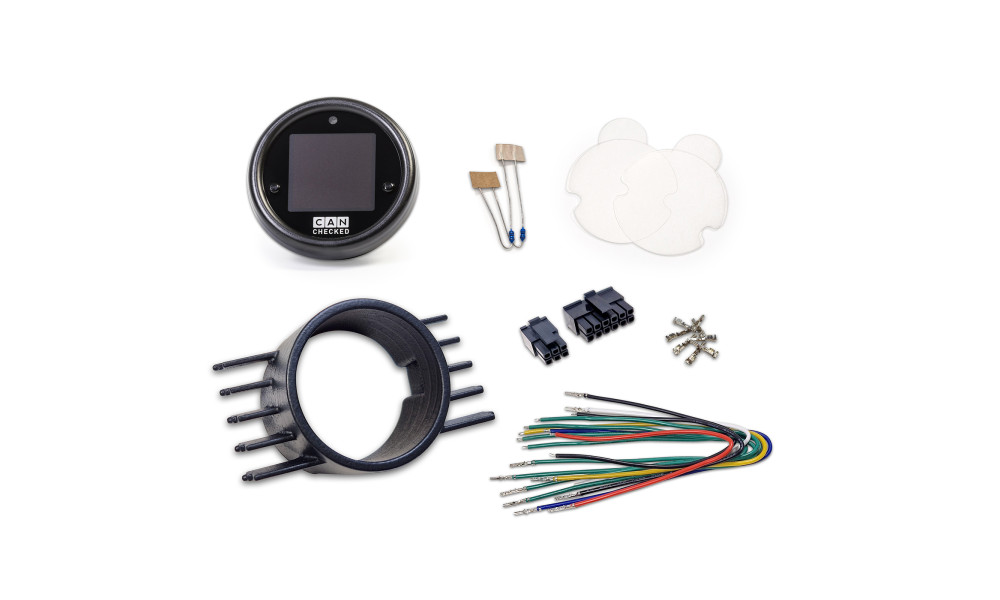

What’s included
- MFD15 Gen2 display
- Connector B (6-way)
- Connector C (12-way)
- 20 cm pre-crimped connection wires for power, CAN bus, analog inputs, 5 V, and sensor ground
- Pins for self-crimping
- Two 1K resistors (NTC pull-up)
- Car-specific air-vent bezel
- OBD connection cable
Analog inputs (AIN1–AIN6)
Up to six sensors can be connected via the analog inputs. Linear 0–5 V and NTC sensors are supported.
CANchecked sensor presets are stored in the TRI/TRX files and only need to be connected:
- AIN1: Temperature sensor
- AIN2: Type K EGT transducer
- AIN3: Pressure sensor 0–10 bar
- AIN4: Boost pressure sensor 0–5.5 bar absolute
- AIN5: Not preconfigured
- AIN6: Not preconfigured
A pre-assembled 4-way AIN harness can be used for connection.
With the appropriate license, an ethanol sensor can be connected directly to the display via a separate pin.
Optional accessories
- CC22501 ETK01 – external rotary knob with PnP 50 cm connection cable
- CC22100 CBD08 – 8-way CAN distribution hub
- CC22902 NTC01 – liquid temperature sensor, 1/8" NPT
- CC22903 TCC01 – type K transducer, 0–1250 °C
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)
Additional licenses
Live Logging
With the “Live Logging” license, the display can log sensor data into oDSS and the log can be downloaded to a smartphone or PC. For OBD and UDS, only the currently displayed sensors are logged.
Flex Fuel (ethanol sensor input)
With the ethanol sensor license, an ethanol sensor can be wired directly to the display. A 10K pull-up resistor is required between 5 V and signal. Ethanol content, fuel temperature, and logging are supported.
CAN Switching and AIN forwarding
With the CAN Switching/AIN forwarding license, the display buttons or rotary knob can control CAN switches, and analog input voltages can be forwarded onto the CAN bus.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Nissan | GT-R | R33 (1993 - 1998) | - |
| Nissan | Skyline | R33 (1993 - 1998) | - |
CANchecked Multi Function Display MFD15 GEN2 for Nissan GT-R R33 RHD Skyline R33 1993 - 1998
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Nissan | GT-R | R33 (1993 - 1998) | - |
| Nissan | Skyline | R33 (1993 - 1998) | - |
