CANchecked MFD15 Gen2 Display for Mazda MX-5 NC
The CANchecked MFD15 Gen2 puts key ECU and sensor data in your line of sight in the Mazda MX-5 NC. It uses an OLED screen for clear readability, including in direct sunlight. With a 52 mm outer diameter and only 12.5 mm depth, it fits common 52 mm interior bezels. Operation is via two windshield-mounted push buttons or an optional rotary knob.
Key features
- Compact design: 52 mm diameter, 12.5 mm depth
- Front LED: configurable shift light and/or warning LED
- CAN bus support: CAN bus ECUs, OBD2 (from 2008), in-depth VW/Audi data (from 2008), or custom CAN stream
- WLAN: connect to a smartphone or PC for setup via Web UI
- Inputs: up to 6 analog sensors, plus optional direct ethanol sensor input (license required)
- Preset alarms: enable and customize predefined warnings (example: EGT over 900 °C)
- Customization: custom startup logo or background image
- Online logging: logging via smartphone/PC (license required)
- Flex Fuel: ethanol content and temperature display (license required)
- CAN switching: control CAN switches via display buttons and forward analog readings to CAN (license required)
Display layouts (pages)
Select up to eight pages and choose from multiple layout types:
- Analog pointer
- Single value
- Double value
- 4-value layout
- 6-value layout
- Gear indicator
- Bar + double display
- Round display
- Bar graph (double across)
- Performance meter
- Bar chart (1–6 values, upright)
WLAN setup with oDSS (Online DSS)
The MFD15 Gen2 can be accessed over WLAN to configure the device from a smartphone or PC. Using oDSS you can fully set up the display, upload a startup image, update the device, and log values (license required).
Supported data and ECU protocols
The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. Available CAN values depend on what the ECU transmits; documentation (including DBC files) can be imported via DSS. Depending on the manufacturer, up to 64 sensors can be queried.
OBD2 queries over CAN (11-bit/29-bit) are implemented, and vehicle-specific protocols such as UDS and TP2 are supported.
Included by default:
- OBD2 (11-bit and 29-bit)
- Ecumaster (Classic and Black)
- VAG PQ34
- Haltech v2
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 and 3
If the required ECU is not listed, the appropriate TRI/TRX can be downloaded or requested from the database.
For VW/Audi vehicles from model year 2008, in-depth protocol-based queries are available, including values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, and wastegate actuation.
Internal LED (shift and warning)
The internal LED can be used as a shift light and as a warning LED.
- Shift light: up to 8 colors, speed thresholds, and a flash start point
- Warning LED: set min/max thresholds per sensor in oDSS (Sensors). If a sensor is above max or below min, the LED flashes in the configured color; shift-light mode is disabled during a warning.
Connections and expansion

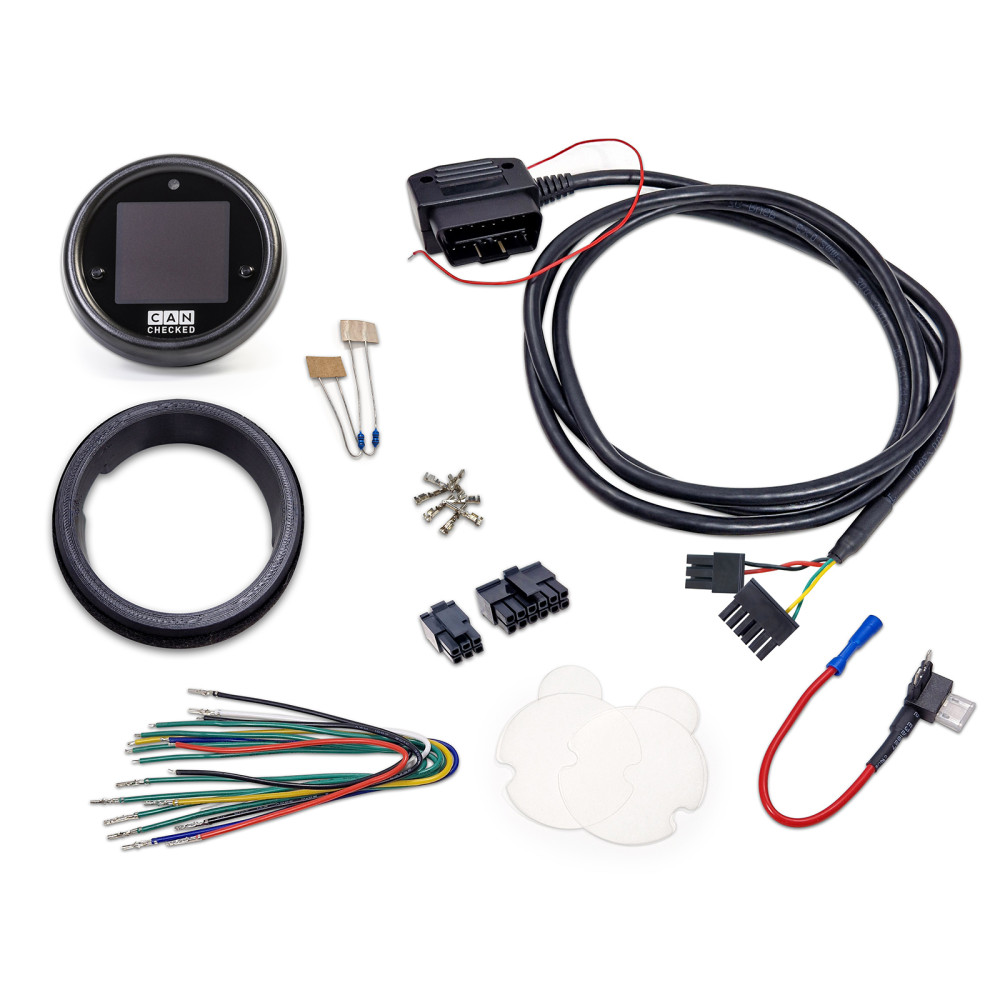

Included in the box:
- MFD15 Gen2 display
- Connector B (6-way)
- Connector C (12-way)
- 20 cm pre-crimped wires for power, CAN bus, analog inputs, 5 V, and sensor ground
- Crimp pins
- Two 1 kΩ resistors (NTC pull-up)

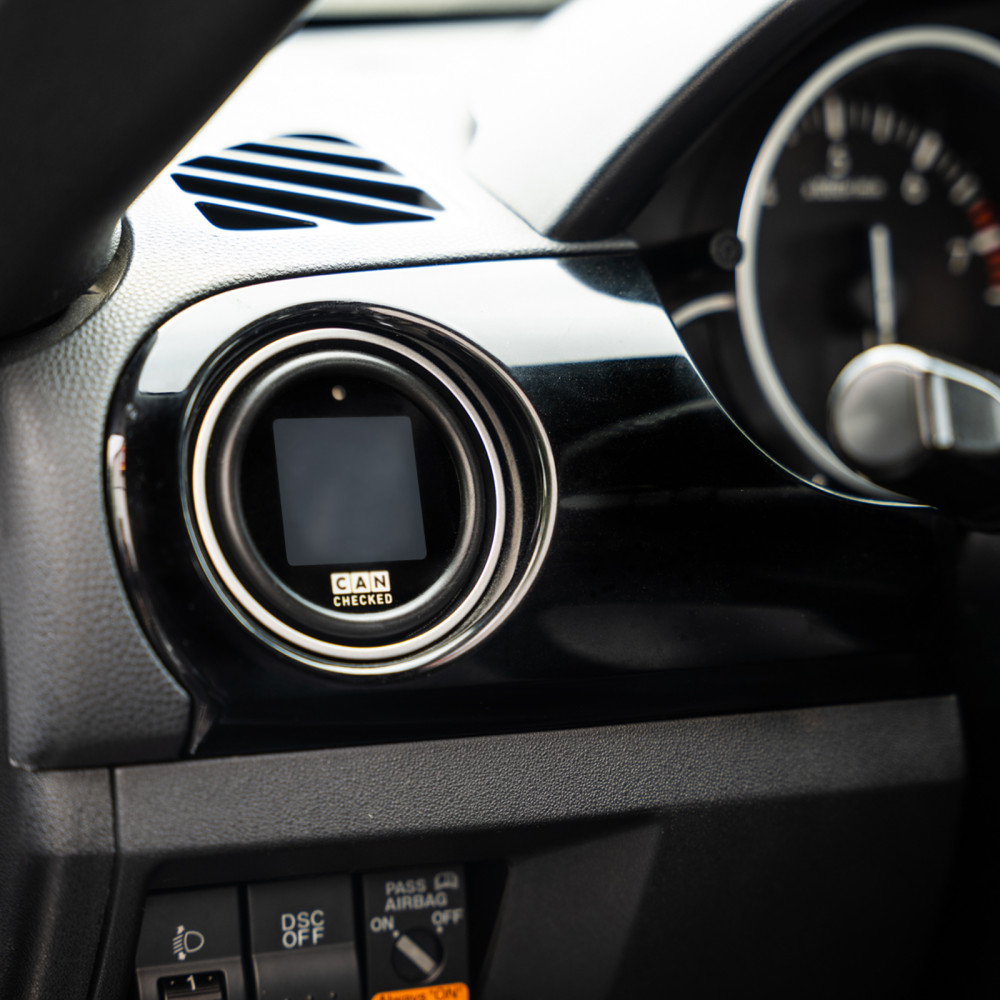

- Car-specific air vent bezel
- OBD connection cable
Six analog inputs support linear 0–5 V sensors and NTC sensors.
Preconfigured analog inputs (TRI/TRX)
- AIN1: Temperature sensor
- AIN2: Type K EGT transducer
- AIN3: Pressure sensor 0–10 bar
- AIN4: Boost pressure sensor 0–5.5 bar absolute
- AIN5: Not preconfigured
- AIN6: Not preconfigured
A pre-assembled 4-way AIN harness can be used for connection. With the appropriate license, an ethanol sensor can also be connected directly to the display via a separate pin.
Optional accessories
- CC22501 ETK01: External rotary knob with PnP 50 cm cable
- CC22100 CBD08: 8-way CAN distribution hub
- CC22902 NTC01: Liquid temperature sensor, 1/8" NPT
- CC22903 TCC01: Type K transducer, 0–1250 °C
- CC22901 FLP01: Pressure sensor, 0–10 bar (145 psi), M10x1
- CC22900 BST01: Pressure sensor, 0–5.5 bar absolute (80 psi)
Additional licenses
Live Logging
With the Live Logging license, the display can log sensor data in oDSS and you can download the log file to a smartphone or PC. All sensors are logged; for OBD and UDS, only the currently displayed sensors are logged.
Flex Fuel (ethanol sensor directly to the display)
With the ethanol sensor license, a sensor can be connected directly to the display. A 10 kΩ pull-up resistor is required between 5 V and signal. Ethanol content and fuel temperature can be displayed and logged.
CAN switching and analog-input forwarding
With the CAN Switching/AIN Forwarding license, the display buttons or rotary knob can switch CAN switches, and analog input voltages can be forwarded onto the CAN bus.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Mazda | MX-5 | NC | - |
CANchecked Multi Function Display MFD15 GEN2 for Mazda MX-5 NC Miata 2005 - 2015
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Mazda | MX-5 | NC | - |
