CANchecked MFD15 Gen2 Display for Audi TT 8N

The CANchecked MFD15 Gen2 is a compact 52 mm OLED display designed to keep key engine and vehicle data in view. The OLED offers strong readability in direct sunlight. Operation is via two windshield-mounted push buttons or an optional rotary knob.

Key features

• Compact packaging: 52 mm diameter, 12.5 mm depth; fits common 52 mm bezels.
• Front LED: configurable as a shift light and/or warning LED.
• CAN support: CAN bus ECUs, OBD2 (from 2008), and in-depth VW/Audi values (from 2008); custom CAN streams supported.
• WLAN setup: connect to a smartphone or PC and configure via the web UI (oDSS).
• 6 analog inputs: supports linear 0–5 V and NTC sensors; optional direct ethanol sensor connection (license required).
• Alarms: predefined alarms can be enabled and customized (example given: EGT alert above 900 °C).
• Customization: upload your own startup logo or background image.
• Online logging: data logging via smartphone or PC (license required).
• Flex Fuel: ethanol content and temperature display (license required).
• CAN switching: switch CAN outputs and forward analog inputs to CAN (license required).

Display pages and layouts

Select up to eight pages and choose from multiple view types:

• Analog pointer
• Single value
• Double value
• 4-fold values
• 6-fold values
• Bar + double display
• Round display
• Bar graph (double across)
• Bar chart (1–6-fold upright)
• Gear indicator
• Performance meter

oDSS (Online DSS) via WLAN

The MFD15 Gen2 can be accessed over WLAN for configuration from a smartphone or PC. Using oDSS you can configure the display, upload a startup image, update firmware, and log values (license required).

ECU protocols and supported values

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. Available values depend on what the ECU transmits over CAN; up to 64 sensors can be queried depending on the manufacturer. DBC documentation can be imported via DSS where available.

OBD2 queries via CAN (11-bit/29-bit) are supported. Vehicle-specific protocols such as UDS and TP2 are also available.

Included by default:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

For VW/Audi vehicles from model year 2008, in-depth protocol-based queries are supported (examples listed: oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle retard, high/low pressure, wastegate actuation, and more).

Internal LED (shift light / warning)

The internal LED can be configured as:

• Shift light: up to 8 colors, RPM limits, and a start RPM for flashing.
• Warning LED: set min/max limits per sensor in oDSS; when a limit is exceeded the LED flashes in the configured color. During a warning event, the shift light function is disabled.

Installation, connections, and expansion

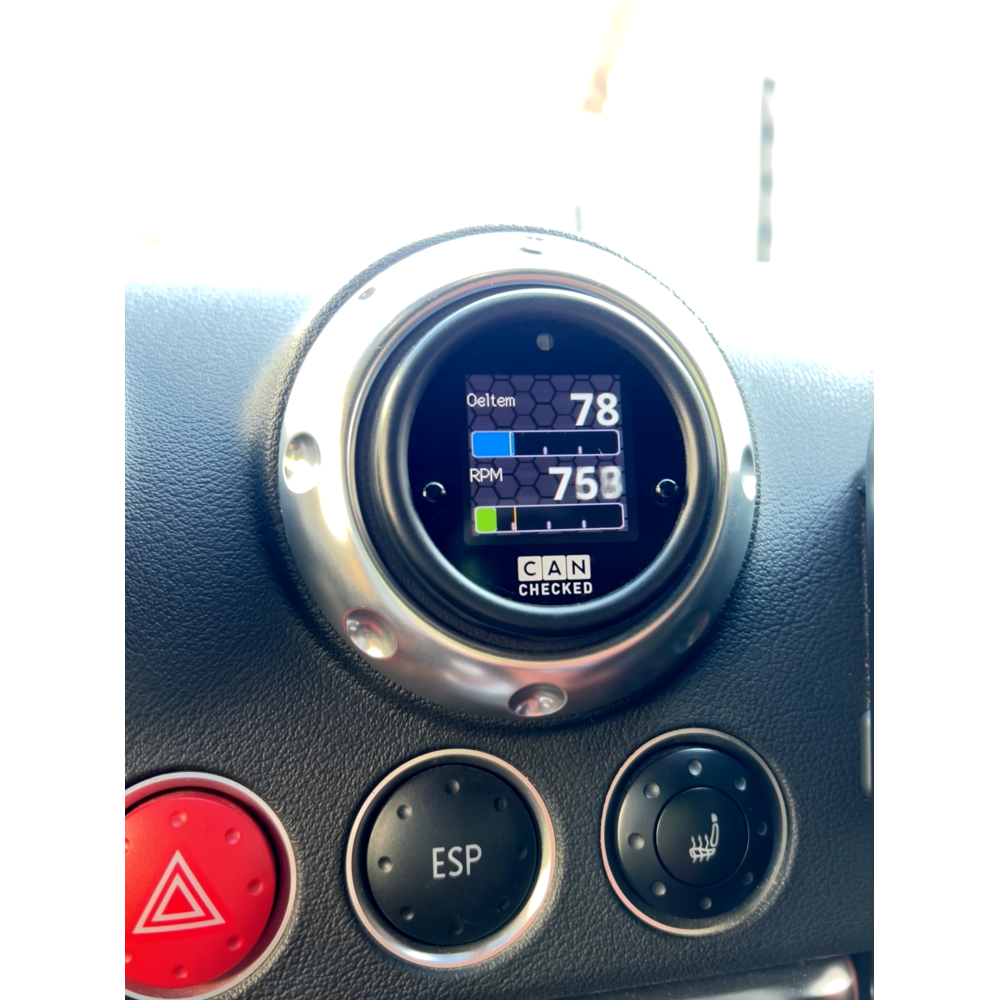

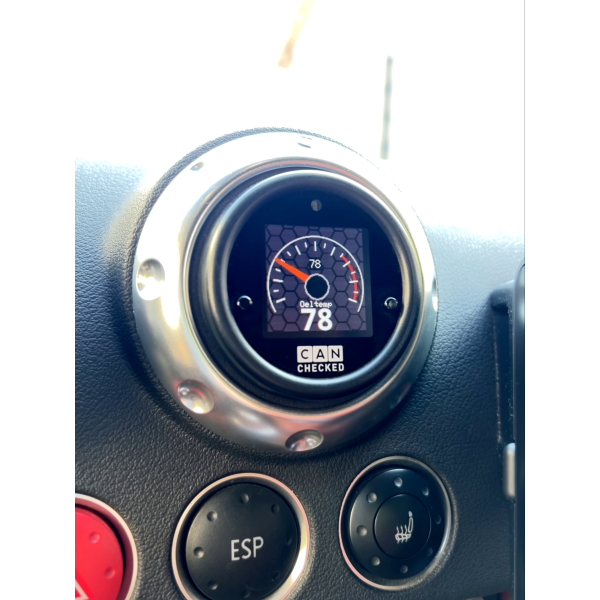

The display uses a 52 mm form factor and includes a vehicle-specific air vent bezel for installation. Six analog inputs are available for external sensors (linear 0–5 V and NTC supported). A separate pin can be used to connect an ethanol sensor directly to the display when the appropriate license is enabled.

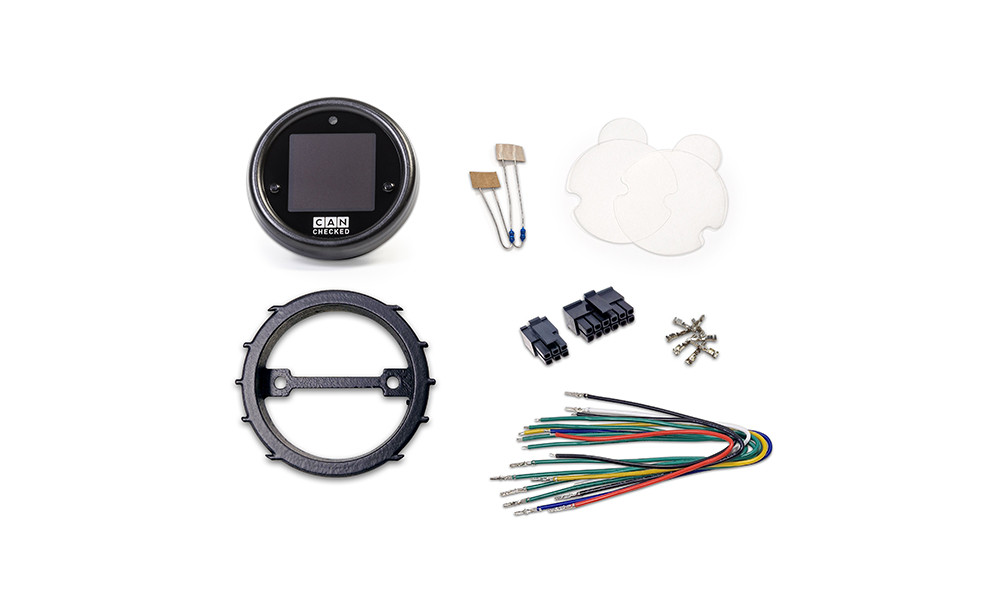

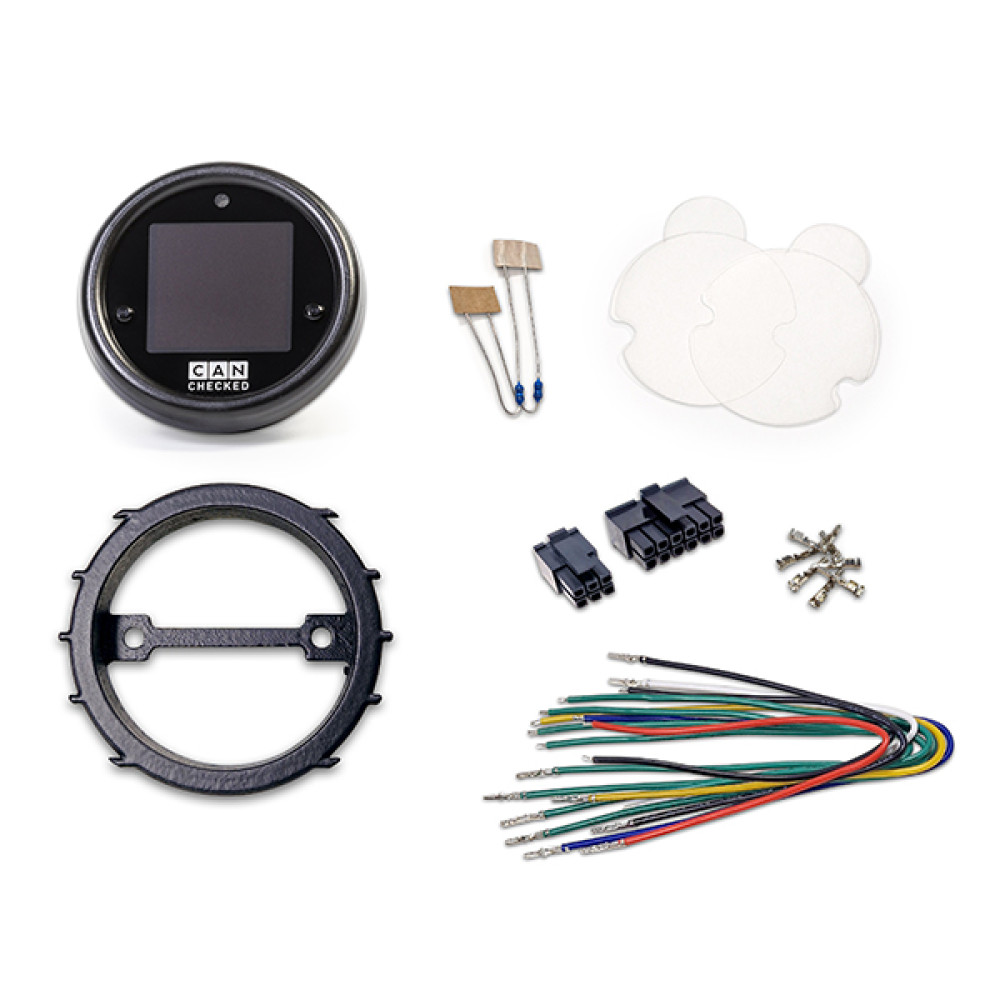

Included in the box

• MFD15 Gen2 display
• Connector B (6-way)
• Connector C (12-way)
• 20 cm pre-crimped connection cables (power, CAN bus, analog inputs, 5 V, sensor ground)
• Pins for self-crimping
• Two 1 kΩ resistors (NTC pull-up)
• Car-specific air vent bezel
• OBD connection cable

Analog input presets (TRI/TRX defaults)

• AIN1: temperature sensor
• AIN2: type K EGT transducer
• AIN3: pressure sensor 0–10 bar
• AIN4: boost pressure sensor 0–5.5 bar absolute
• AIN5: not preconfigured
• AIN6: not preconfigured

A pre-assembled 4-way AIN harness can be used for sensor connection.

Optional accessories

• CC22501 ETK01: external rotary knob with PnP 50 cm connection cable
• CC22100 CBD08: eight-way CAN distribution hub
• CC22902 NTC01: liquid temperature sensor, 1/8" NPT
• CC22903 TCC01: type K transducer, 0–1250 °C
• CC22901 FLP01: pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01: pressure sensor 0–5.5 bar absolute (80 psi)

Additional licenses

Live Logging

Enables logging of sensor data into oDSS and downloading logs to a smartphone or PC. Note: for OBD and UDS, only currently displayed sensors are logged.

Flex Fuel (ethanol sensor direct to display)

Enables direct ethanol sensor input on the display. A 10 kΩ pull-up resistor is required between 5 V and signal. Ethanol content and fuel temperature can be displayed and logged.

CAN Switching and AIN forwarding

Enables switching CAN outputs using the display buttons or optional rotary knob, and forwards analog input voltages onto the CAN bus.
