CANchecked MFD15 Gen2 Display for Audi A3 8V

The CANchecked MFD15 Gen2 is a compact OLED gauge-style display designed to keep key vehicle data in view. The OLED screen is readable even in direct sunlight, and the 52 mm outer diameter fits common interior bezels (even without a vehicle-specific holder). Operation is via two windshield-mounted push buttons or an optional rotary knob.

Key features

• Compact housing: 52 mm diameter, 12.5 mm depth
• Front LED: configurable as a shift light and/or warning LED
• CAN support: CAN bus ECUs, OBD2 (from 2008), in-depth VW/Audi values (from 2008), or user-built CAN streams
• WLAN setup: connect to smartphone or PC and configure via Web UI (oDSS)
• Analog inputs: up to 6 analog sensors; optional direct ethanol sensor connection (license required)
• Preset alarms: activate and customize predefined warnings (example: EGT alert above 900 °C)
• Customization: custom startup logo or background image
• Online logging: log via smartphone or PC and save for analysis (license required)
• Flex Fuel display: ethanol content and temperature (license required)
• CAN switching / AIN forwarding: switch CAN devices via display buttons and forward analog input values to CAN (license required)

Display pages and layouts

Select up to eight pages and choose from multiple view types:

• Analog pointer
• Single value
• Double value
• 4-value display
• 6-value display
• Round display
• Gear indicator
• Bar + double display
• Bar graph (double across)
• Bar chart (1–6 upright)
• Performance meter

oDSS (Online DSS) via WLAN

The MFD15 Gen2 can be accessed over WLAN for setup using a smartphone or PC. With oDSS you can configure the display, upload a startup image, update the unit, and (with license) log values.

Supported data sources and protocols

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. Which ECU values are available depends on what the ECU transmits on CAN; documentation (for example a DBC file) can be imported via DSS. Depending on the manufacturer, up to 64 sensors can be queried.

OBD2 via CAN (11-bit/29-bit) is implemented, and vehicle-specific protocols such as UDS and TP2 are available.

Included by default:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

If an ECU is not listed, the appropriate TRI/TRX can be downloaded or requested from the database.

For VW/Audi vehicles from model year 2008, in-depth protocol-based queries are supported, including values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle retard, high/low pressure, wastegate actuation, and more.

Internal LED (shift light / warning)

The internal LED can be configured as a shift light or as a warning LED.

• Shift light: up to 8 colors, speed limits, and a configurable flash start point
• Warning LED: per-sensor min/max limits configured in oDSS; LED flashes in the selected color when out of range (shift light is disabled during a warning)

Connections and expandability

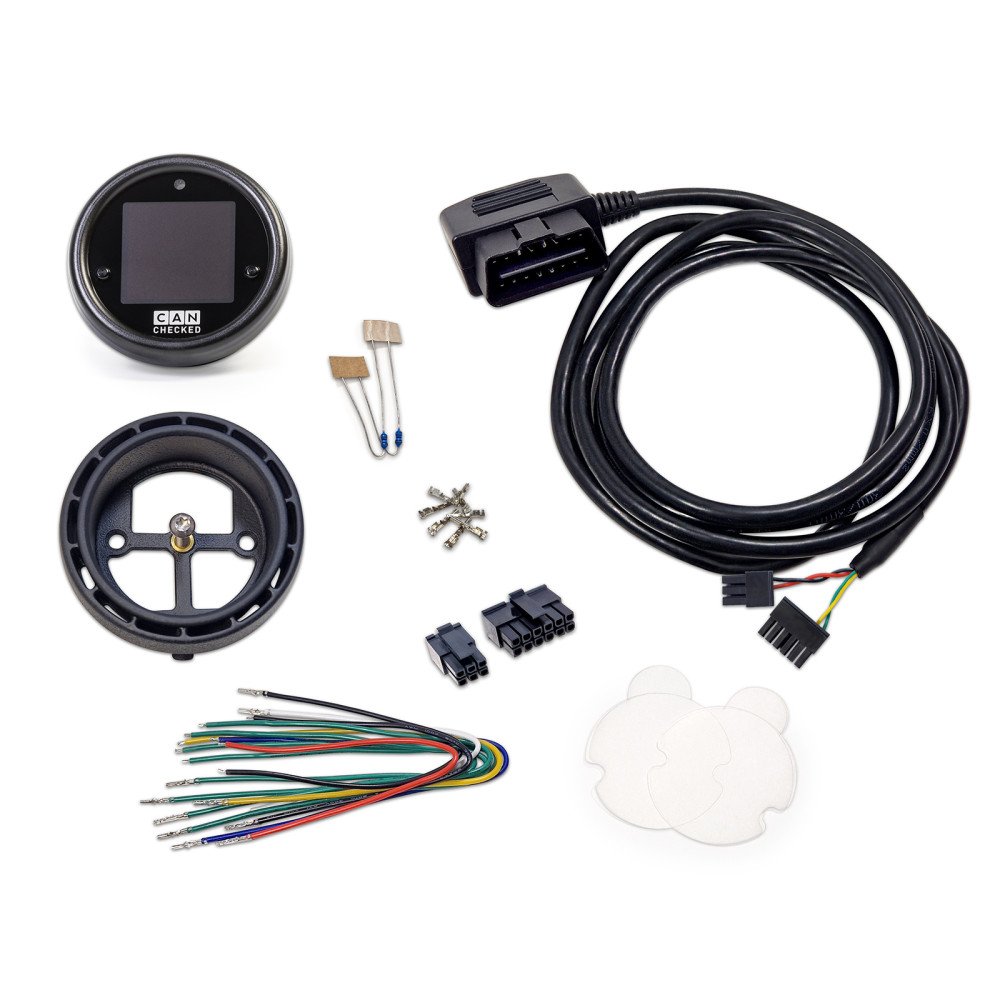

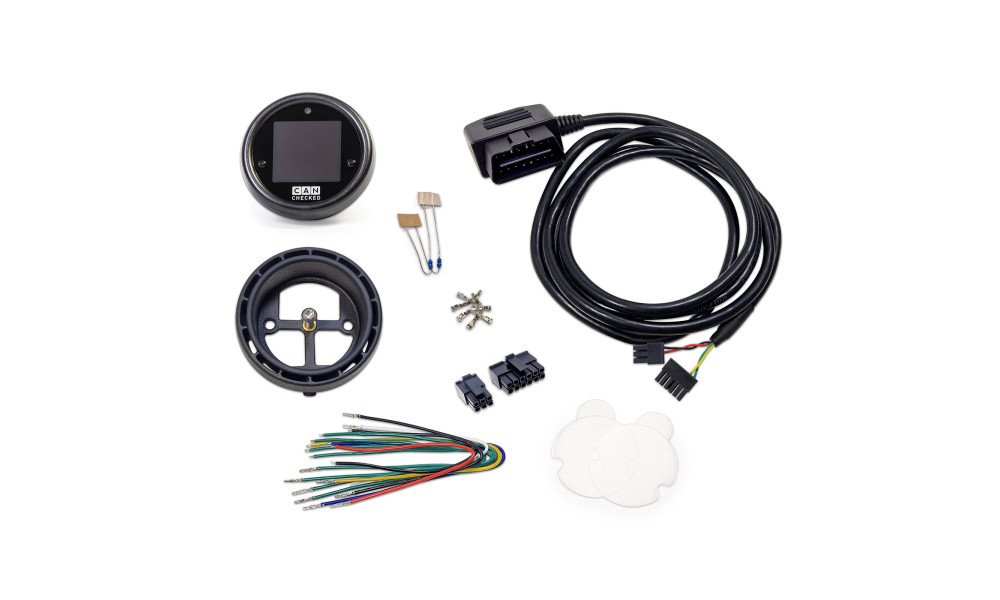

Included in the box:

• MFD15 Gen2 display
• Connector B (6-way)
• Connector C (12-way)
• 20 cm pre-crimped cables for power, CAN bus, analog inputs, 5 V, and sensor ground
• Pins for self-crimping
• Two 1 kΩ resistors (NTC pull-up)

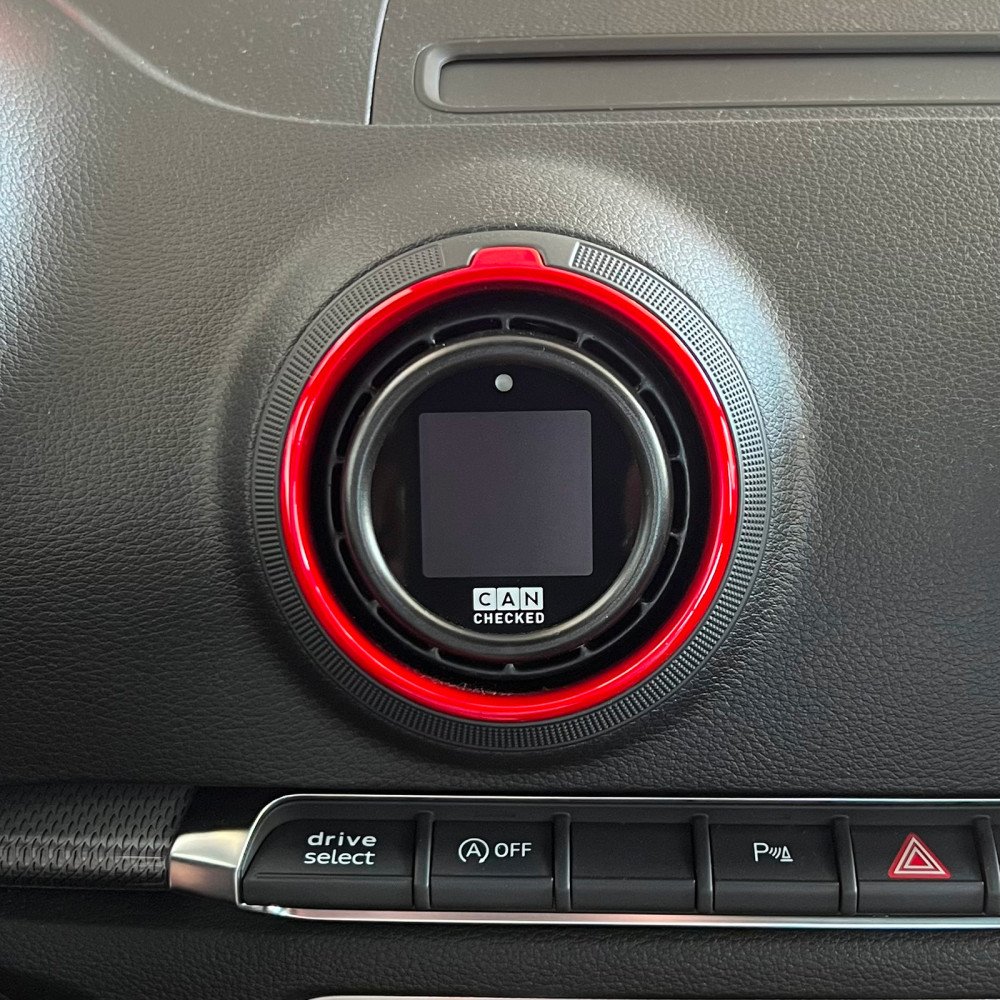

• Car-specific air vent bezel
• OBD connection cable

Six analog inputs support linear 0–5 V sensors and NTC sensors. CANchecked sensor presets are stored in the TRI/TRX files and can be used by simply connecting the sensors:

• AIN1: temperature sensor
• AIN2: type K EGT transducer
• AIN3: pressure sensor 0–10 bar
• AIN4: boost pressure sensor 0–5.5 bar absolute
• AIN5: not preconfigured
• AIN6: not preconfigured

A pre-assembled 4-way AIN harness can be used for connection. With the appropriate license, an ethanol sensor can be connected directly via a separate pin.

Optional accessories

• CC22501 ETK01: external rotary knob with PnP 50 cm connection cable
• CC22100 CBD08: 8-way CAN distribution hub
• CC22902 NTC01: liquid temperature sensor 1/8" NPT
• CC22903 TCC01: type K transducer 0–1250 °C
• CC22901 FLP01: pressure sensor 0–10 bar (145 psi) M10x1
• CC22900 BST01: pressure sensor 0–5.5 bar absolute (80 psi)

Additional licenses

Live Logging

With the Live Logging license, the display can log sensor data in oDSS and the log file can be downloaded to a smartphone or PC. All sensors are logged; for OBD and UDS, only the currently displayed sensors are logged.

Flex Fuel (ethanol sensor direct to display)

With the ethanol sensor license, an ethanol sensor can be connected directly to the display. A 10 kΩ pull-up resistor between 5 V and signal is required. Ethanol content and fuel temperature can be displayed and logged.

CAN Switching and AIN forwarding

With the CAN Switching and AIN forwarding license, the display buttons or rotary knob can switch CAN switches and send analog input voltages onto the CAN bus.
