CANchecked MFD15 Gen2 Conversion Kit for Mazda MX-5 / Miata NA (Oil Pressure Gauge Replacement)

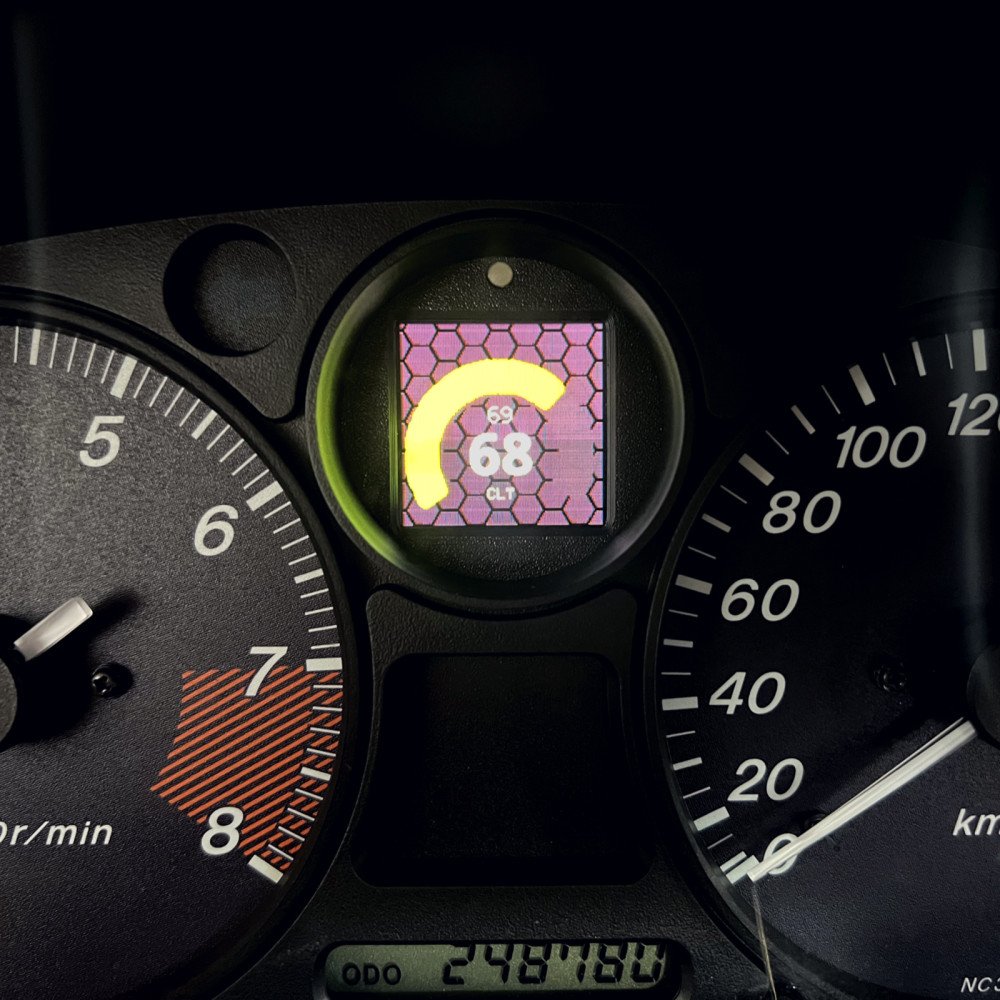

This vehicle-specific conversion kit replaces the factory oil pressure gauge with a CANchecked MFD15 Gen2 display. It installs into the original dashboard location without cutting.

Key Features

• Plug-and-play fitment: installs in the original cluster position in place of the oil pressure gauge
• Configurable front LED: shift light and/or warning LED
• CAN bus support: compatible with CAN ECUs or your own custom CAN stream
• WLAN connectivity: configure via smartphone or PC using the web UI
• 6 analog inputs: supports linear 0–5V and NTC sensors; optional direct ethanol sensor connection (license required)
• Preset alarms: pre-configured warnings can be enabled and adjusted (example: EGT warning above 900°C)
• Personalization: custom startup logo or background image
• Online logging: log data via smartphone/PC (license required)
• Flex fuel display: ethanol content and temperature (license required)
• CAN switching / AIN forwarding: switch CAN functions via display buttons and forward analog input values onto CAN (license required)

Display Pages & Layouts

Select up to eight pages and choose from these views:

• Analog Needle
• Double Value
• Gear Display
• 4-value Display
• 6-value Display
• Bar + Double Display
• Circular Display
• Bar Chart (double horizontal)
• Performance Meter
• Bar Chart (1–6-fold vertical)
• Single Value

Online Access (oDSS via WLAN)

The MFD15 Gen2 can be accessed over WLAN for setup via smartphone or PC. Through oDSS you can configure the display, upload a startup image, perform updates, and (with the appropriate license) log values.

CAN Compatibility & Supported Values

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. Which values are available depends on what the ECU transmits via CAN; documentation (for example a DBC file) is used for implementation. Depending on the manufacturer, up to 64 sensors can be queried.

Default inclusions:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

If your ECU is not listed, the appropriate TRI/TRX can be downloaded or requested via the database.

Internal LED (Shift Light / Warning)

The internal LED can be used as both a shift light and a warning LED.

• Shift light: up to 8 colors and RPM thresholds can be assigned, including a configurable flash point.
• Warning LED: per-sensor min/max thresholds can be configured in oDSS; if a value is outside the limits the LED flashes in the selected color. During a warning, the shift light function is disabled.

Connections & Expansion

Six analog inputs are available for sensors (linear 0–5V and NTC supported). CANchecked sensors are pre-configured in TRI/TRX files and only need to be connected:

• AIN1: Temperature Sensor
• AIN2: Converter for Type K Exhaust Gas Temperature Probe
• AIN3: Pressure Sensor 0–10 bar
• AIN4: Boost Pressure Sensor 0–5.5 bar absolute
• AIN5: Not pre-configured
• AIN6: Not pre-configured

A pre-assembled 4-fold AIN harness can be used for connection. With the appropriate license, an ethanol sensor can be connected directly to the display using a separate pin.

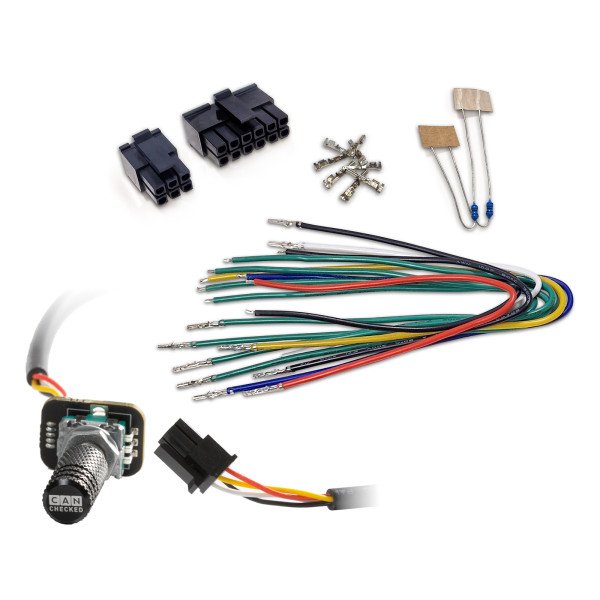

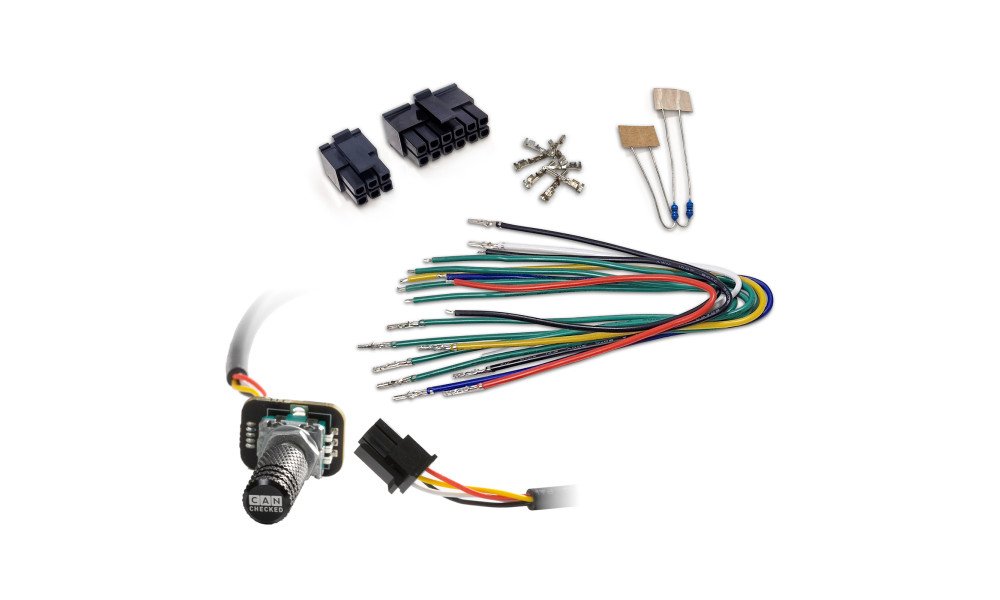

What’s Included

• MFD15 Gen2 display suitable for Mazda MX-5 NA
• Plug B (6-way)
• Plug C (12-way)
• 20 cm pre-crimped connection cables for power supply, CAN bus, analog inputs, 5V, and sensor ground
• Pins for self-crimping
• Two 1K resistors (pull-up for NTC sensors)
• Vehicle-specific installation frame and connection cables

Optional Accessories

• CC22501 ETK01 - External knob with PnP 50 cm connection cable
• CC22100 CBD08 - Eight-way CAN distribution hub
• CC22902 NTC01 - Temperature sensor for liquids, 1/8" NPT
• CC22903 TCC01 - Type K converter, 0–1250°C
• CC22901 FLP01 - Pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 - Boost pressure sensor 0–5.5 bar absolute (80 psi)

Additional Licenses (Optional)

Live Logging

Logs sensor data into oDSS and allows download to a smartphone or PC. Note: for OBD and UDS, only the currently displayed sensors are logged.

Flex Fuel (Ethanol Sensor Direct to MFD15 Gen2)

Allows direct connection of an ethanol sensor to the display. A 10K pull-up resistor is required between 5V and signal. Ethanol content and fuel temperature can be viewed and logged.

CAN Switching and AIN Forwarding

Enables switching CAN functions via the display buttons or external knob and sending analog input voltages onto the CAN bus.

Installation

The conversion is performed by the customer. Installation instructions can be downloaded in advance.
