Mini Cooper F55/F56/F57 MFD32 LHD/RHD Display

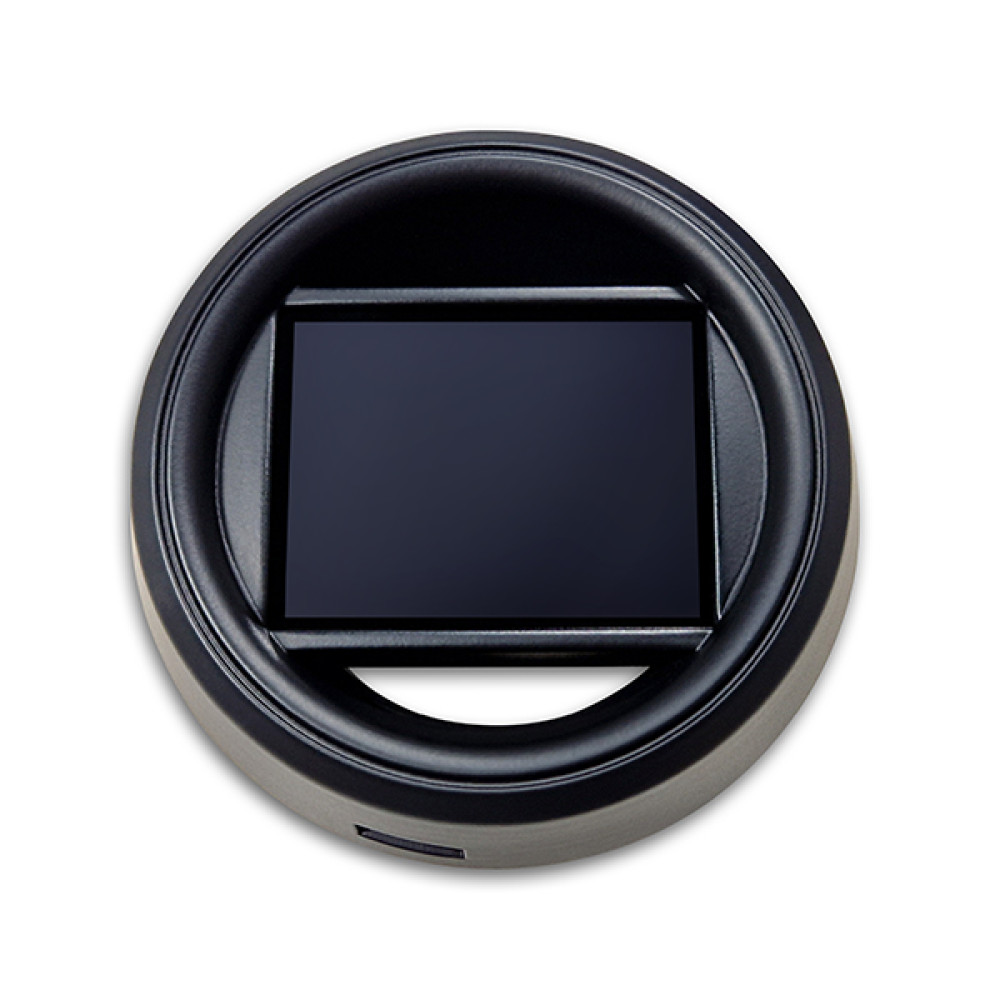

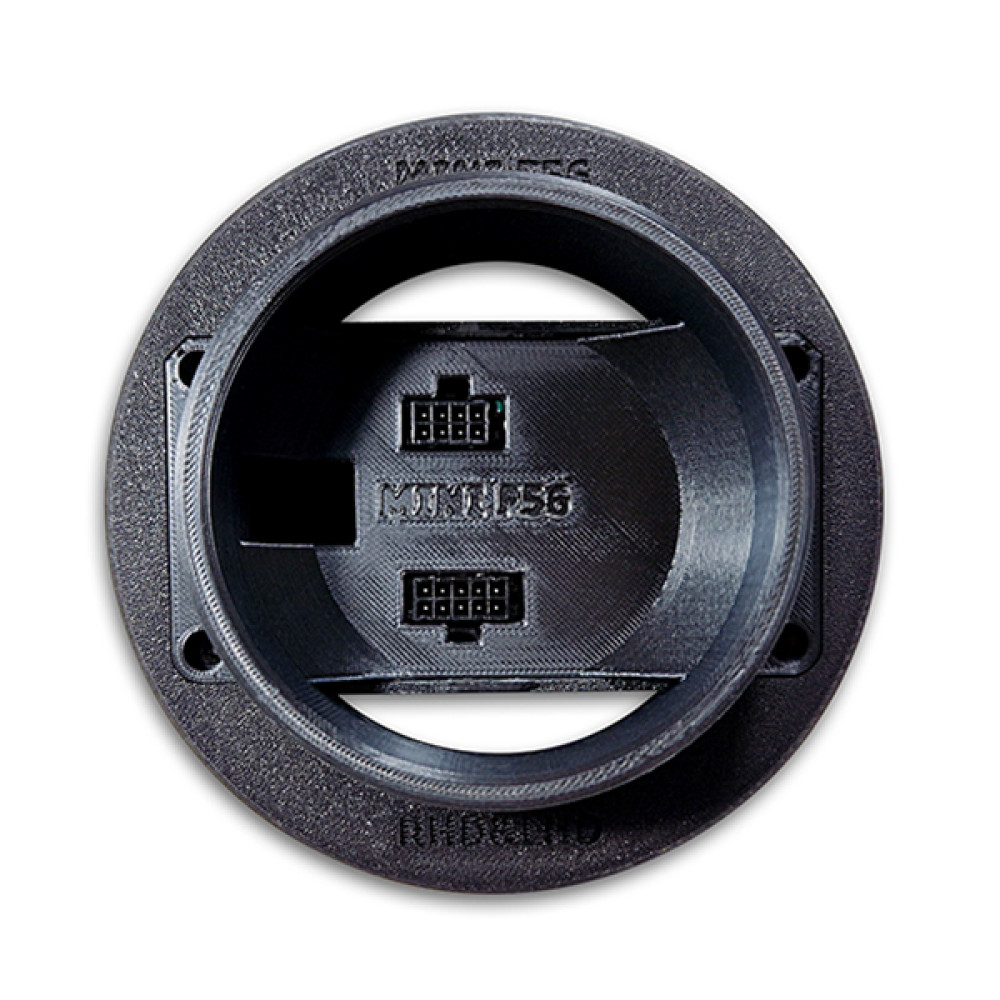

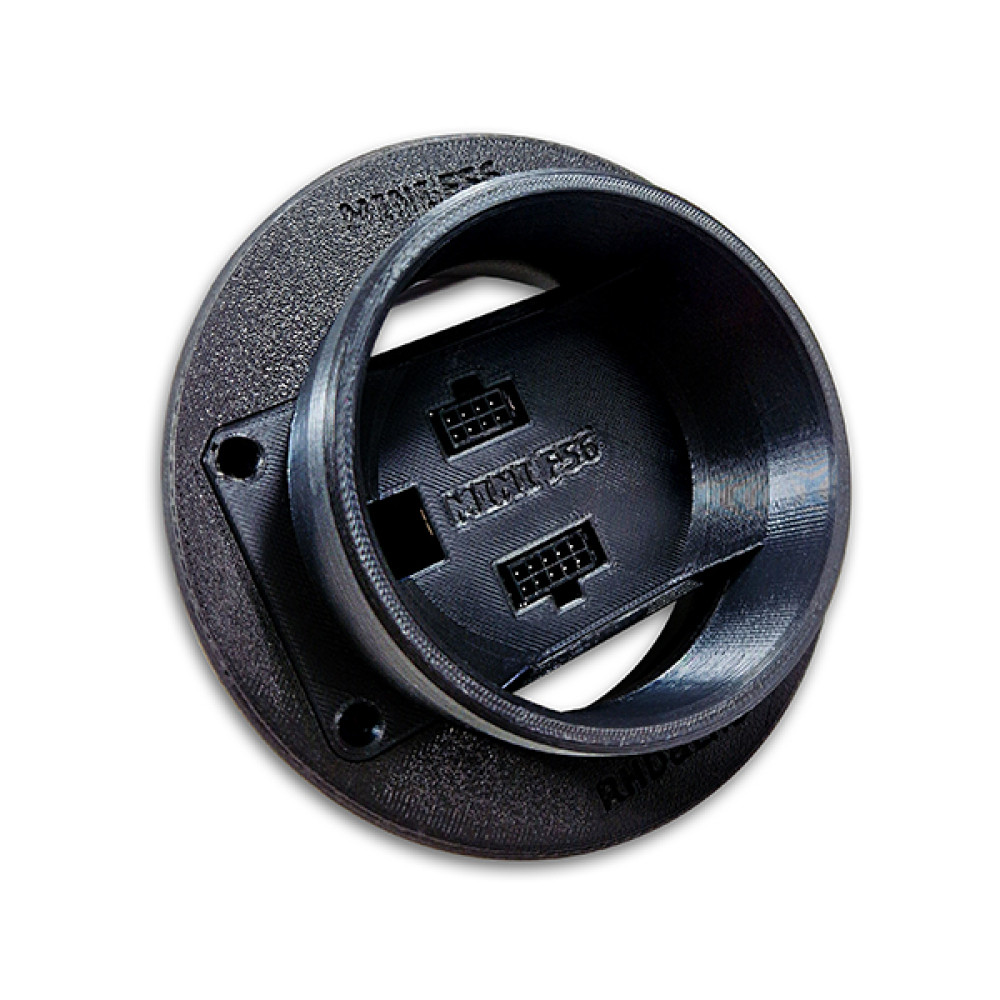

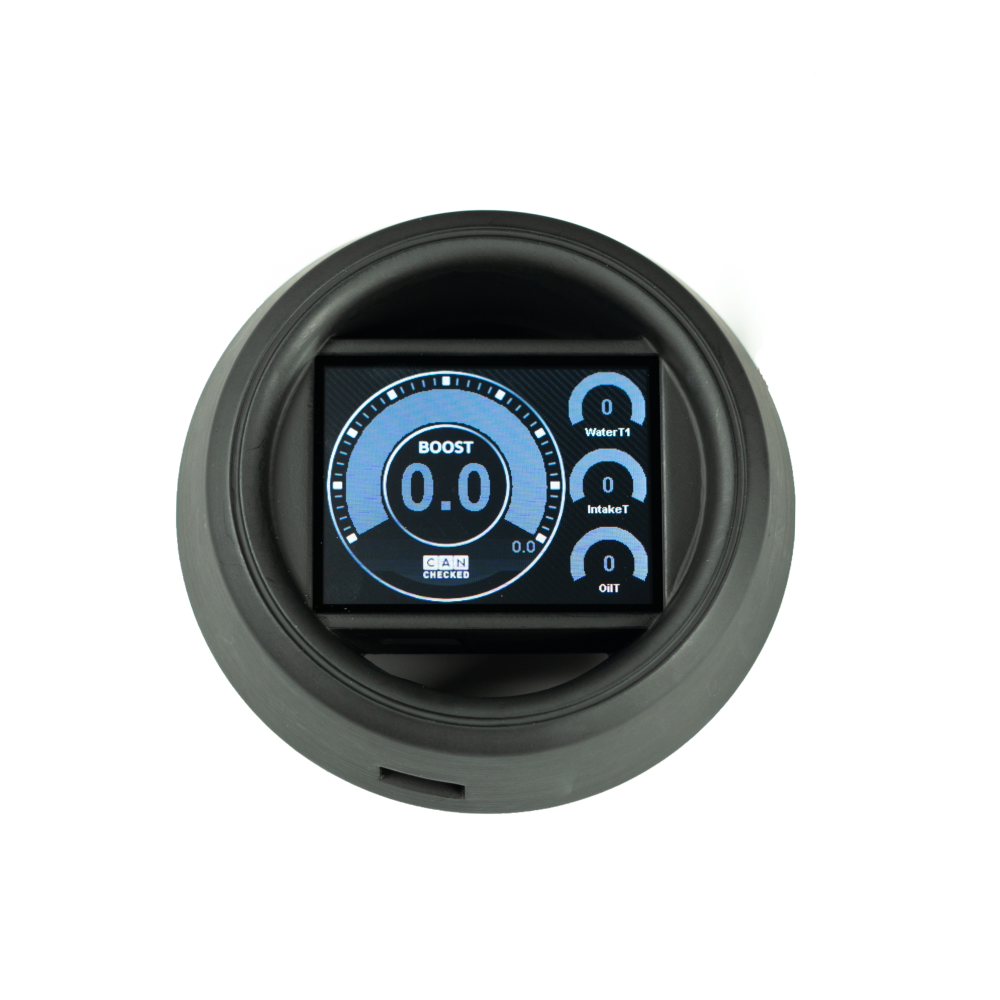

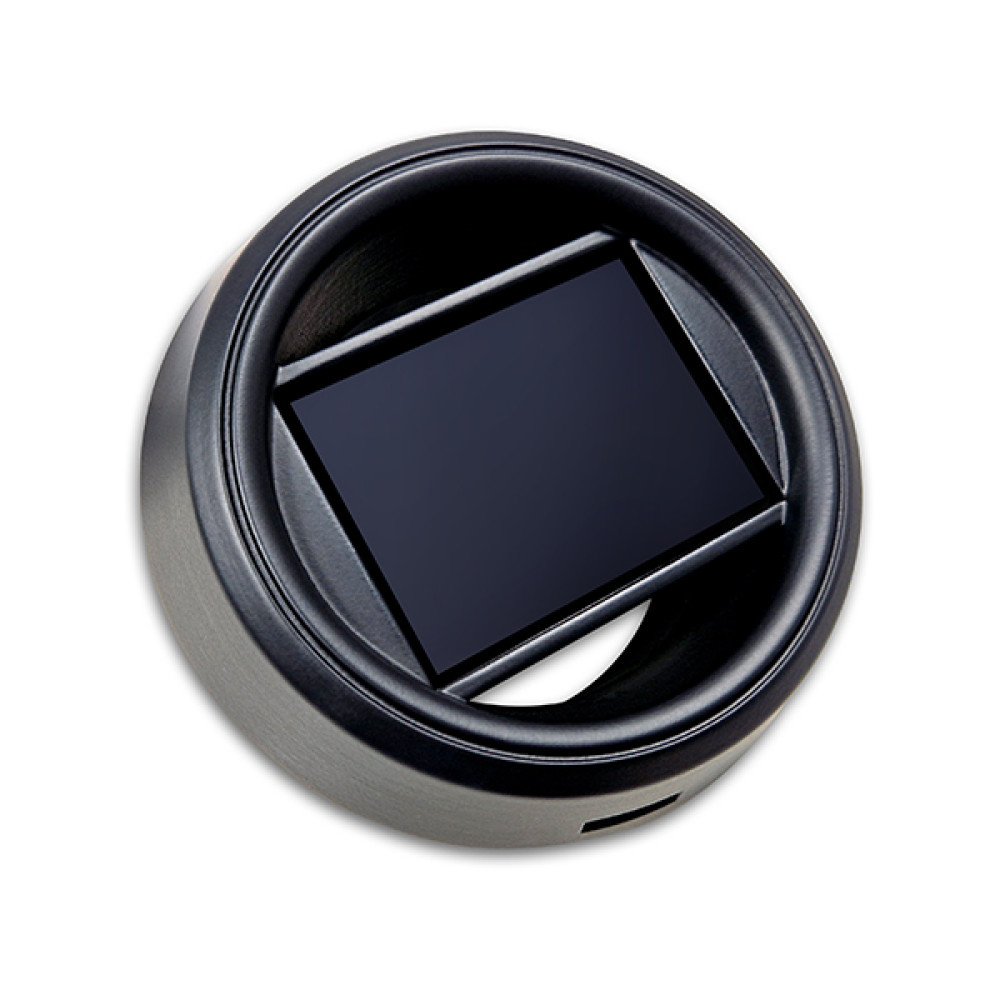

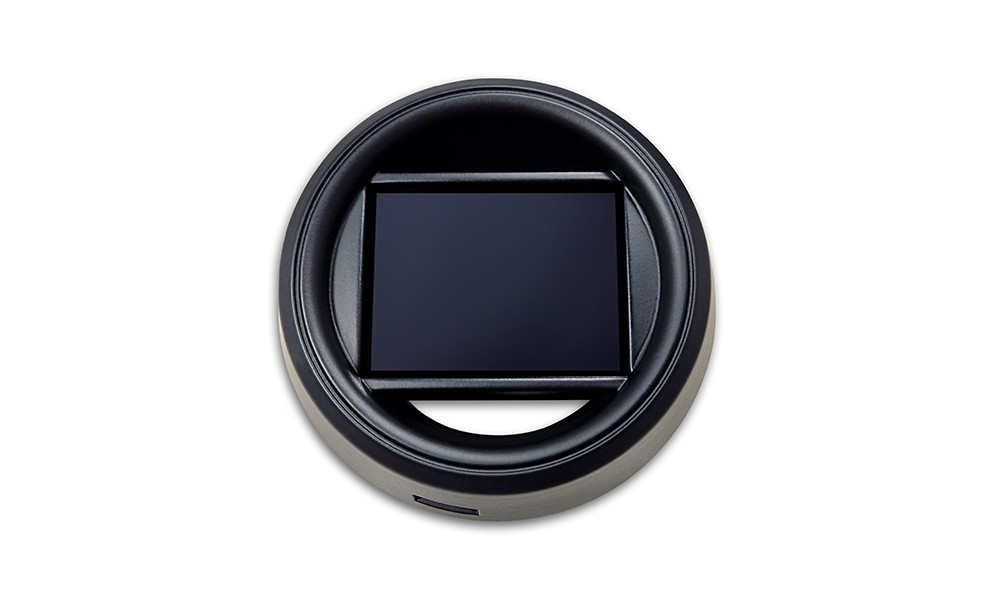

The MFD32 display for Mini Cooper F55/F56/F57 reads vehicle data directly via CAN-Bus and presents it on an integrated MFD32 Gen2 screen designed to fit the factory cockpit using a vehicle-specific bezel. A specially adapted CAN-Bus protocol is used for fast query speeds.
Key Features
- Integrated fitment for Mini Cooper F55/F56/F57 cockpit design
- Reads data via CAN-Bus
- Supports up to 128 sensors
- 10 customizable display layouts via DSS (Display Setup Software)
- Pre-installed display modes for quick setup
- Plug-and-play installation with vehicle-specific cable set
- 4 additional analog inputs (supports linear 0–5V and NTC sensors)
- Option to connect an ethanol sensor (pull-up resistor 10K between 5V and signal required)
- Display mode switching via the original cruise control switch
- Data logging to internal SD card (continuous or on demand)
- Optional glare shield for improved readability
- Eye-level access to sensor values for diagnostics
Functions
- Performance meter: 0–100, 100–200, 0–200 acceleration times
- Alerts: Configurable warnings (example: exhaust temperature threshold of 900 degrees)
- Error handling: Read and clear engine control unit error messages
- Personalization: Custom startup screen and selectable widgets
Typical CAN-Bus Sensors (TRI file included)
- Temperatures: engine coolant, intake air, exhaust gas, transmission
- Pressures: boost, ambient, oil
- Lambda/fueling: lambda target/actual, short-term and long-term lambda adaptation, MAF, engine load, torque
- Driver dynamics: brake pressure, vehicle speed, throttle angle/gas pedal position
- Other: engine speed, total ignition angle, gear, battery voltage, ignition angle correction per cylinder
Note: Not every engine provides every data channel.
Analog Inputs and Supported CANchecked Sensors
- AIN1: Temperature sensor
- AIN2: Exhaust gas temperature probe Type K
- AIN3: Pressure sensor 0–10 bar
- AIN4: Boost pressure sensor 0–5.5 bar absolute
Additional sensors such as oil temperature, fuel pressure, oil pressure, and exhaust gas temperature can be added. Ethanol content and temperature can be read and logged when an ethanol sensor is connected.
Expansion
An external flash module with 8 LEDs can be connected; colors and behavior (e.g., rev limit indication) are configurable via the display. Math Channels allow linking sensor data, and User Tables support creating additional sensors using 2D or 3D maps.
Compatibility
The display frame is suitable for all Mini Cooper F55/F56/F57 models.
What’s Included
- Integrated MFD32 Gen2 data display in the dashboard
- Vehicle-specific connection cable
- Quick start guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Display glare shield
Optional Accessories
- CC24000 SLM08 – External flash module
- CC22100 CBD08 – Eight-channel CAN distributor
- CC22902 NTC01 – Liquid temperature sensor 1/8" NPT
- CC22903 TCC01 – Type K converter 0–1250°C
- CC22901 FLP01 – Pressure sensor 0–10 bar (145psi) M10x1
- CC22900 BST01 – Pressure sensor 0–5.5 bar absolute (80psi)
Installation
An illustrated installation guide is provided.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Mini Cooper | Mini Cooper | F55/F56/F57 | - |
CANchecked Multi Function Display for Mini Cooper F55 F56 F57 LHD / RHD
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Mini Cooper | Mini Cooper | F55/F56/F57 | - |
