Ford Bronco MFD28 Gen2 CAN-Bus Data Display (2021+)

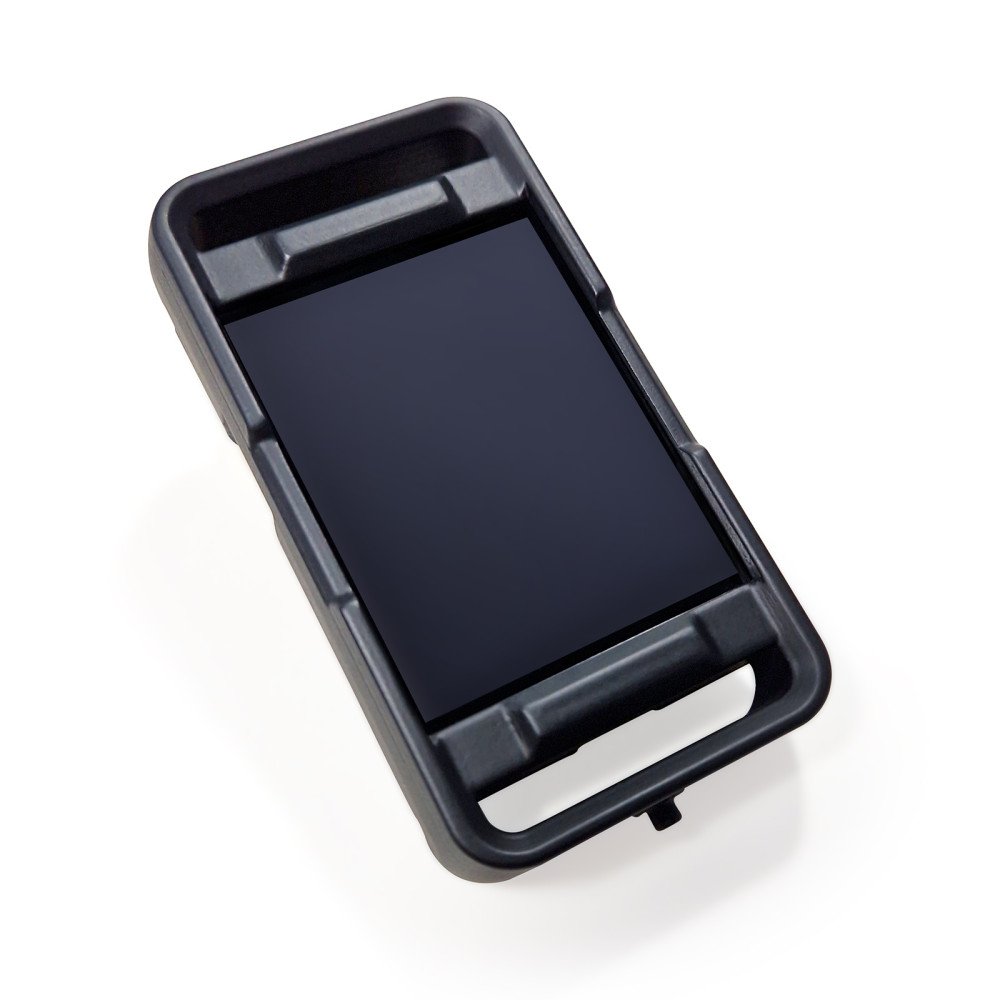

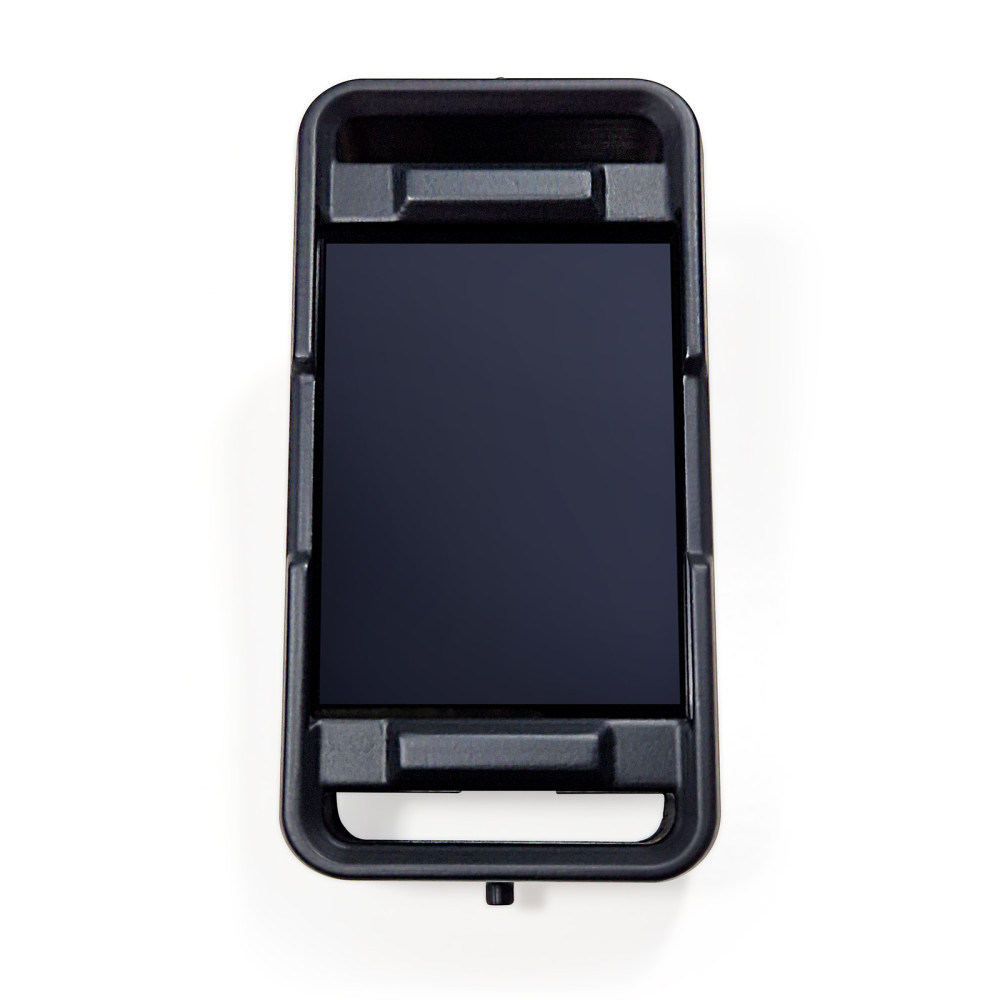

This integrated MFD28 Gen2 display is designed for 2021+ Ford Bronco models and mounts in the ventilation grille using a model-specific bezel for an OEM-style fit. It reads vehicle data directly from the CAN-Bus using a dedicated, optimized protocol for fast sensor polling.

Key Features

• Integrated fitment in the vehicle interior design
• CAN-Bus monitoring for up to 128 sensors
• 10 individually configurable screen layouts via DSS (Display Setup Software)
• Pre-configured display modes for quick setup
• Plug-and-play installation using the included vehicle-specific cable kit
• Four additional analog inputs for external sensors (supports linear 0–5V and NTC)
• Ethanol sensor input supported (pull-up resistor required: 10K between 5V and signal)
• Optional screen glare protection
• Eye-level sensor monitoring useful for diagnostics
• Data logging to internal SD card (continuous or on-demand)

Functions

• Performance tracker: Acceleration timing for 0–100, 100–200, and 0–200
• Data logging: Stores data to the internal SD card; last drive data is retained
• Configurable alerts: Supports adjustable warning thresholds (example given: exhaust temperature over 900 degrees)
• DTC handling: Read and clear engine control unit fault codes
• Personalization: Custom startup screen and selectable widgets
• Vehicle coverage: Compatible with left-hand drive and right-hand drive vehicles

CAN-Bus Sensor Coverage (TRI file included)

A pre-configured TRI file is supplied, listing available channels. Actual available data can vary by engine.

• Temperatures: engine coolant, intake air, exhaust, transmission, rear differential, 4x tire temperature
• Pressures: boost, ambient, oil, 4x tire pressure
• Lambda / fueling: lambda target/actual, short-term and long-term lambda adaptation, MAF, engine load, torque
• Driver dynamics: brake pressure, vehicle speed, throttle angle/pedal position
• Other: RPM, total ignition timing, gear, battery voltage

Analog Inputs & Expansion

Four analog inputs support adding sensors such as oil temperature, fuel pressure, oil pressure, exhaust temperature, and more. CANchecked sensors are already integrated in the TRI/TRX files and only need wiring:

• AIN1: temperature sensor
• AIN2: exhaust temperature probe Type K
• AIN3: pressure sensor 0–10 bar
• AIN4: boost pressure sensor 0–5.5 bar absolute

An external flash module with 8 LEDs can be connected for RPM-based shift/limit indication, with colors configurable through the display.

Advanced Display Tools

• Math Channels: combine and process sensor data
• User Tables: create additional channels using 2D or 3D maps

Compatibility

• Ford Bronco (2021+)

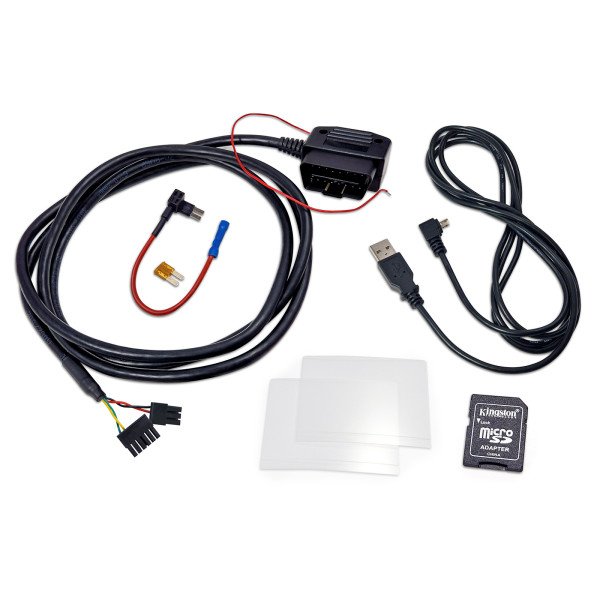

What’s Included

• MFD28 Gen2 data display integrated into the ventilation grille
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Screen protector (anti-reflection)

Optional Accessories (Part Numbers)

• CC24000 SLM08 – External flash module
• CC22100 CBD08 – Eight-channel CAN distributor
• CC22902 NTC01 – Temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 – Type K converter 0–1250°C
• CC22901 FLP01 – Pressure sensor 0–10 bar (145 psi) M10x1
• CC22900 BST01 – Pressure sensor 0–5.5 bar absolute (80 psi)

Installation

An illustrated installation guide is provided.
