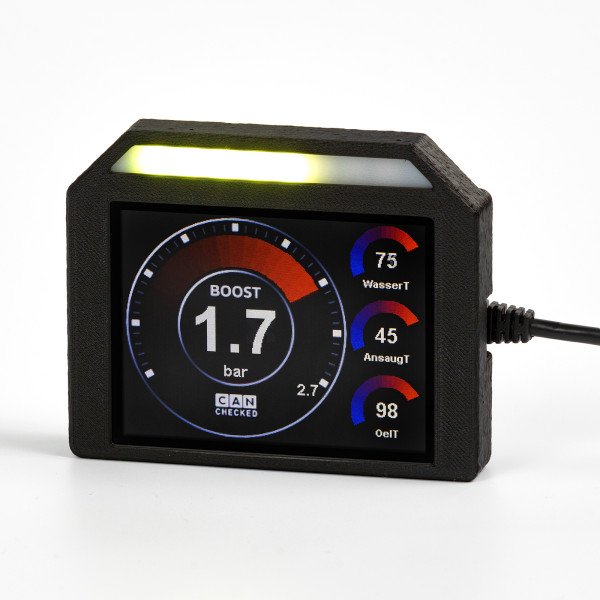

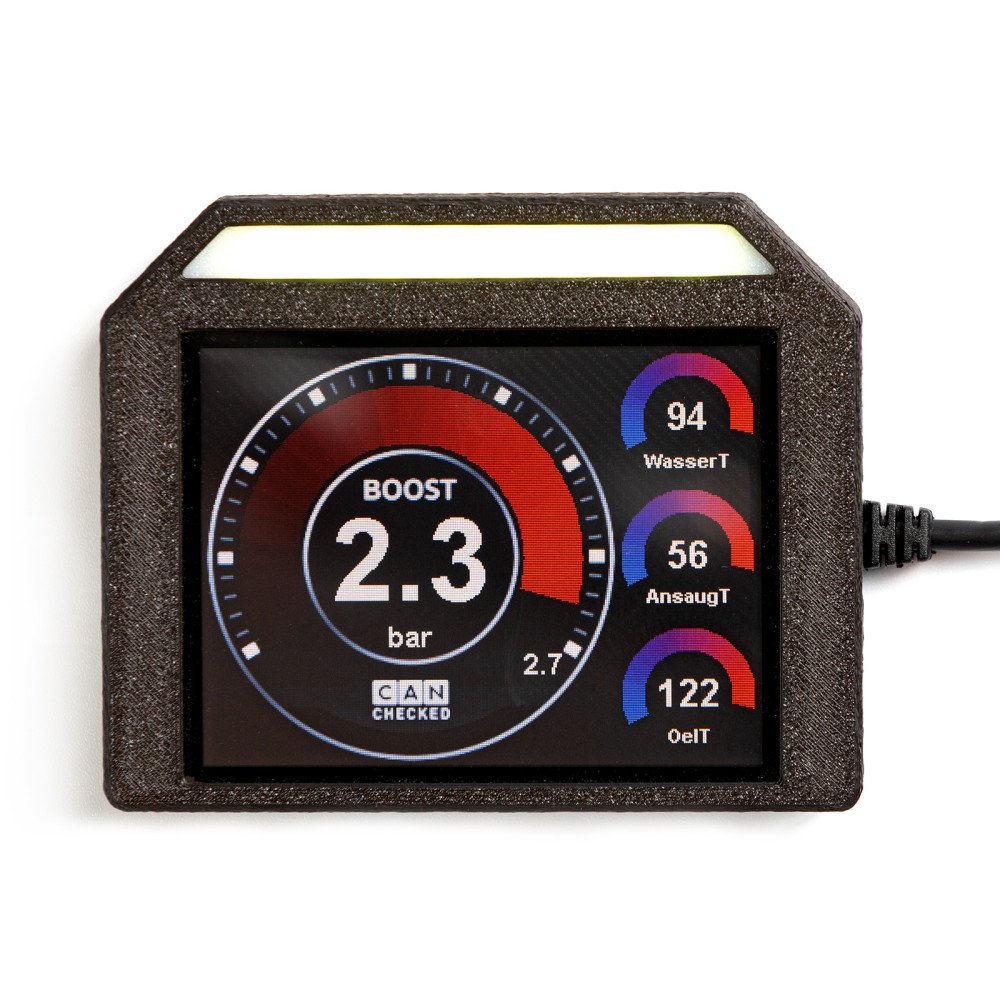

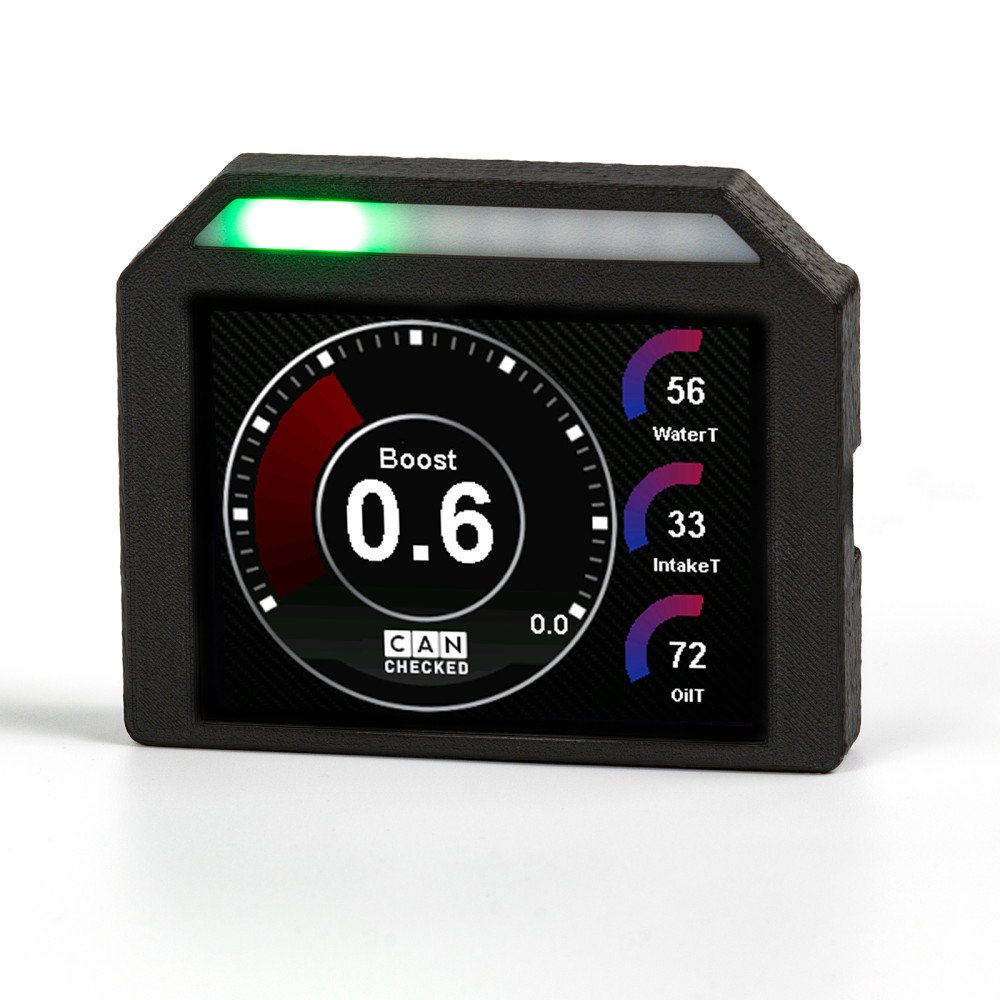

CANchecked MFD32S (Gen2) Universal Data Display

The CANchecked MFD32S is a universal touchscreen display designed to integrate cleanly into almost any interior while keeping key vehicle and sensor data in constant view. It supports CAN-based ECU data, onboard logging, configurable alarms, and flexible page layouts.

Key features

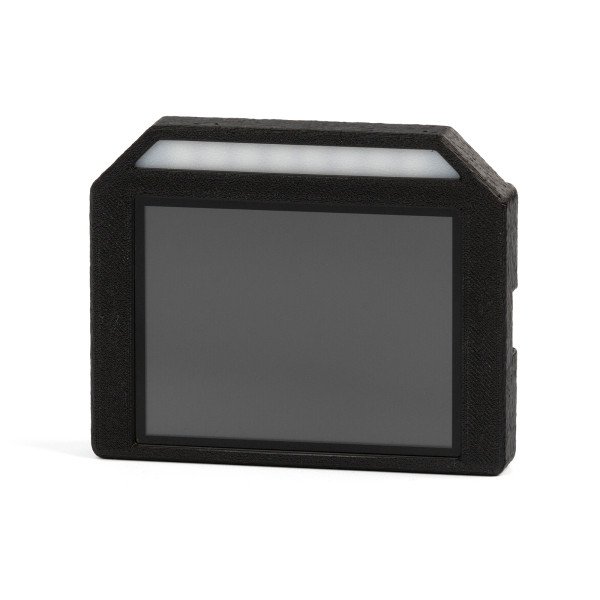

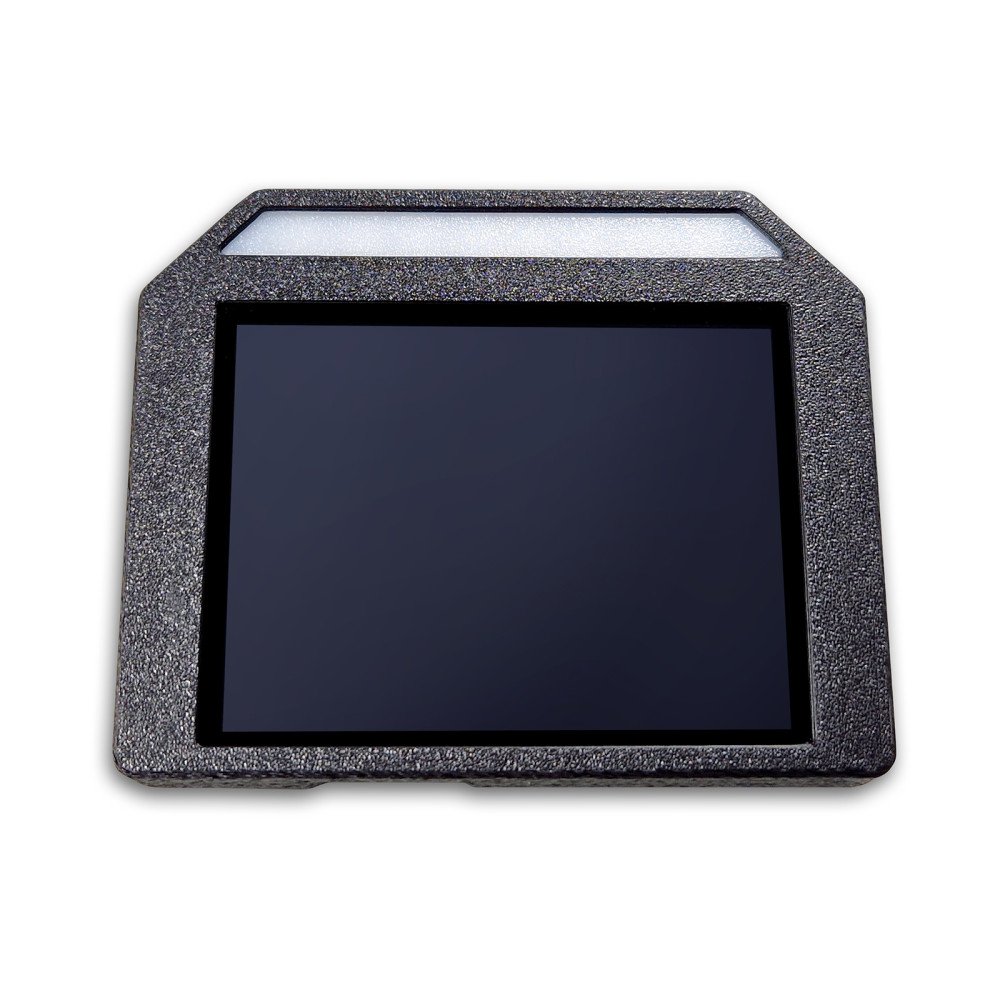

• Universal housing for flexible interior mounting

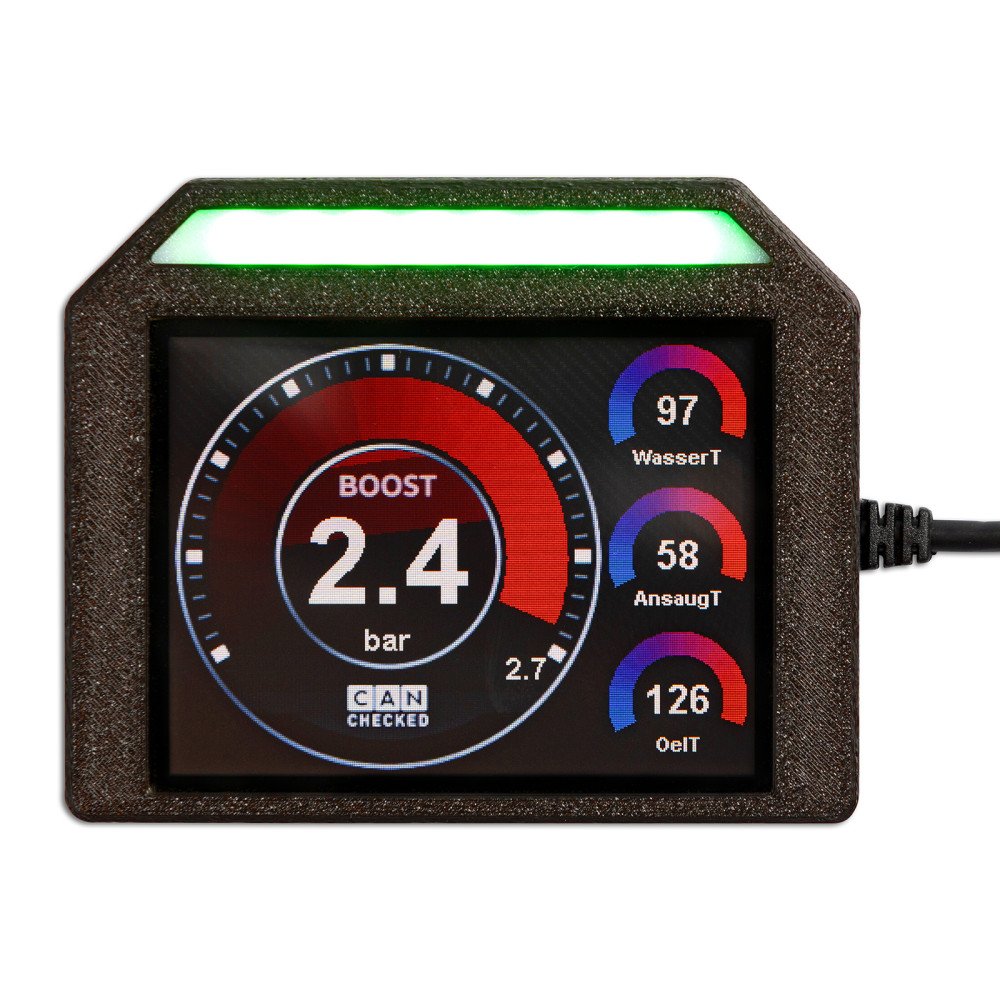

• Internal shiftlight with 8 programmable RGB LEDs
• CAN bus readout with in-depth vehicle data comparable to manufacturer diagnostic tools
• Gear display via CAN bus or calculated from speed and RPM
• Touchscreen with swipe navigation
• Custom pages, images, and start animations
• Up to 4 analog inputs plus direct ethanol sensor support
• CAN switching: use the display as a keypad and send custom CAN messages
• Configurable alarms (e.g., warning at exhaust gas temperature above 900°C)
• Logging to the internal SD card
• Integrated performance meter (0–100, 100–200, 0–200)
• DTC read/clear for engine ECU, transmission, ABS, and all-wheel drive
• Automatic dimming with the instrument panel

Page layouts and widgets

• 10 freely configurable pages
• 20 widget types (e.g., sensor value, analog pointer, YT chart, RPM bar, circular display, vertical/horizontal bar)
• Up to 64 widgets per page
• Drag-and-drop positioning with scalable widget sizes
• Fully adjustable widget colors

DSS (Display Setup Software)

CANchecked DSS is used to configure the display, manage pages, and review logged data. It includes an integrated log viewer, CAN logger, and a TRI Editor to adjust sensor setup (CAN bus or internal), including sensor names and min/max warning limits.

Data access and supported values

The MFD32S supports CAN bus data queries (UDS, TP2, manufacturer-specific protocols) and K-Line queries (ISO 9141). It ships with predefined TRI/TRX files that define which sensors are queried (varies by engine). Values can be added later if needed.

Examples of supported values

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

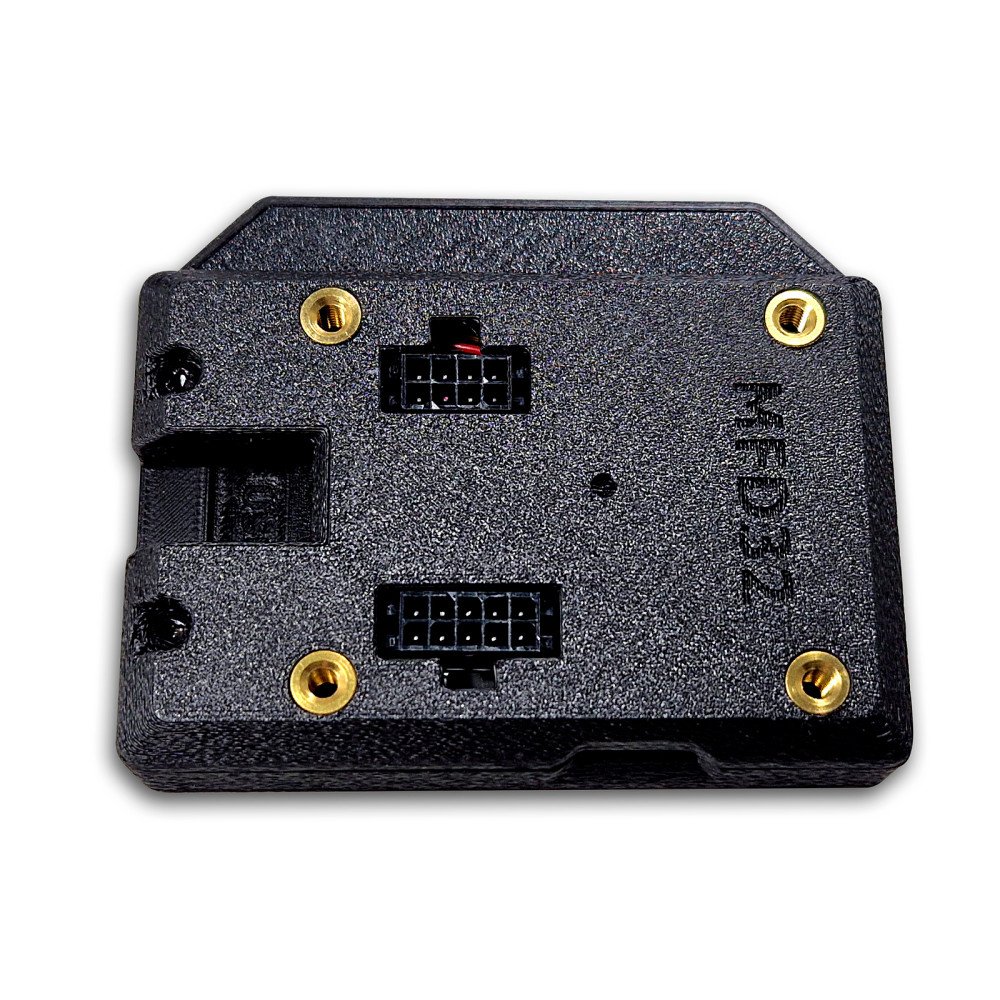

Connections and expansion

Four analog inputs support linear 0–5V signals and NTC sensors. CANchecked in-house sensors are predefined in the TRI/TRX files and only need to be connected.

• AIN1: Temperature sensor
• AIN2: Type K exhaust gas temperature converter
• AIN3: 0–10 bar pressure sensor
• AIN4: 0–5.5 bar absolute boost pressure sensor

An external 8-LED shift light can also be connected, with colors and RPM limits configured on the display.

An ethanol sensor connects directly to the display; a 10k pull-up resistor between 5V and signal is required to view and log ethanol content and temperature.

Advanced functions

• Math channels for calculated sensors
• User Table for creating additional sensors using 2D or 3D maps

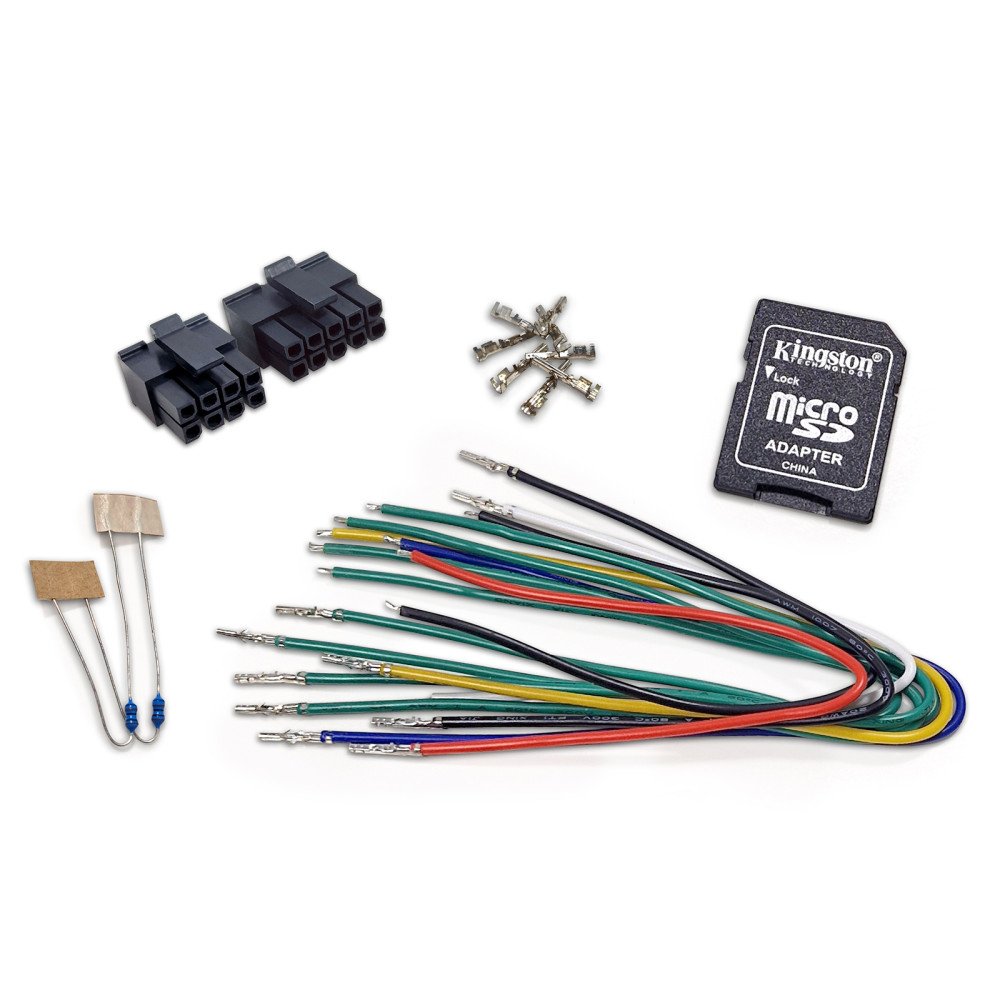

Scope of delivery

• MFD32S Gen2 data display
• Cable with pigtail and connectors
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display foil (anti-reflection)
• Two 1k resistors (for connecting NTC sensors)

Optional accessories

• CC22100 CBD08 – eightfold CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/8" NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor, 0–10 bar (145 psi), M10x1
• CC22900 BST01 – pressure sensor, 0–5.5 bar absolute (80 psi)
