CANchecked MFD32 Gen2 (Universal) Data Display

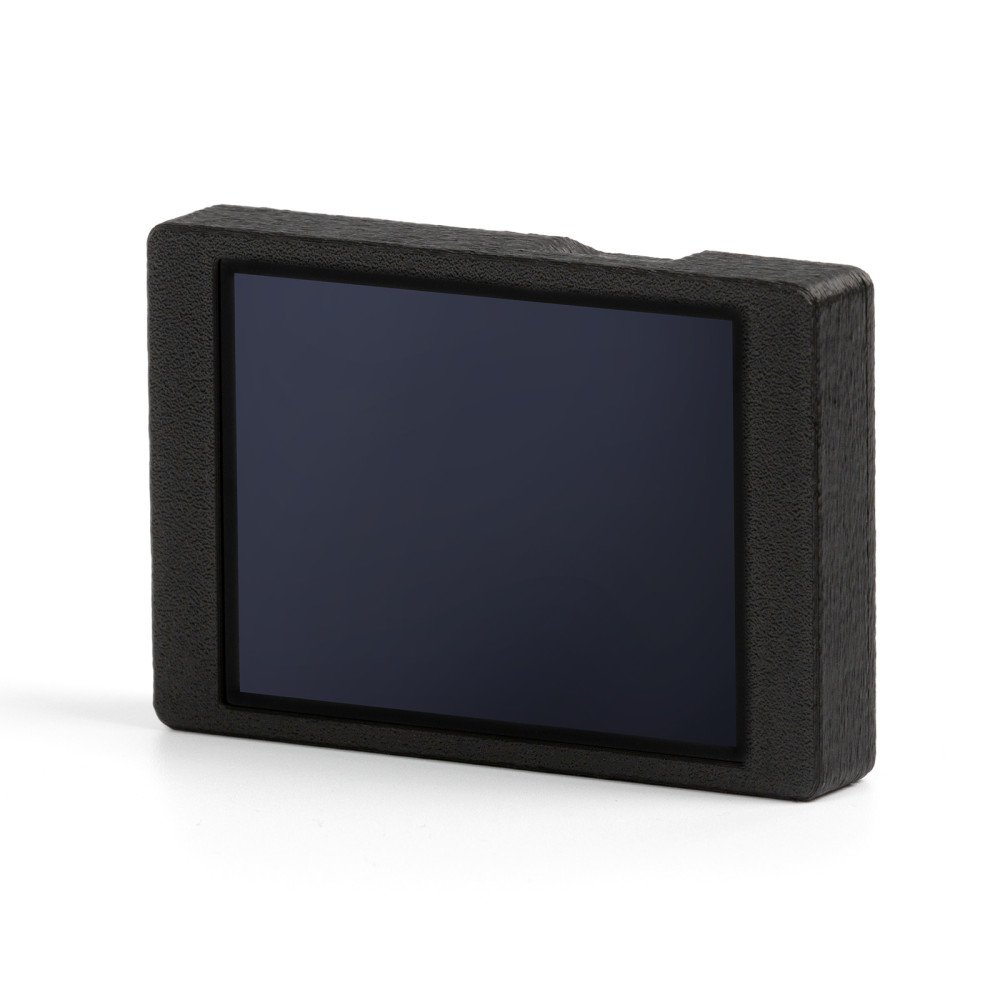

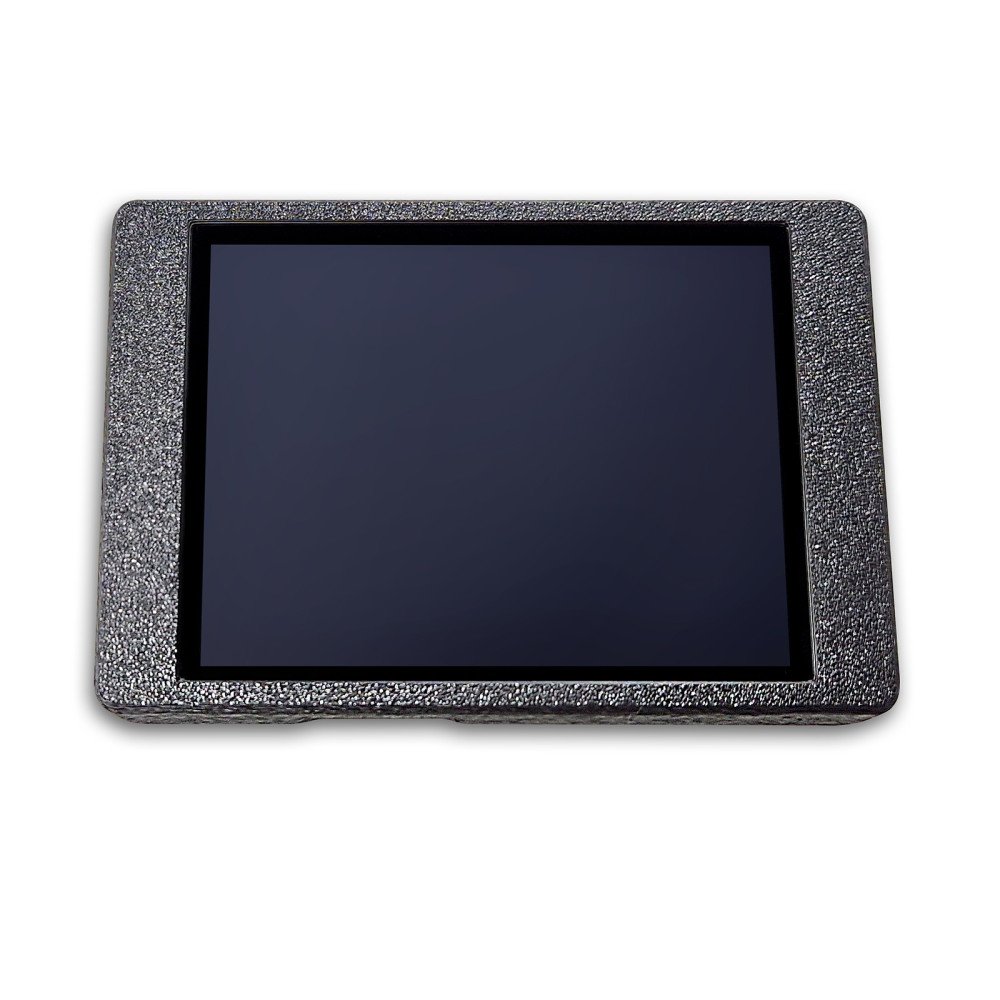

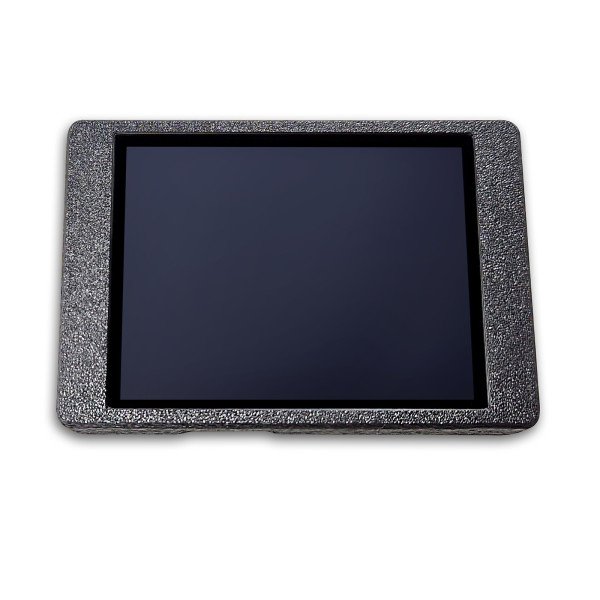

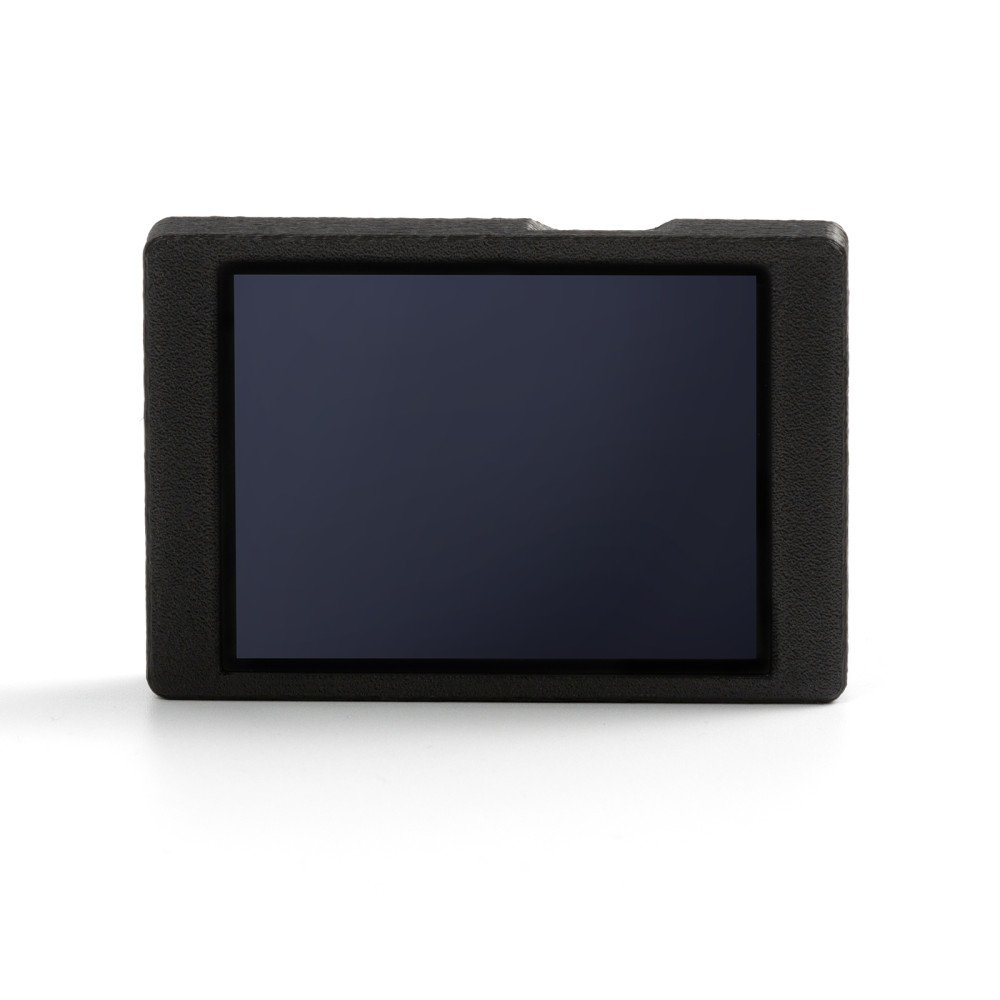

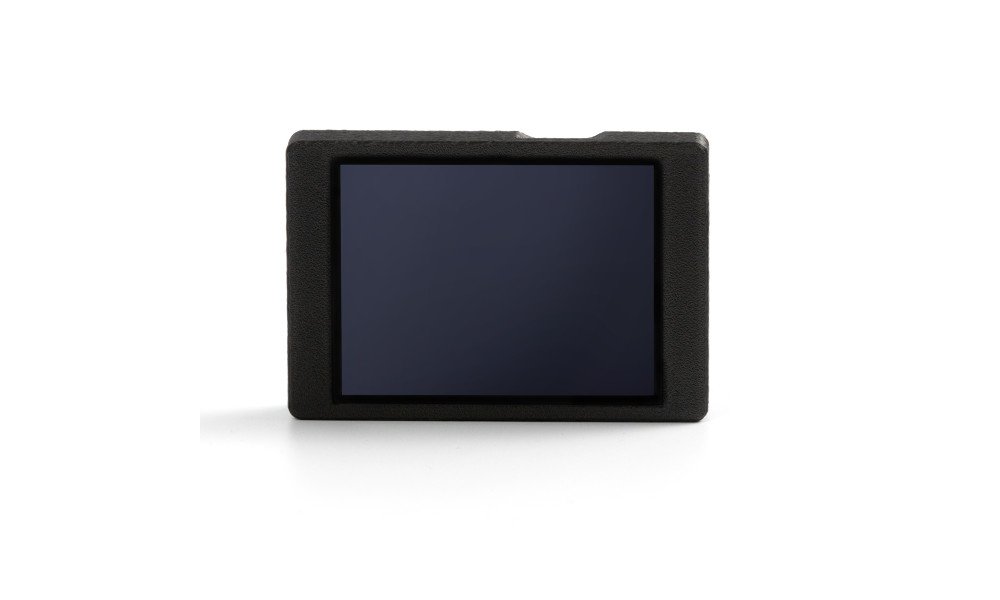

The MFD32 Gen2 universal version is a compact CAN-based data display designed to fit in any vehicle. It comes in a lightweight, symmetrical plastic housing and can be mounted in either portrait or landscape orientation.

Key specifications

• Dimensions: 89.5 × 60.5 mm
• Depth: 19.5 mm (without connector)

Main features

• CAN bus data readout: In-depth vehicle data similar to manufacturer diagnostic tools
• Gear display: Via CAN bus or calculated from speed and RPM
• Touchscreen: Page navigation via swipe gestures
• Custom pages: Build your own layouts, add images, or start animations
• Additional inputs: Up to 4 analog inputs plus direct ethanol sensor input
• CAN switching: Use the display as a keypad and send custom CAN messages
• Custom alarms: Configurable warnings (example: warning message above 900°C exhaust gas temperature)
• Logging: Record data to the internal SD card for later analysis
• Performance meter: Measures 0–100, 100–200, and 0–200 times without additional hardware
• DTC*: Read and clear errors from engine ECU, transmission, ABS, and all-wheel drive
• Dimming*: Automatic dimming together with the instrument panel

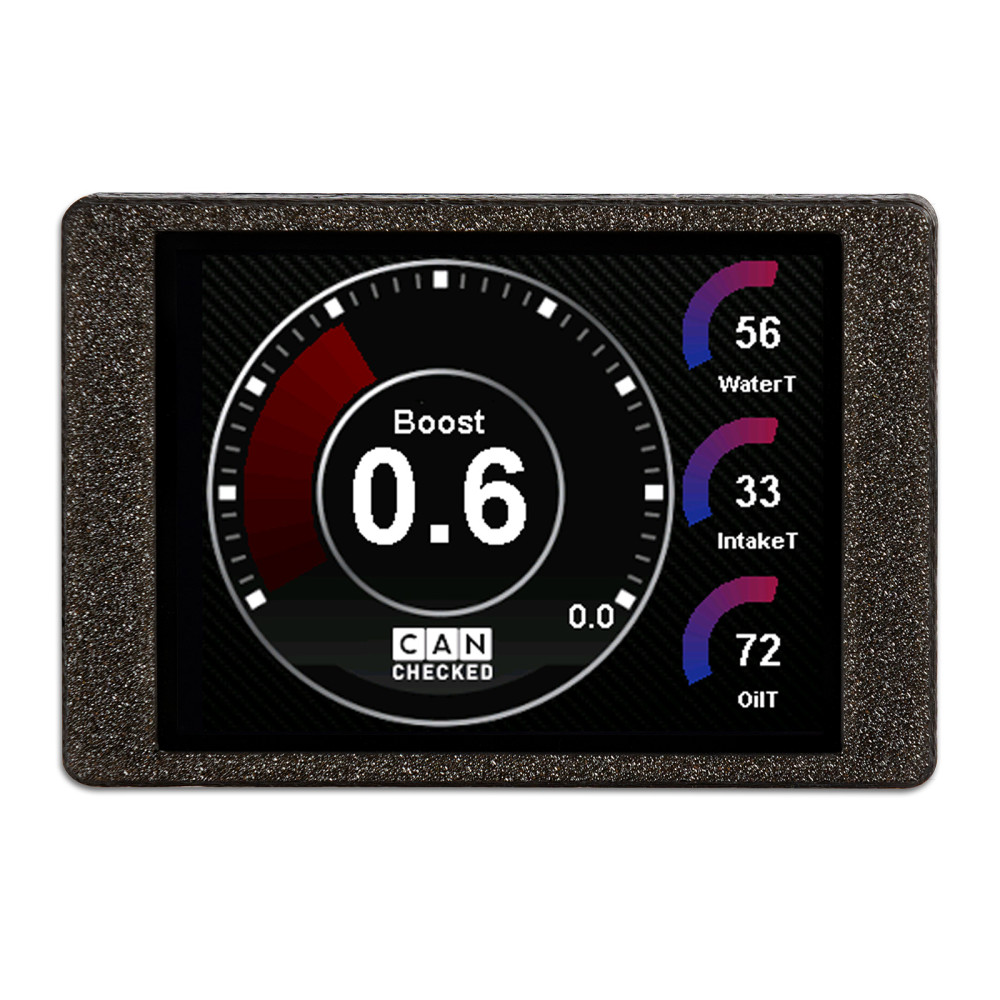

Pages and views

• Delivered with predefined sample pages
• Create your own pages (up to 10 pages)
• 20 widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning and scalable widget sizes
• Fully adjustable widget colours
• Up to 64 widgets per page

Display Setup Software (DSS)

DSS is used to customize the display, download and view log files (log viewer), and use the integrated CAN logger. The integrated TRI Editor lets you adjust sensors (CAN bus or internal), set min/max warning thresholds, and rename sensors.

Supported values (ECU data)

The display supports CAN bus data query including UDS, TP2, and manufacturer-specific protocols. It is delivered with predefined TRI/TRX files that define which sensors are queried (varies by engine). Missing values can be added later.

Examples of available channels

Temperatures:

• Exhaust, coolant, oil, intake, outside, gasoline, DSG temperature

Pressures:

• Boost, ambient, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda/mixture:

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other:

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Freely programmable ECU support

DTA Fast, Ecumaster, Emerald, Emtron, Haltech, Hondata, KMS van Kronenburg, LinkECU, MaxxECU, MBE, Megasquirt, Motec, Motorsport Electronics, Syvecs, Trijekt, VEMS

Connections and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be wired.

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)

An external 8-LED shift light can be connected; colours and speed limits are configurable on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor is required between 5V and the signal. Ethanol content and temperature can be displayed and logged.

Advanced functions

• Math channels: Calculate sensors from other channels
• User Table: Create additional sensors using 2D or 3D maps

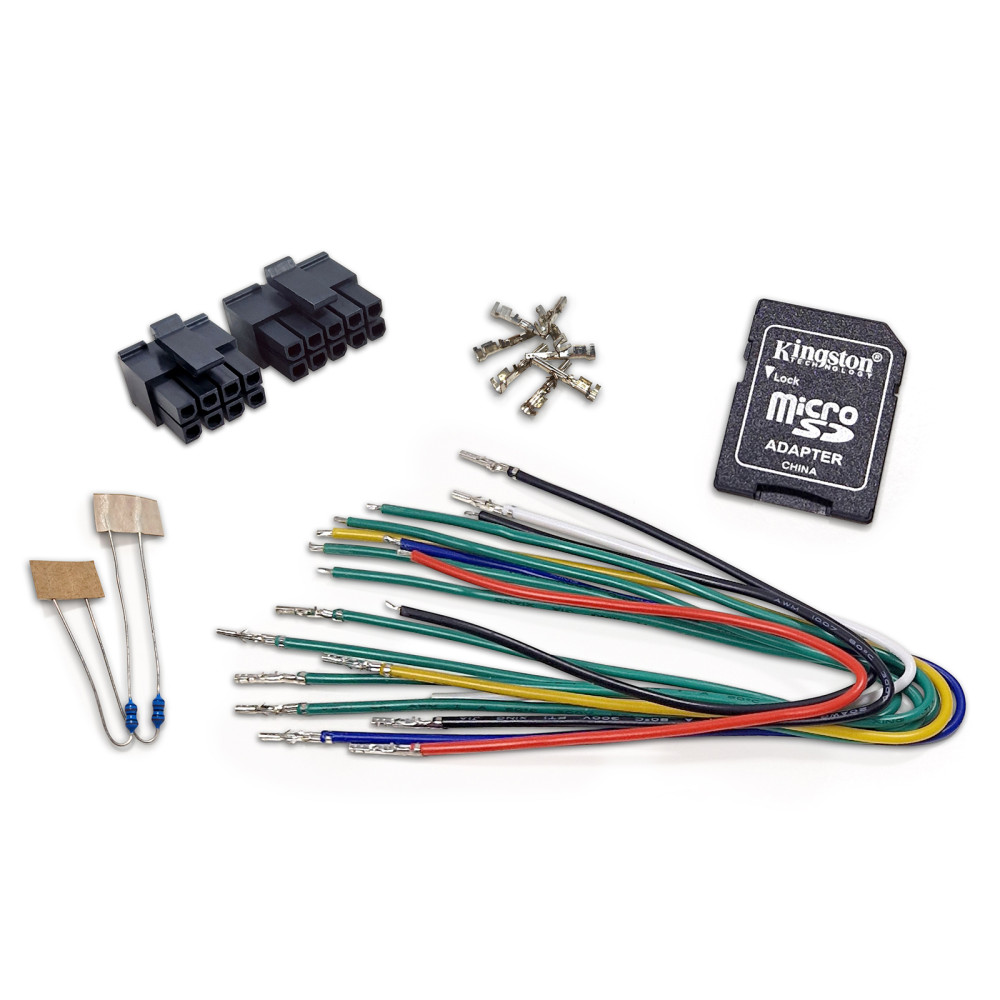

Scope of delivery

• MFD32 Gen2 data display with lightweight plastic housing

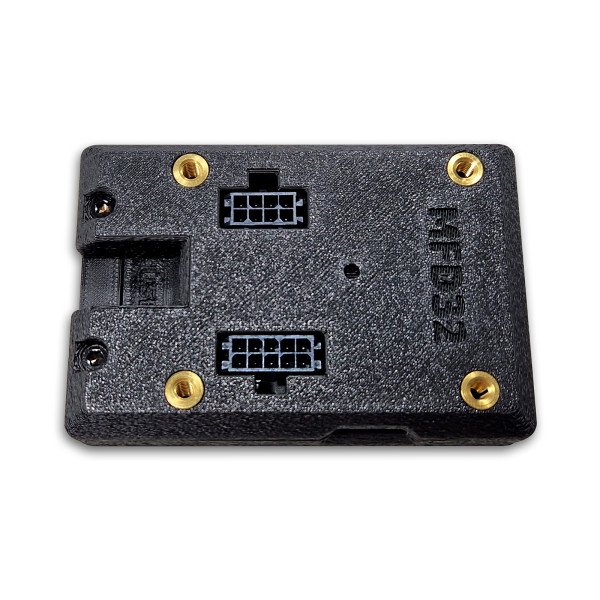

• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN bus, analog inputs, 5V, sensor ground
• Pins for self-crimping
• Two 1K resistors (pull-up for connecting external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display film (anti-reflection)

Optional accessories

• CC10001 GPA32 - 52mm gauge pod adaptor MFD32(S)
• CC24000 SLM08 - external switching lightning module
• CC22780 ANC04 - four-way AIN-harness
• CC22100 CBD08 - eight-way CAN distribution hub
• CC22902 NTC01 - temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - pressure sensor 0-10 bar (145psi) M10x1
• CC22900 BST10 - pressure sensor 6.5 bar relativ (95psi)

*Not available on all protocols.
