CANchecked MFD28 Gen2 for Toyota Corolla E210

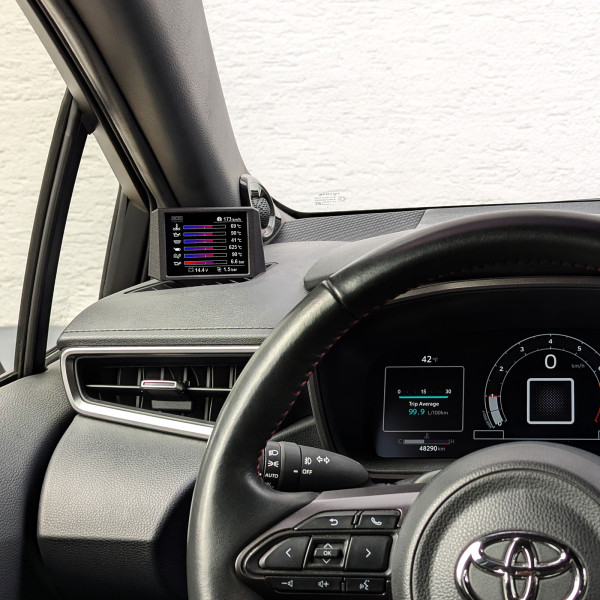

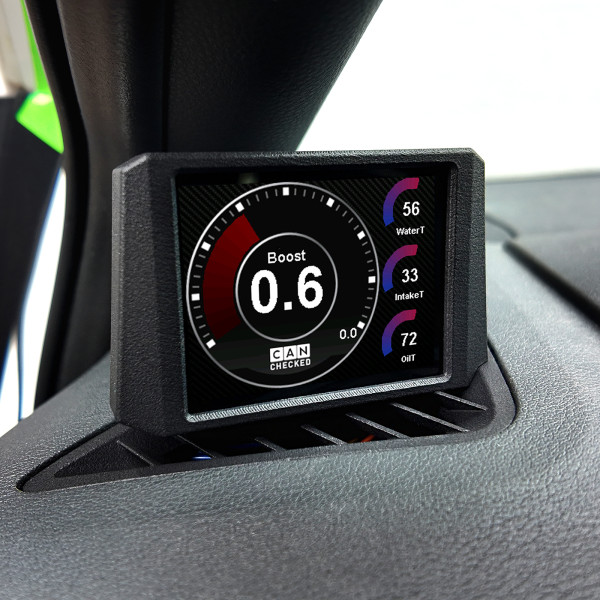

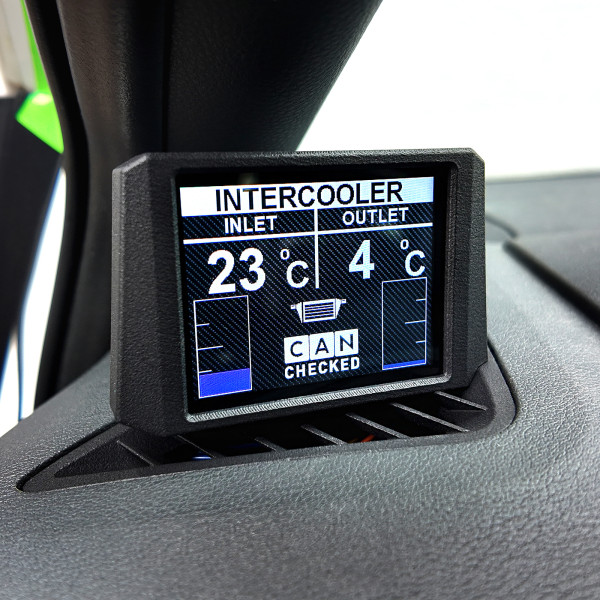

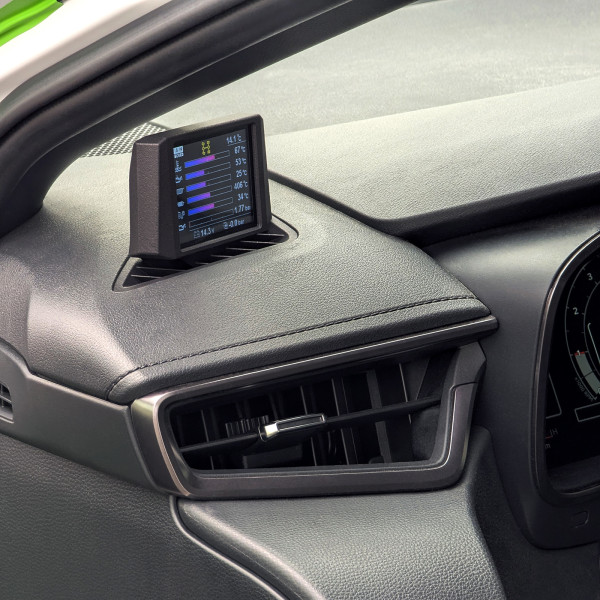

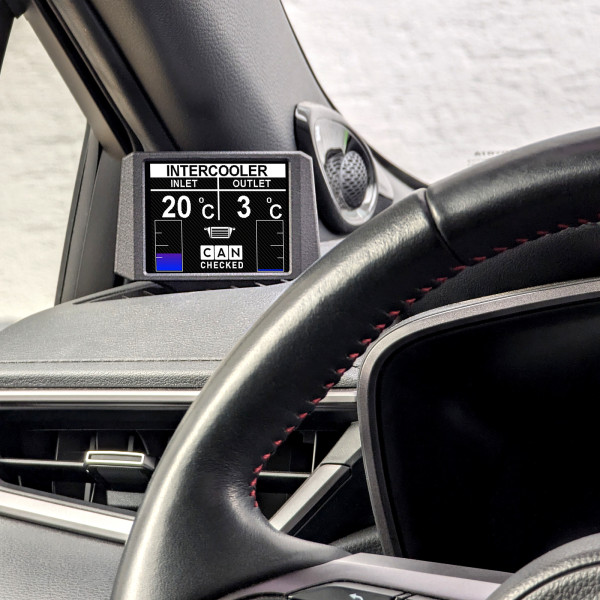

The vehicle-specific MFD28 Gen2 replaces the air-vent insert with an integrated data display while still allowing airflow past the screen. Designed for straightforward self-installation; illustrated instructions are available for most displays.
Key features
- OEM-style integration: Vehicle-specific bezel with continued vent airflow
- CAN bus data: In-depth vehicle data readout (similar depth to manufacturer diagnostic tools)
- Gear display: Via CAN bus or calculated from speed and RPM
- Touchscreen control: Page navigation with swipe gestures
- Custom pages: Build your own layouts, add images or a start animation
- Inputs: Up to 4 analog inputs plus direct ethanol sensor connection
- CAN switching: Use the display as a keypad and send custom CAN messages
- Configurable alarms: Set warning thresholds (e.g., EGT warning above 900°C)
- Logging: Save logs to the internal SD card for later analysis
- Performance meter: Measure 0–100, 100–200, and 0–200 without extra hardware
- DTC support*: Read and clear faults for ECU, transmission, ABS, and all-wheel drive
- Auto dimming*: Dims with the instrument panel
Pages and layouts
- Delivered with predefined sample pages
- Create and save up to 10 pages
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop positioning and scalable widgets
- Fully adjustable widget colors
- Up to 64 widgets per page
Display Setup Software (DSS)
CANchecked DSS enables full customization, includes a log viewer for downloading and reviewing log files, and integrates a CAN logger. The built-in TRI Editor lets you adjust sensors (CAN bus or internal), set min/max warning thresholds, and rename sensors.
Supported values
The display supports CAN bus data query (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). It is delivered with predefined TRI/TRX files that define the queried sensors; available channels vary by engine. If values are missing, they can be added later.
Examples of available channels:
- Temperatures: Exhaust, coolant, oil, intake, outside, gasoline, DSG temperature
- Pressures: Boost, ambient, fuel pressure (pre-feed pump), rail pressure (actual/target)
- Lambda/mixture: Lambda value, injection time, short/long-term lambda adjustment
- Other: RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values
Connections and expansion
Connect external sensors via four analog inputs. Supported sensor types include linear 0–5V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K EGT converter/transducer (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
A pre-assembled AIN wiring harness can be used for connection.
An external shift light with eight LEDs can also be connected; colors and RPM limits are configurable on the display.
An ethanol sensor connects directly to the display (requires a 10K pull-up resistor between 5V and signal) to view and log ethanol content and temperature.
Advanced functions
- Math channels: Calculate channels based on other sensors
- User table: Create additional sensors using 2D or 3D maps
What’s included
- MFD28 Gen2 data display integrated in the ventilation insert (LHD vehicles)
- Vehicle-specific connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed)
- SD card adapter
- Display foil (anti-reflection)
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – temperature sensor for liquids, 1/8" NPT
- CC22903 TCC01 – type K converter, 0–1250°C
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)
*Not available on all protocols.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Toyota | Corolla | E210 | - |
CANchecked MFD28 Gen2 for Toyota Corolla LHD
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Toyota | Corolla | E210 | - |
