CANchecked MFD28 Gen2 for Seat/Cupra Ateca (vehicle-specific)

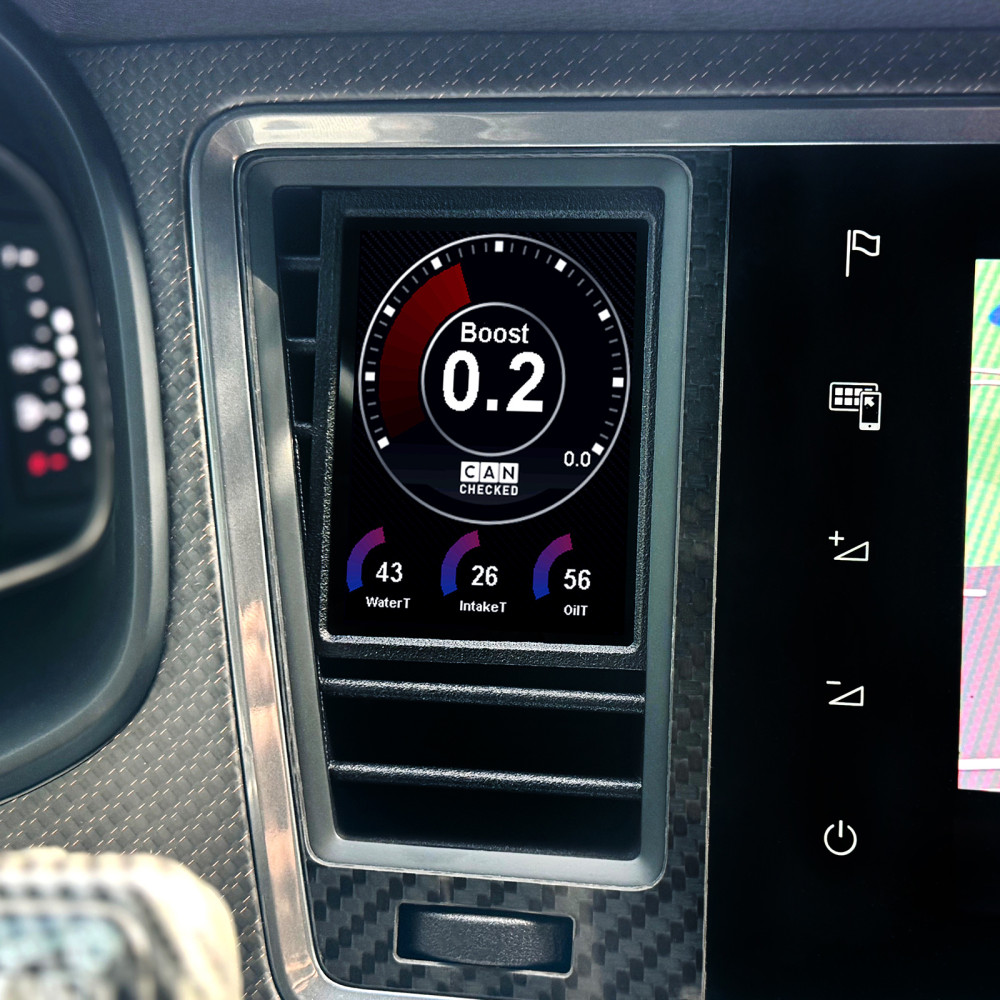

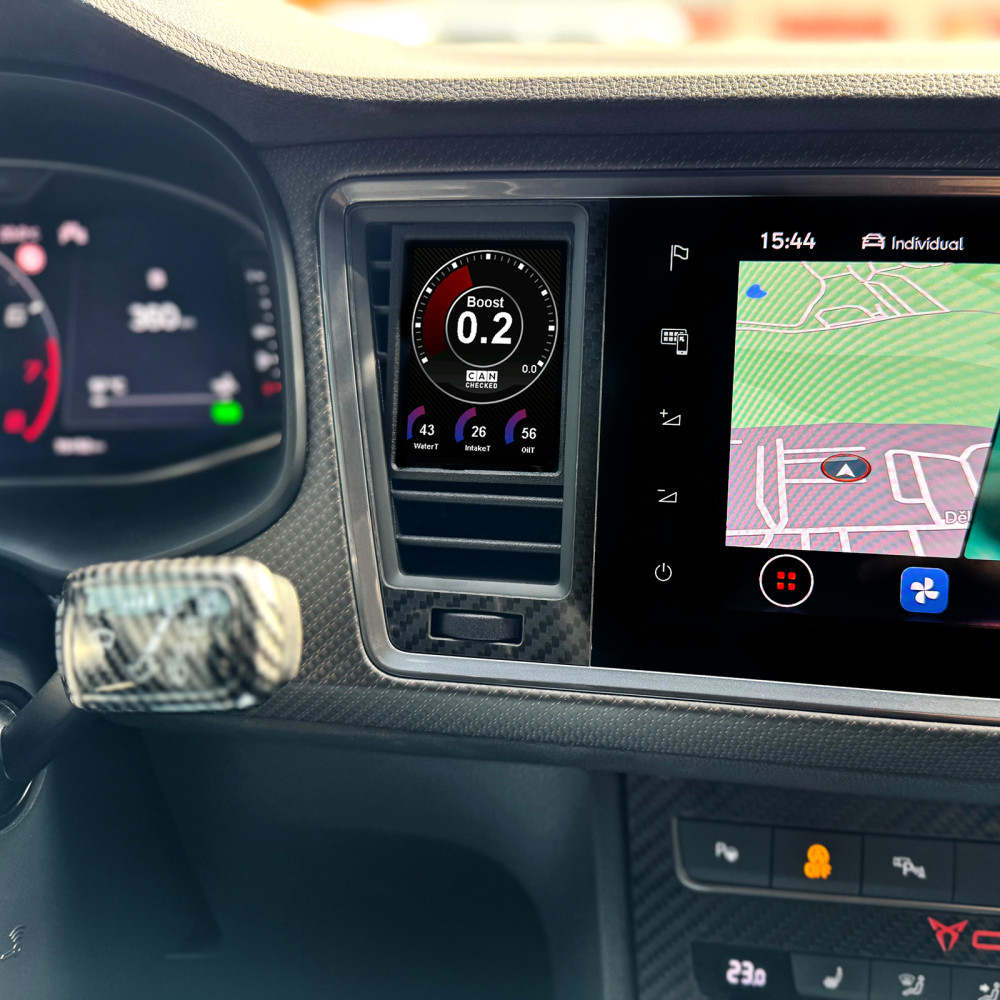

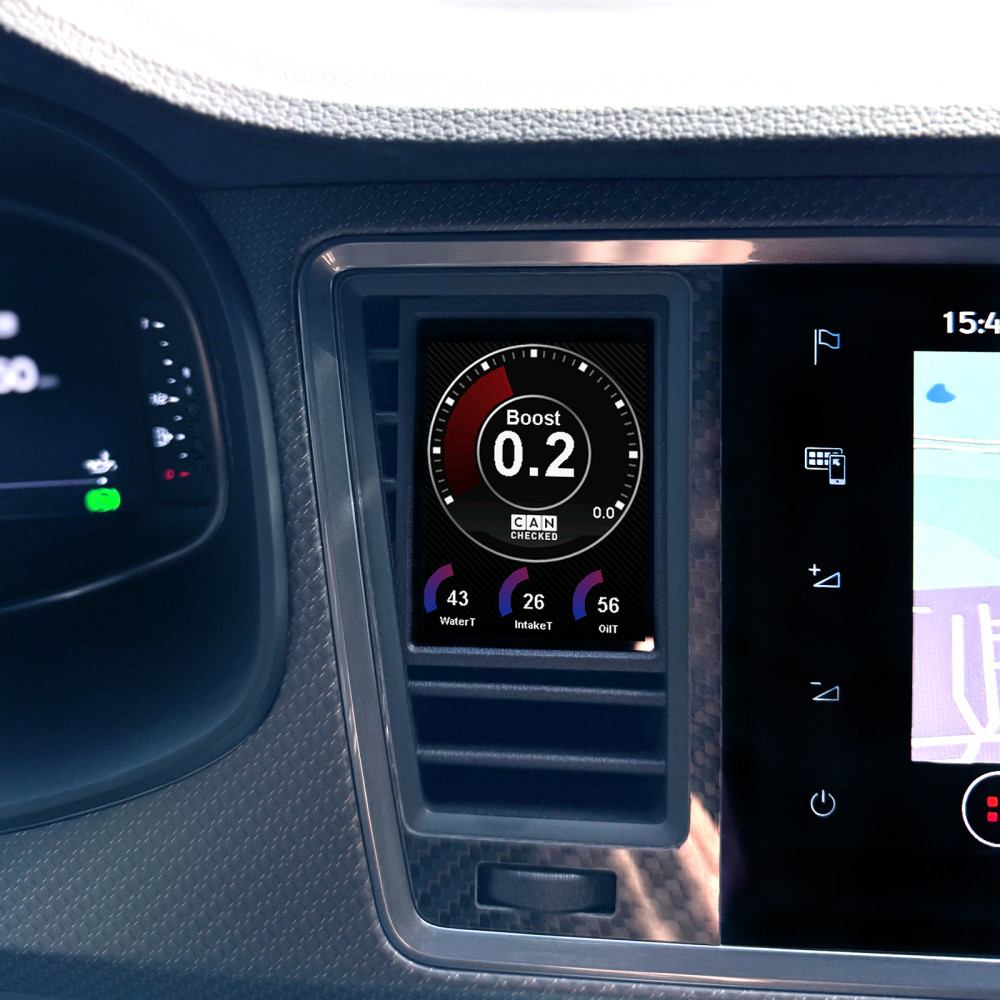

The MFD28 Gen2 replaces the air-vent insert with an integrated data display while still allowing airflow past the screen. Designed for straightforward installation with illustrated instructions available for most versions.

Key features

• Vehicle-specific integration: Bezel design maintains usable vent airflow.
• CAN Bus data: In-depth ECU data readout comparable to manufacturer diagnostic tools.
• Gear display: Via CAN Bus or calculated from speed and RPM.
• Touchscreen operation: Page navigation via swipe gestures.
• Custom pages: Create your own layouts, add pictures, or use a start animation.
• Additional inputs: Up to 4 analog inputs plus direct ethanol sensor input.
• CAN switching: Use the display as a keypad and send your own CAN messages.
• Configurable alarms: Set warnings per sensor (e.g., prominent warning above a defined exhaust gas temperature threshold such as 900 °C).
• Logging: Record data to the internal SD card for later analysis.
• Performance meter: 0–100, 100–200, and 0–200 measurements without additional hardware.
• DTC*: Read/clear faults from engine ECU, transmission, ABS, and all-wheel drive.
• Dimming*: Automatic dimming with the instrument panel.

*Not available on all protocols.

Views and layout options

• Delivered with predefined sample pages.
• Custom page creation supported.
• Up to 10 pages.

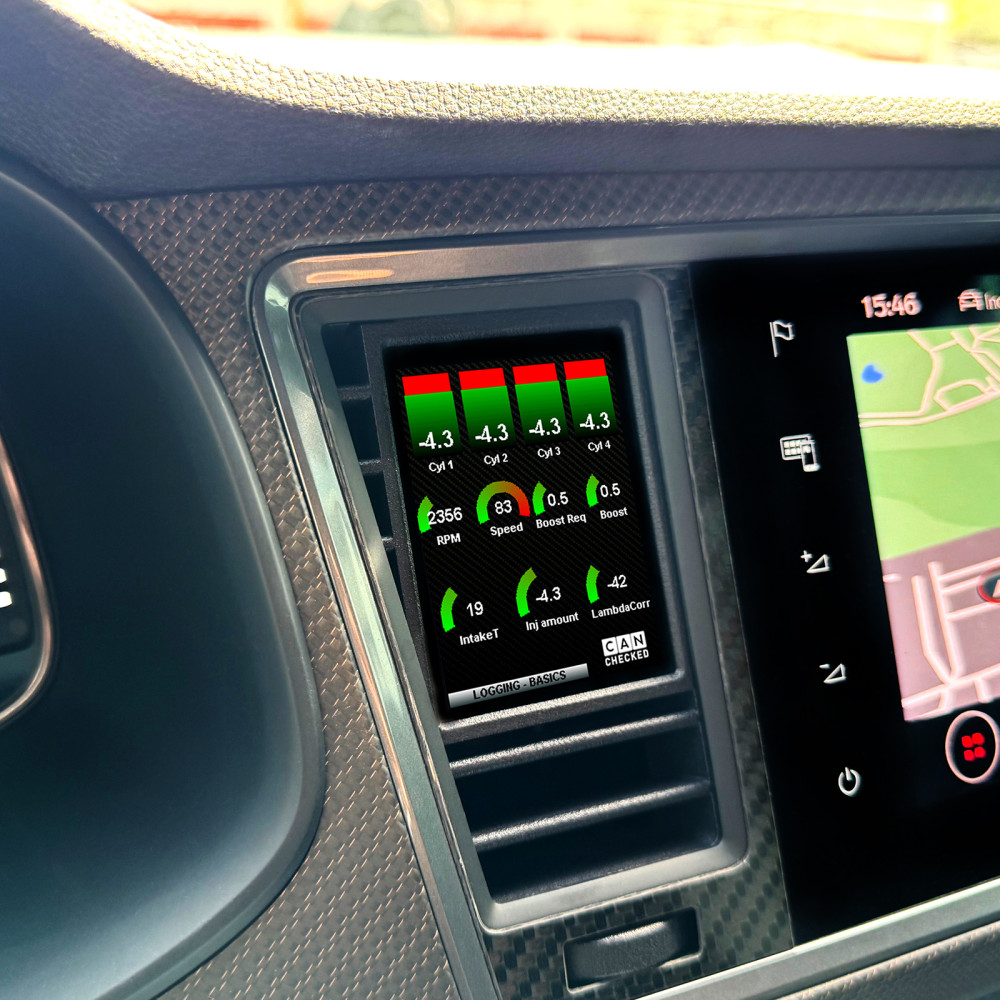

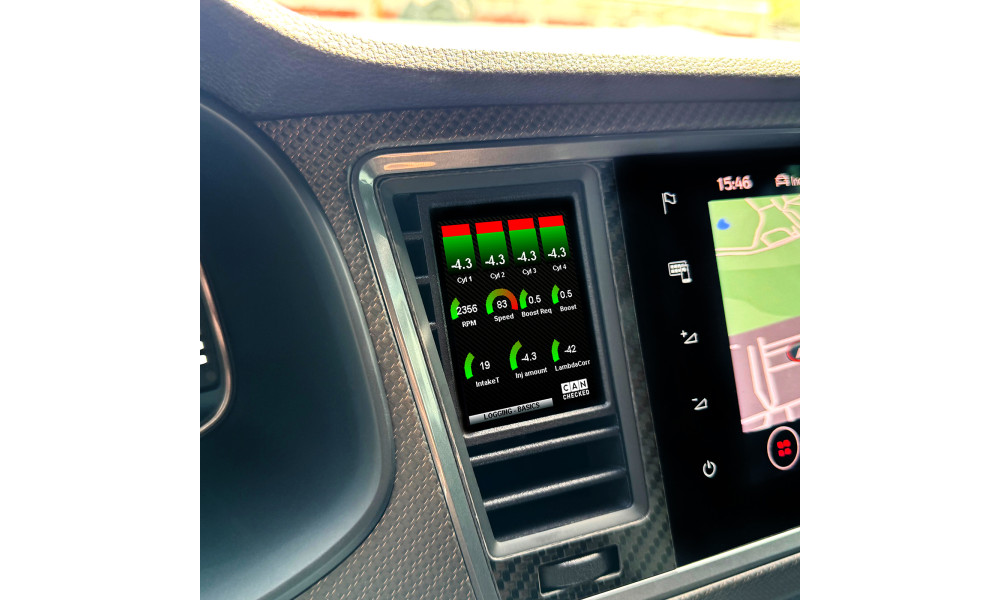

• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop positioning; widgets scalable in size.
• Widget colours fully adjustable.
• Up to 64 widgets per page.

Display Setup Software (DSS)

• Customize display pages and configuration.
• Integrated log viewer for downloading and viewing log files.
• Integrated CAN logger.
• TRI Editor for sensor setup (CAN Bus or internal): rename sensors and set min/max warning thresholds.

Supported data and protocols

Supports CAN Bus data queries (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). The display is supplied with predefined TRI/TRX files defining the sensors queried (varies by engine). If values are missing, they can be added later.

Examples of supported values

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda/mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Scope of delivery

• MFD28 Gen2 data display integrated in the ventilation insert for LHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display foil (to reduce reflections)

Connection and expansion

Four analog inputs support linear 0–5 V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)

A pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can be connected; flash colours and RPM limits are configurable on the display.

The ethanol sensor connects directly to the display. A 10 kΩ pull-up resistor between 5 V and the signal is required to view and log ethanol content and temperature.

Advanced functions

• Math-Channels: Calculate channels from other sensor values.
• User-Table: Generate additional sensors using 2D or 3D maps.

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01 – type K converter, 0–1250 °C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST10 – pressure sensor 0–5.5 bar absolute (80 psi)
