CANchecked MFD32 Gen2 for Toyota Yaris XP21

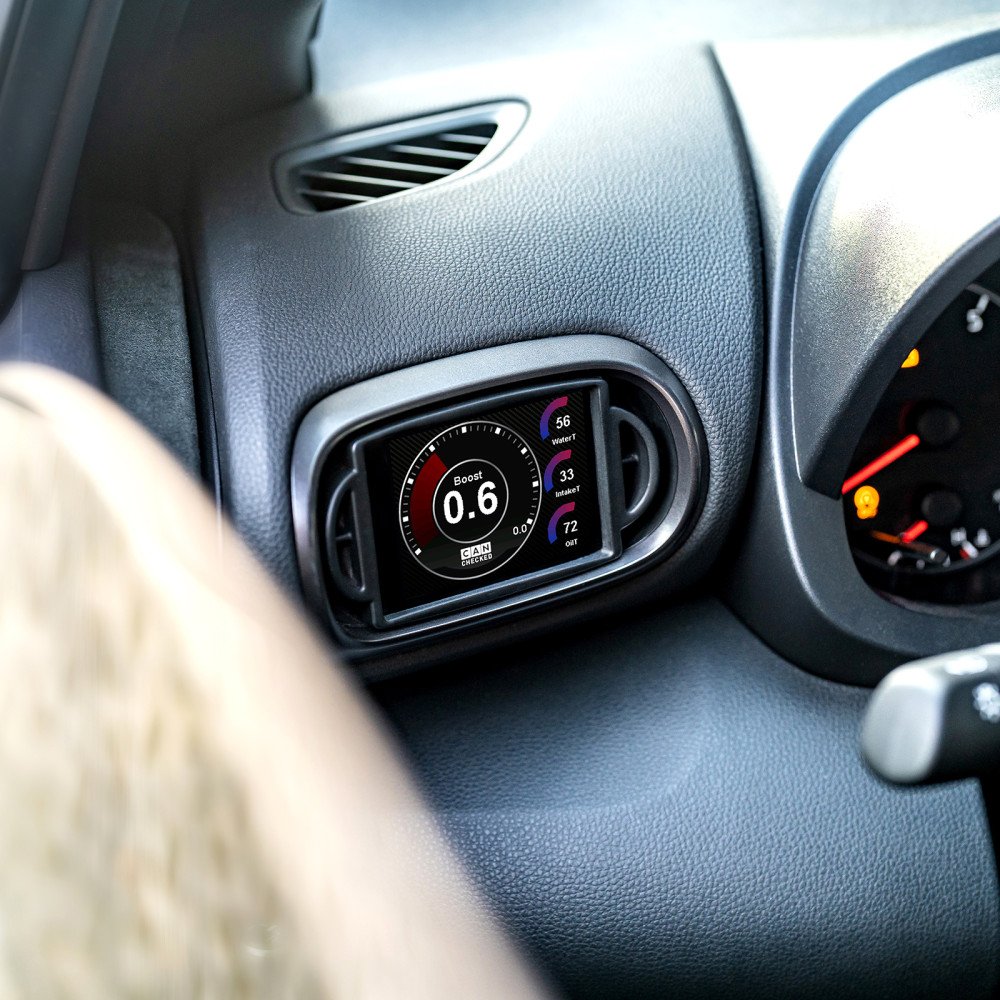

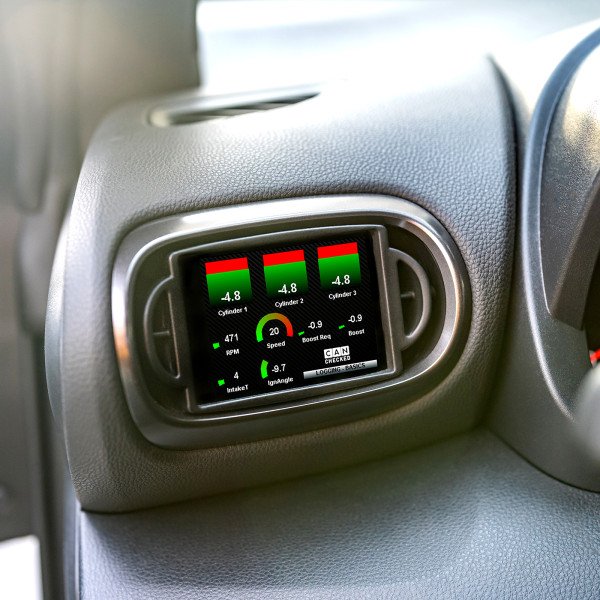

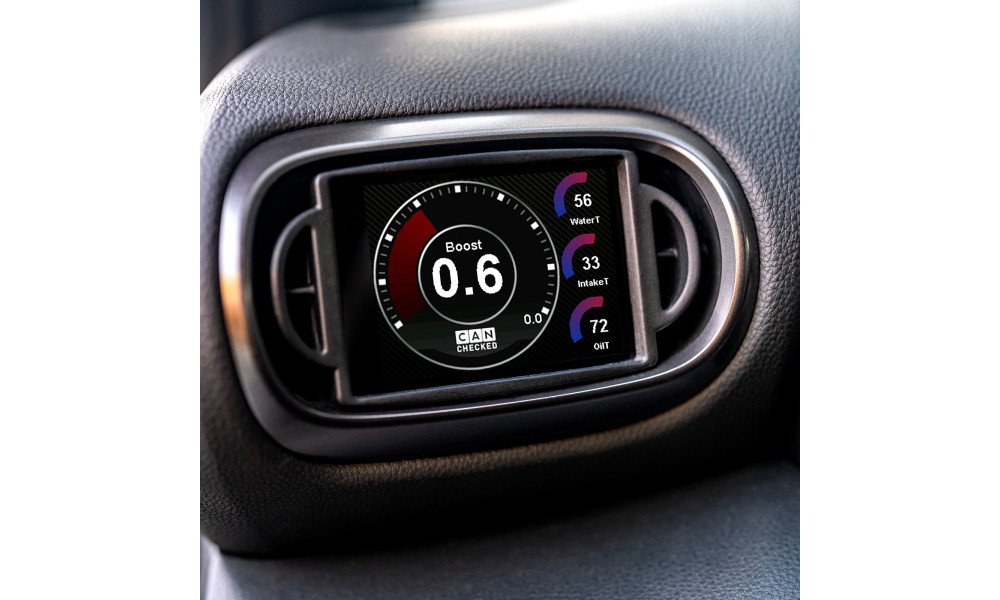

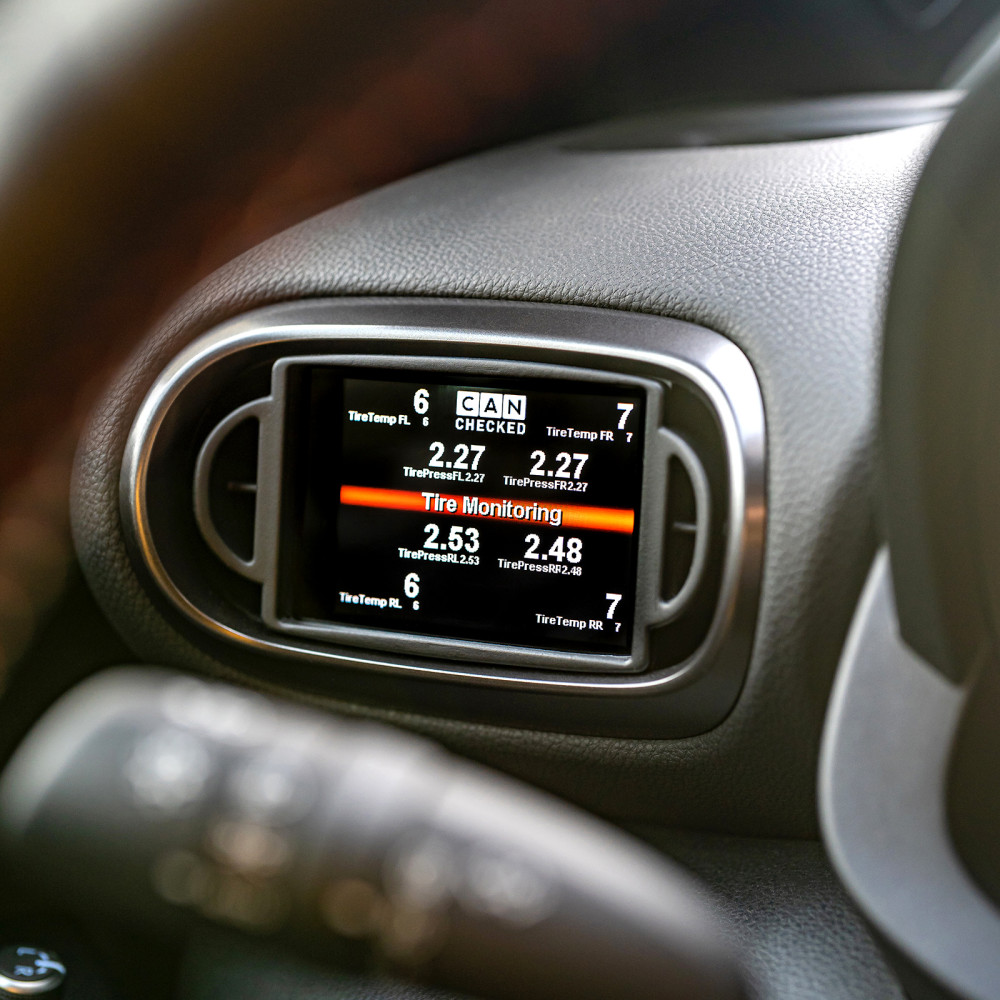

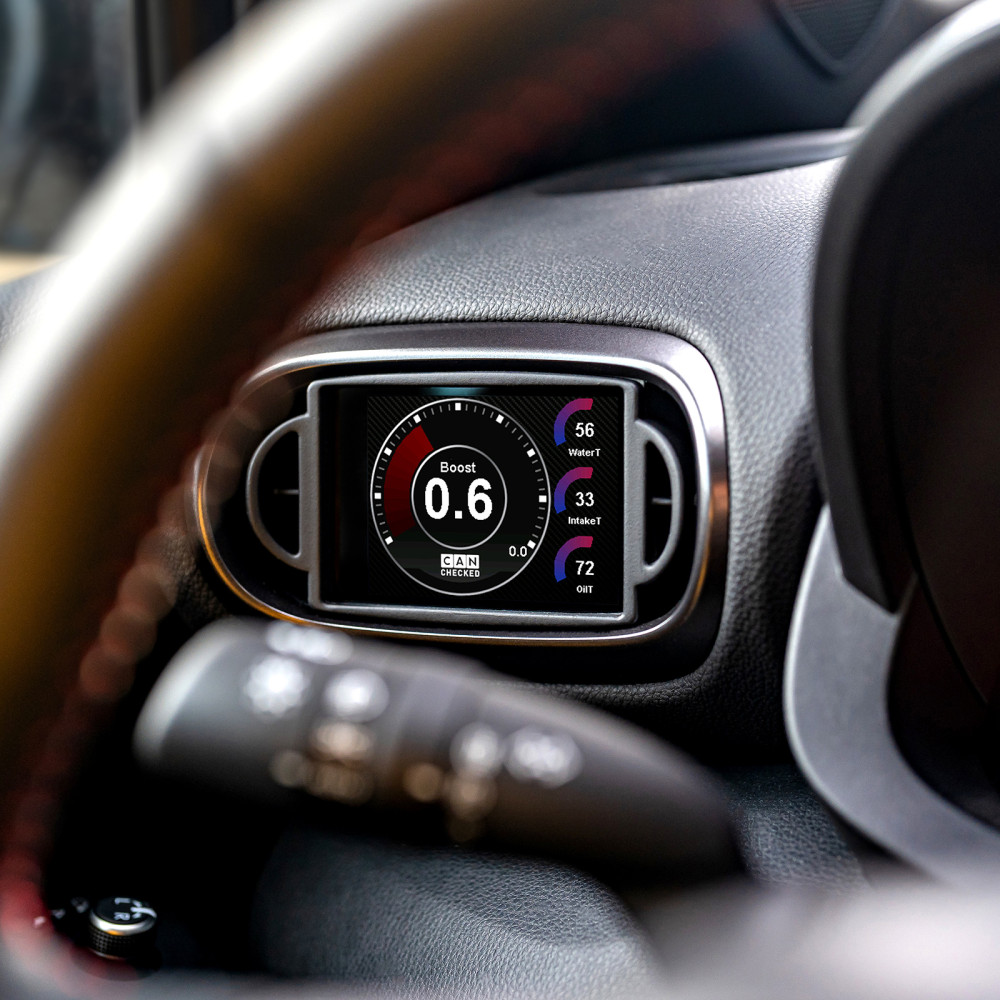

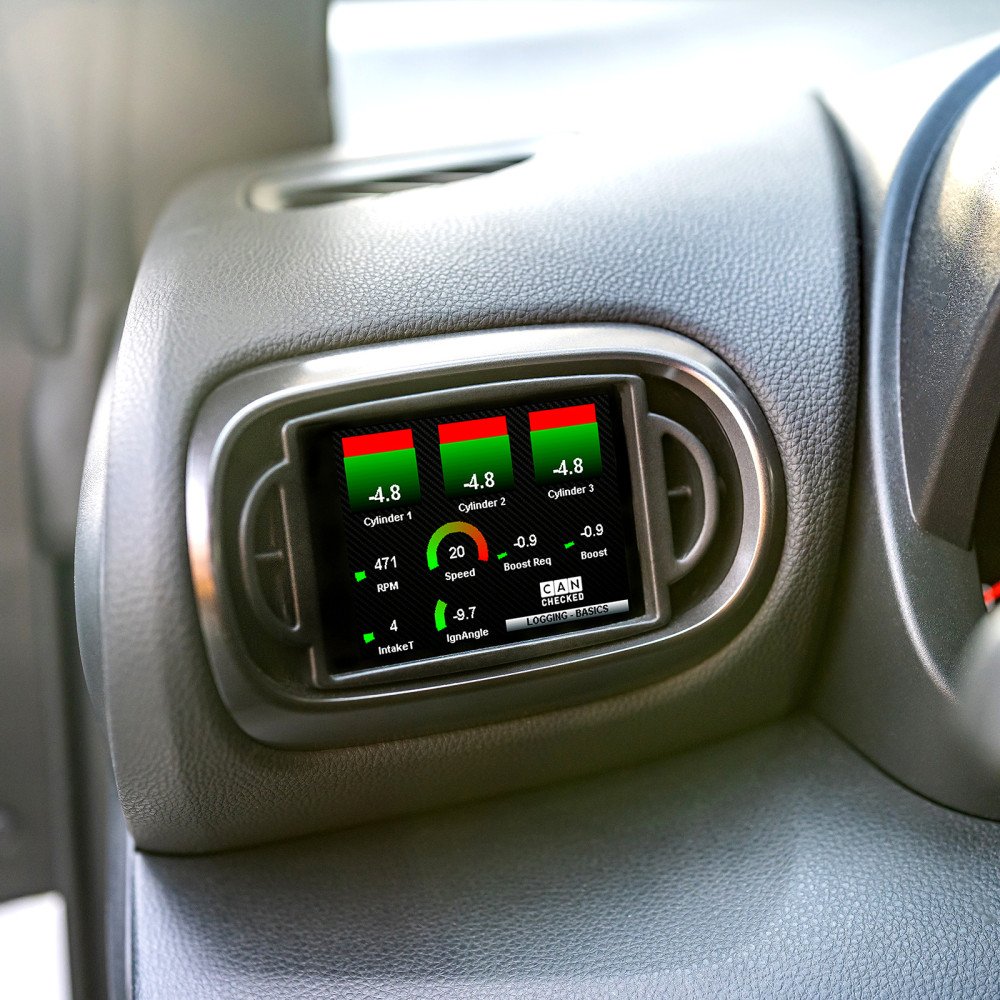

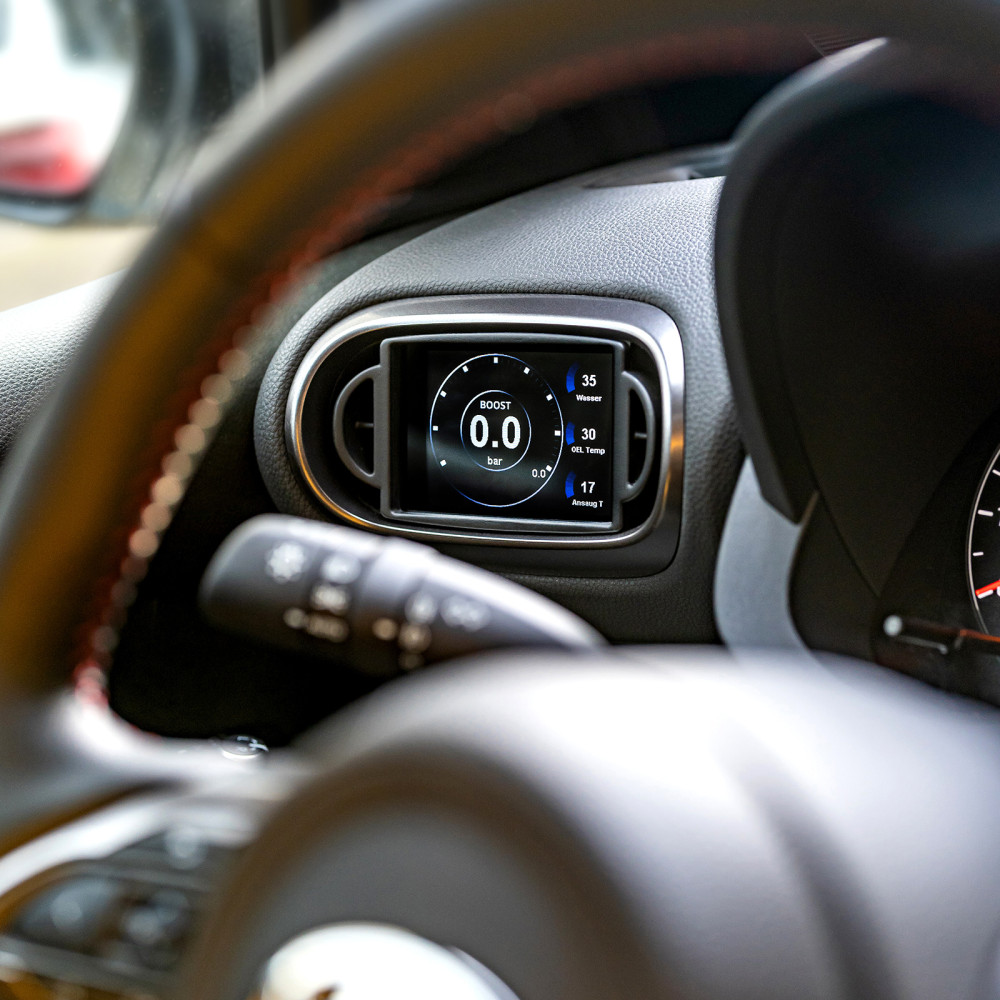

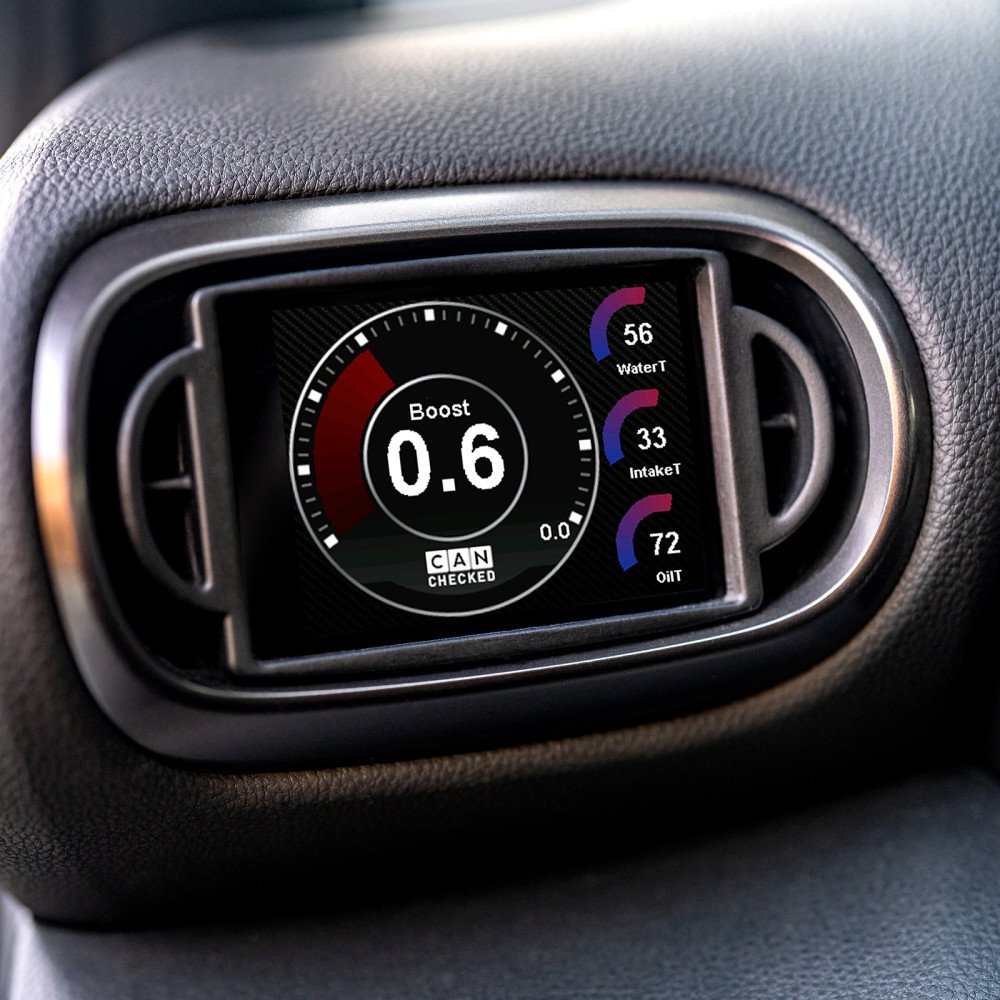

The vehicle-specific MFD32 Gen2 replaces the air vent insert with an integrated data display. The bezel is designed to keep airflow past the display, and installation is intended to be achievable without a workshop.

Key features

• Vehicle-specific integration: Bezel design still allows ventilation airflow.
• CAN bus data access: In-depth ECU data readout comparable to manufacturer diagnostic tools.
• Gear display: Via CAN bus or calculated from vehicle speed and RPM.
• Touchscreen operation: Page navigation via swipe gestures.
• Custom pages: Build your own layouts, add images, or a start animation.
• Inputs: Up to 4 analog inputs plus direct ethanol sensor connection.
• CAN switching: Use the display as a keypad to send custom CAN messages.
• Configurable alarms: Set warning thresholds (e.g., exhaust gas temperature over 900°).
• Data logging: Log to the internal SD card for later analysis.
• Performance meter: Measure 0–100, 100–200, and 0–200 without additional hardware.
• DTC reading/clearing*: Engine ECU, transmission, ABS, and all-wheel drive.
• Auto dimming*: Dims together with the instrument panel.

Display pages and layouts

• Delivered with predefined sample pages.
• Create your own pages (up to 10).
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop positioning and scalable widgets.
• Fully adjustable widget colors.
• Up to 64 widgets per page.

Display Setup Software (DSS)

DSS is used to configure the display, download and view log files, and use the integrated CAN logger. The integrated TRI Editor allows sensor adjustments for both CAN bus and internal sensors, including sensor names and min/max warning thresholds.

Supported data and protocols

The display supports CAN bus data query (UDS, TP2, and manufacturer-specific protocols) as well as K-Line (ISO 9141). It is delivered with predefined TRI/TRX files that define the sensors queried (varies by engine). Missing values can be added later.

Example values

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature.

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target).

Lambda/mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment.

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values.

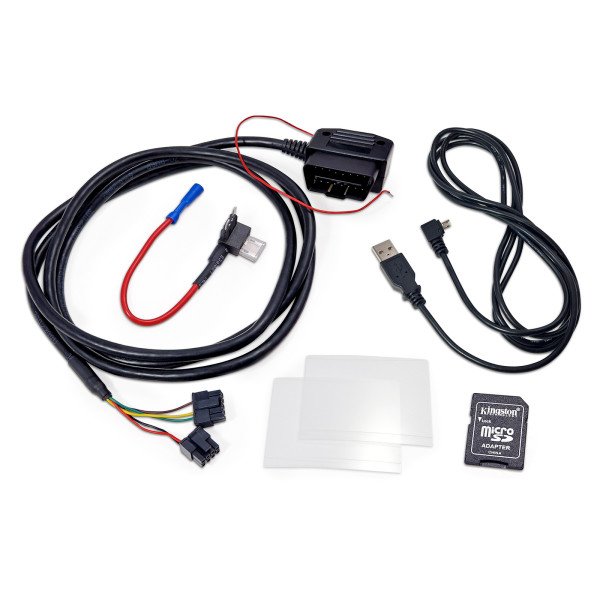

Scope of delivery

• MFD32 Gen2 data display integrated in the ventilation insert for LHD vehicles
• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN bus, analogue inputs, 5V, sensor ground
• Pins for crimping
• Two 1K resistors (pull-up for external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display foil (reflection reduction)

Connection and expansion

Connect sensors via four analog inputs. Linear 0–5V and NTC sensors are supported. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

For wiring, a pre-assembled AIN wiring harness can be used.

An external shift light with eight LEDs can also be connected. Flash colors, speed limits, and colors are configurable on the display.

An ethanol sensor can be connected directly to the display. A 10K pull-up resistor between 5V and signal is required to view and log ethanol content and temperature.

Advanced functions

• Math-Channels: Calculate channels from multiple sensor values.
• User-Table: Create additional sensors using 2D or 3D maps.

Optional accessories

• CC24000 SLM08 - external switching lightning module
• CC22780 ANC04 - four-way AIN-harness
• CC22100 CBD08 - eight-way CAN Distribution Hub
• CC22902 NTC01 - temperature sensor for liquids 1/ inch" NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - pressure sensor 0-10 bar (145psi) M10x1
• CC22900 BST01 - pressure sensor 0-5.5 bar absolute (80psi)

*Not available on all protocols.
