CANchecked MFD32 Gen2 for VW Bus T5 (LHD) – Vent-Integrated CAN Data Display

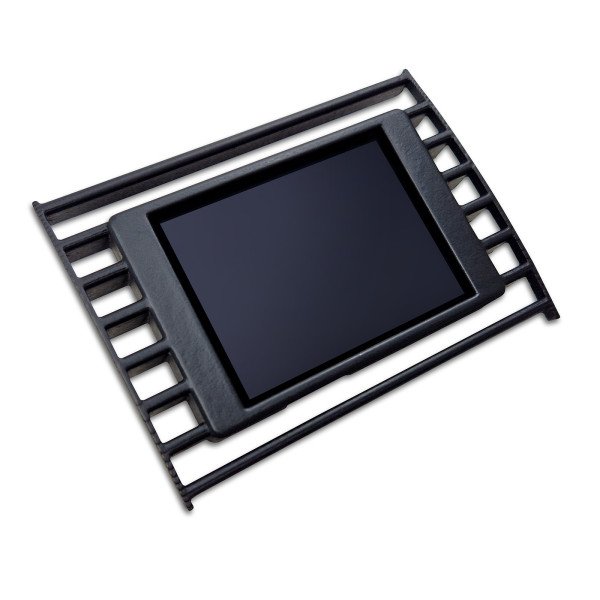

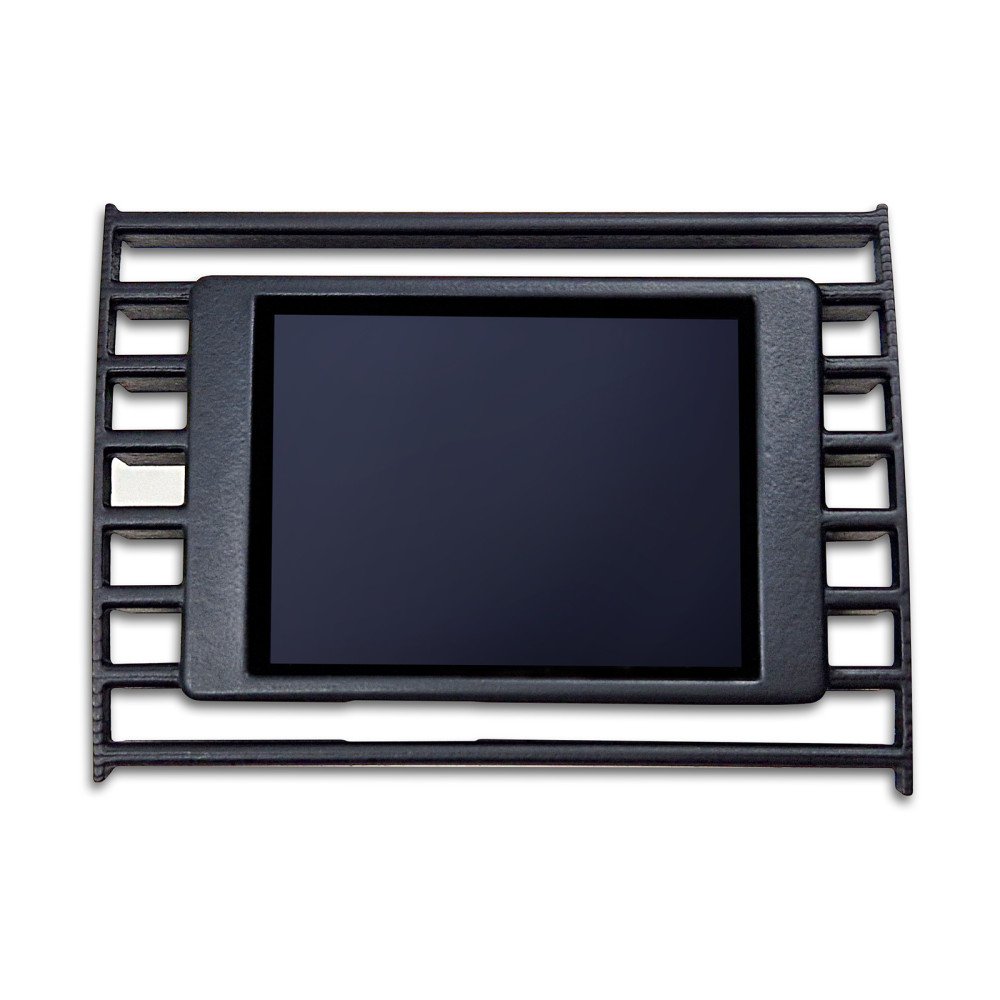

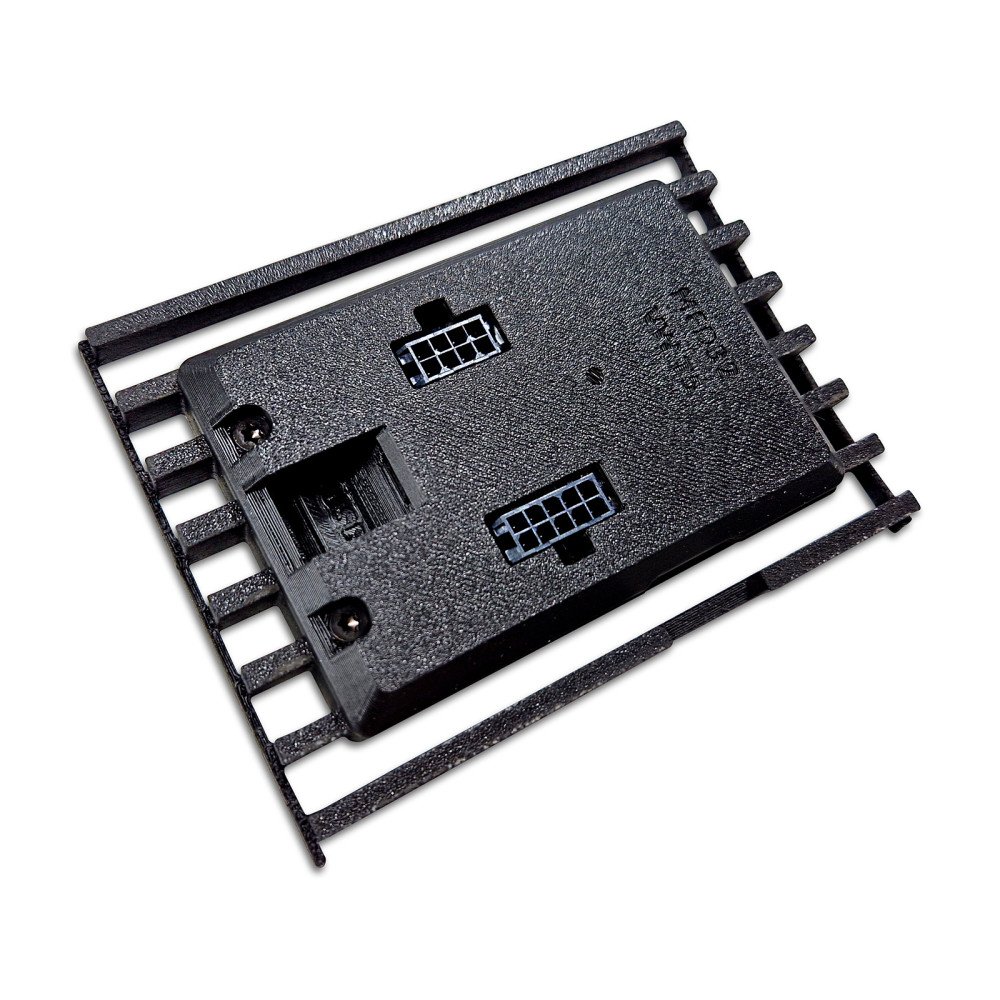

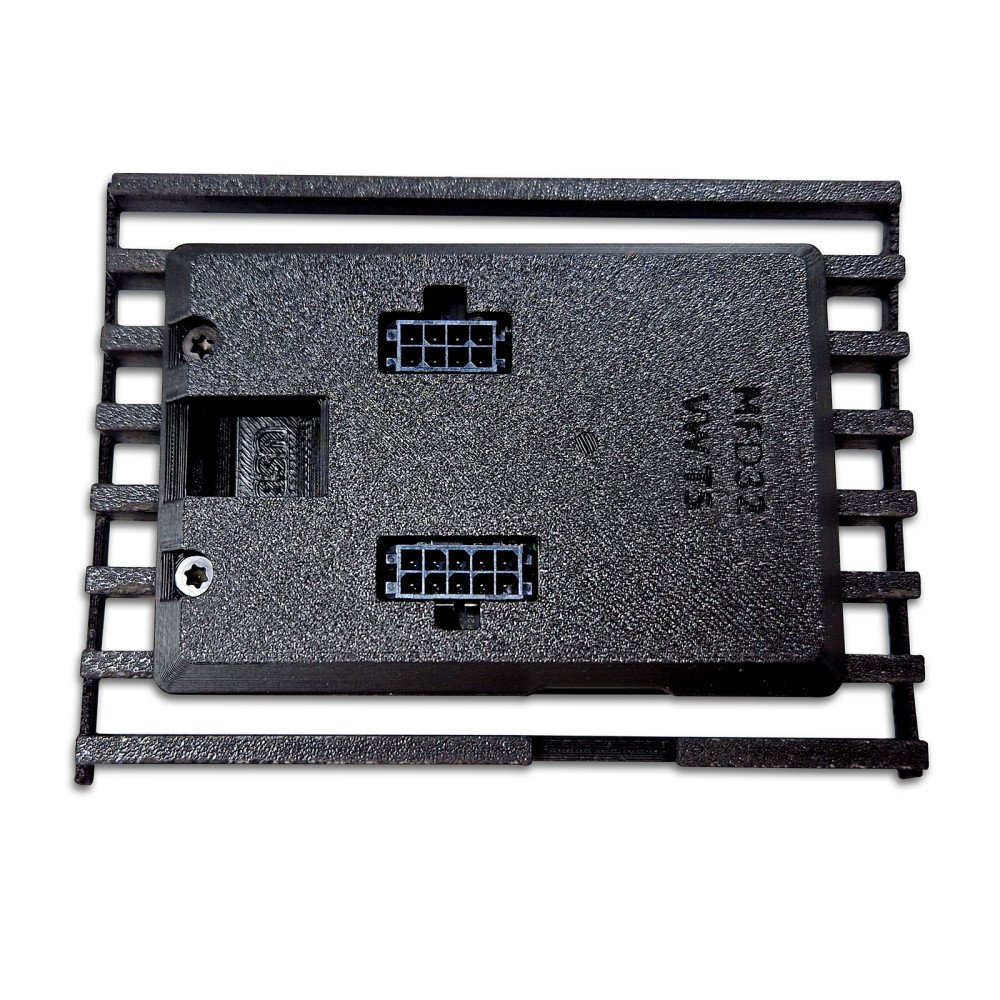

The CANchecked MFD32 Gen2 replaces a factory air vent with a touchscreen data display designed to fit cleanly in the dash while still allowing airflow past the bezel. It’s built for enthusiasts who want deep ECU data, configurable warning strategies, and logging without adding extra gauges.

Key features

• Vehicle-specific vent insert/bezel designed to maintain ventilation airflow
• CAN Bus readout with in-depth vehicle data comparable to manufacturer diagnostic tools
• Gear display via CAN Bus or calculated from speed and RPM
• Touchscreen operation with swipe navigation
• Custom pages with your own layouts, images, and start animation
• Up to 4 analog inputs plus direct ethanol sensor support
• CAN switching: use the display as a keypad and send custom CAN messages
• Configurable alarms (example: warning for exhaust gas temperature above 900°C)
• Internal SD logging for later analysis
• Integrated performance meter for 0–100, 100–200, and 0–200 measurements (no extra hardware required)
• DTC read/clear for engine ECU, transmission, ABS, and all-wheel drive*
• Automatic dimming with the instrument panel*

*Not available on all protocols.

Display pages & widgets

• Delivered with predefined sample pages
• Create and save your own pages (up to 10)
• 20 widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning with scalable widget sizes
• Fully adjustable widget colours
• Up to 64 widgets per page

Display Setup Software (DSS)

• Full display customization
• Log viewer to download and review log files
• Integrated CAN logger
• TRI Editor for sensor setup (CAN Bus and internal): rename sensors and set min/max warning thresholds

Supported ECU data

The display supports CAN Bus data queries (UDS, TP2, manufacturer-specific protocols) as well as K-Line (ISO 9141). It ships with predefined TRI/TRX files that define which sensors are queried (varies by engine). Missing values can be added later.

Examples of supported values

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda/mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Connections & expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and can be connected directly.

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

An optional pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can be connected; colours and RPM limits are configurable on the display.

An ethanol sensor connects directly to the display; a 10 kΩ pull-up resistor between 5V and signal is required to view and log ethanol content and temperature.

Advanced functions

• Math-Channels for calculated values
• User-Table for generating additional sensors using 2D or 3D maps

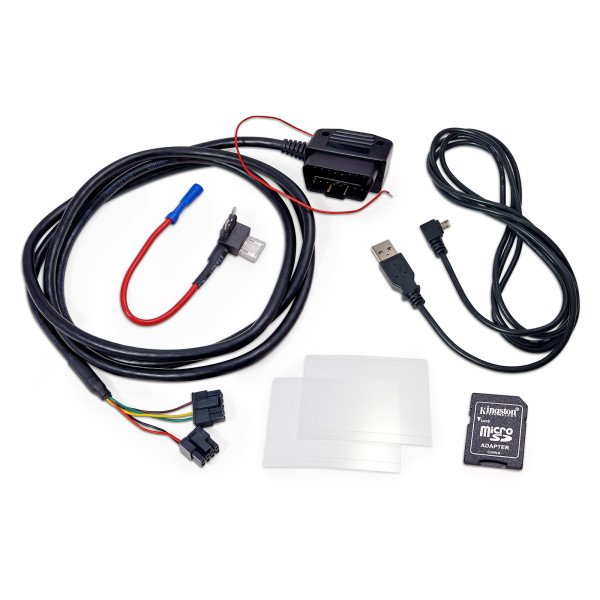

What’s included

• MFD32 Gen2 display integrated in a ventilation insert for LHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Anti-reflection display foil

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/8" NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)
