CANchecked MFD32 Gen2 for Seat Leon/Cupra 1M (vehicle-specific)

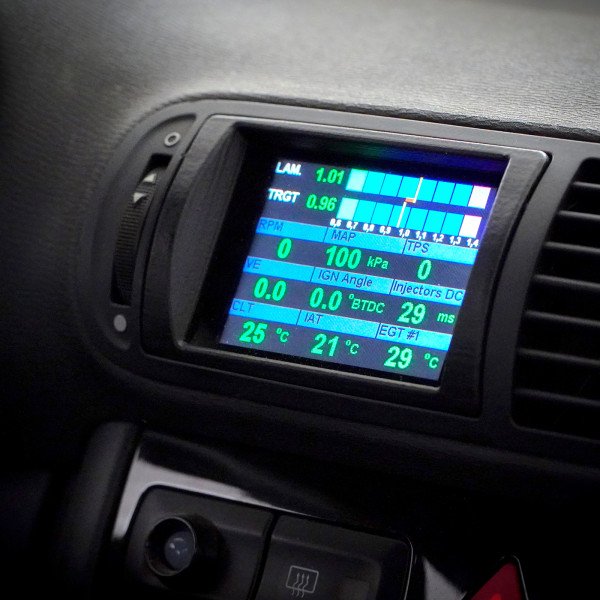

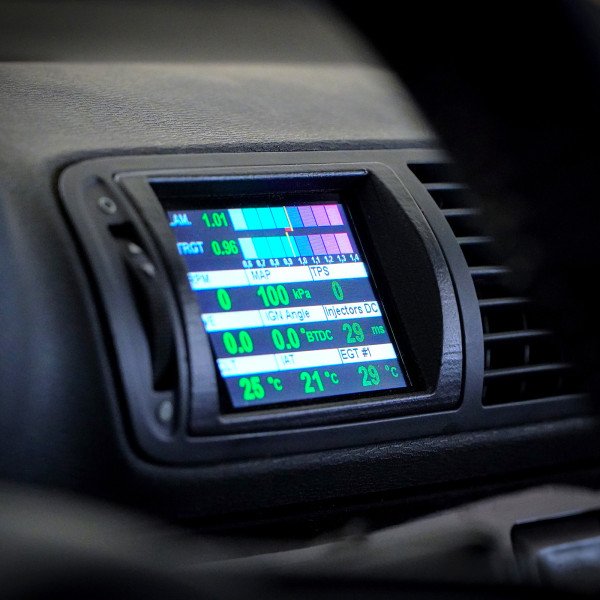

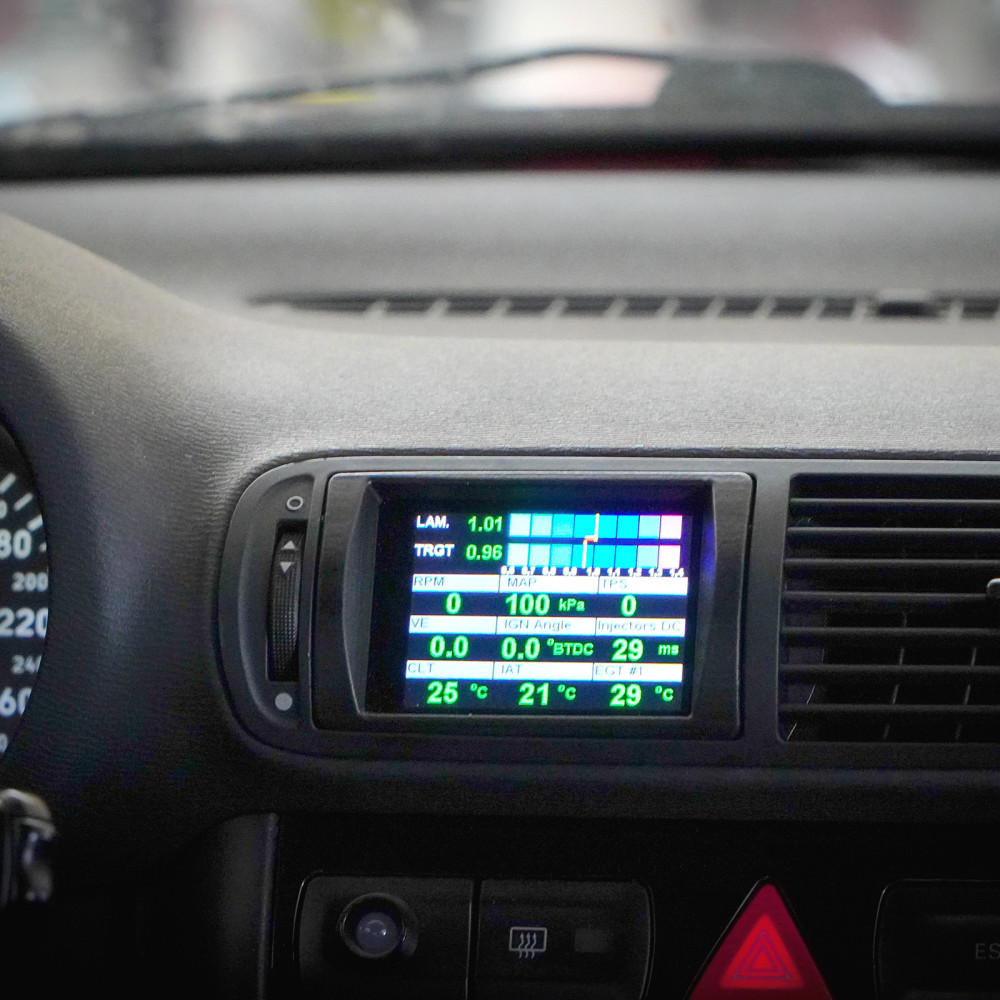

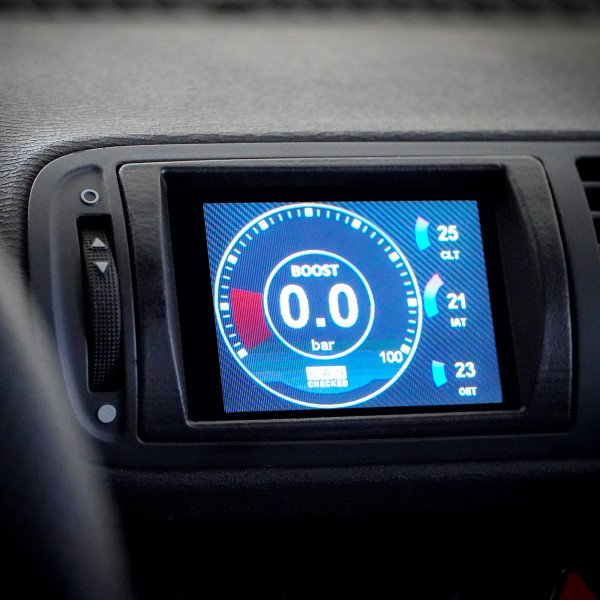

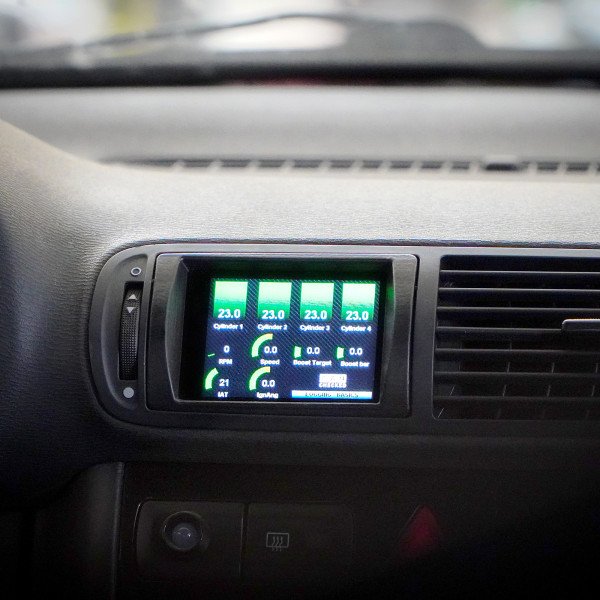

The CANchecked MFD32 Gen2 replaces your air vent with an integrated data display while still allowing airflow past the bezel. Designed for straightforward installation; illustrated instructions are available for most versions so it can typically be fitted without a workshop.

Key features

• Vehicle-specific integration: Bezel designed to fit the Seat Leon/Cupra 1M air vent and retain ventilation flow.
• CAN Bus data: Access in-depth vehicle data comparable to manufacturer diagnostic readouts.

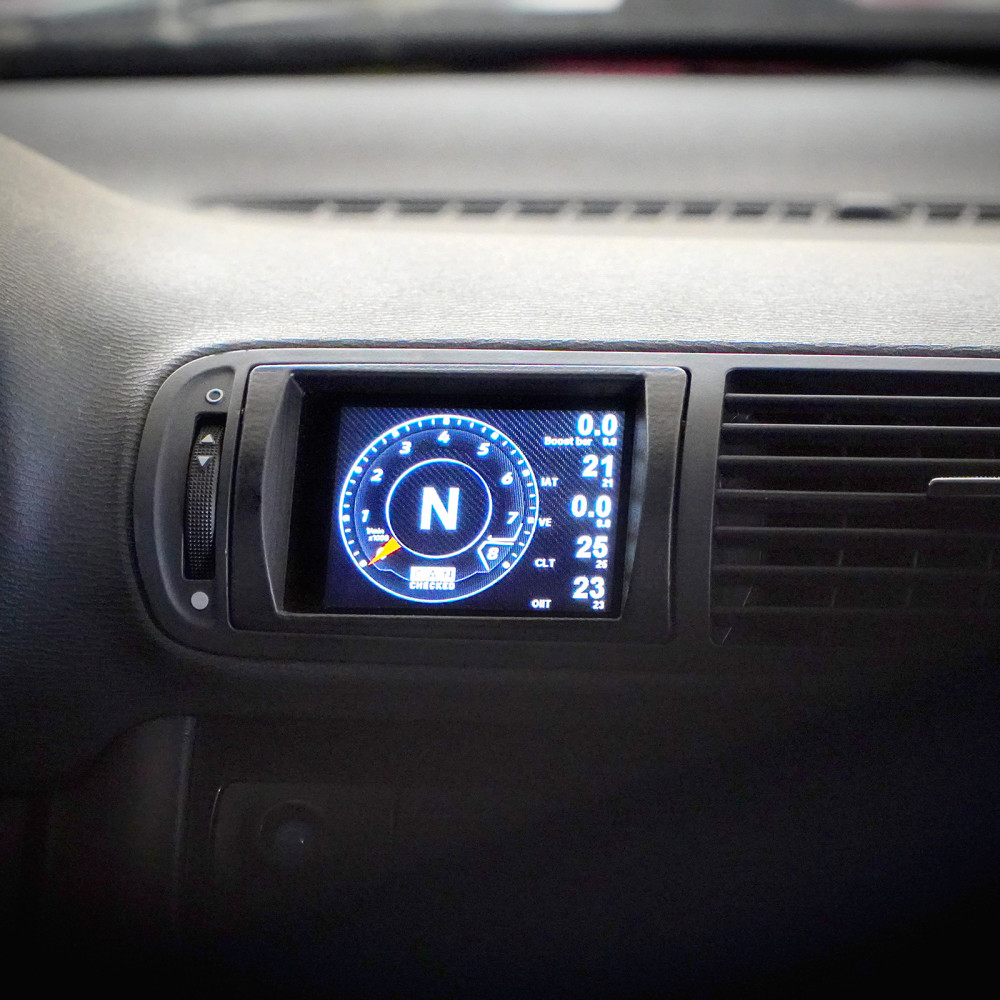

• Gear display: Via CAN Bus or calculated from speed and RPM.
• Touchscreen control: Page navigation with swipe gestures.
• Custom pages: Build your own layouts, add images, or a start animation.
• Inputs: Up to 4 analog inputs plus direct connection for an ethanol sensor.
• CAN switching: Use the display as a keypad and send custom CAN messages.
• Configurable alarms: Set warnings with clear on-screen alerts (e.g., exhaust gas temperature above 900°).
• Logging: Record data to the internal SD card for later review.
• Performance meter: Measure 0–100, 100–200, and 0–200 times without additional hardware.
• DTC*: Read and clear faults from ECU, transmission, ABS, and all-wheel drive.
• Dimming*: Automatic dimming with the instrument panel.

Pages and display layouts

• Delivered with predefined sample pages.
• Create your own pages (up to 10).
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop placement; widgets can be scaled.
• Widget colours fully adjustable.
• Up to 64 widgets per page.

Display setup (DSS)

Customize pages and sensors using CANchecked DSS. Includes a log viewer for downloading and viewing log files, an integrated CAN logger, and a TRI editor to adjust sensors (CAN Bus or internal), set min/max warning thresholds, and rename sensors.

Supported values

The display supports CAN Bus data queries (UDS, TP2, manufacturer-specific protocols) and K-Line queries (ISO 9141). It is supplied with predefined TRI/TRX files that define which sensors are queried; these can vary by engine and can be expanded later if values are missing.

Examples of available data:

• Temperatures: Exhaust, coolant, oil, intake, outside, gasoline, DSG.
• Pressures: Boost, ambient, fuel pressure (pre-feed pump), rail pressure (actual/target).
• Lambda/mixture: Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment.
• Other: RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values.

Connection and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked sensors are already stored in the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

A pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can also be connected; colours and RPM limits are configurable on the display.

The ethanol sensor connects directly to the display. A 10K pull-up resistor between 5V and signal is required to view and log ethanol content and temperature.

Advanced functions

• Math channels: Calculate sensors from other sensor inputs.
• User table: Create additional sensors using 2D or 3D maps.

Scope of delivery

• MFD32 Gen2 data display integrated in the ventilation insert for LHD vehicles
• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN Bus, analogue inputs, 5V, sensor ground
• Pins for self-crimping
• Two 1K resistors (pull-up for external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display foil (anti-reflection)

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/ inch" NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)

* Not available on all protocols.
