CANchecked MFD32 Gen2 for VW Polo MK5 6R (vehicle-specific)

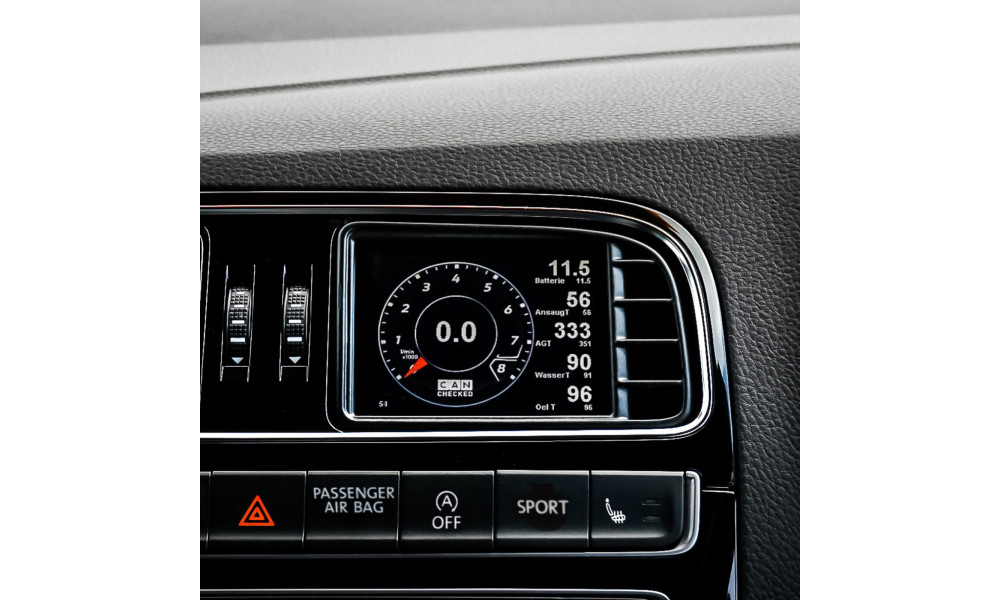

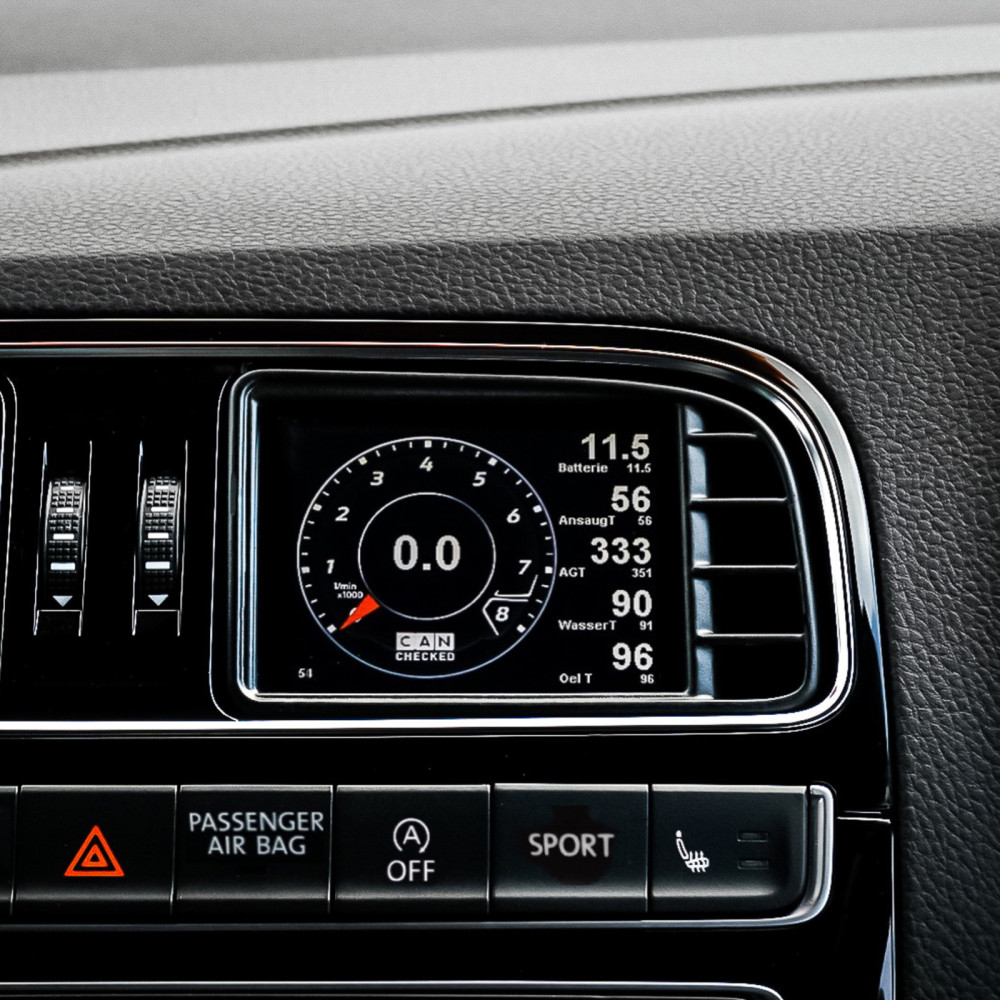

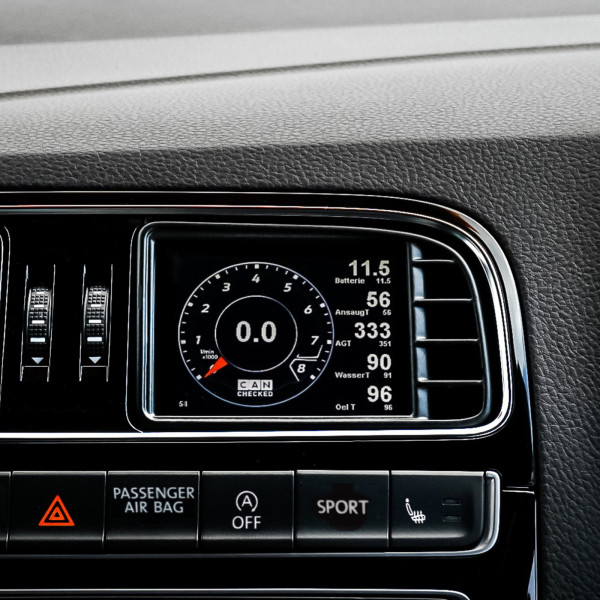

The CANchecked MFD32 Gen2 replaces the air vent with an integrated data display while still allowing airflow past the screen. Installation is designed to be straightforward, with illustrated instructions available for most versions.

Key features

• OEM-style fitment: Vehicle-specific bezel with continued vent airflow
• CAN Bus data: In-depth vehicle data readout comparable to manufacturer diagnostic tools
• Gear display: Via CAN Bus or calculated from speed and RPM
• Touchscreen: Page navigation via swipe gestures
• Custom pages: Create your own layouts, add images, and use a start animation
• Sensor expansion: Up to 4 analog inputs plus direct ethanol sensor input
• CAN switching: Use the display as a keypad and send custom CAN messages
• Configurable alarms: Custom warnings (e.g., EGT warning above 900°C)
• Data logging: Log to the internal SD card for later analysis

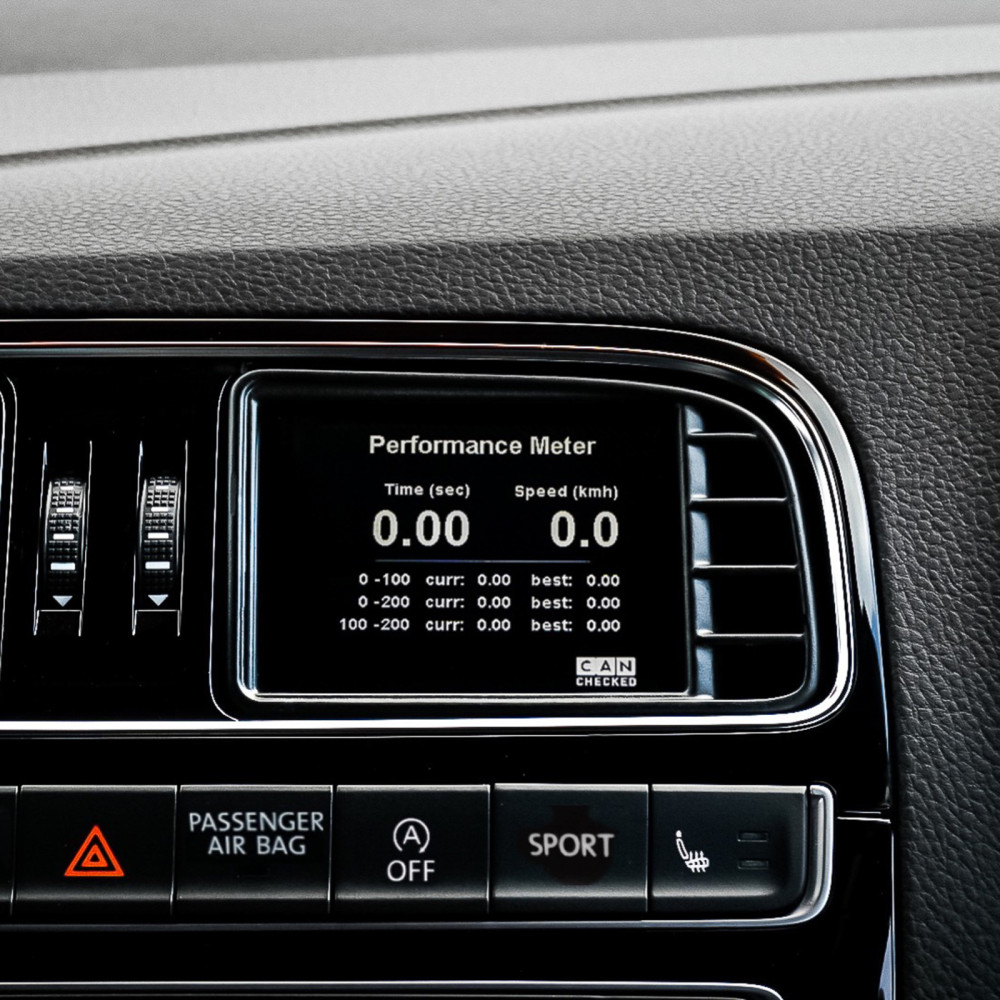

• Performance meter: 0–100, 100–200, and 0–200 time measurement without additional hardware
• DTC*: Read and clear faults for engine ECU, transmission, ABS, and all-wheel drive
• Auto dimming*: Dims with the instrument lighting

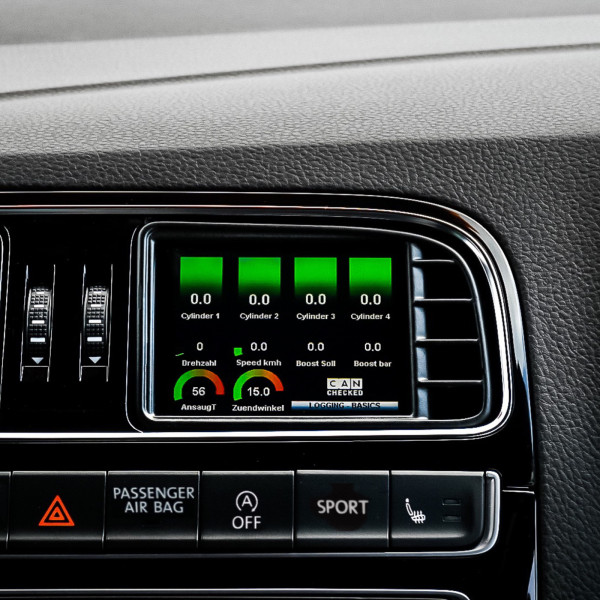

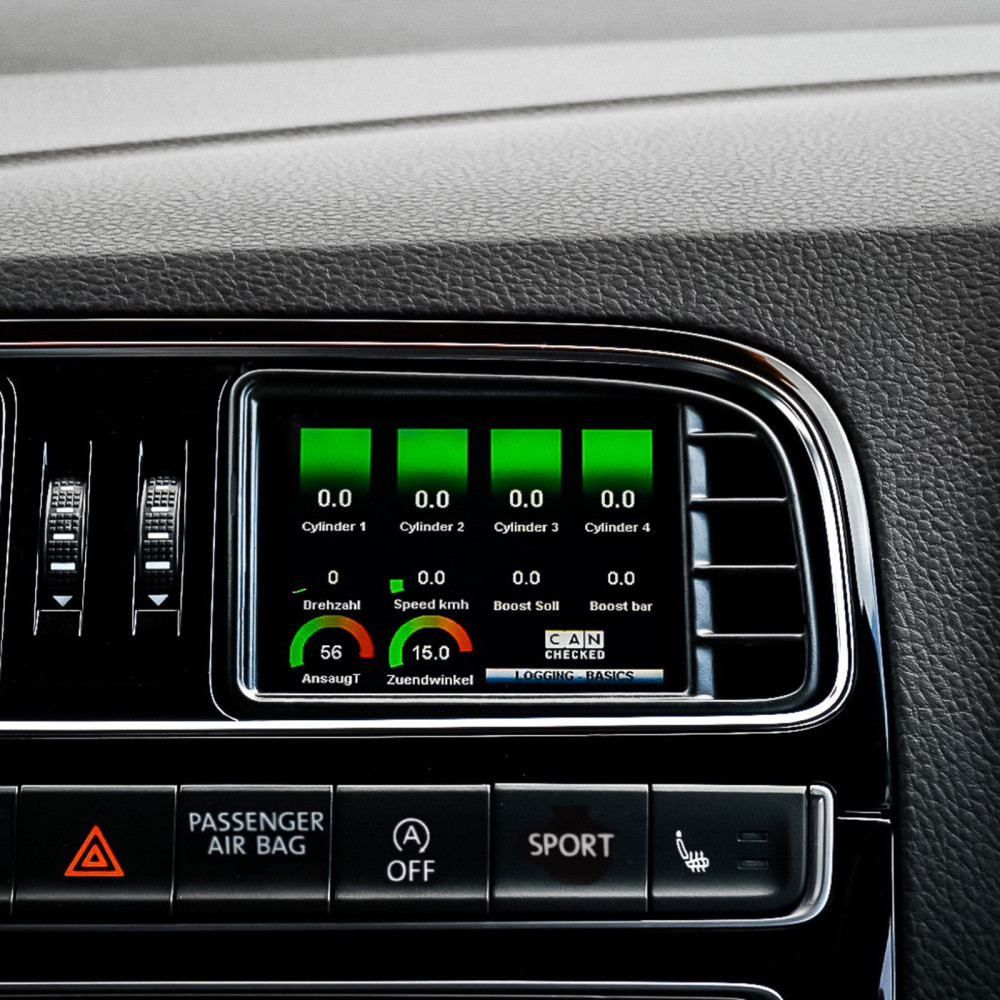

Pages and display views

• Delivered with predefined sample pages
• Custom page creation supported
• Up to 10 pages
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning and scalable widgets
• Fully adjustable widget colours
• Up to 64 widgets per page

Display Setup Software (DSS)

• Full display customization
• Integrated log viewer to download and view log files
• Integrated CAN logger
• TRI Editor to configure sensors (CAN Bus or internal), set min/max warning limits, and rename sensors

ECU data support

Supports CAN Bus data query (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). The display is delivered with predefined TRI/TRX files that define the sensors queried (varies by engine). Missing values can be added later.

Example supported values

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

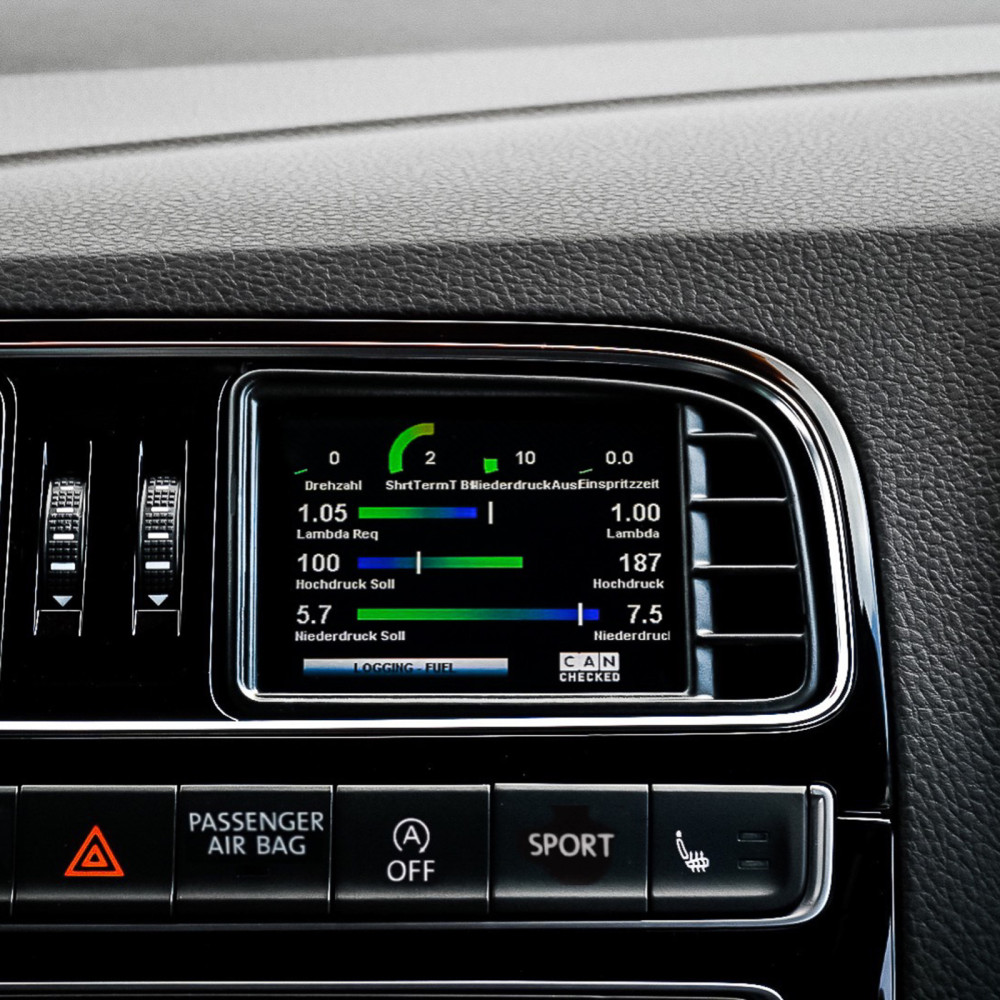

Lambda/mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Scope of delivery

• MFD32 Gen2 data display integrated in the ventilation insert for RHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display foil (anti-reflection)

Connections and expansion

Connect sensors via four analog inputs (linear 0–5V and NTC supported). CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected.

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K EGT converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

A pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can also be connected; flash colours and speed limits/colours are configurable on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor between 5V and the signal is required to view and log ethanol content and temperature.

Advanced functions

• Math-Channels: Calculate values using multiple sensors
• User-Table: Create additional sensors using 2D or 3D maps

Optional accessories

• CC24000 SLM08 - external switching lightning module
• CC22780 ANC04 - four-way AIN-harness
• CC22100 CBD08 - eight-way CAN Distribution Hub
• CC22902 NTC01 - temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01 - type K converter, 0–1250°C
• CC22901 FLP01 - pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 - pressure sensor 0–5.5 bar absolute (80 psi)

* Not available on all protocols.
