CANchecked MFD32 Gen2 for VW Golf MK5

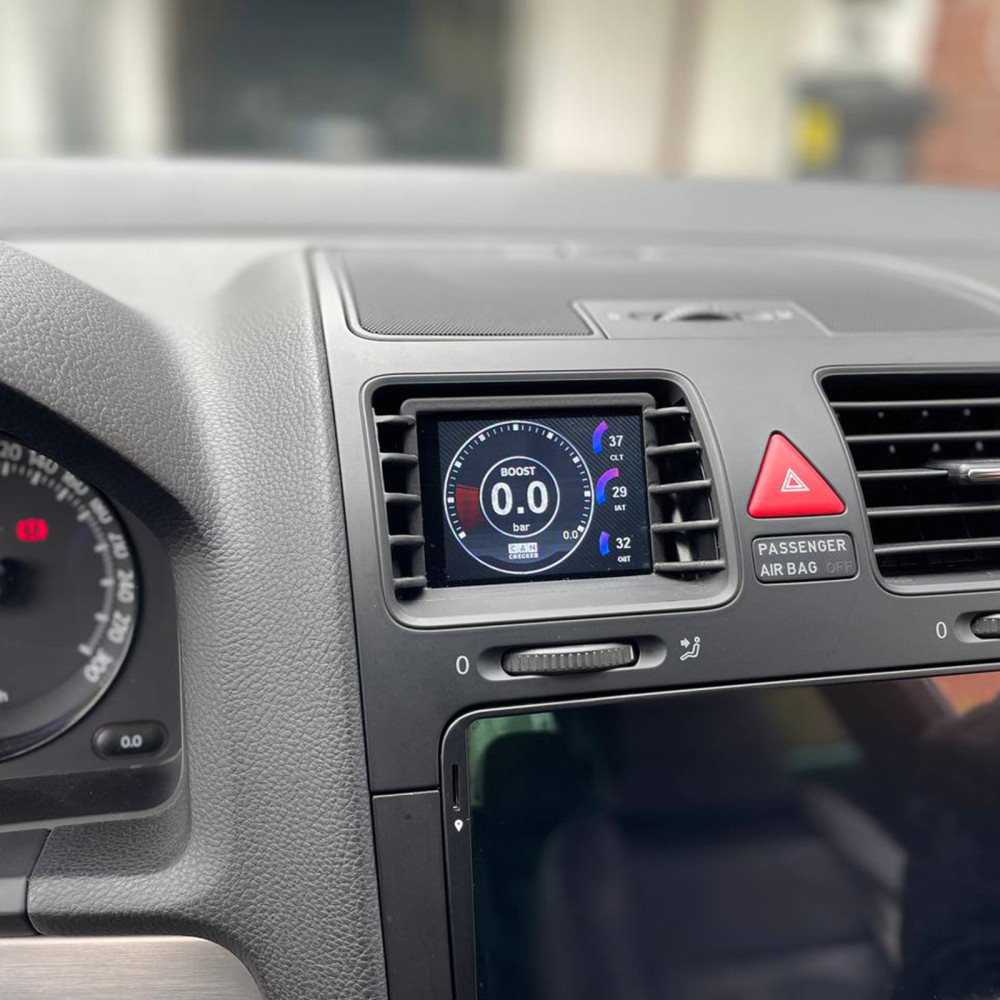

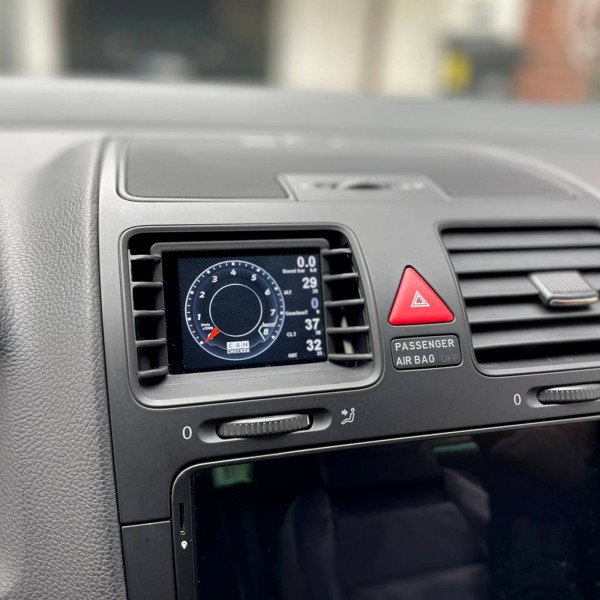

The CANchecked MFD32 Gen2 replaces an air vent with a vehicle-specific display while still allowing airflow past the screen. It’s designed for straightforward installation and is supplied with a vehicle-specific connection cable and quickstart documentation.

Key features

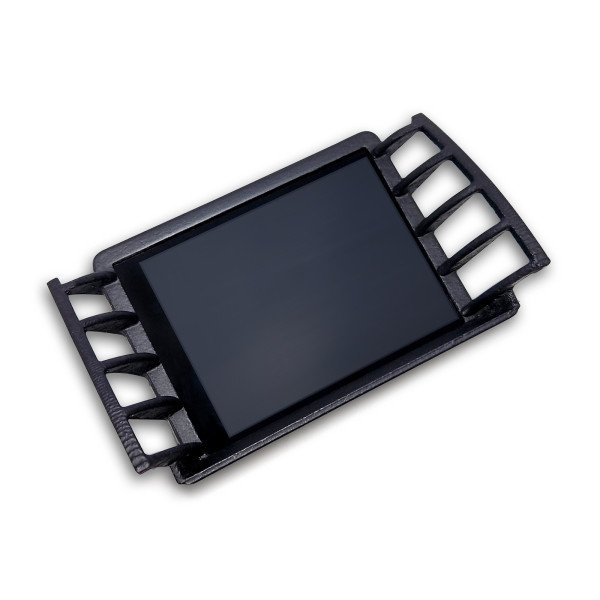

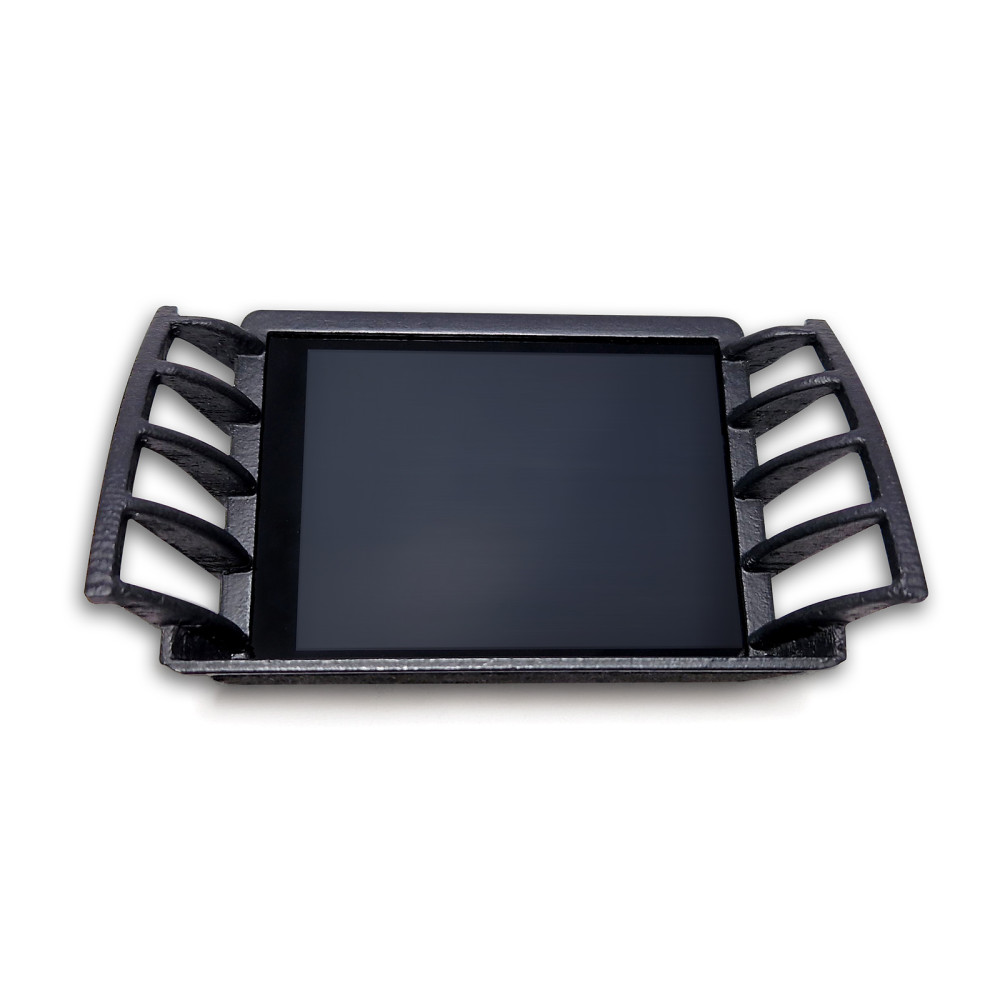

• Vehicle-specific integration: Bezel designed to fit the Golf MK5 vent location while maintaining ventilation.
• CAN bus data: In-depth ECU data readout comparable to manufacturer-level diagnostics (protocol support includes UDS, TP2 and manufacturer-specific protocols).
• Gear display: Via CAN bus or calculated from speed and RPM.
• Touchscreen operation: Page navigation via swipe gestures.
• Custom pages: Create your own layouts, add images or a start animation.
• Inputs for extra sensors: Up to 4 analog inputs plus direct ethanol sensor input.
• CAN switching: Use the display as a keypad and send custom CAN messages.
• Configurable alarms: Set warning thresholds (e.g., exhaust gas temperature above 900°C).
• Data logging: Record to the internal SD card for later review.
• Performance meter: 0–100, 100–200, and 0–200 timing without additional hardware.
• DTC functions*: Read and clear faults for engine ECU, transmission, ABS and all-wheel drive.
• Auto dimming*: Dims with the instrument panel.

*Not available on all protocols.

Display layouts and widgets

• Delivered with predefined sample pages.
• Create and save up to 10 pages.
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop placement with scalable widget sizes.
• Fully adjustable widget colours.
• Up to 64 widgets per page.

Setup software (DSS)

CANchecked DSS supports full display customization, includes a log viewer for downloading and reviewing log files, and integrates a CAN logger. The built-in TRI Editor lets you manage sensor definitions from CAN bus or internal sources, including naming and min/max warning thresholds.

Supported ECU values

The display is supplied with predefined TRI/TRX files that define which sensors are queried (varies by engine). Example values include:

Temperatures

• Exhaust, coolant, oil, intake, outside, gasoline, DSG temperature

Pressures

• Boost, ambient, fuel pressure pre-feed pump, rail pressure actual/target

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

If values are missing, they can be added later.

Scope of delivery

• MFD32 Gen2 data display integrated in the ventilation insert (LHD & RHD)
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Anti-reflection display foil

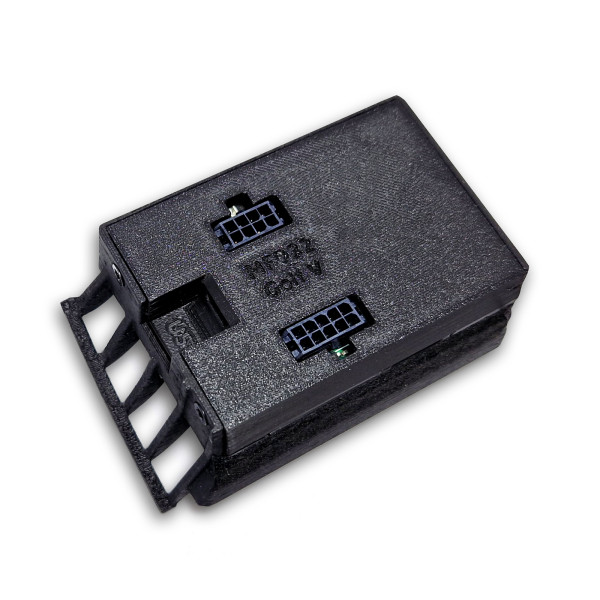

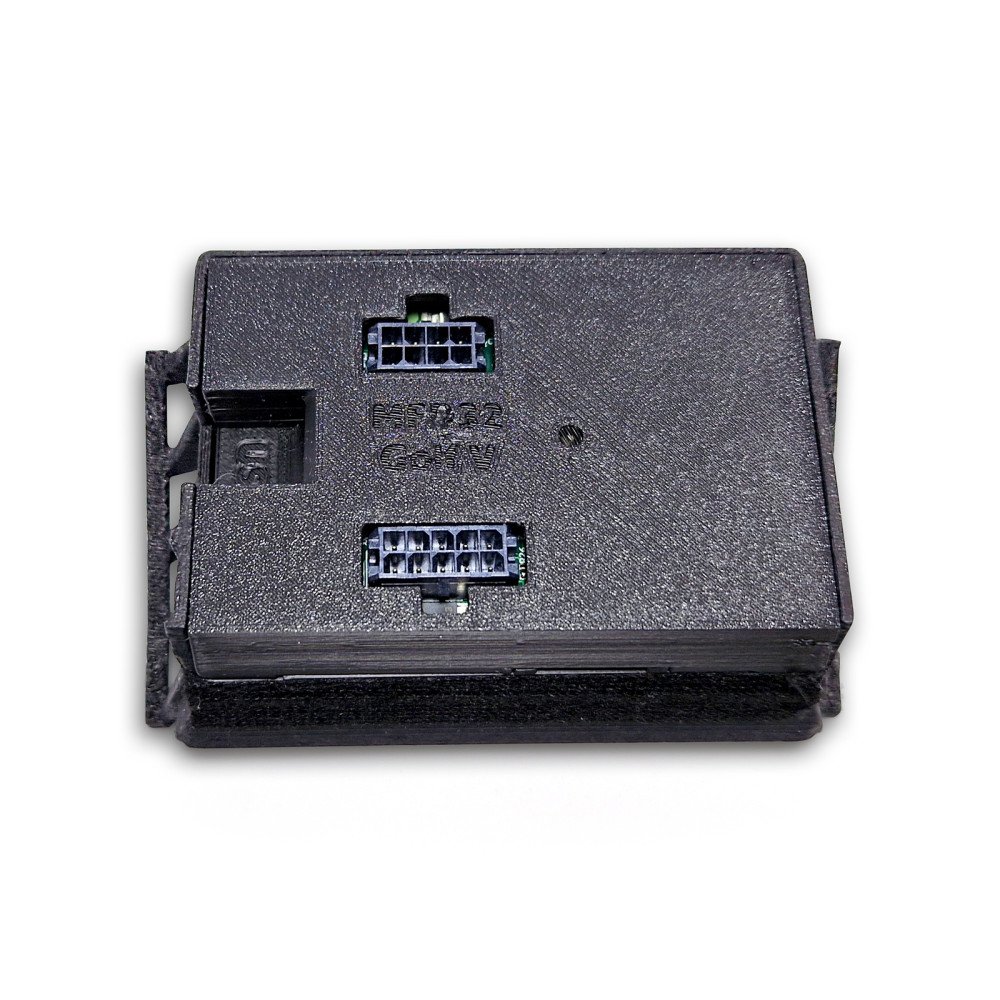

Connections and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked sensors are stored in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)

A pre-assembled AIN wiring harness can be used for connection. An external 8-LED shift light can also be connected, with configurable colours and thresholds directly on the display. An ethanol sensor connects directly to the display (requires a 10K pullup resistor between 5V and signal) to view and log ethanol content and temperature.

Advanced functions

• Math-Channels: Calculate channels from other sensors.
• User-Table: Create additional sensors using 2D or 3D maps.

Optional accessories

• CC24000 SLM08 - external switching lightning module
• CC22780 ANC04 - four-way AIN-harness
• CC22100 CBD08 - eight-way Can Distribution Hub
• CC22902 NTC01 - temperature sensor for liquids 1/8 inch NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - pressure sensor 0-10 bar (145psi) M10x1
• CC22900 BST10 - pressure sensor 6.5 bar relativ (95psi)
