CANchecked MFD32 Gen2 for VW Scirocco MK3 pre-FL

The CANchecked MFD32 Gen2 replaces the air vent with an integrated data display while still allowing airflow past the screen. Designed for straightforward installation, with illustrated instructions available for most applications—no workshop required.

Key features

• Vehicle-specific integration: Bezel keeps the vent functional with airflow past the display.
• CAN bus data: In-depth vehicle readouts comparable to manufacturer diagnostic tools.
• Gear display: Via CAN bus, or calculated from speed and RPM.
• Touchscreen operation: Page navigation with swipe gestures.
• Custom pages: Create your own layouts, add pictures, or set a start animation.
• Inputs: Up to 4 analog inputs plus direct ethanol sensor connection.
• CAN switching: Use the display as a keypad and send custom CAN messages.
• Configurable alarms: Set warning thresholds (e.g., exhaust gas temperature above 900°C).
• Logging: Save data to the internal SD card for later analysis.
• Performance meter: Measure 0–100, 100–200, and 0–200 times without additional hardware.
• DTC support*: Read and clear faults for engine ECU, transmission, ABS, and all-wheel drive.
• Auto dimming*: Dims in sync with the instrument panel.

Display pages and views

• Delivered with predefined sample pages.
• Create your own pages (up to 10 pages).
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
• Drag-and-drop placement with scalable widget sizing.
• Fully adjustable widget colours.
• Up to 64 widgets per page.

Display Setup Software (DSS)

DSS enables full display customization, log download/viewing via the integrated log viewer, and includes a CAN logger. The integrated TRI Editor allows sensor adjustments for CAN bus and internal sensors, including sensor naming and min/max warning thresholds.

Supported data (examples)

The display supports CAN bus data query (UDS, TP2, manufacturer-specific protocols) and K-Line query (ISO 9141). Predefined TRI/TRX files are supplied; sensor sets vary by engine and can be expanded later if values are missing.

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other values

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Connection and expansion

Four analog inputs support linear 0–5V sensors and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected.

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

A pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can also be connected, with configurable colours and speed limits directly on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor between 5V and the signal is required to view and log ethanol content and temperature.

Advanced functions

• Math-Channels: Calculate channels from other sensor values.
• User-Table: Create additional sensors using 2D or 3D maps.

Scope of delivery

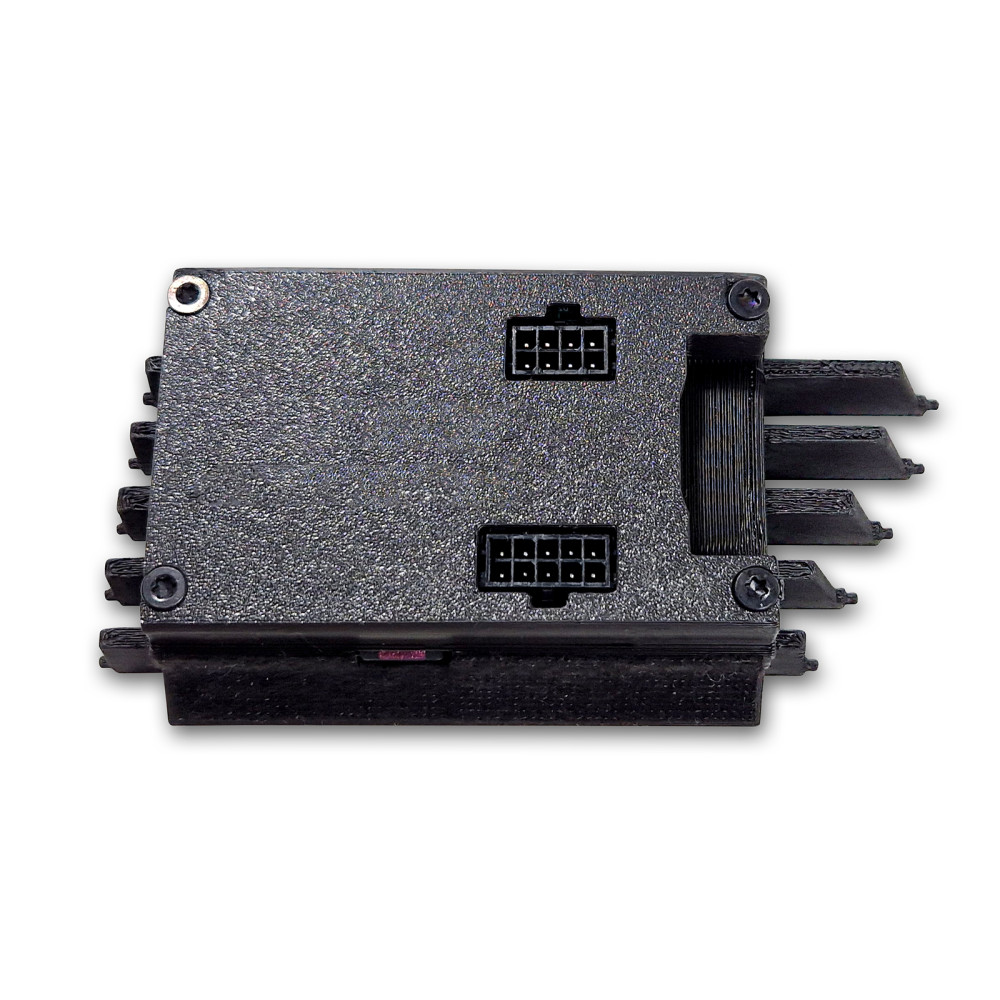

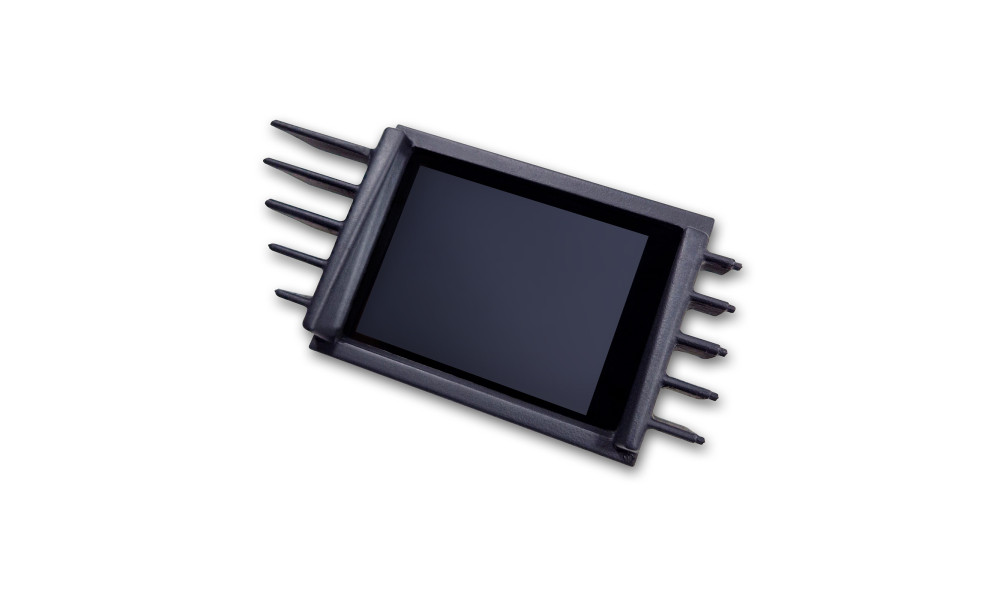

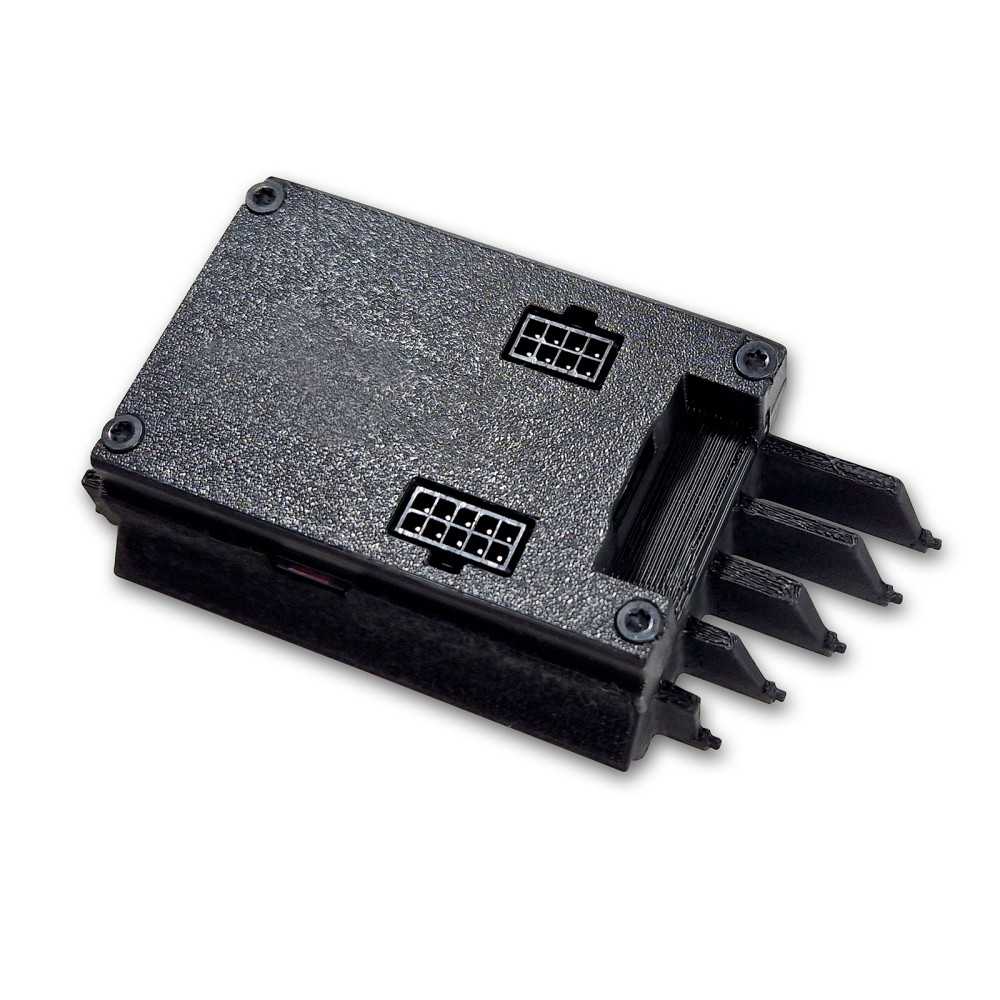

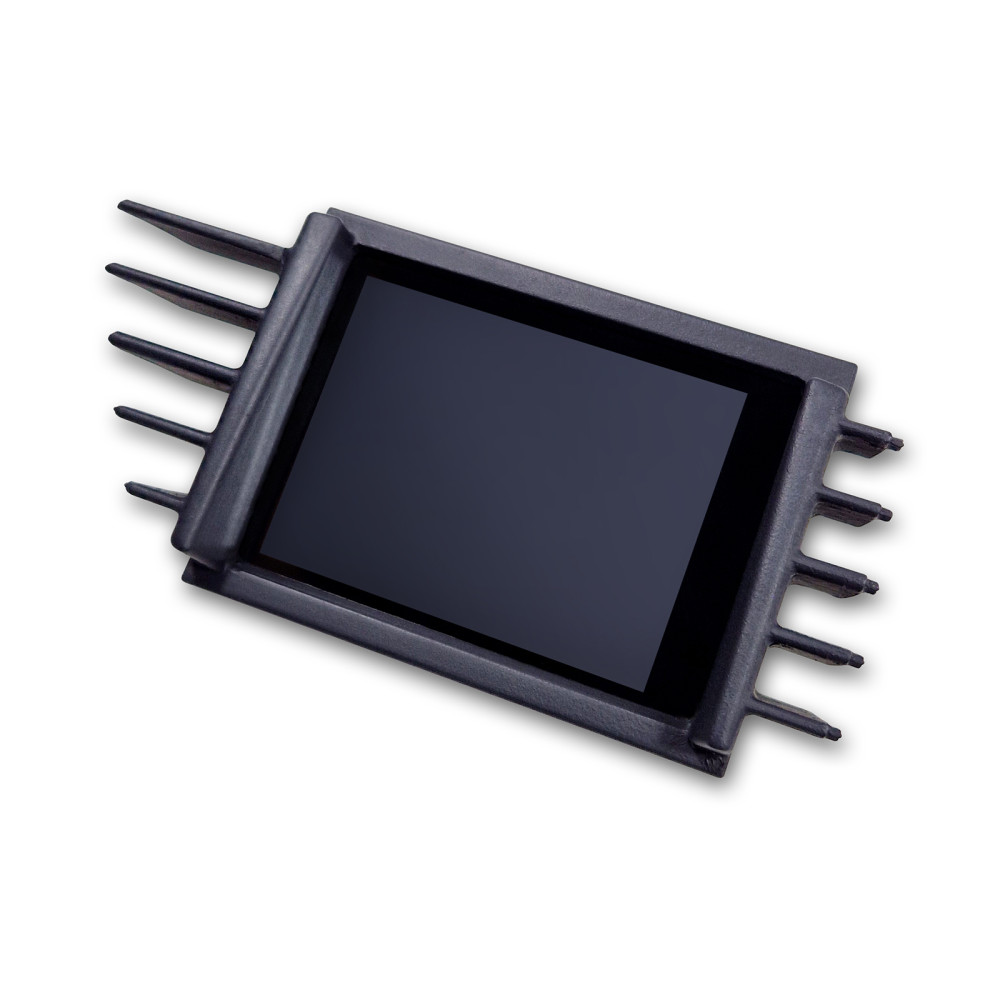

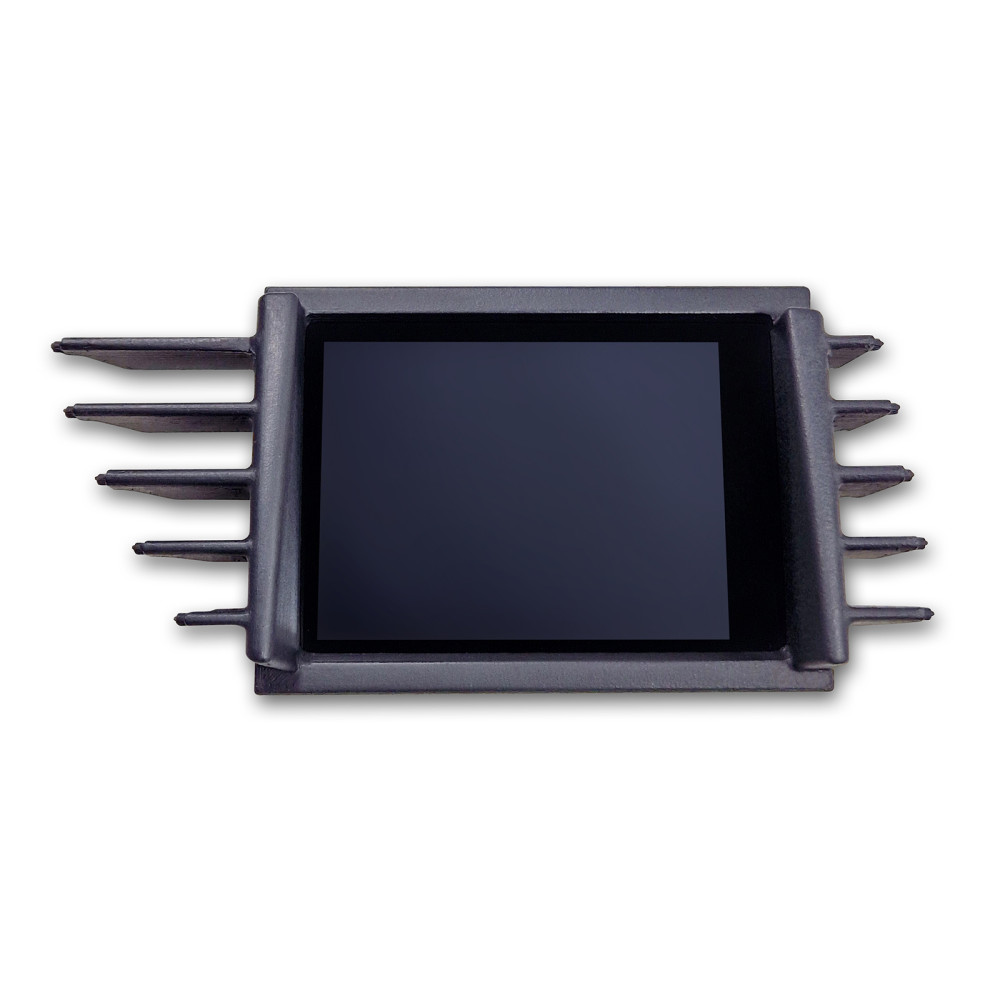

• MFD32 Gen2 data display integrated in the ventilation insert for RHD vehicles

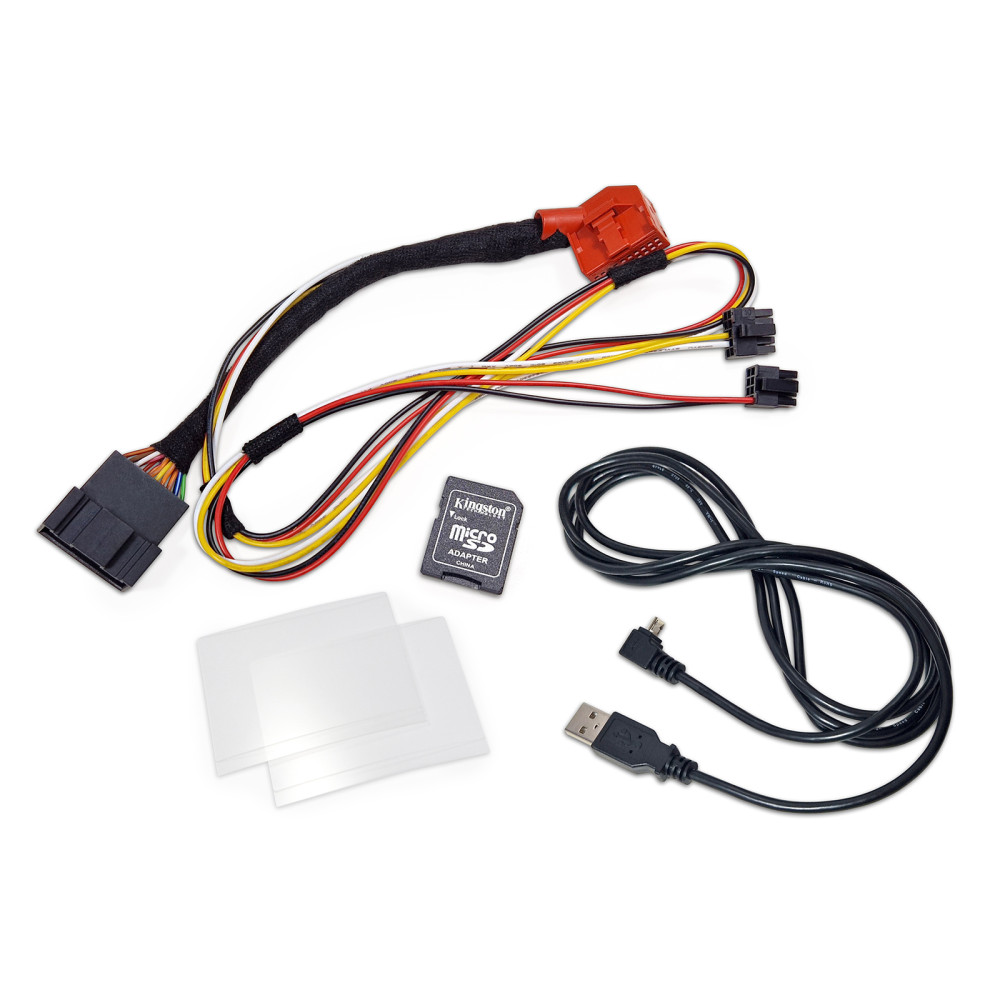

• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Anti-reflection display foil

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)

*Not available on all protocols.
