CANchecked MFD32 Gen2 for VW Passat B8 (Typ 3G)

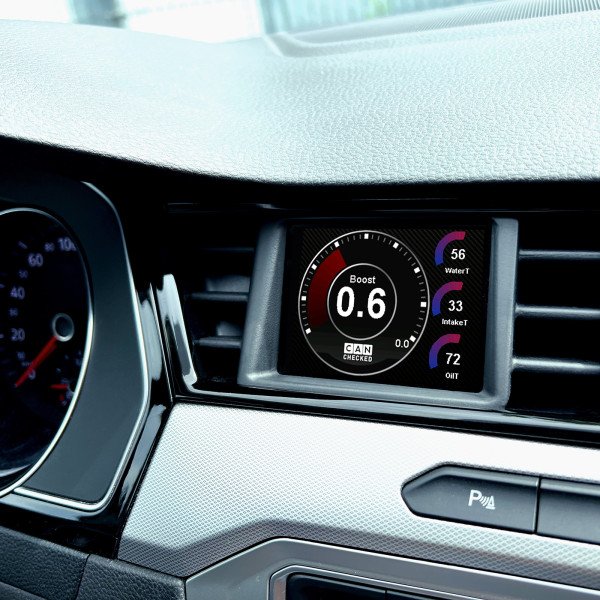

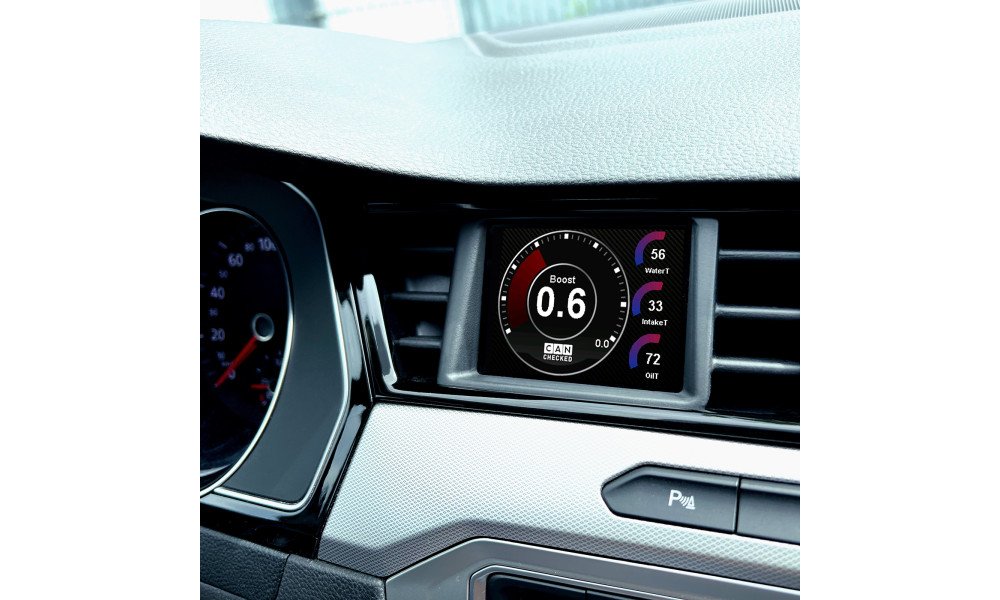

The MFD32 Gen2 replaces the factory air vent with a vent-integrated data display, keeping airflow functional while putting live vehicle data in your line of sight. Designed for straightforward installation, with illustrated instructions available for most variants.

Key features

• Vent-integrated fit: Vehicle-specific bezel allows airflow past the display
• CAN Bus data: Access in-depth vehicle data similar to manufacturer diagnostic tools

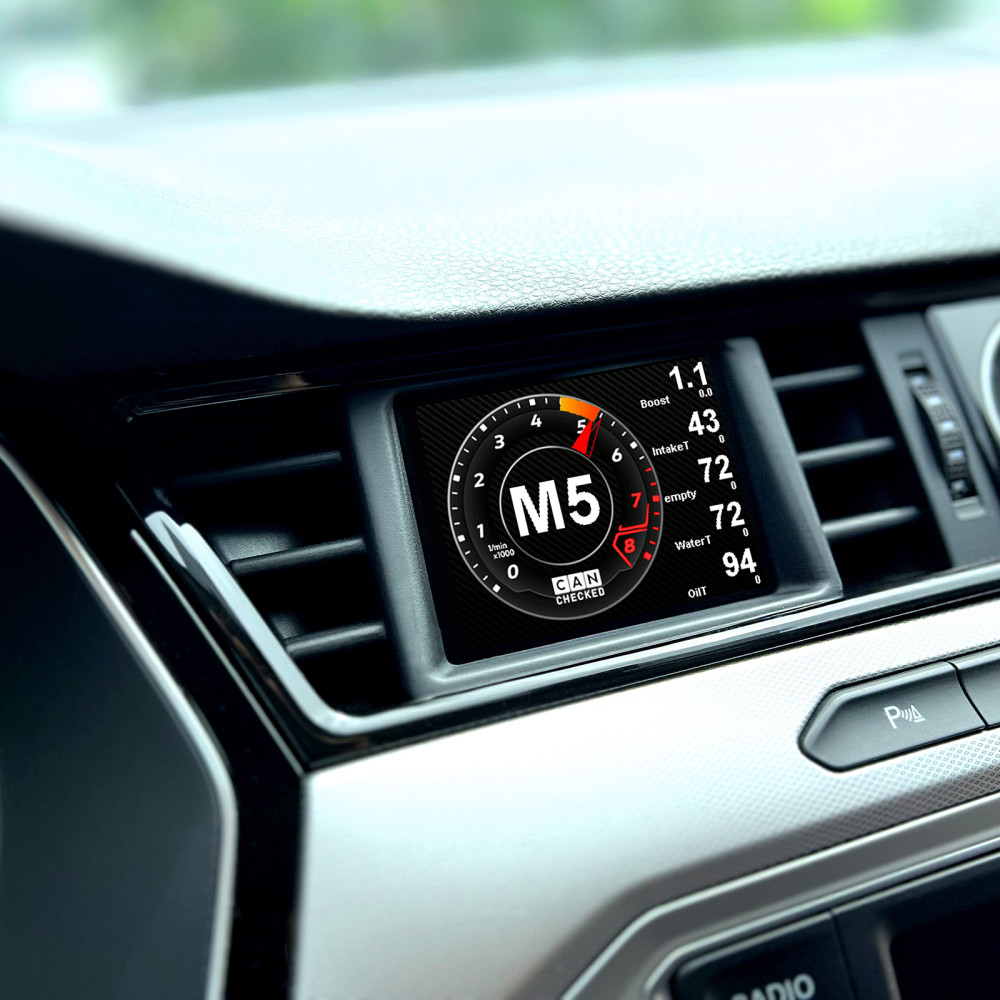

• Gear display: Via CAN Bus or calculated from speed and RPM
• Touchscreen control: Page navigation with swipe gestures
• Page customization: Build your own pages, add pictures, or use a start animation
• Extra sensor inputs: Up to 4 analog inputs plus a direct ethanol sensor input
• CAN switching: Use the display as a keypad and transmit custom CAN messages
• Configurable alarms: User-set warning thresholds (e.g., exhaust gas temperature above 900°C)
• Logging: Record data to the internal SD card
• Performance meter: 0–100, 100–200, and 0–200 measurements without additional hardware
• DTC*: Read and clear faults from engine ECU, transmission, ABS, and all-wheel drive
• Auto dimming*: Dims with the instrument panel

Pages and display layouts

• Delivered with predefined sample pages
• Create your own pages (up to 10)
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning with scalable widget sizing
• Fully adjustable widget colours
• Up to 64 widgets per page

Setup software (DSS)

DSS is used to configure pages, manage sensors, and review logs. It includes a log viewer, a CAN logger, and a TRI editor for sensor naming and warning min/max limits (for both CAN Bus and internal channels).

ECU data and supported protocols

The display supports ECU data query via CAN Bus (UDS, TP2, manufacturer-specific protocols) and via K-Line (ISO 9141). It is supplied with predefined TRI/TRX files that define which sensors are queried (varies by engine). Missing values can be added later.

Example supported values

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Scope of delivery

• MFD32 Gen2 data display integrated in the ventilation insert (LHD vehicles)
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display foil (anti-reflection)

Connection and expansion

Four analog inputs support linear 0–5 V sensors and NTC sensors. Supported CANchecked sensors are included in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

An optional pre-assembled AIN wiring harness can be used for connection.

An external 8-LED shift light can be connected, with configurable colours and speed limits directly on the display.

An ethanol sensor connects directly to the display and can be logged and displayed along with ethanol temperature (requires a 10 kΩ pull-up resistor between 5 V and signal).

Advanced functions

Math Channels allow calculations between sensors. User Table enables additional sensors using 2D or 3D maps.

Optional accessories

• CC24000 SLM08 - external switching lightning module
• CC22780 ANC04 - four-way AIN-harness
• CC22100 CBD08 - eight-way CAN distribution hub
• CC22902 NTC01 - temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01 - type K converter, 0–1250°C
• CC22901 FLP01 - pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 - pressure sensor 0–5.5 bar absolute (80 psi)

* Not available on all protocols.
