CANchecked MFD32 Gen2 for Subaru Impreza GR (incl. WRX)

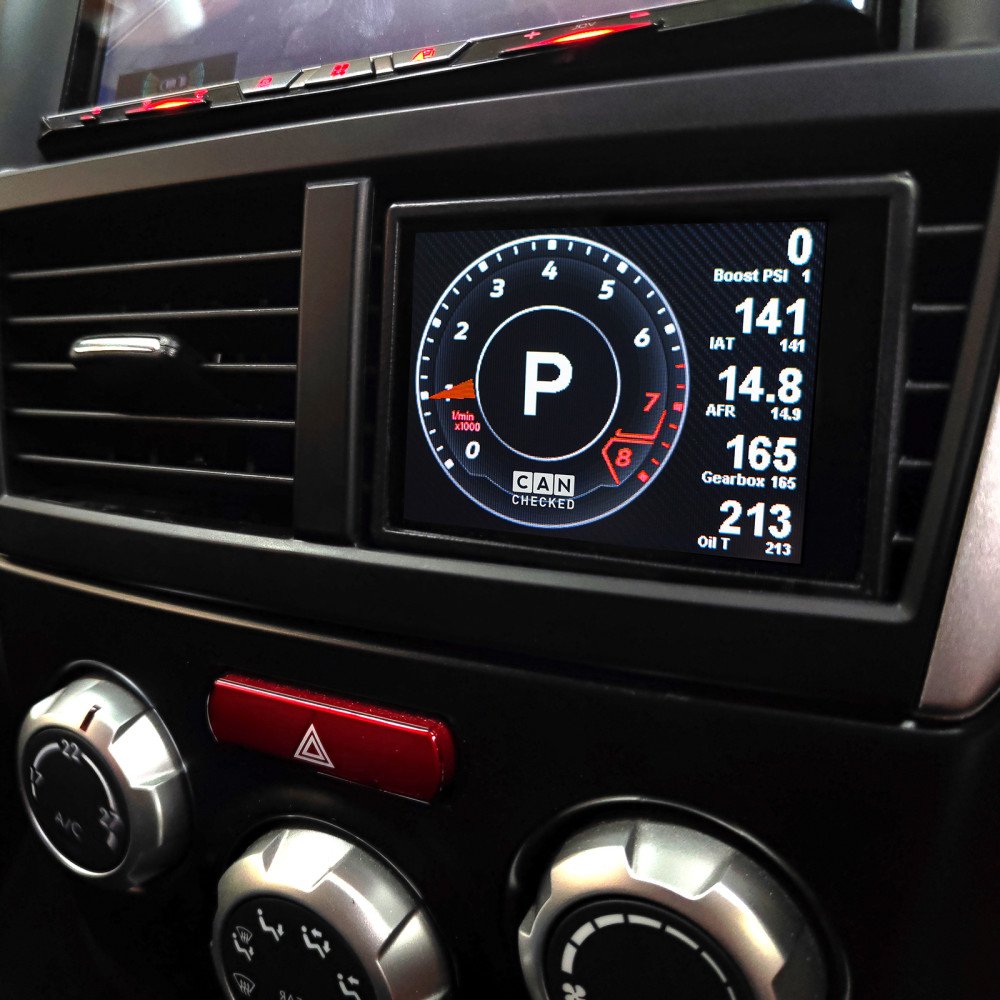

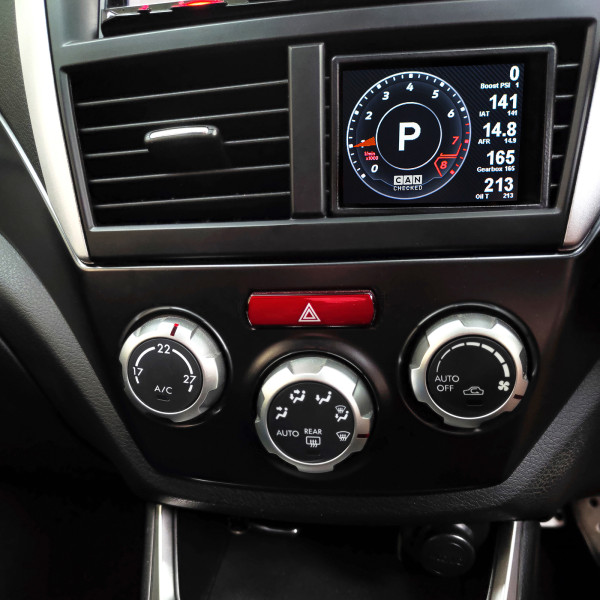

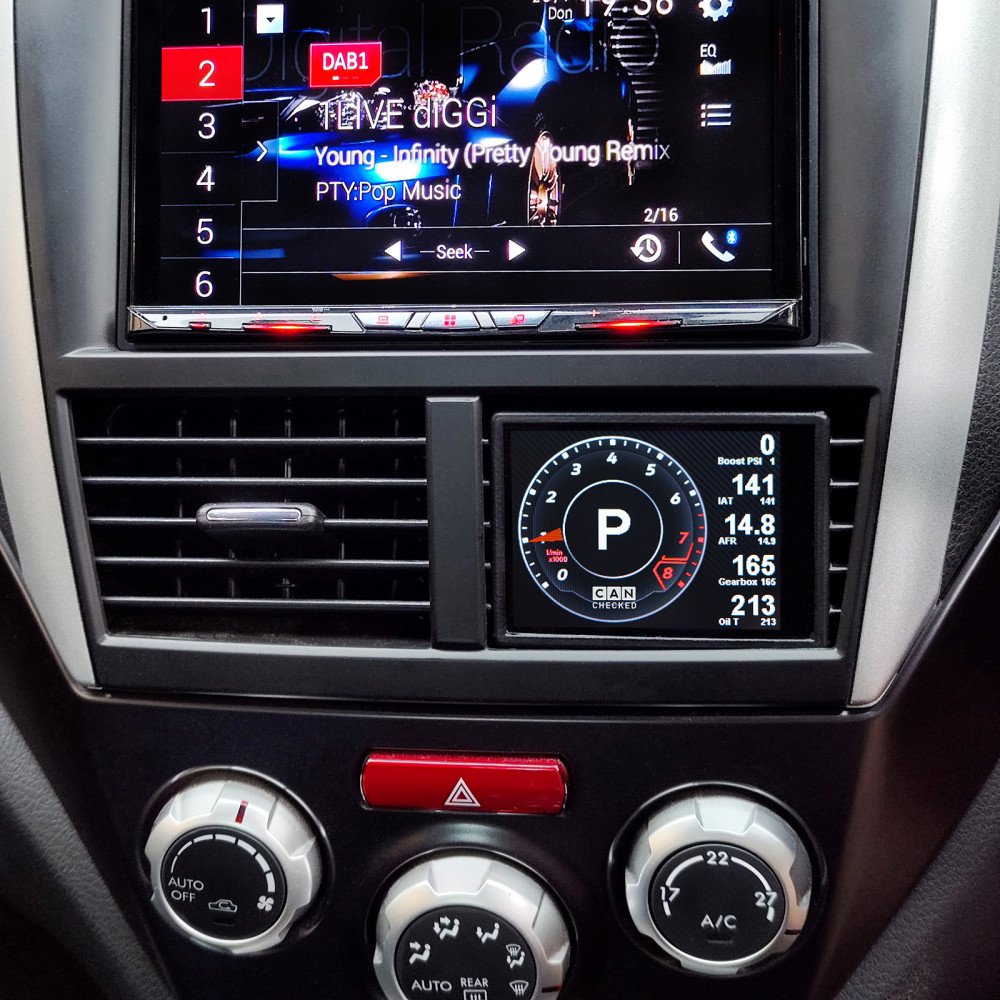

The vehicle-specific MFD32 Gen2 replaces the air-vent insert with an integrated data display while still allowing airflow around the screen. Designed for straightforward installation, with illustrated instructions available for most displays.

Key features

• Vehicle-specific integration: Bezel designed to retain vent airflow past the display
• CAN bus data: In-depth ECU data readout comparable to manufacturer diagnostic tools
• Gear display: Via CAN bus or calculated from speed and RPM
• Touchscreen operation: Page navigation with swipe gestures
• Custom pages: Build your own layouts, add images, or set a start animation
• Inputs: Up to 4 analog inputs plus direct ethanol sensor input
• CAN switching: Use the display as a keypad and send custom CAN messages
• Configurable alarms: User-defined warnings (e.g., prominent alert above 900°C exhaust gas temperature)
• Logging: Save logs to the internal SD card for later review
• Performance meter: 0–100, 100–200, and 0–200 timing without additional hardware
• DTC support*: Read/clear faults from ECU, transmission, ABS, and all-wheel drive
• Auto dimming*: Dims with the instrument panel

Pages and layouts

• Supplied with predefined sample pages
• Create your own pages (up to 10 pages)
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning with scalable widget sizes
• Fully adjustable widget colours
• Up to 64 widgets per page

Display Setup Software (DSS)

Customize pages, download and view log files with the integrated log viewer, and use the integrated CAN logger. The TRI Editor lets you adjust sensors (CAN bus or internal), set min/max warning thresholds, and rename sensors.

Data and supported values

The display supports CAN bus queries (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). It is delivered with predefined TRI/TRX files that define the sensors queried (varies by engine). Missing values can be added later.

Examples of available channels

Temperatures

• Exhaust, coolant, oil, intake, outside, gasoline temperature, DSG temperature

Pressures

• Boost, ambient, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda/mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

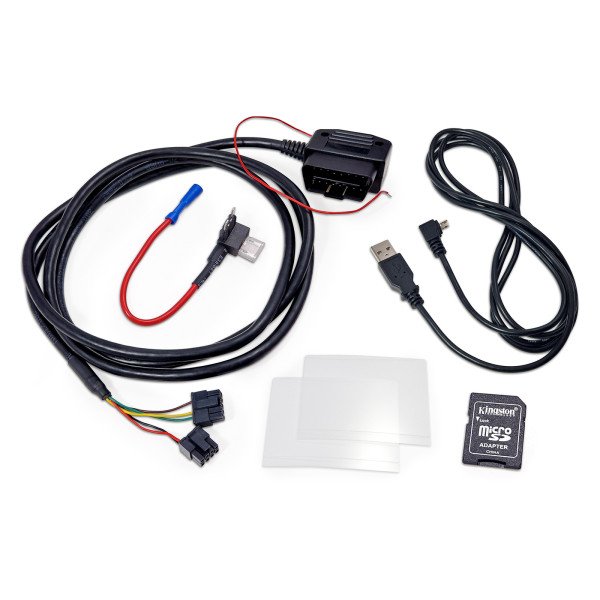

Scope of delivery

• MFD32 Gen2 data display integrated into the ventilation insert (RHD vehicles)
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Anti-reflection display foil

Connection and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked sensors are predefined in the TRI/TRX files and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

A pre-assembled AIN wiring harness can be used for connection. An external 8-LED shift light can be added, with flash colours and shift points configured on the display. An ethanol sensor connects directly to the display; a 10k pull-up resistor between 5V and the signal is required to view and log ethanol content and temperature.

Advanced functions

• Math Channels: Calculate values from other sensors
• User Table: Create additional sensors using 2D or 3D maps

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/8" NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)

* Not available on all protocols.
