CANchecked MFD32 Gen2 for Mitsubishi Lancer Evolution X

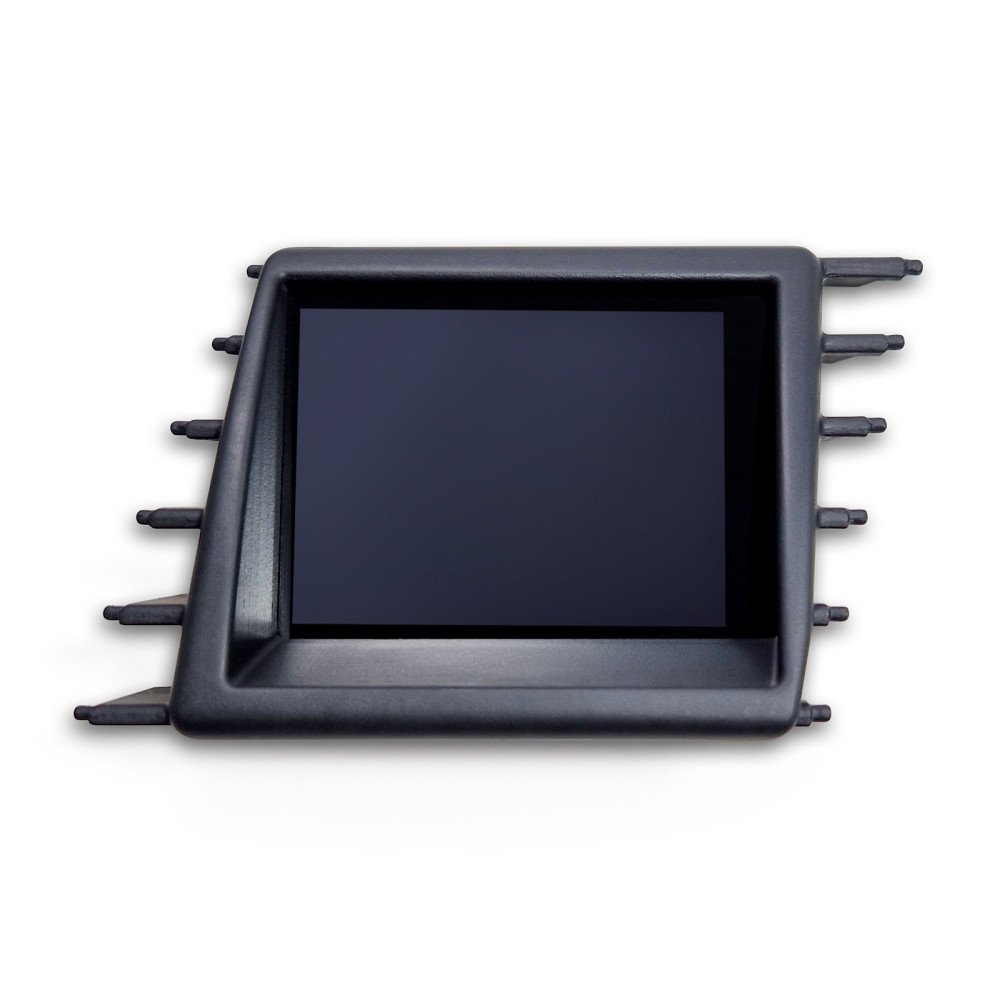

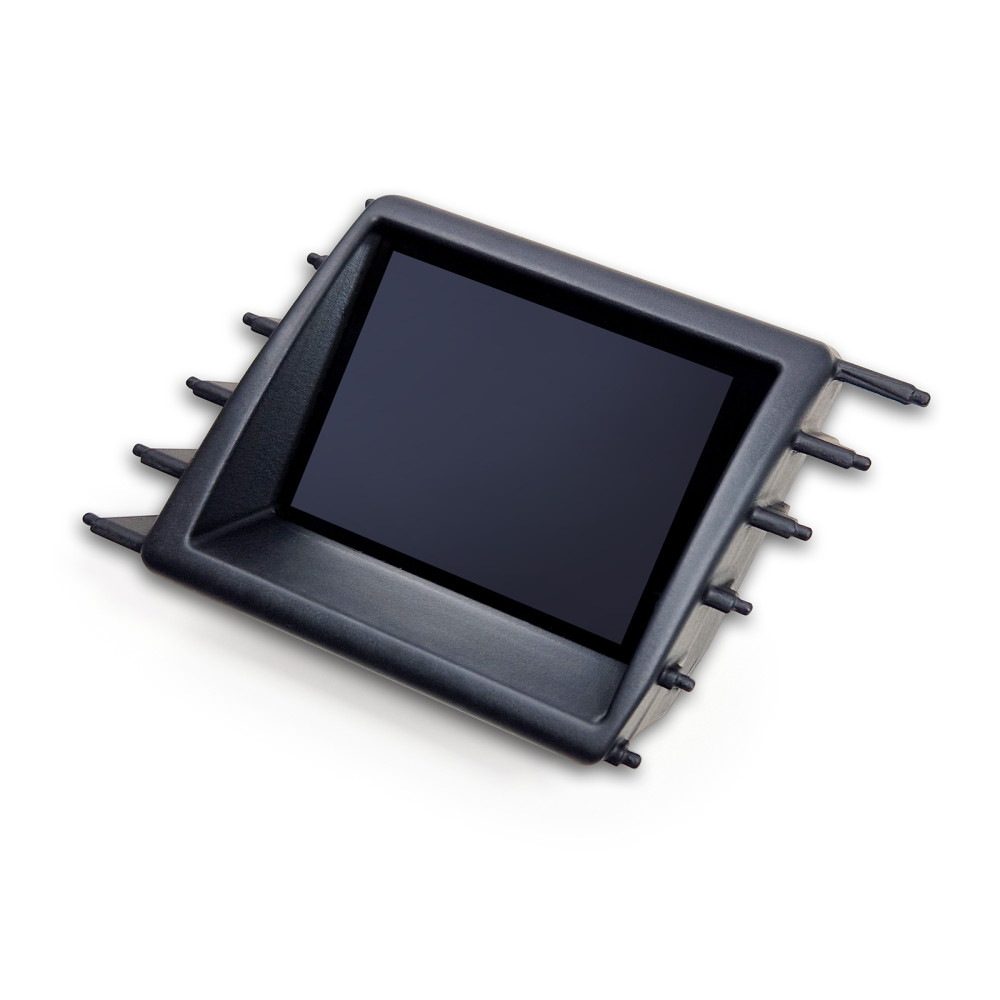

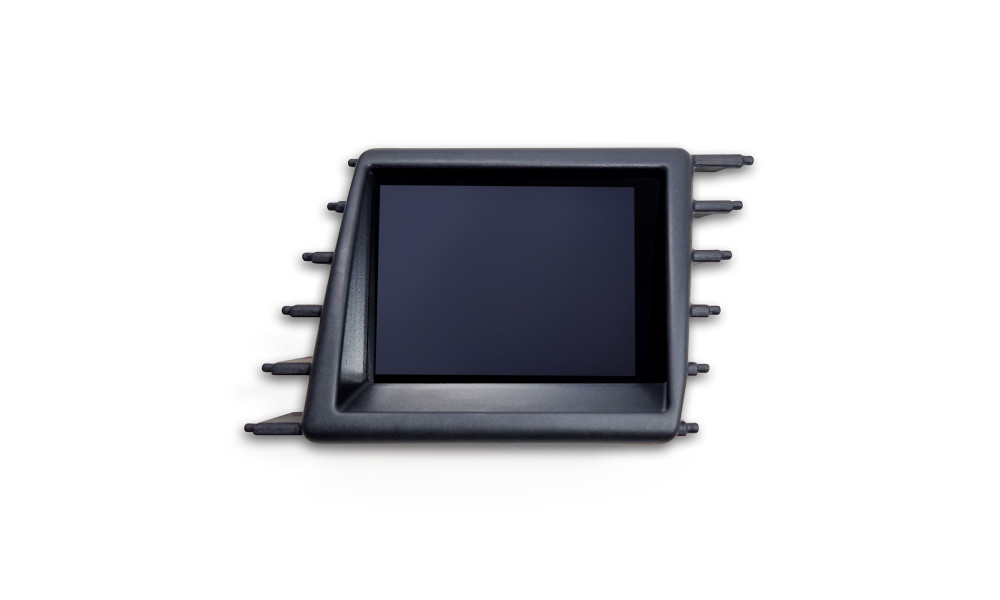

The vehicle-specific MFD32 Gen2 replaces an air vent with an integrated touchscreen display while still allowing airflow past the bezel. It’s designed for straightforward installation, with illustrated instructions available for most versions.

Key features

• OEM-style integration: Vehicle-specific bezel with continued vent airflow
• CAN Bus data: In-depth ECU data readout using UDS, TP2 and manufacturer-specific protocols
• K-Line support: Data query via ISO 9141
• Gear display: Via CAN Bus or calculated from speed and RPM
• Touchscreen operation: Page navigation with swipe gestures
• Custom pages: Create layouts, add images, or use a start animation
• Inputs: Up to 4 analog inputs plus direct ethanol sensor input
• CAN switching: Use the display as a keypad and transmit custom CAN messages
• Configurable alarms: Warning thresholds and messages (example: EGT above 900 °C)
• Logging: Save logs to the internal SD card
• Performance meter: 0–100, 100–200 and 0–200 timing without additional hardware
• DTC support*: Read and clear faults for engine ECU, transmission, ABS and all-wheel drive
• Auto dimming*: Dims with the instrument panel

*Not available on all protocols.

Pages and display views

• Delivered with predefined sample pages
• Up to 10 pages
• 20 widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning and scalable widgets
• Fully adjustable widget colours
• Up to 64 widgets per page

Display Setup Software (DSS)

• Full display customization
• Integrated log viewer for downloading and reviewing log files
• Integrated CAN logger
• TRI Editor for sensor management (CAN Bus or internal): rename sensors and set min/max warning limits

Supported ECU values

Predefined TRI/TRX files are supplied by default, with sensors defined per engine. The following examples illustrate what can be displayed (and more can be added later if missing):

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

What’s included

• MFD32 Gen2 display integrated in the ventilation insert (RHD vehicles)

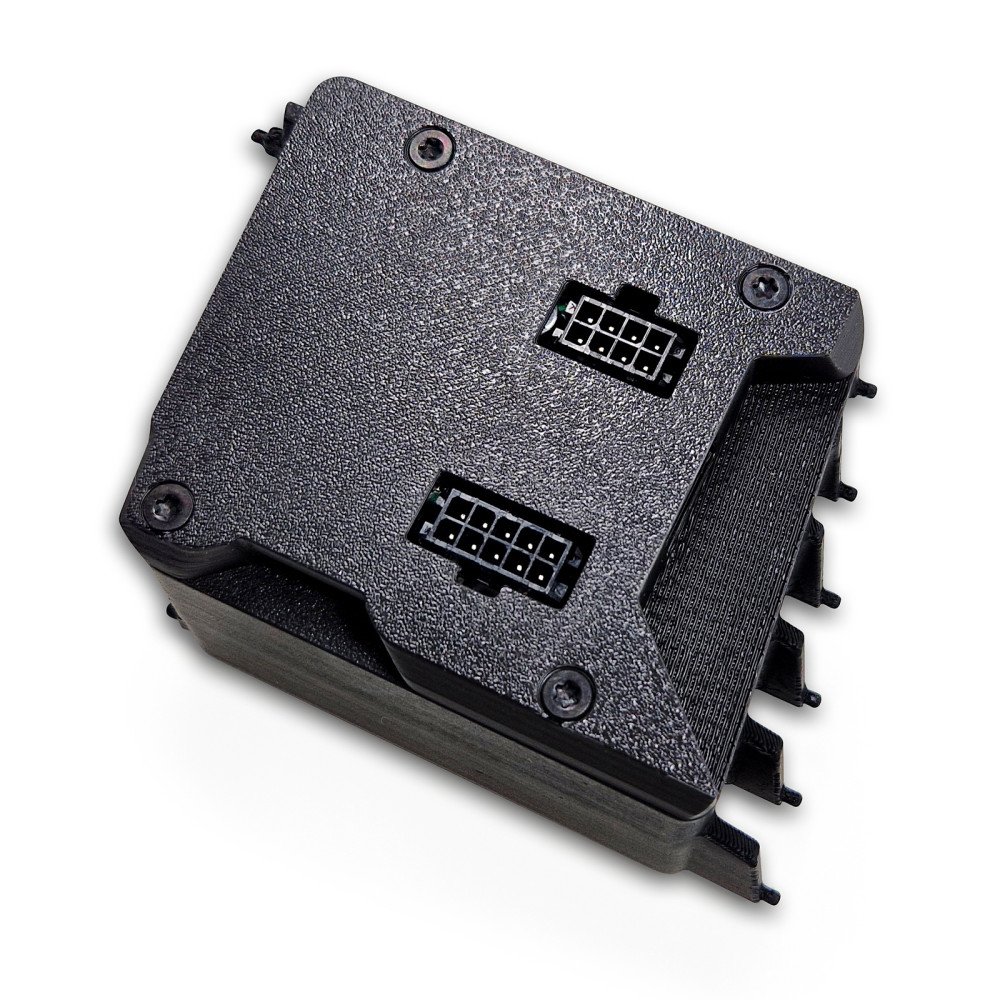

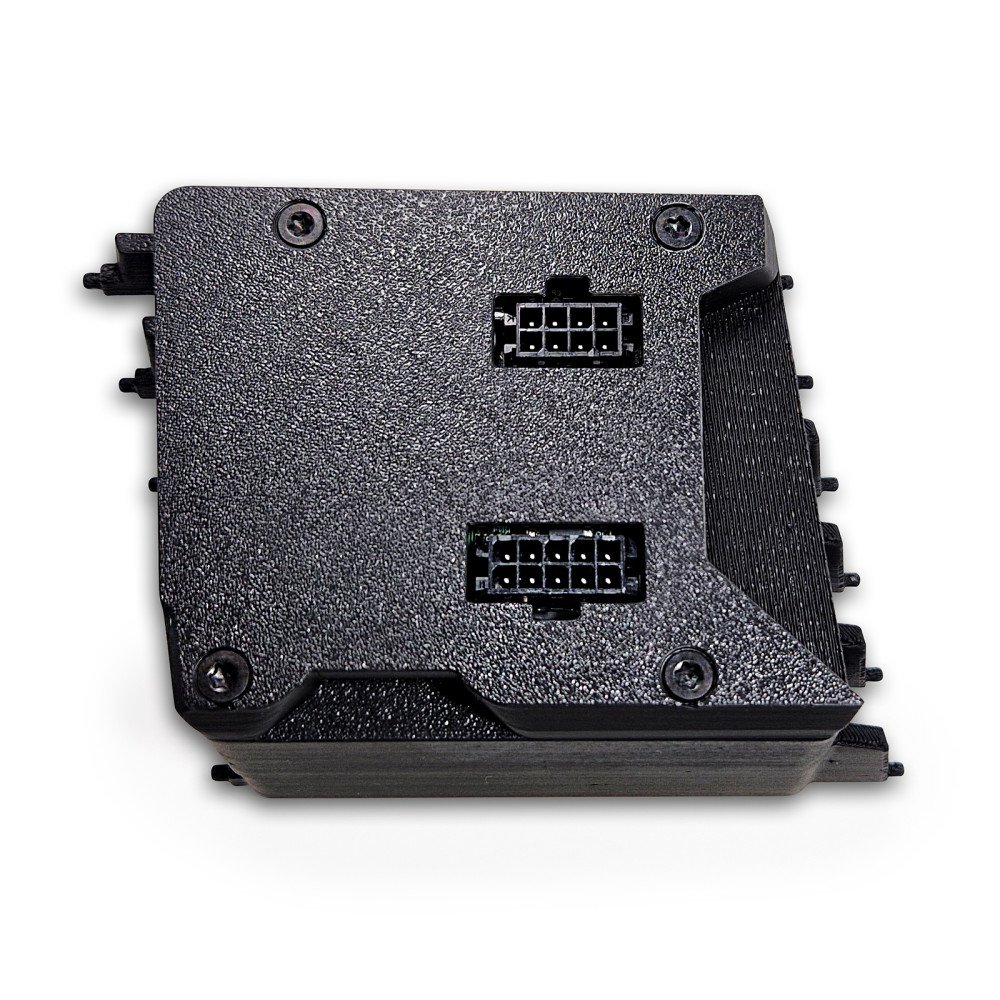

• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN Bus, analogue inputs, 5V and sensor ground
• Crimp pins
• Two 1K resistors (pull-up for external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Anti-reflection display foil

Connections and expansion

Four analog inputs support linear 0–5V sensors and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)

A pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can also be connected; flash colours and RPM limits are configurable on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor is required between 5V and the signal to view and log ethanol content and temperature.

Advanced functions

• Math-Channels: Calculate values from existing sensors
• User-Table: Create additional sensors using 2D or 3D maps

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/ inch" NPT
• CC22903 TCC01 – type K converter, 0–1250 °C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)
