CANchecked MFD32 Gen2 for Mitsubishi Lancer Evolution X

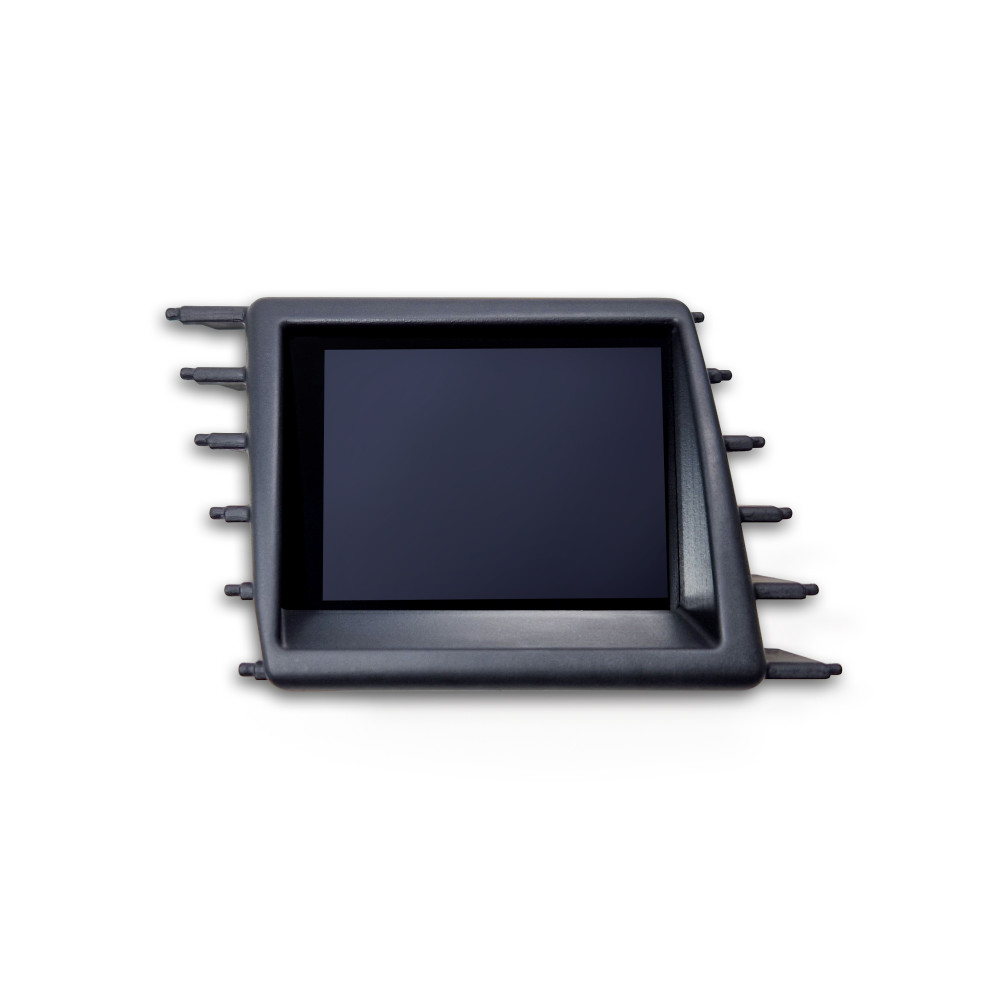

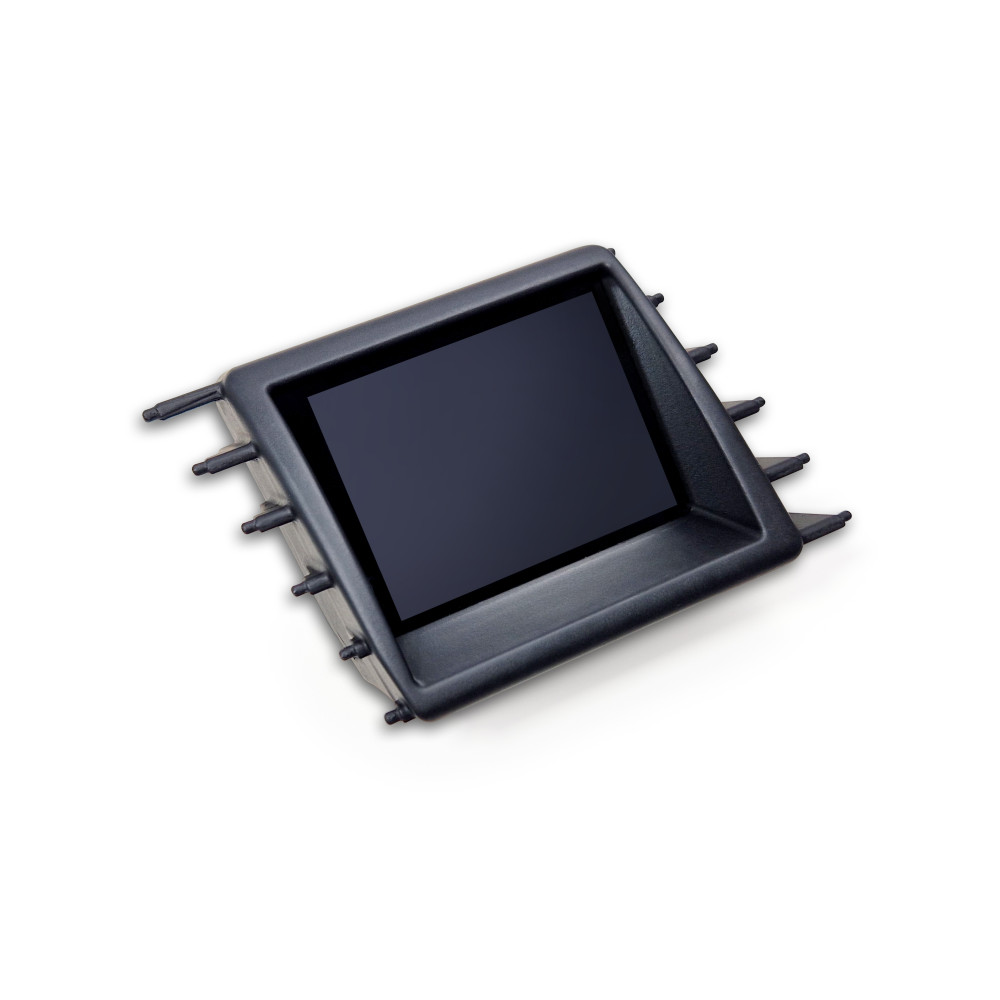

The vehicle-specific MFD32 Gen2 replaces your air vent with an integrated data display while still allowing airflow past the screen. It’s designed for straightforward installation and is typically supported by illustrated instructions, so it can be installed without a workshop.
Key features
- Vehicle-specific bezel designed to keep vent airflow functional
- CAN bus readout with in-depth vehicle data comparable to manufacturer diagnostic tools
- Gear display via CAN bus or calculated from speed and RPM
- Touchscreen operation with swipe-based page navigation
- Custom page design, including your own images and start animation
- Supports up to 4 analog inputs plus direct ethanol sensor connection
- CAN switching: use the display as a keypad and transmit your own CAN messages
- Configurable alarms (e.g., warning when exhaust gas temperature exceeds 900°C)
- Data logging to the internal SD card
- Integrated performance meter for 0–100, 100–200, and 0–200 measurements
- DTC functions: read/clear faults from ECU, transmission, ABS, and all-wheel drive*
- Automatic dimming with the instrument panel*
*Not available on all protocols.
Pages and display layouts
- Delivered with predefined sample pages
- Create your own pages (up to 10 total)
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop widget placement with scalable sizing
- Fully adjustable widget colours
- Up to 64 widgets per page
Display setup and configuration
Using CANchecked DSS, you can customize the display, download and review log files, and use the integrated CAN logger. The built-in TRI Editor lets you configure sensors (CAN bus or internal), set min/max warning thresholds, and rename sensors.
Supported ECU data
The display supports CAN bus queries (UDS, TP2, and manufacturer-specific protocols) as well as K-Line (ISO 9141). It ships with predefined TRI/TRX files that define the sensors queried; available channels vary by engine, and additional values can be added later.
Example channels
Temperatures
- Exhaust, coolant, oil, intake, outside, gasoline, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda/mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values
What’s included
- MFD32 Gen2 display integrated into the ventilation insert (LHD vehicles)

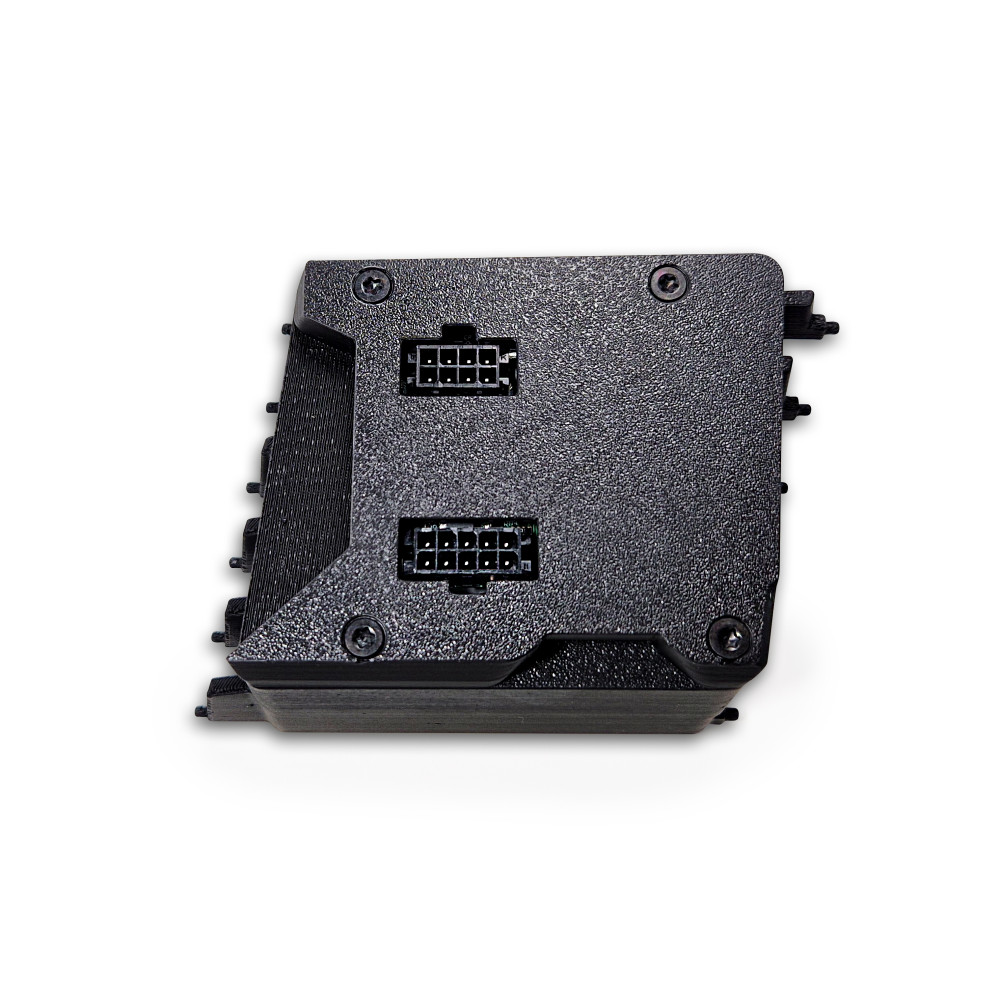

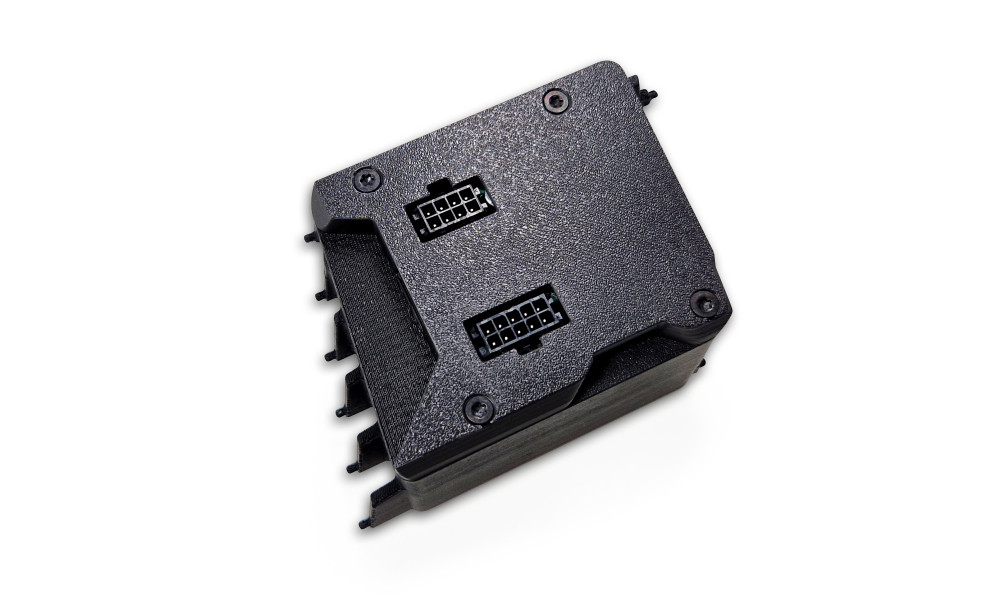

- Connector A (8-way Molex)
- Connector B (10-way Molex)
- Pre-assembled coloured connection cables (20 cm) for power, CAN bus, analog inputs, 5V, sensor ground
- Crimp pins
- Two 1K resistors (pull-up for external NTC sensors)
- Quickstart guide
- USB data cable
- SD card (pre-installed)
- SD card adapter
- Display foil to reduce reflections
Connections and expansion
Four analog inputs support linear 0–5V signals and NTC sensors. CANchecked sensors are already defined in the TRI/TRX files and only need to be connected:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type-K EGT converter (TCC01)
- AIN3: 0–10 bar pressure sensor (FLP01)
- AIN4: 0–5.5 bar absolute boost pressure sensor (BST01)
An external 8-LED shift light can be connected; colours and limits are configurable on the display.
An ethanol sensor connects directly to the display and requires a 10K pull-up resistor between 5V and the signal. Ethanol content and temperature can then be displayed and logged.
Advanced functions
- Math channels for calculated sensors
- User Table for creating additional sensors using 2D or 3D maps
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – liquid temperature sensor, 1/ inch NPT
- CC22903 TCC01 – type K converter, 0–1250°C
- CC22901 FLP01 – 0–10 bar pressure sensor (145 psi), M10x1
- CC22900 BST01 – 0–5.5 bar absolute pressure sensor (80 psi)
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Mitsubishi | Lancer Evolution X | 07-16 | - |
CANchecked Display MFD32 Gen2 for Mitsubishi Lancer Evolution X LHD 07-16
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Mitsubishi | Lancer Evolution X | 07-16 | - |
