CANchecked MFD32 Gen2 for Audi R8 MK1 FL (LHD)

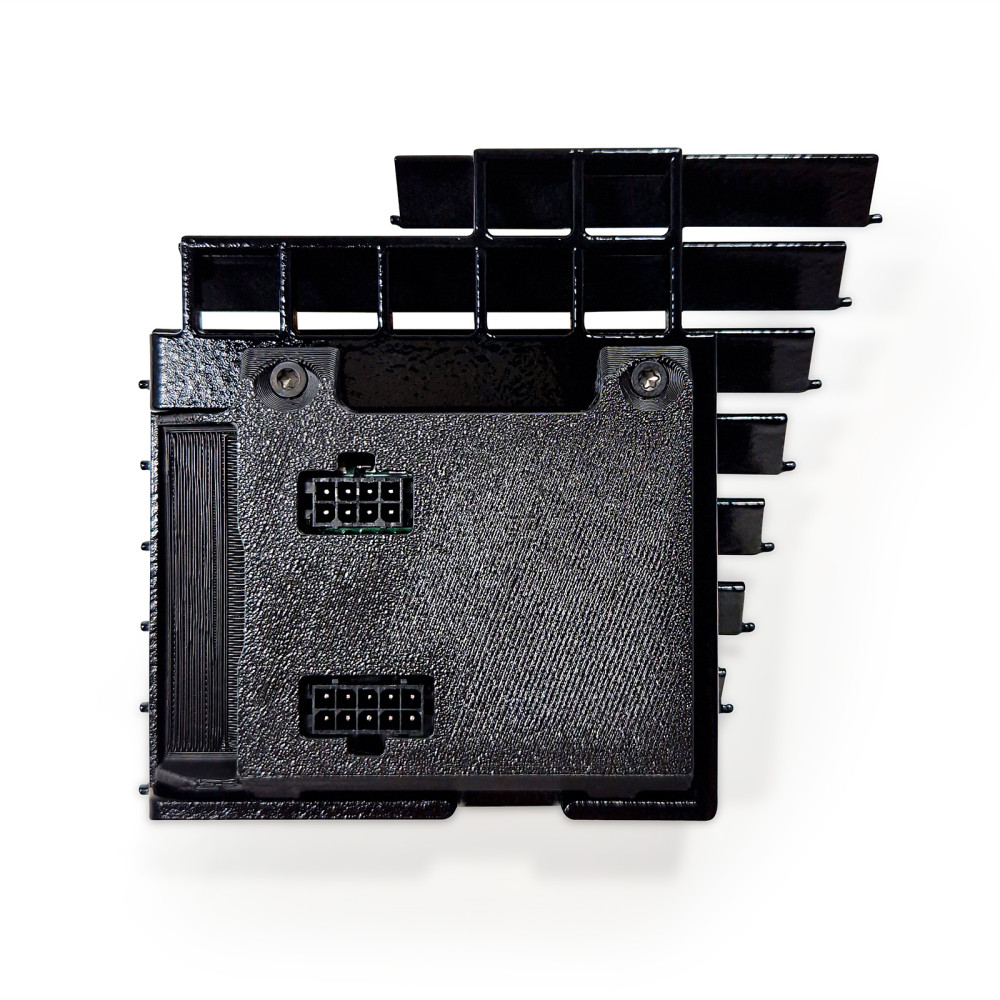

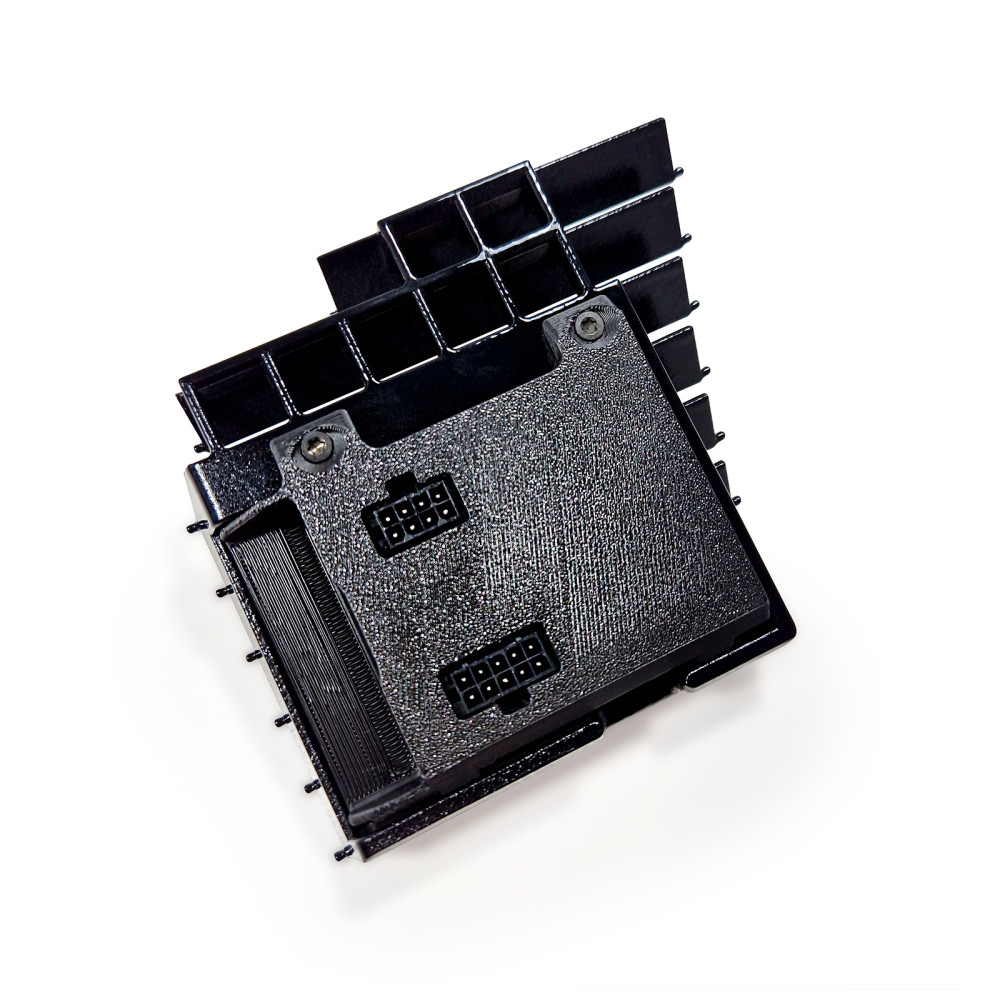

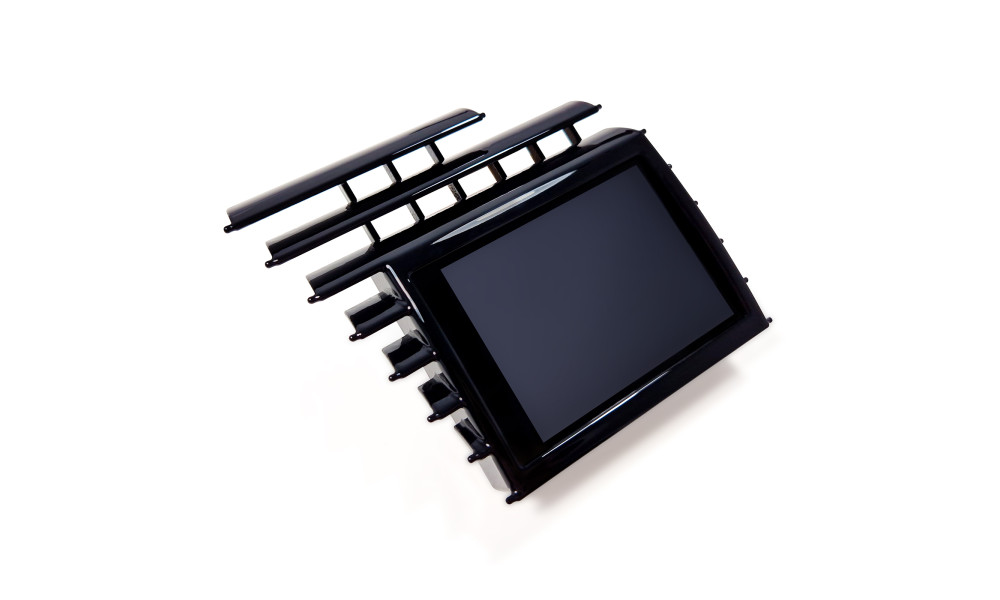

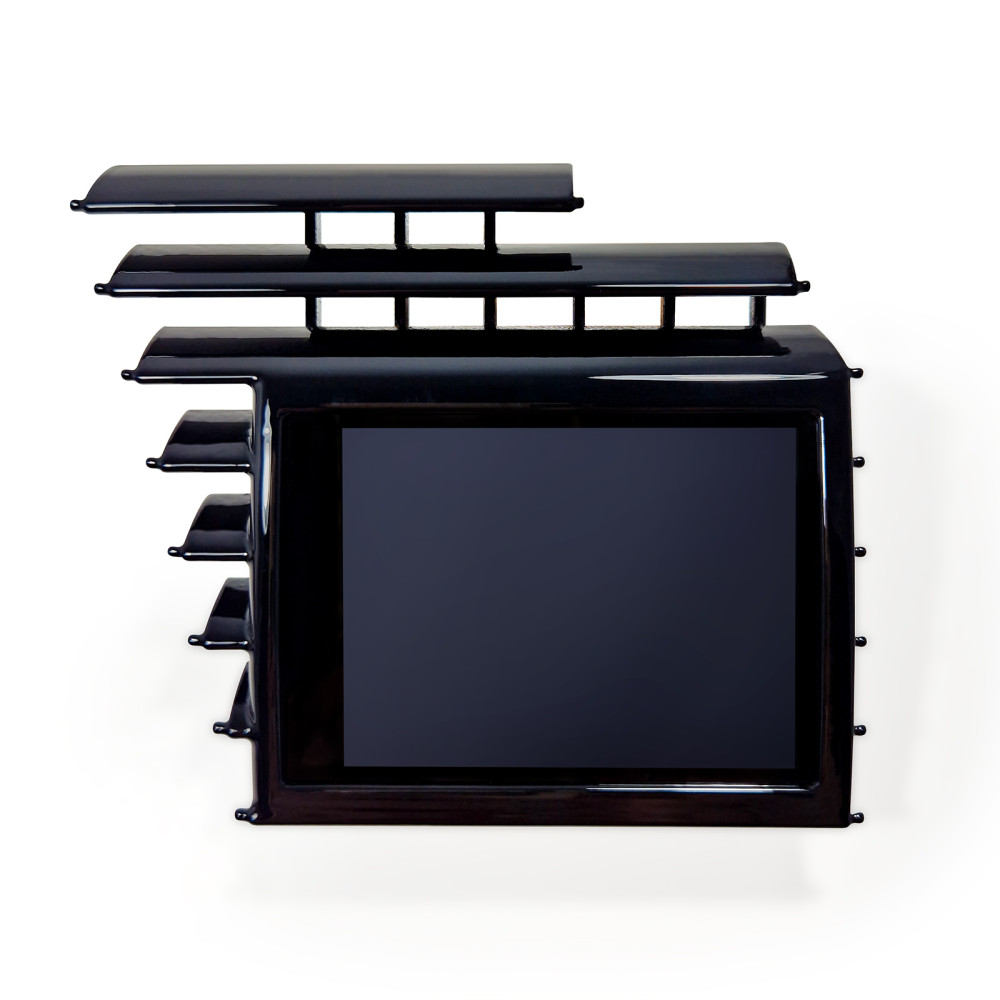

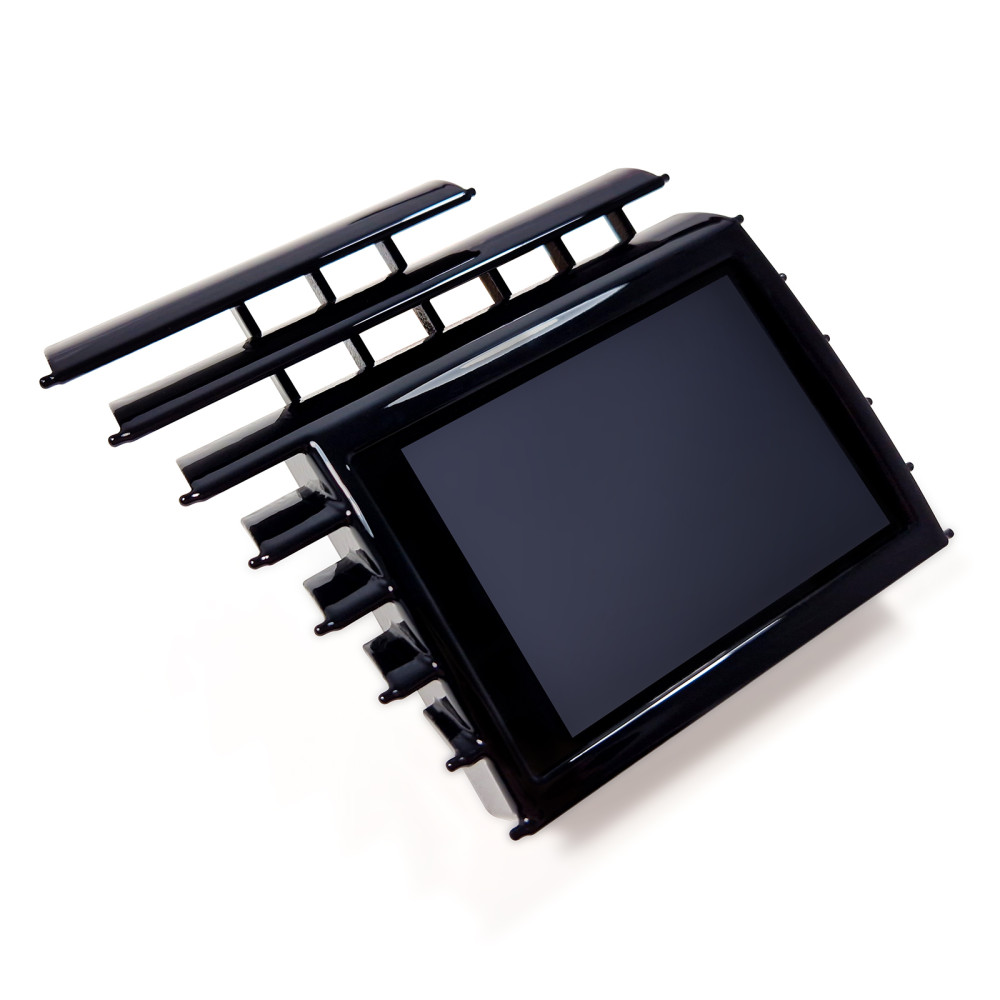

The vehicle-specific MFD32 Gen2 replaces the air vent with an integrated data display while still allowing airflow past the screen. Installation is designed to be straightforward, and illustrated instructions are available for most displays.
Key features
- Factory-style integration: Vehicle-specific bezel with airflow past the display
- CAN bus data: In-depth vehicle data readout (manufacturer diagnostic tool-level information)
- Gear display: Via CAN bus or calculated from speed and RPM
- Touchscreen: Page navigation with swipe gestures
- Custom pages: Create your own layouts, add pictures or a start animation
- Extra inputs: Up to 4 analog inputs plus direct ethanol sensor input
- CAN switching: Use the display as a keypad to send custom CAN messages
- Configurable alarms: Set warning thresholds (e.g., EGT warning above 900°C)
- Logging: Record data to the internal SD card for later analysis
- Performance meter: Measure 0–100, 100–200, and 0–200 times without additional hardware
- DTC*: Read and clear faults from engine ECU, transmission, ABS, and all-wheel drive
- Auto dimming*: Dims with the instrument lighting
Display pages and layouts
Use the included sample pages or build your own:
- Predefined sample pages included
- Create custom pages (up to 10 pages)
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop positioning and scalable widgets
- Fully adjustable widget colours
- Up to 64 widgets per page
Display Setup Software (DSS)
CANchecked DSS is used to customize the display, download and review logs with the integrated log viewer, and use the built-in CAN logger. The integrated TRI Editor lets you configure sensors (CAN bus or internal), including sensor naming and min/max warning thresholds.
Supported ECU/CAN values
The display supports CAN bus data query (UDS, TP2, manufacturer-specific protocols). It ships with predefined TRI/TRX files that define the sensors to be queried (varies by engine). Examples include:
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda/mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values
If values are missing, they can be added later.
What’s included
- MFD32 Gen2 display integrated into the ventilation insert (LHD vehicles)
- Vehicle-specific connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Display foil (reflection reduction)
Connection and expansion
Connect additional sensors via four analog inputs. Supported sensor types include linear 0–5V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K exhaust gas temperature converter (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)
A pre-assembled AIN wiring harness can be used for connection.
An external shift light with eight LEDs can be connected; flash colours and thresholds are configurable directly on the display.
An ethanol sensor connects directly to the display. A 10k pull-up resistor between 5V and the signal is required to view and log ethanol content and temperature.
Advanced functions
- Math Channels: Calculate values from multiple sensors
- User Table: Create additional sensors using 2D or 3D maps
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – temperature sensor for liquids, 1/8 inch NPT
- CC22903 TCC01 – type K converter, 0–1250°C
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST10 – pressure sensor 6.5 bar relative (95 psi)
*Not available on all protocols.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Audi | R8 | 42 (MK1) FL 2012-2015 | - |
CANchecked Display MFD32 Gen2 for Audi R8 42 (MK1) FL LHD 2012-2015
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Audi | R8 | 42 (MK1) FL 2012-2015 | - |
