CANchecked MFD32 Gen2 for Audi A3/S3/RS3 (8Y)

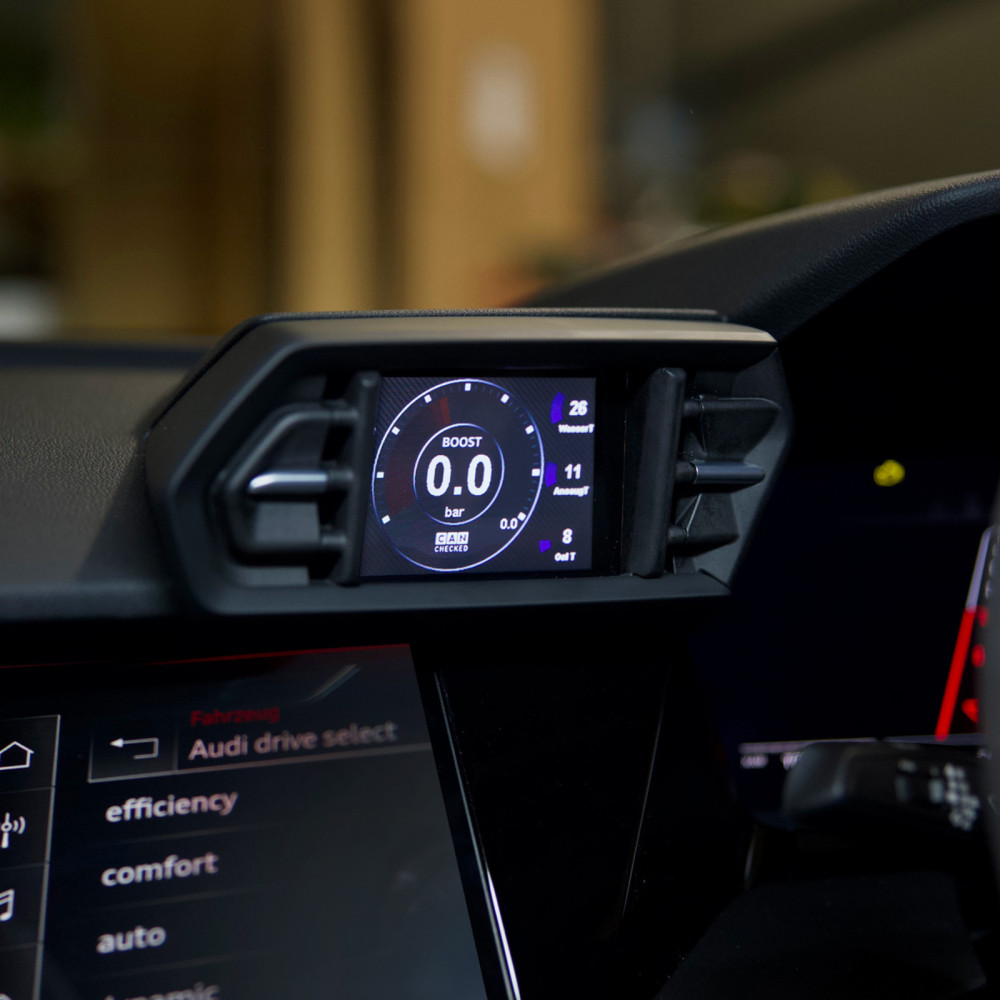

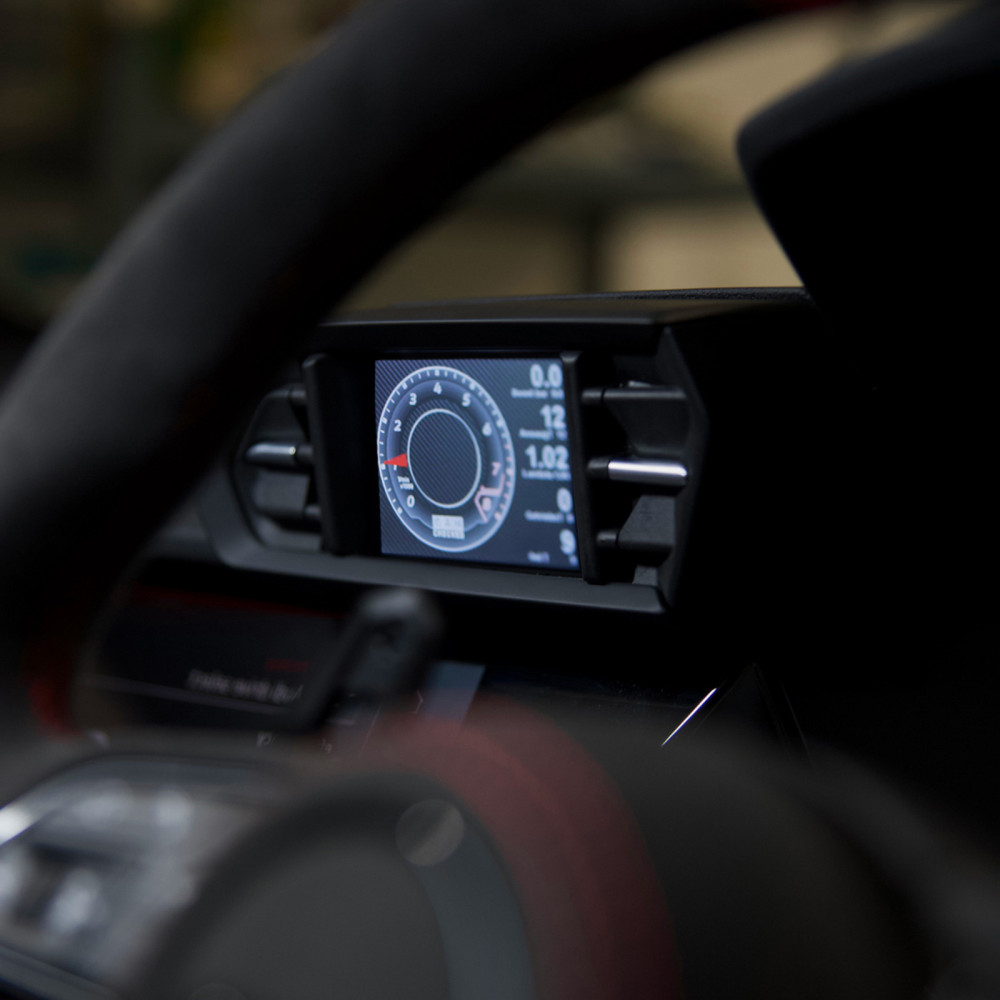

The CANchecked MFD32 Gen2 replaces the air vent with a vehicle-specific integrated data display while still allowing airflow past the screen. Designed for straightforward installation; illustrated instructions are available for most variants, making DIY installation possible without a workshop.
Key features
- OEM-style integration: Vehicle-specific bezel, ventilation remains functional.
- CAN Bus data: In-depth ECU data readout similar to manufacturer diagnostic tools.
- Gear display: Via CAN Bus or calculated from speed and RPM.
- Touchscreen control: Swipe-based page navigation.
- Custom pages: Build your own layouts, add images or a start animation.
- Additional inputs: Up to 4 analog inputs plus direct ethanol sensor support.
- CAN switching: Use the display as a keypad and send custom CAN messages.
- Configurable alarms: Set warnings (e.g., exhaust gas temperature over 900°C).
- Data logging: Save logs to the internal SD card for later analysis.

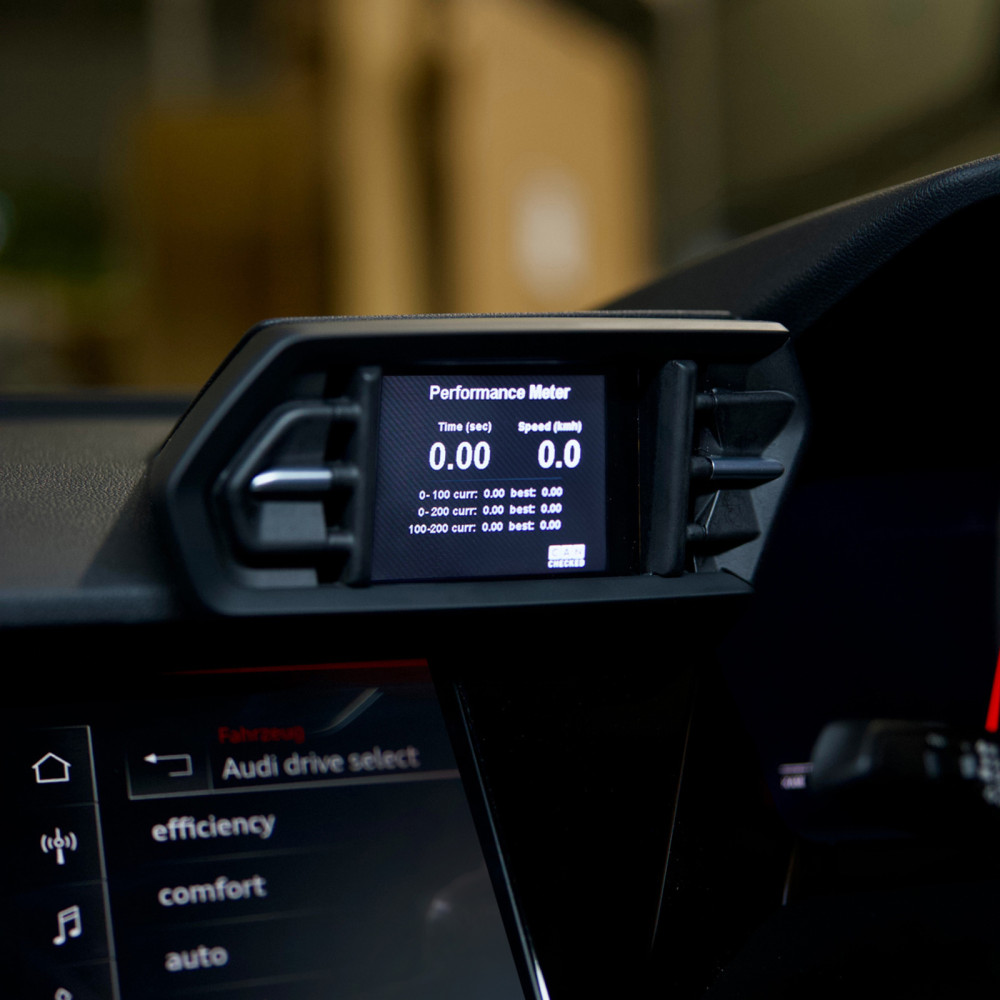

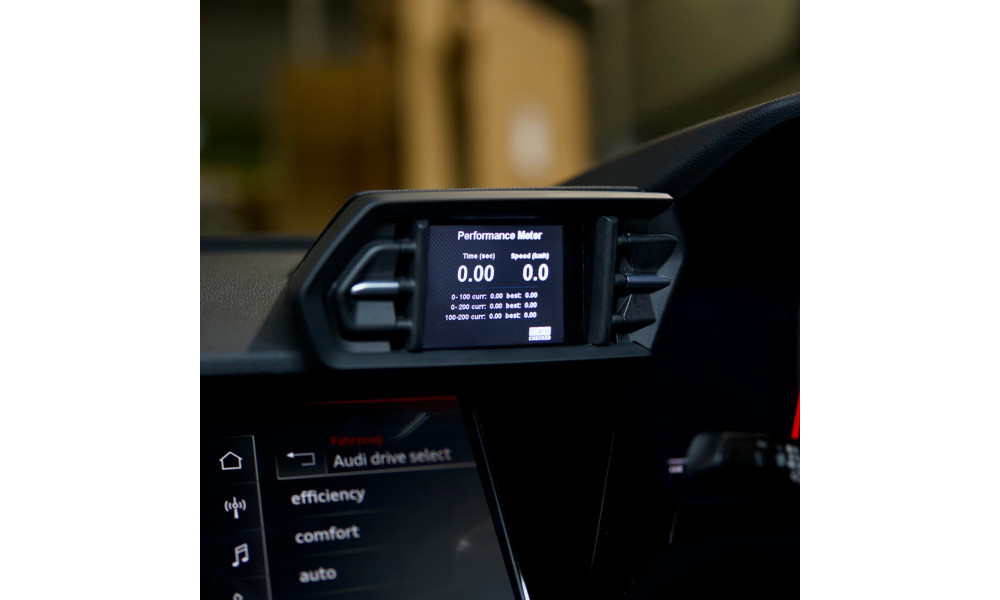

- Performance meter: Measure 0–100, 100–200, and 0–200 times without extra hardware.
- DTC support*: Read and clear faults for engine ECU, transmission, ABS, and all-wheel drive.
- Auto dimming*: Dims in sync with the instrument panel.
Pages and display views
- Delivered with predefined sample pages.
- Create your own pages (up to 10).
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
- Drag-and-drop positioning; widgets scalable and fully color-adjustable.
- Up to 64 widgets per page.
Display Setup Software (DSS)
DSS enables full display customization and includes a log viewer for downloading and reviewing log files. It also integrates a CAN logger. The built-in TRI Editor lets you manage sensors (CAN Bus or internal), including naming and min/max warning thresholds.
Supported ECU values
The display supports CAN Bus data queries (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). It ships with predefined TRI/TRX files that define the sensors queried; available channels vary by engine. If values are missing, they can be added later.
Examples of available channels
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda / mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values
What’s included
- MFD32 Gen2 data display integrated into the ventilation insert for RHD vehicles
- Vehicle-specific connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Display foil (anti-reflection)
Connection and expansion
Four analog inputs support linear 0–5 V sensors as well as NTC sensors. CANchecked sensors are already defined in the TRI/TRX files and only need to be connected.
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K exhaust gas temperature converter (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
A pre-assembled AIN wiring harness can be used for connecting analog sensors. An external 8-LED shift light is also supported, with configurable colors and speed limits directly on the display.
An ethanol sensor can be connected directly to the display. A 10 kΩ pull-up resistor is required between 5 V and the signal line; ethanol content and temperature can then be displayed and logged.
Advanced functions
Math-Channels allow calculations between sensors. The User-Table can generate additional sensors using 2D or 3D maps.
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – temperature sensor for liquids (1/8 inch NPT)
- CC22903 TCC01 – type K converter (0–1250°C)
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi) M10x1
- CC22900 BST01 – boost pressure sensor 0–5.5 bar absolute (80 psi)
*Not available on all protocols.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Audi | A3 | 8Y | - |
| Audi | RS3 | 8Y | - |
| Audi | S3 | 8Y | - |
CANchecked Display MFD32 Gen2 for Audi A3/S3/RS3 8Y RHD 2020+
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Audi | A3 | 8Y | - |
| Audi | RS3 | 8Y | - |
| Audi | S3 | 8Y | - |
