CANchecked MFD32 Gen2 Vent Display for Audi A3/S3 8L FL

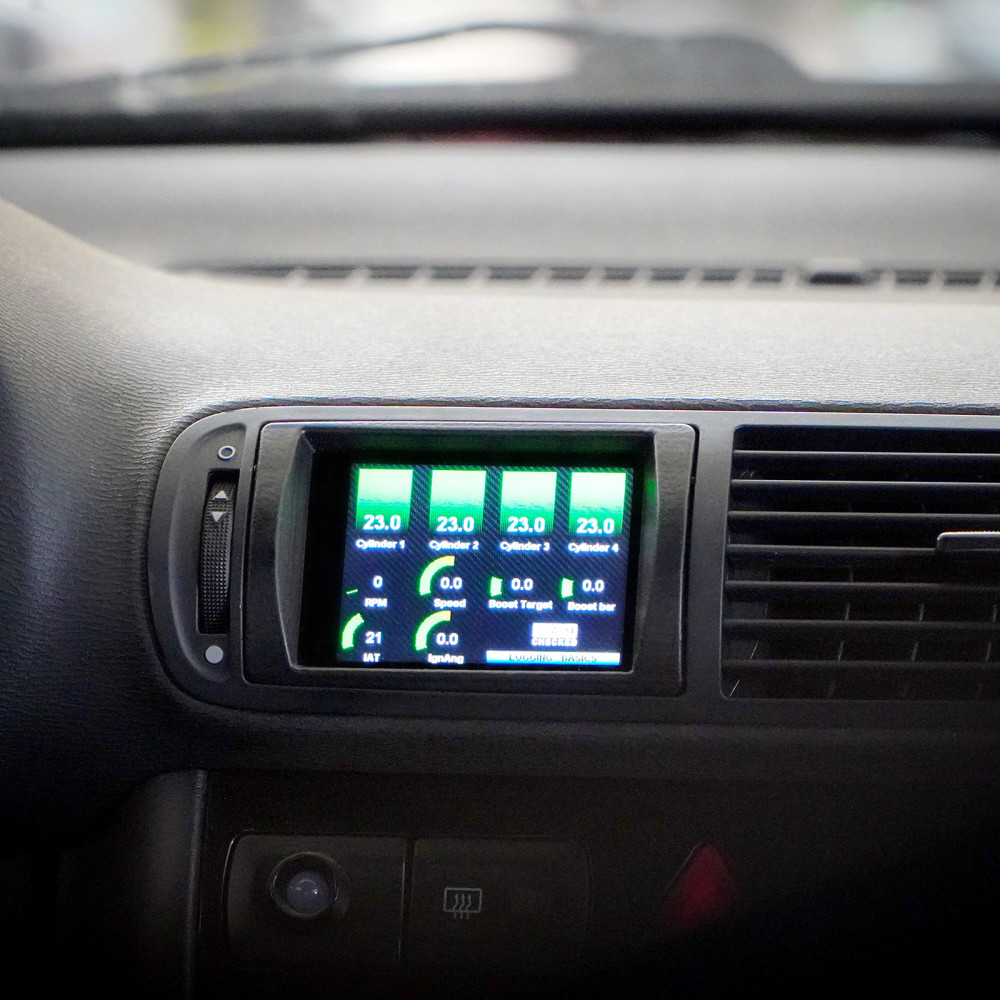

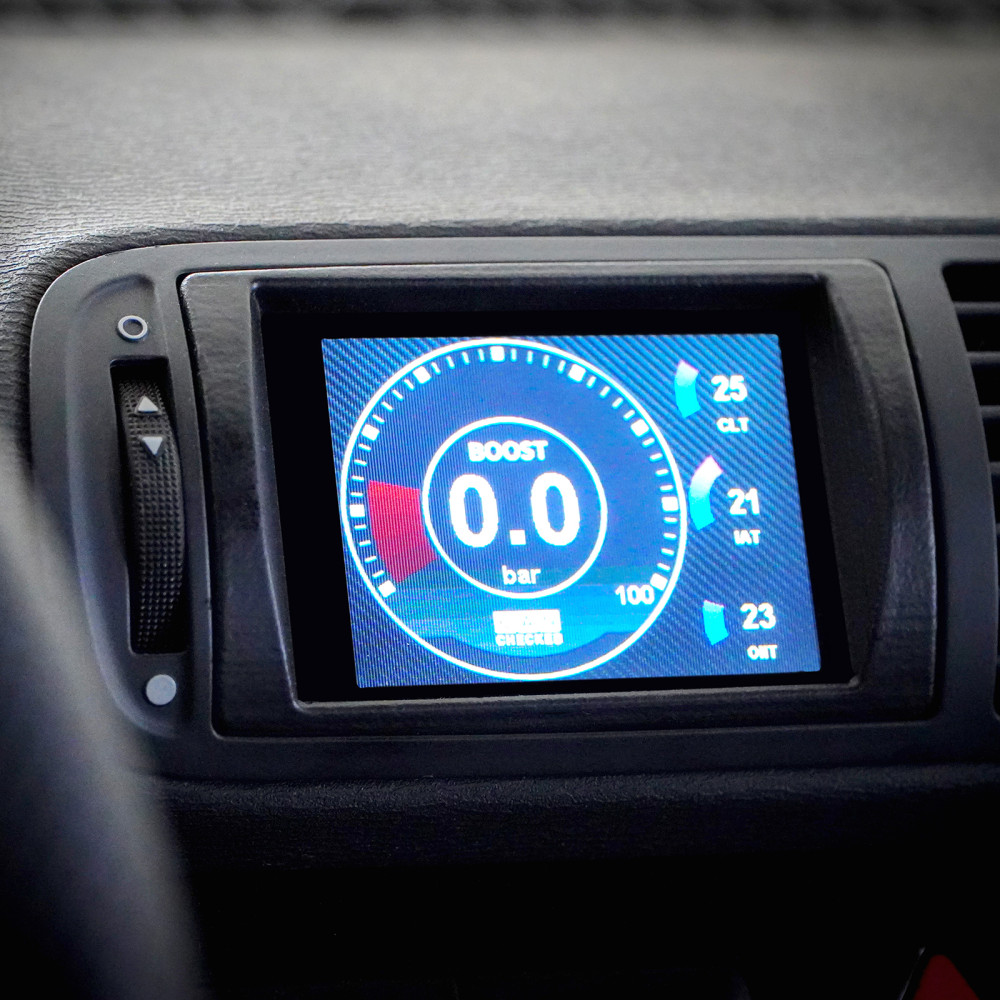

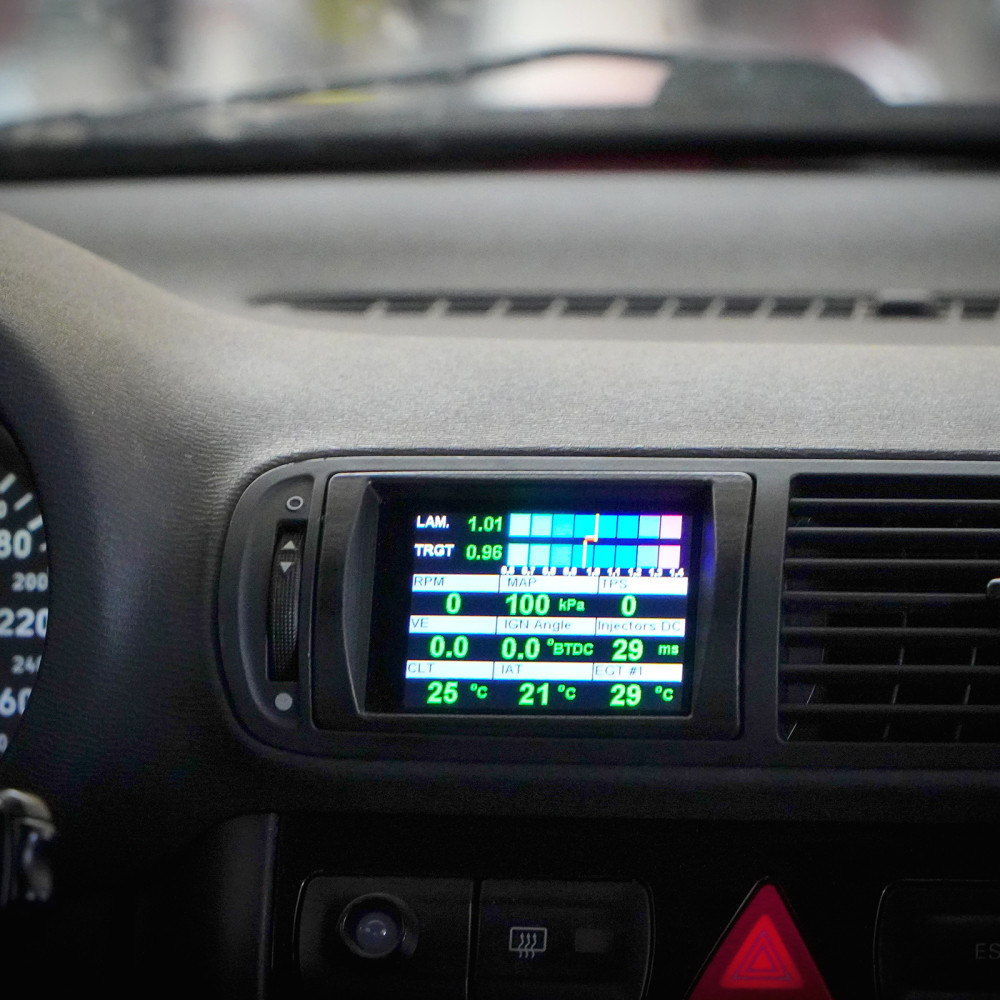

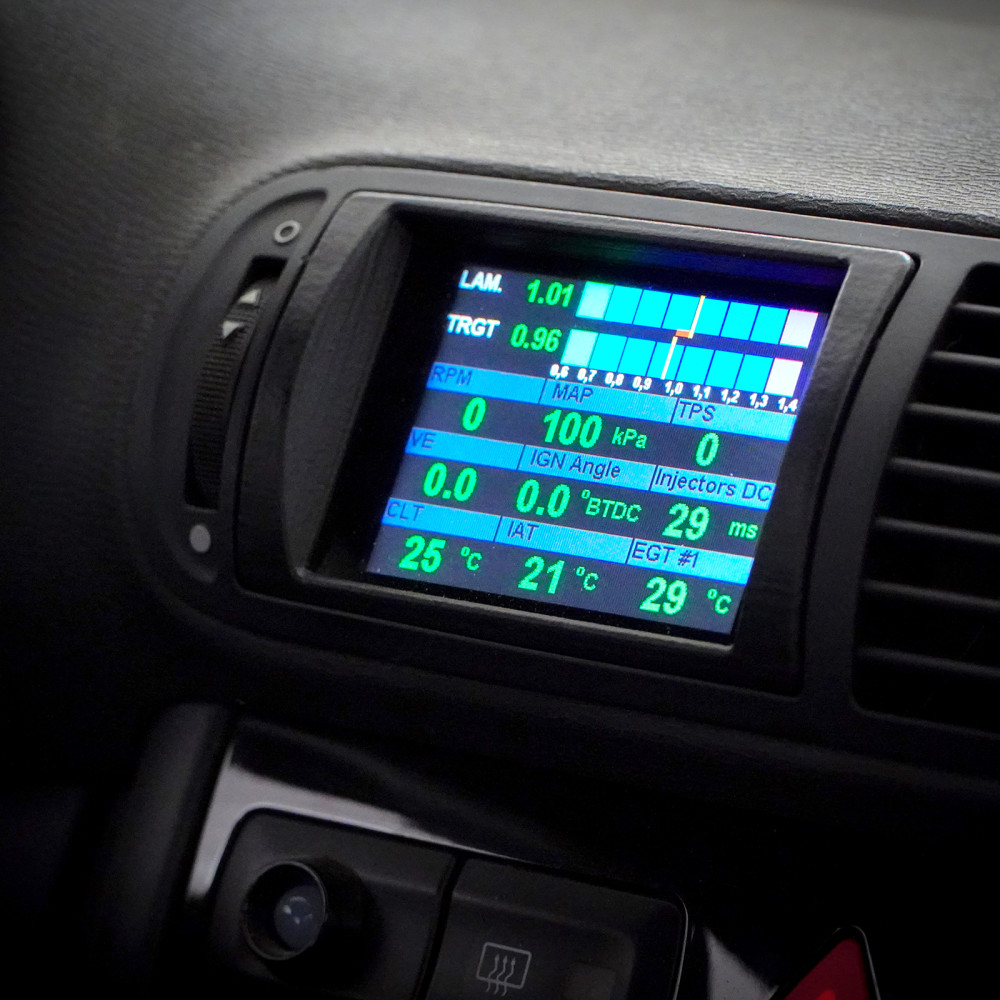

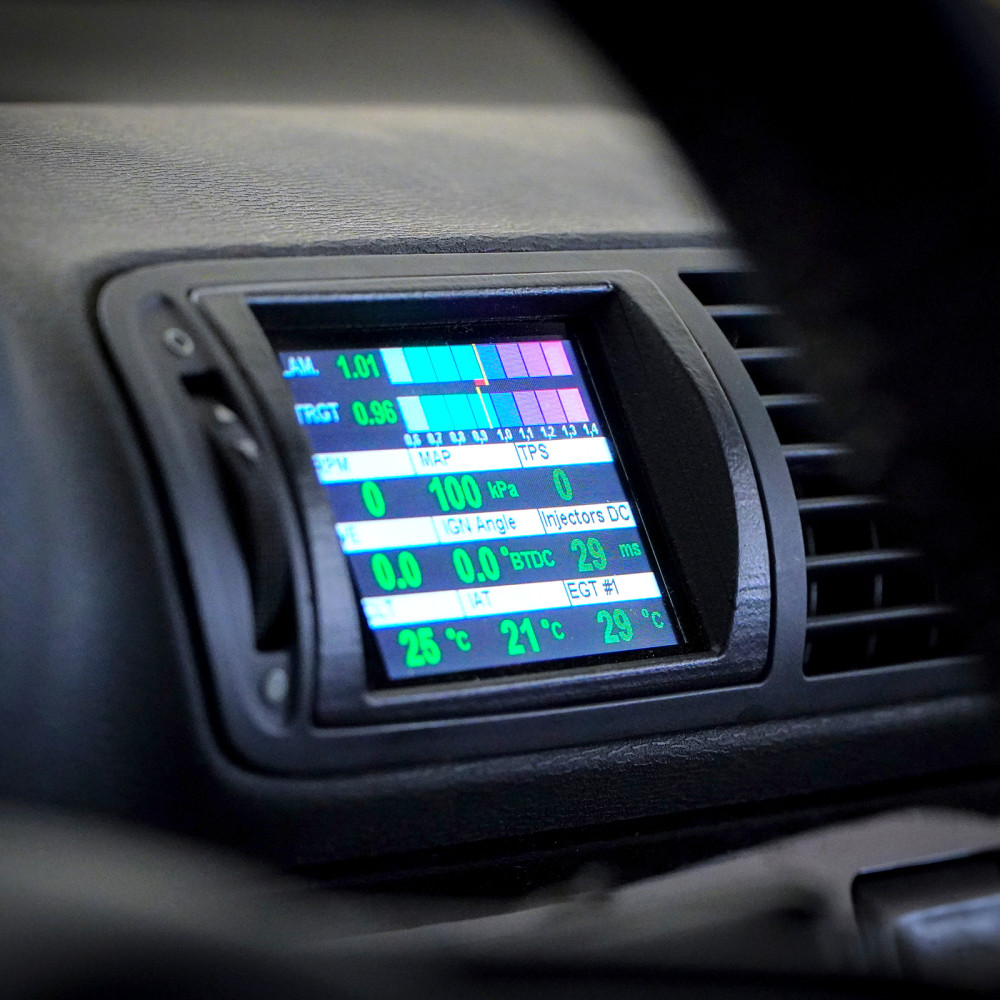

The MFD32 Gen2 replaces the air vent insert with an integrated data display designed for a factory-style fit. The vehicle-specific bezel is shaped to keep airflow past the display, and installation is intended to be doable without a workshop (illustrated instructions are available for most displays).
Key Features
- Vehicle-specific integration: Bezel allows airflow past the display
- CAN Bus data: In-depth vehicle data similar to manufacturer diagnostic tools

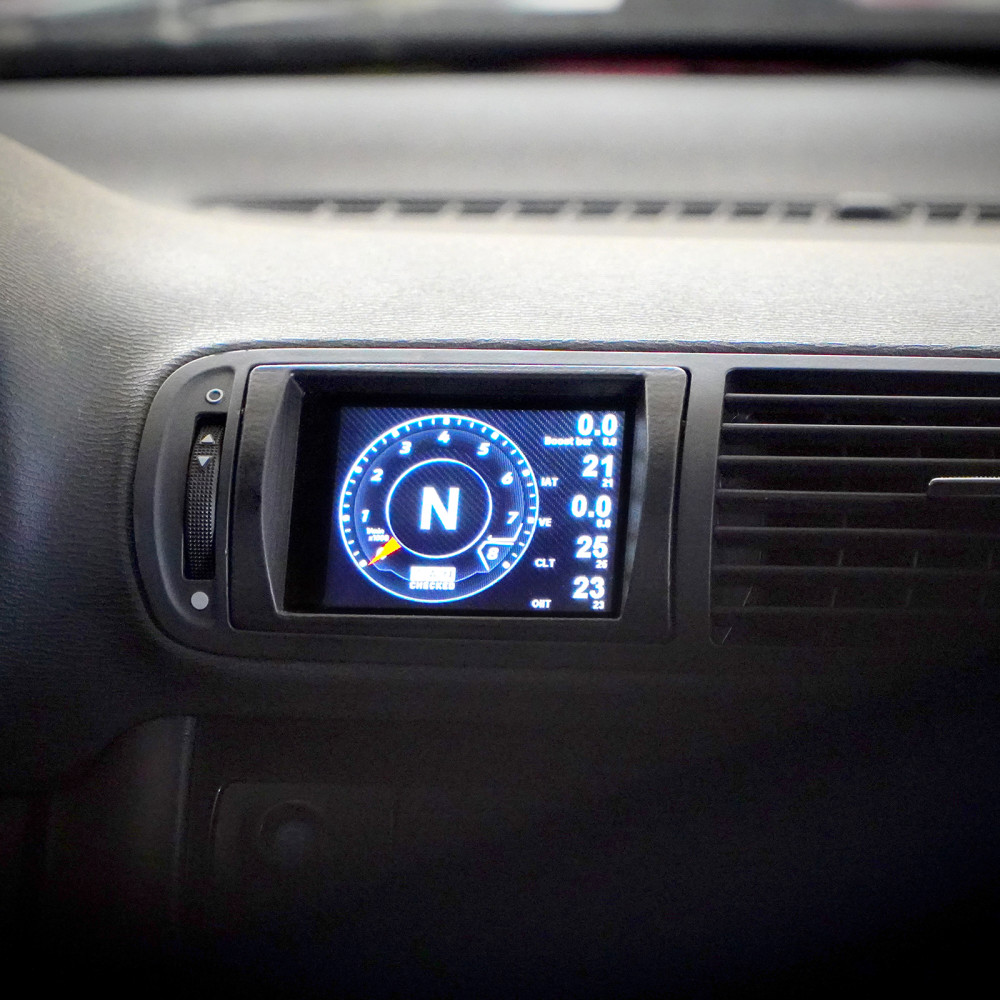

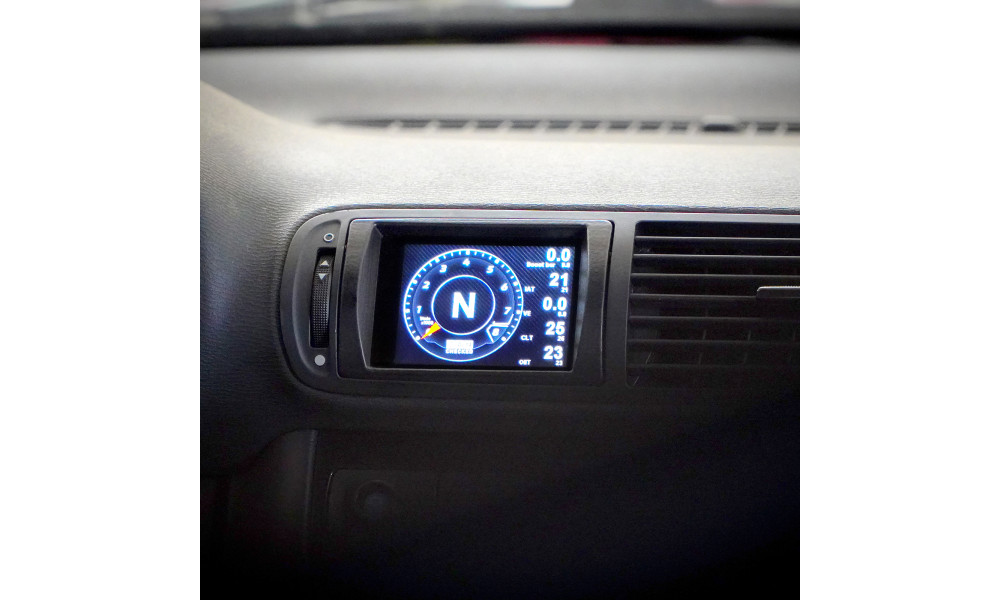

- Gear display: Via CAN Bus or calculated from speed and RPM
- Touchscreen: Page navigation with swipe gestures
- Custom pages: Build your own layouts, add images, and use a start animation
- Inputs: Up to 4 analog inputs plus direct ethanol sensor support
- CAN switching: Use the display as a keypad to send custom CAN messages
- Configurable alarms: Set warning thresholds (e.g., EGT warning above 900°C)
- Logging: Record data to the internal SD card for later review
- Performance meter: Measure 0–100, 100–200, and 0–200 times without extra hardware
- DTC functions*: Read and clear faults from ECU, transmission, ABS, and all-wheel drive
- Auto dimming*: Dims with the instrument panel
Pages, Views & Widgets
- Delivered with predefined sample pages
- Create your own pages (up to 10)
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop positioning and scalable widget sizes
- Fully adjustable widget colours
- Up to 64 widgets per page
Display Setup Software (DSS)
DSS is used to customize the display, download and view log files, and use the integrated CAN logger. The integrated TRI Editor lets you manage sensors (CAN Bus or internal), including sensor names and min/max warning thresholds.
Supported ECU Values
The display supports CAN Bus data query using UDS, TP2, and manufacturer-specific protocols. It ships with predefined TRI/TRX files that define which sensors are queried (varies by engine). Examples include:
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda / Mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values
If values are missing, they can be added later.
Connection & Expansion
Four analog inputs support linear 0–5V and NTC sensors. CANchecked sensors are stored in the TRI/TRX files by default and only need to be wired:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K EGT converter (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)
A pre-assembled AIN wiring harness can be used for connection.
An external shift light with eight LEDs can also be connected. Flash colours and RPM limits are configurable on the display.
An ethanol sensor connects directly to the display. A 10k pull-up resistor is required between 5V and the signal wire to view and log ethanol content and temperature.
Advanced Functions
- Math Channels: Calculate sensors against each other
- User Table: Create additional sensors using 2D or 3D maps
Scope of Delivery
- MFD32 Gen2 display integrated in the ventilation insert for LHD vehicles
- Connector A (8-way Molex)
- Connector B (10-way Molex)
- Pre-assembled connection cables (20 cm) for power, CAN Bus, analogue inputs, 5V, and sensor ground
- Crimp pins
- Two 1k resistors (pull-up for external NTC sensors)
- Quickstart guide
- USB data cable
- SD card (installed in the display)
- SD card adapter
- Anti-reflection display foil
Optional Accessories
- CC24000 SLM08 - external switching lightning module
- CC22780 ANC04 - four-way AIN-harness
- CC22100 CBD08 - eight-way CAN distribution hub
- CC22902 NTC01 - temperature sensor for liquids, 1/ inch" NPT
- CC22903 TCC01 - type K converter, 0–1250°C
- CC22901 FLP01 - pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST10 - pressure sensor 6.5 bar relativ (95 psi)
*Not available on all protocols.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Audi | A3 | 8L FL | - |
| Audi | S3 | 8L FL | - |
CANchecked Display MFD32 Gen2 for Audi A3/S3 8L FL LHD 2000-2003
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Audi | A3 | 8L FL | - |
| Audi | S3 | 8L FL | - |
