CANchecked MFD32 Gen2 for Audi A3/S3 8L FL

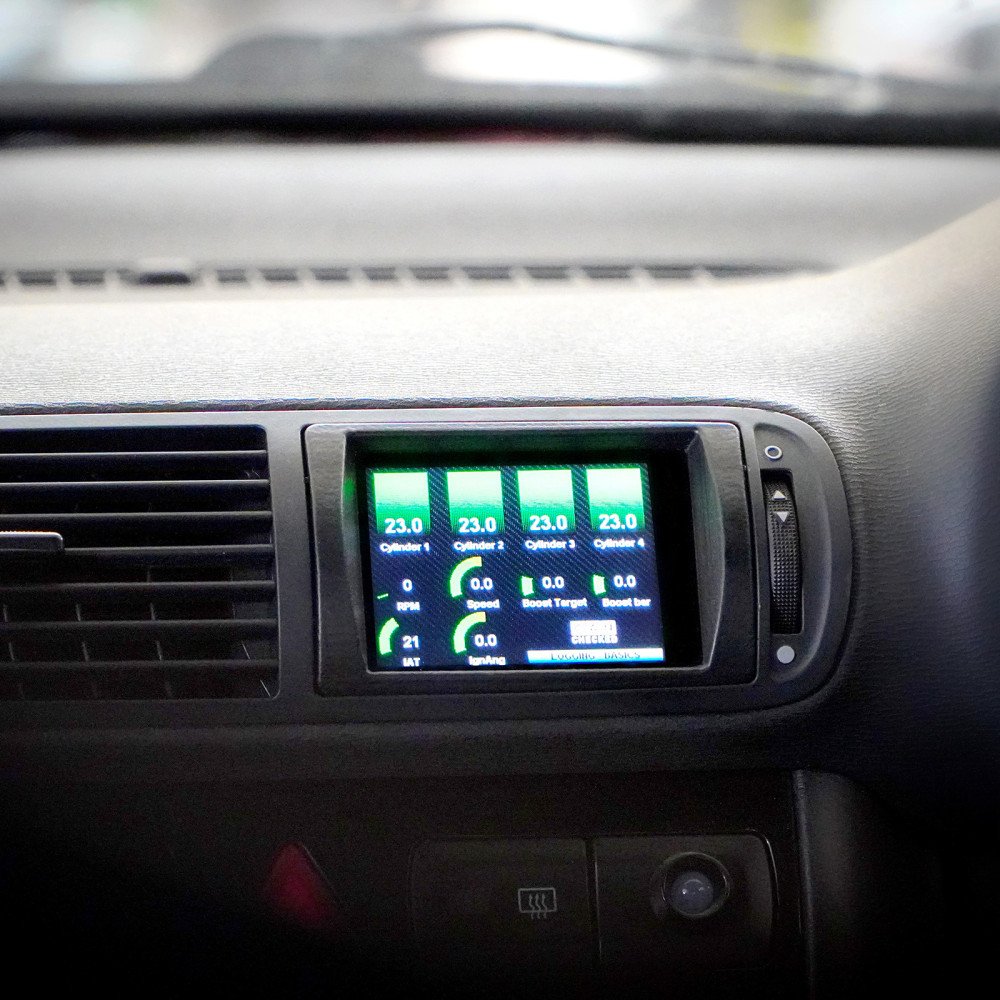

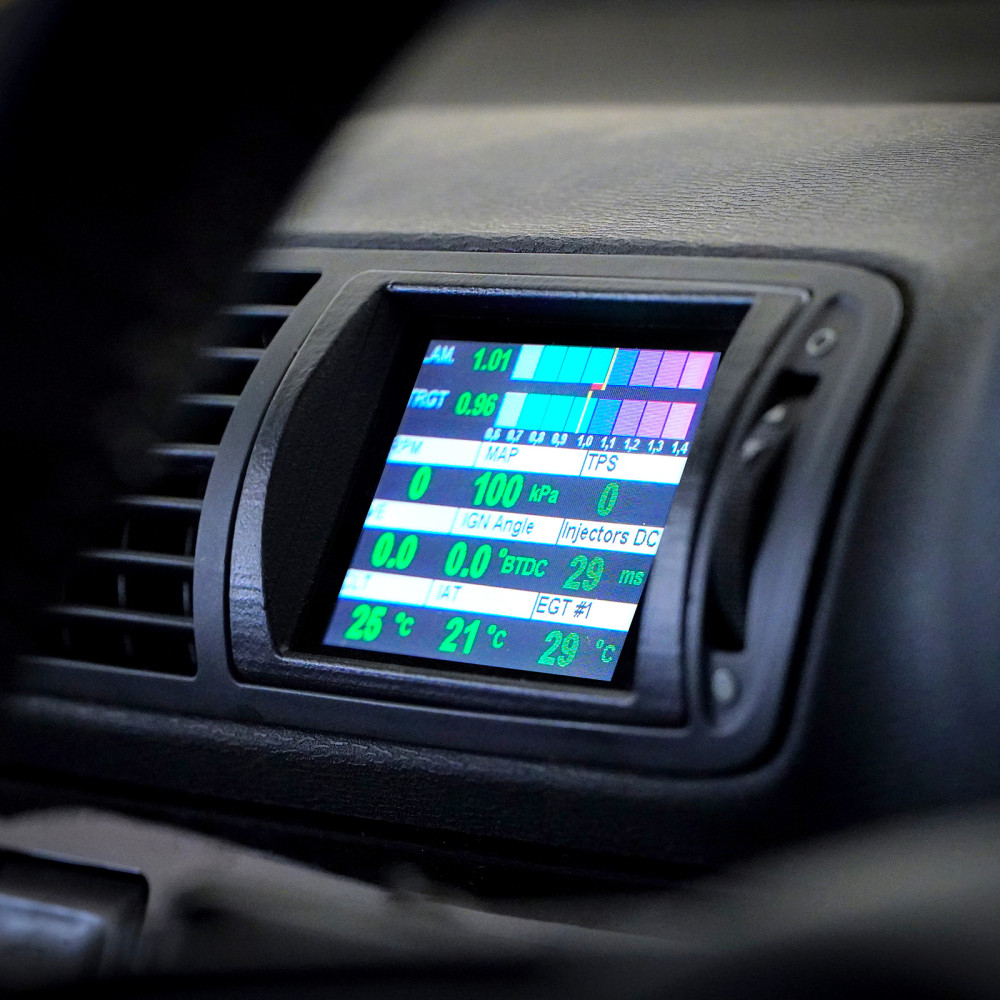

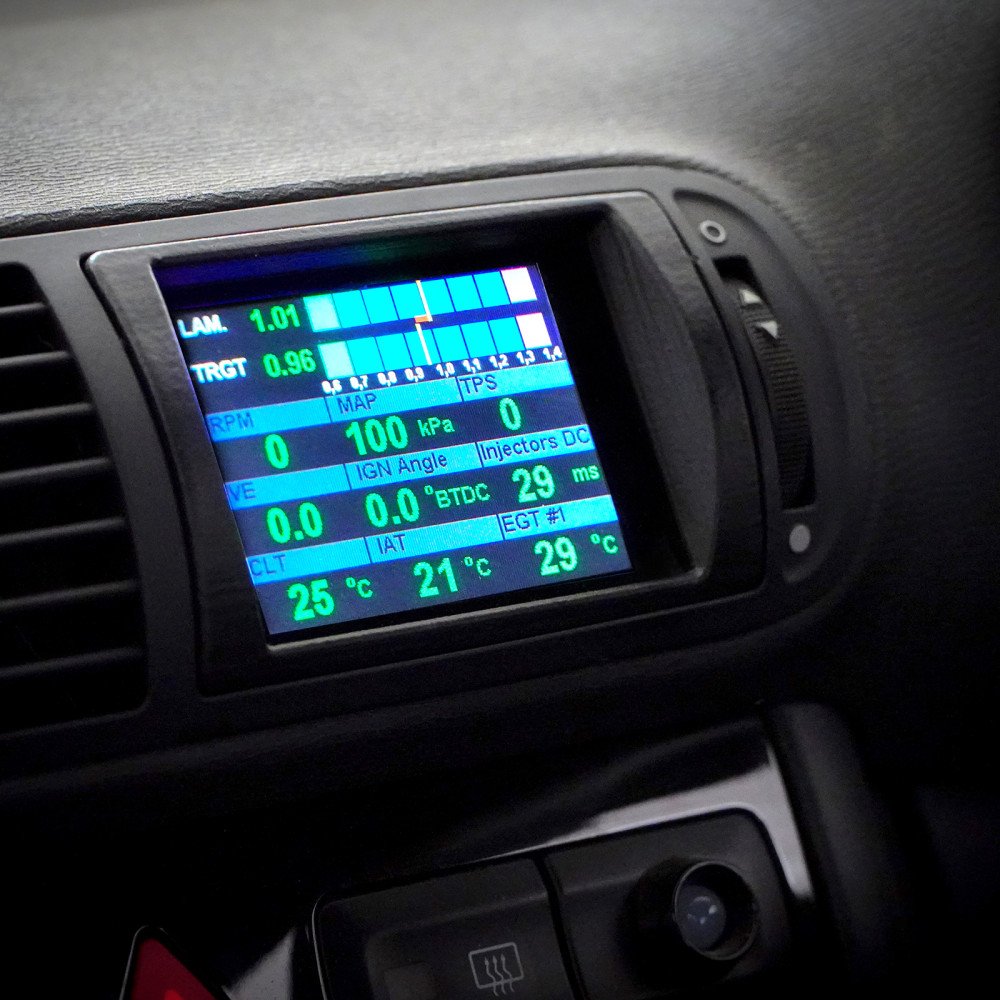

The vehicle-specific CANchecked MFD32 Gen2 replaces an air vent with an integrated data display while still allowing airflow past the screen. Designed for straightforward installation, with illustrated instructions available for many variants.

Key features

• Vehicle-specific bezel with retained airflow
• CAN bus readout with in-depth data comparable to manufacturer diagnostic tools
• Gear display via CAN bus or calculated from speed and RPM
• Touchscreen control with swipe navigation
• Page customization including your own images or start animation
• Up to 4 analog inputs plus direct ethanol sensor support
• CAN switching: use the display as a keypad and send custom CAN messages
• Configurable alarms (e.g. warning message above 900° exhaust gas temperature)
• Data logging to the internal SD card
• Integrated performance meter for 0–100, 100–200, and 0–200 timing
• DTC read/clear for ECU, transmission, ABS, and all-wheel drive*
• Automatic dimming with the instrument panel*

*Not available on all protocols.

Pages and layouts

• Delivered with predefined sample pages
• Create your own pages (up to 10)
• 20 widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning with scalable widget sizes
• Fully adjustable widget colours
• Up to 64 widgets per page

Display Setup Software (DSS)

CANchecked DSS is used to customize the display, download and view logs with the integrated log viewer, and use the integrated CAN logger. The built-in TRI Editor allows sensor configuration (CAN bus or internal), including warning min/max thresholds and sensor naming.

Supported ECU values

The display supports CAN bus data query (UDS, TP2, and manufacturer-specific protocols). It is supplied with predefined TRI/TRX files that define the sensors queried (varies by engine). Missing values can be added later.

Examples of available data

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda/mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

Scope of delivery

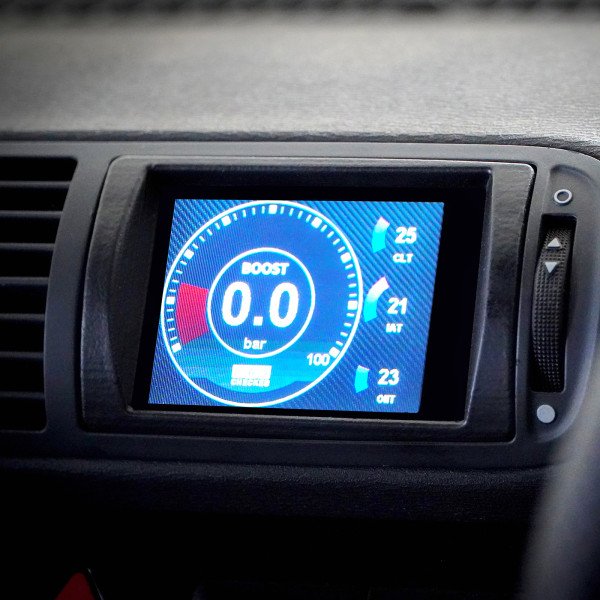

• MFD32 Gen2 data display integrated in the ventilation insert for RHD vehicles
• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN bus, analogue inputs, 5V, and sensor ground
• Pins for self-crimping
• Two 1K resistors (pull-up for external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed)
• SD card adapter
• Display foil (anti-reflection)

Connections and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and can be connected directly:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K EGT converter (TCC01)
• AIN3: 0–10 bar pressure sensor (FLP01)
• AIN4: 0–5.5 bar absolute boost pressure sensor (BST10)

A pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can also be connected; flash colours and speed limits can be configured on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor is required between 5V and the signal to view and log ethanol content and temperature.

Advanced functions

Math-Channels allow calculations between sensors. The User-Table can generate additional sensors using 2D or 3D maps.

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/ inch" NPT
• CC22903 TCC01 – type K converter, 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST10 – pressure sensor 6.5 bar relativ (95 psi)
