CANchecked MFD28 Gen2 for VW Golf MK4 (Typ 1J) vFL

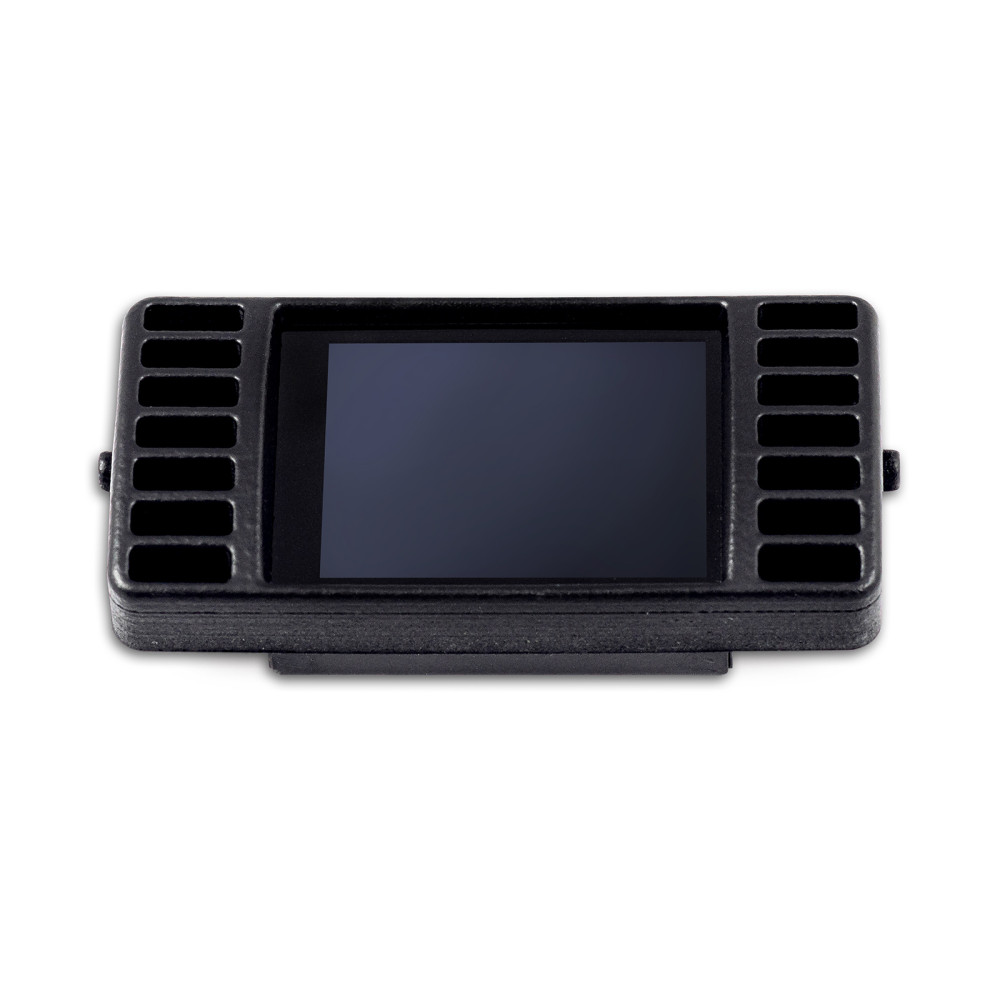

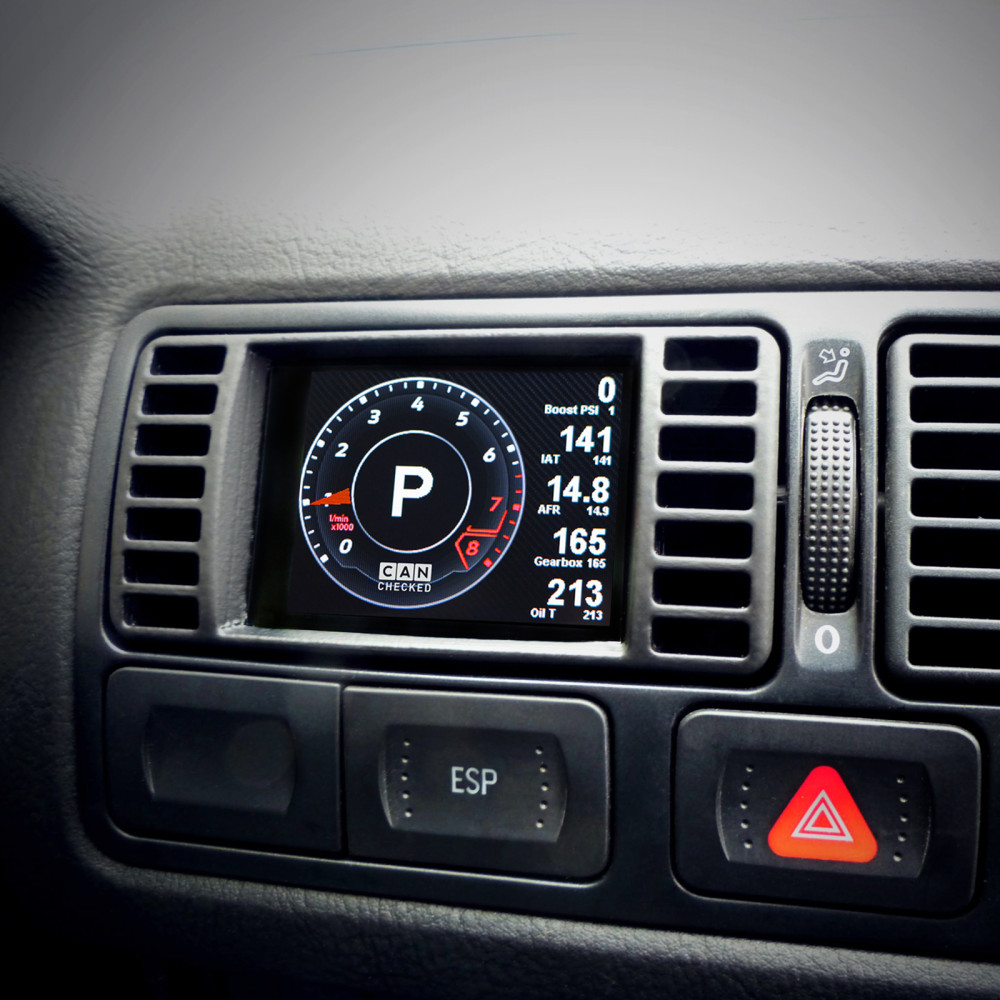

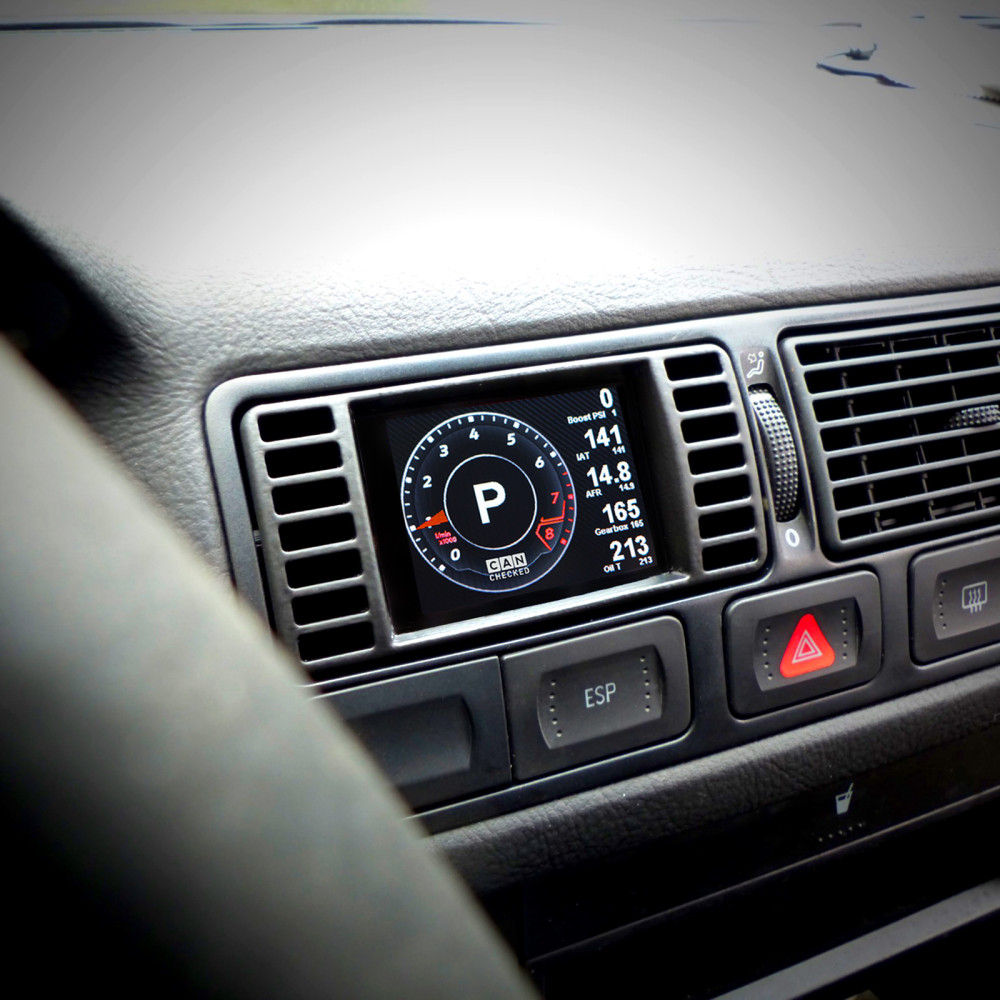

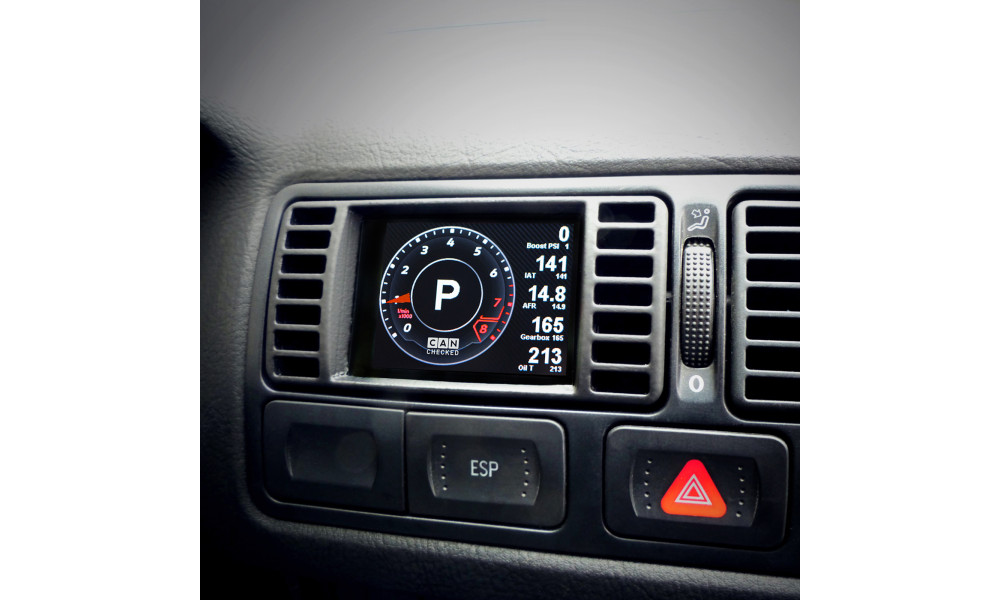

The CANchecked MFD28 Gen2 replaces an air vent with a vehicle-specific display that stays neatly integrated while still allowing airflow. Designed for straightforward installation, with illustrated instructions available for many variants.

Key features

• Integrated vent bezel: Maintains airflow past the display
• CAN bus readout: Access in-depth vehicle data similar to manufacturer diagnostic tools
• Gear display: Via CAN bus or calculated from speed and RPM
• Touchscreen control: Page navigation using swipe gestures
• Custom pages: Create your own layouts, add images, or use a start animation
• Inputs: Up to 4 analog inputs plus direct ethanol sensor support
• CAN switching: Use the display as a keypad and send custom CAN messages
• Configurable alarms: Adjustable warning thresholds (e.g., EGT above 900°C)
• Logging: Save logs to the internal SD card
• Performance meter: Measure 0–100, 100–200, and 0–200 times without additional hardware
• DTC*: Read and clear faults from engine ECU, transmission, ABS, and all-wheel drive
• Auto dimming*: Dims with the instrument illumination

*Not available on all protocols.

Display pages and layouts

• Delivered with predefined sample pages
• Create and save your own pages
• Up to 10 pages
• 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Drag-and-drop positioning and scalable widgets
• Fully adjustable widget colors
• Up to 64 widgets per page

Display Setup Software (DSS)

CANchecked DSS is used to customize pages and sensors, download and view log files, and use the integrated CAN logger. The integrated TRI Editor lets you edit sensor names and set min/max warning thresholds for CAN bus and internal sensors.

Supported ECU values

The display supports CAN bus data queries (UDS, TP2, and manufacturer-specific protocols). It is supplied with predefined TRI/TRX files that define which sensors are queried (varies by engine). Examples include:

Temperatures

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures

• Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)

Lambda / mixture

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

If values are missing, they can be added later.

Scope of delivery

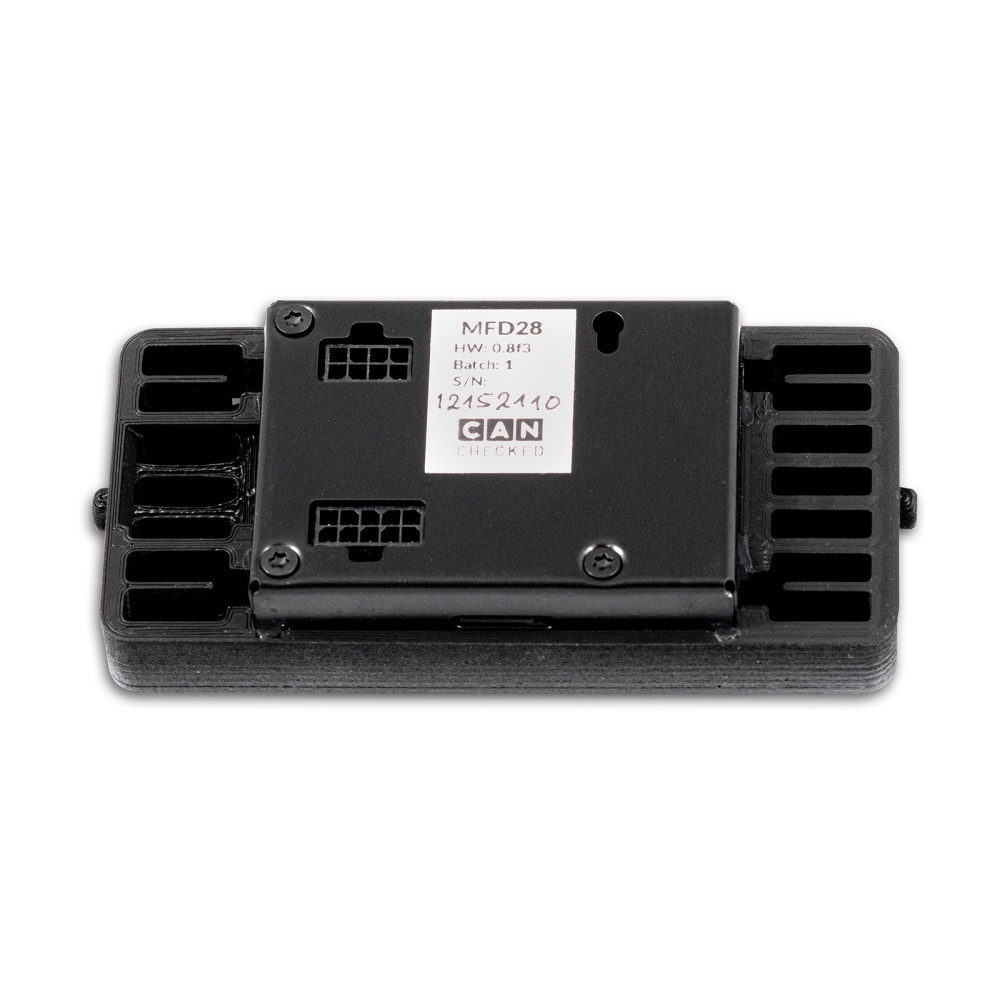

• MFD28 Gen2 data display integrated in the ventilation insert (LHD & RHD)
• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (20 cm) for power supply, CAN bus, analogue inputs, 5V, sensor ground
• Pins for self-crimping
• Two 1K resistors (pull-up for external NTC sensors)
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display foil (anti-reflection)

Connection and expansion

Four analog inputs support linear 0–5V and NTC sensors. CANchecked in-house sensors are stored in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K exhaust gas temperature converter (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)

A pre-assembled AIN wiring harness can be used for connection.

An external shift light with eight LEDs can also be connected; colors and speed limits are configurable on the display.

An ethanol sensor connects directly to the display. A 10K pull-up resistor is required between 5V and the signal to view and log ethanol content and temperature.

Advanced functions

Math-Channels allow calculated values from sensors. The User-Table can generate additional sensors using 2D or 3D maps.

Optional accessories

• CC24000 SLM08 – external switching lightning module
• CC22780 ANC04 – four-way AIN harness
• CC22100 CBD08 – eight-way CAN distribution hub
• CC22902 NTC01 – temperature sensor for liquids, 1/ inch" NPT
• CC22903 TCC01 – type K converter 0–1250°C
• CC22901 FLP01 – pressure sensor 0–10 bar (145 psi) M10x1
• CC22900 BST10 – pressure sensor 6.5 bar relativ (95 psi)
