CANchecked MFD28 Gen2 for VW Golf MK3

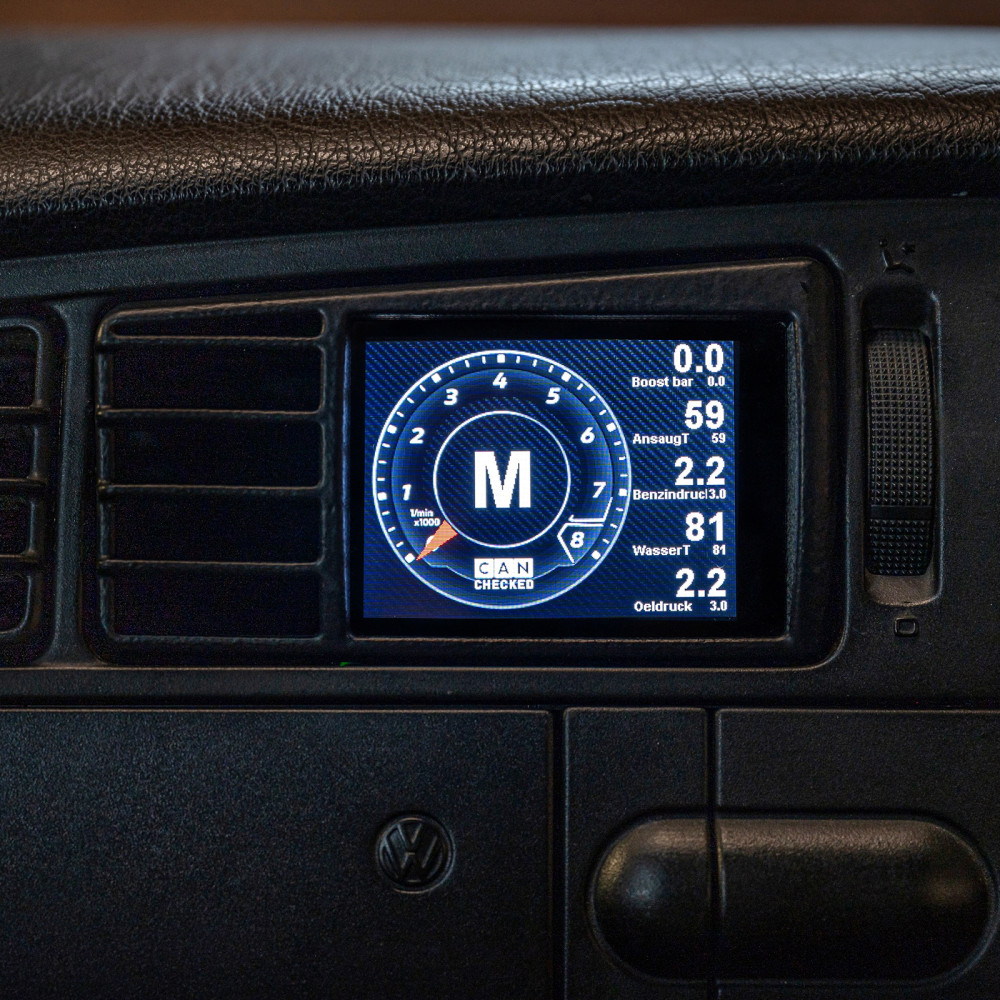

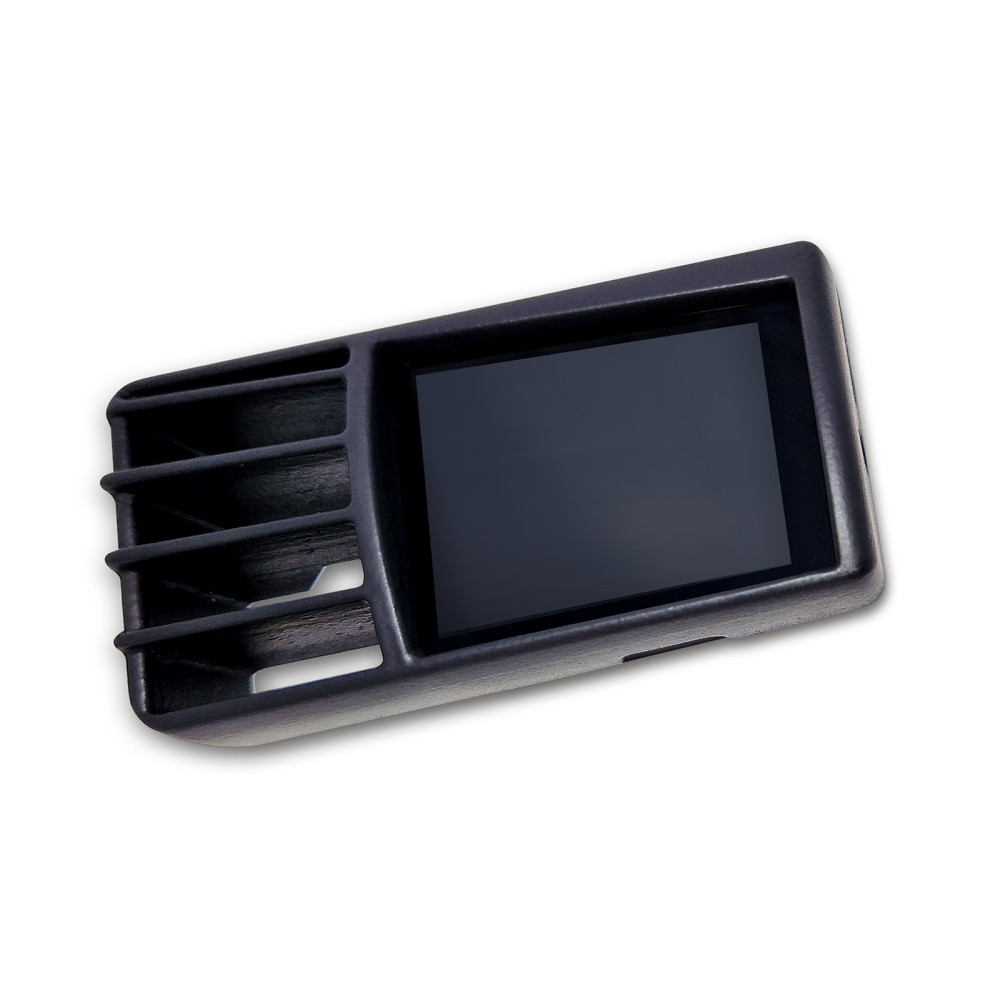

The CANchecked MFD28 Gen2 replaces an air vent with a vehicle-specific display solution that remains neatly integrated while still allowing airflow past the bezel. It’s designed for straightforward installation, with illustrated instructions available for most versions, so it can typically be fitted without a workshop visit.
Key features
- OEM-style integration: Vehicle-specific bezel with continued vent airflow
- CAN bus readout: Access in-depth ECU data comparable to manufacturer-level diagnostics
- Gear display: Via CAN bus or calculated from speed and RPM
- Touchscreen control: Page navigation using swipe gestures
- Custom pages: Build your own layouts, add images, and set a start animation
- Sensor inputs: Up to 4 analog inputs plus direct ethanol sensor support
- CAN switching: Use the display as a keypad and send custom CAN messages
- Configurable alarms: Set warning thresholds (e.g., prominent alert above 900°C EGT)
- Logging: Save data to the internal SD card for later analysis
- Performance meter: Measure 0–100, 100–200, and 0–200 without additional hardware
- DTC support*: Read and clear faults from engine, transmission, ABS, and all-wheel drive controllers
- Auto dimming*: Dims with the instrument panel
*Not available on all protocols.

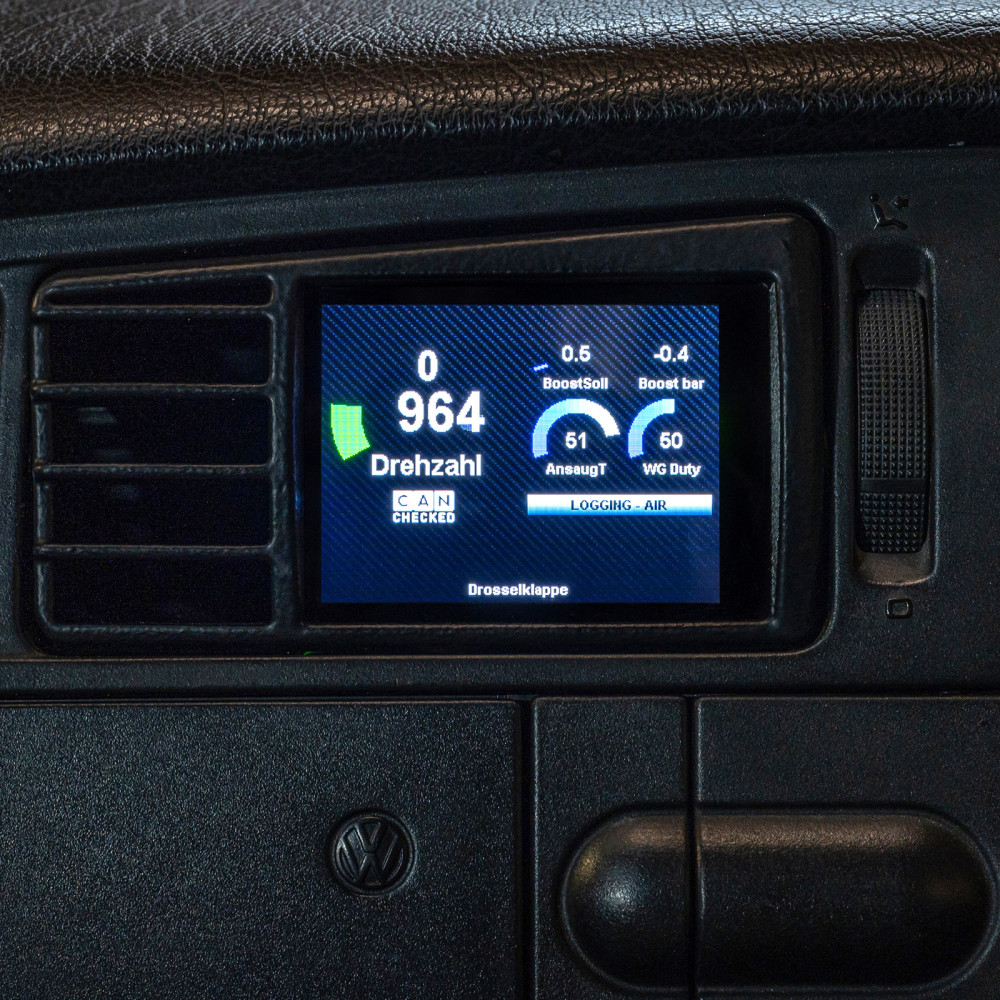

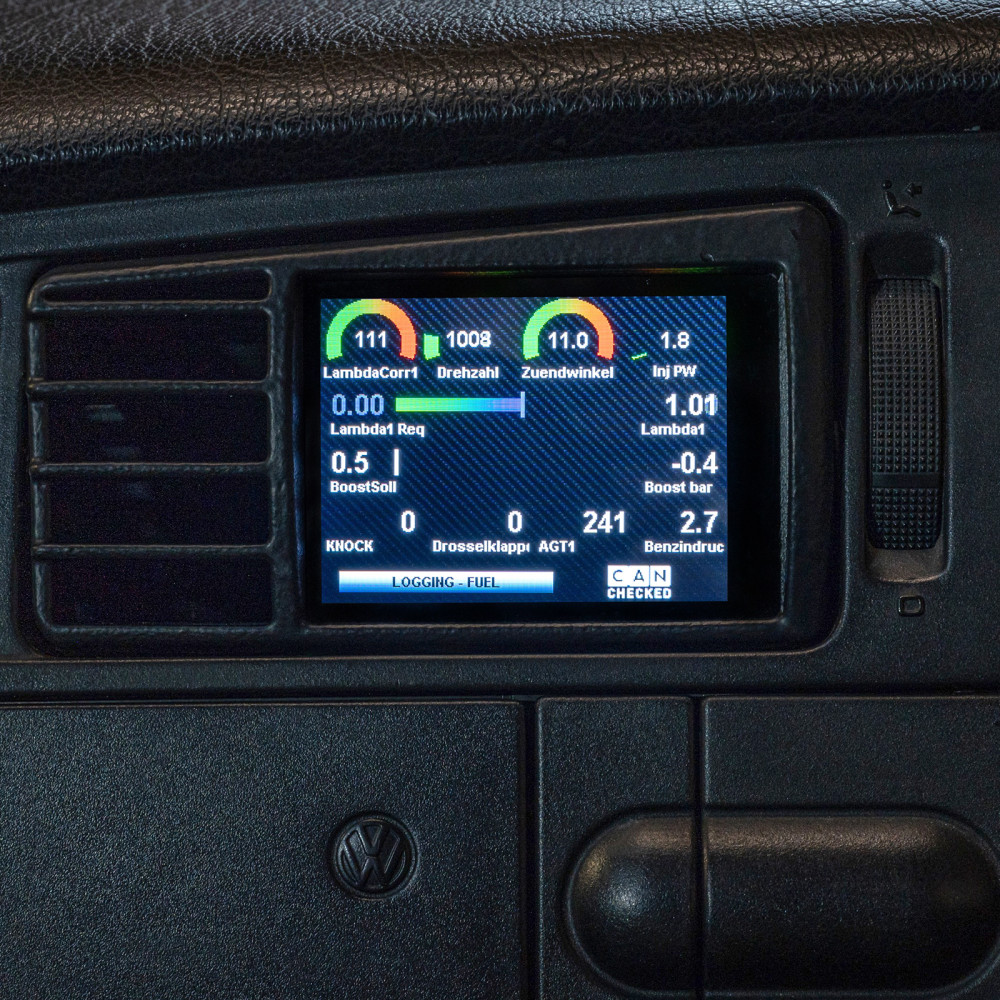

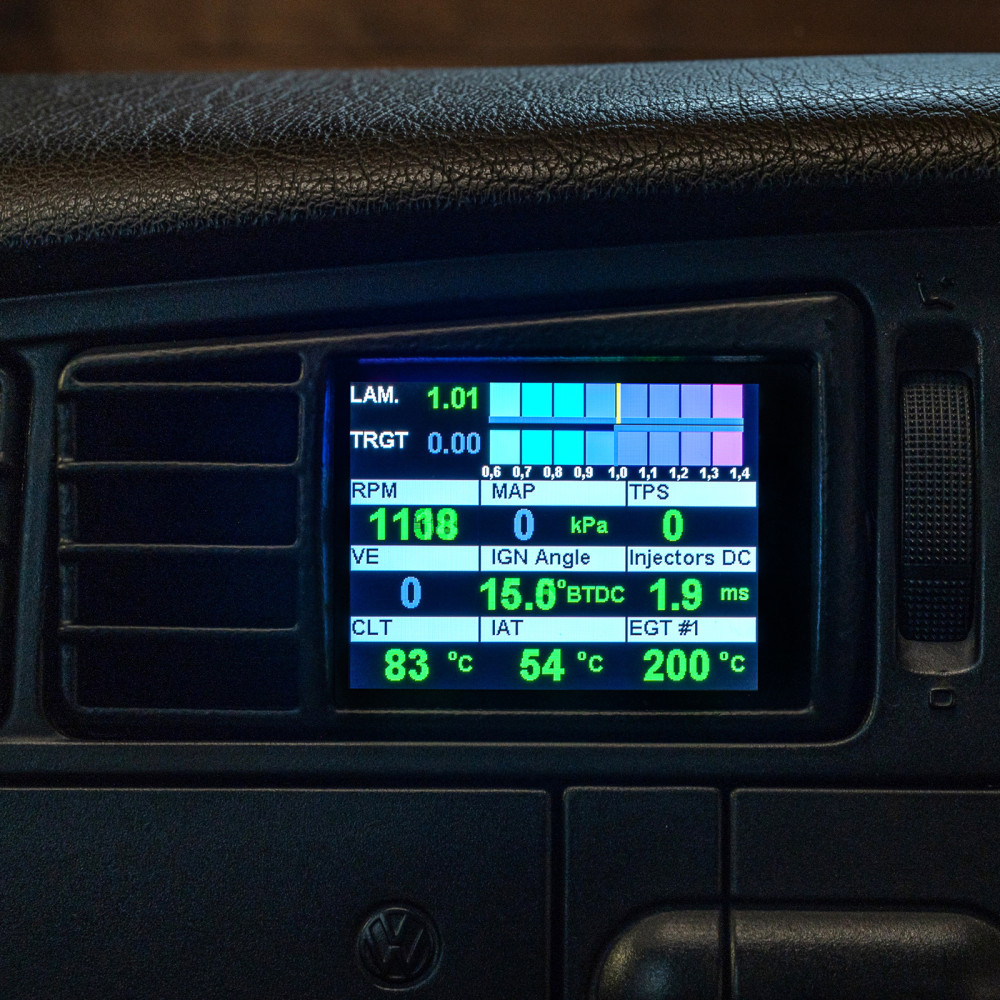

Display pages and layouts
- Delivered with predefined sample pages
- Create your own pages (up to 10)
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop positioning with scalable widget sizes
- Fully adjustable widget colours
- Up to 64 widgets per page
Display Setup Software (DSS)
CANchecked DSS is used to configure the display, manage layouts, and handle data analysis. It includes a log viewer for downloading and reviewing log files, an integrated CAN logger, and a TRI Editor to adjust sensor definitions (CAN bus or internal), rename sensors, and set min/max warning thresholds.
Supported CAN values (examples)
The MFD28 Gen2 supports CAN bus data queries using UDS, TP2, and manufacturer-specific protocols. It ships with predefined TRI/TRX files that define which sensors are queried (varies by engine). Missing values can be added later.
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure pre-feed pump, rail pressure actual/target
Lambda/mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

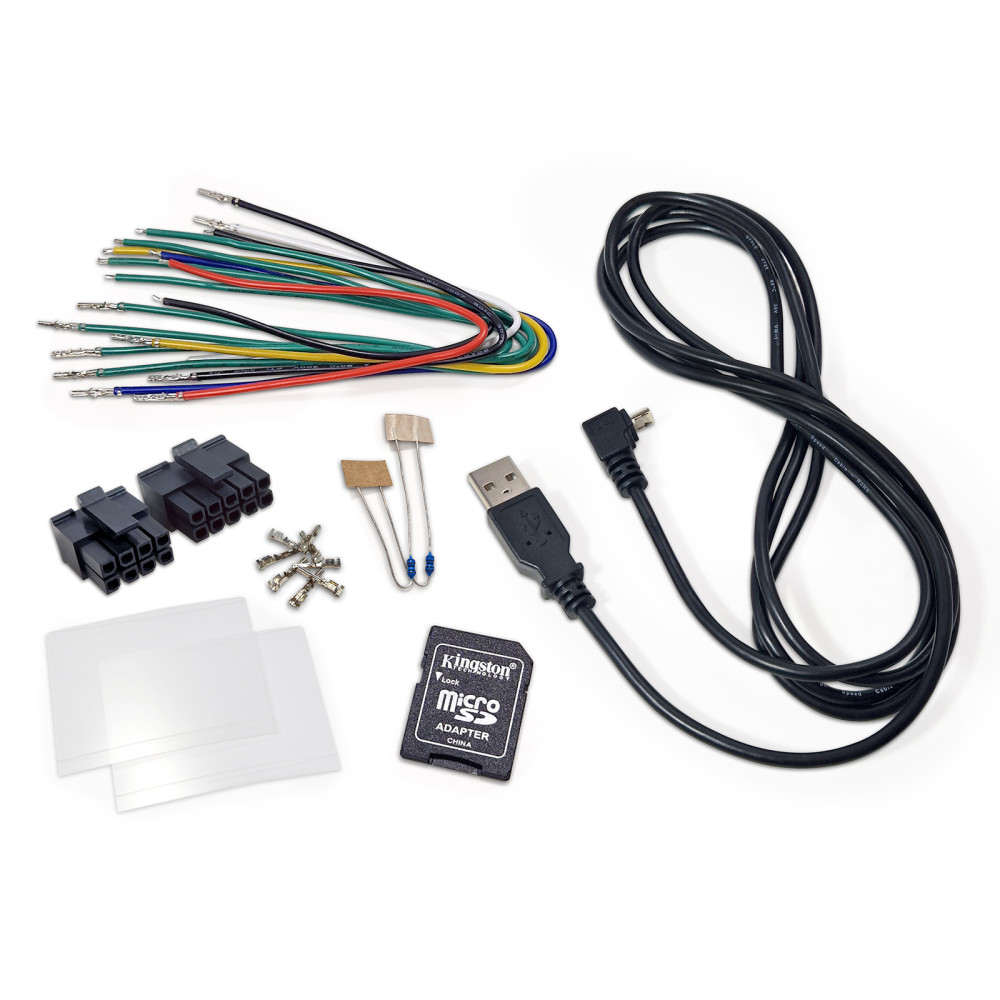

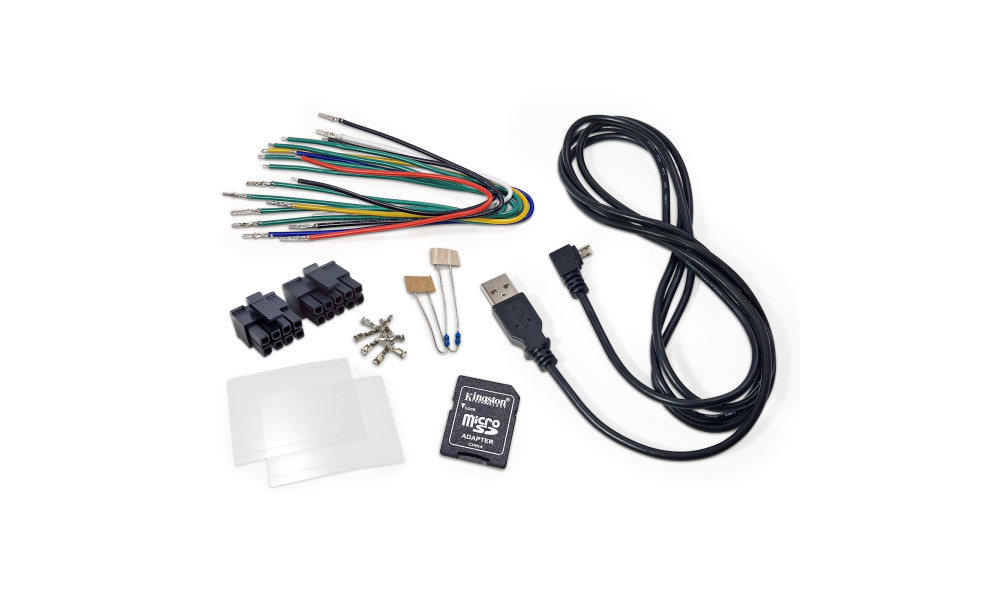

Scope of delivery

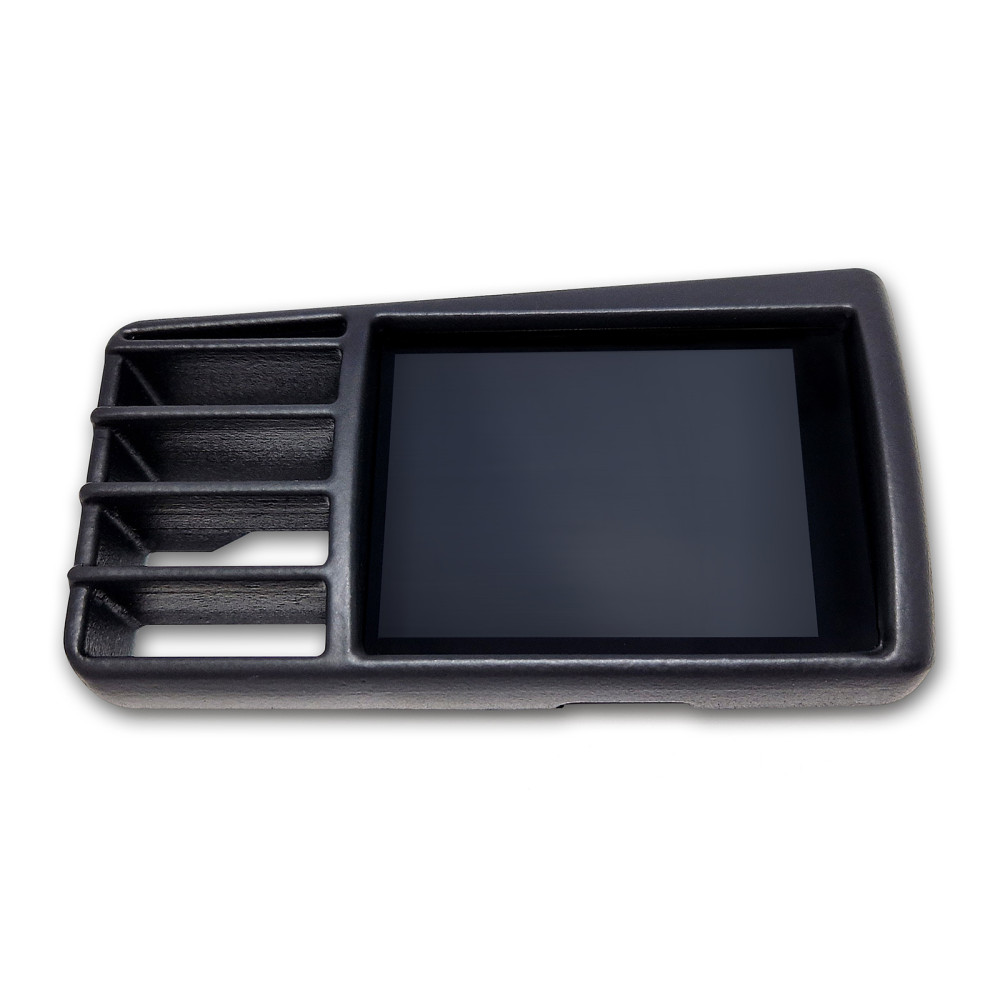

- MFD28 Gen2 data display integrated in the ventilation insert (RHD vehicles)

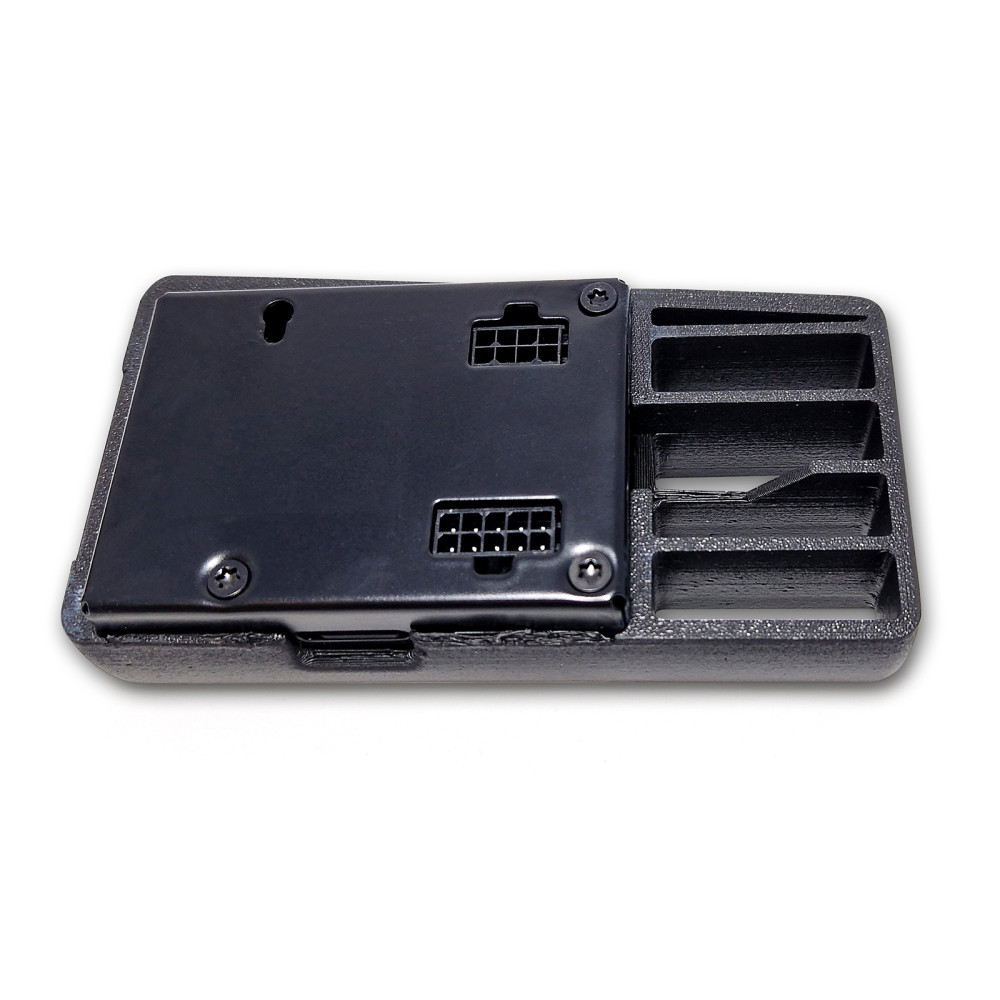

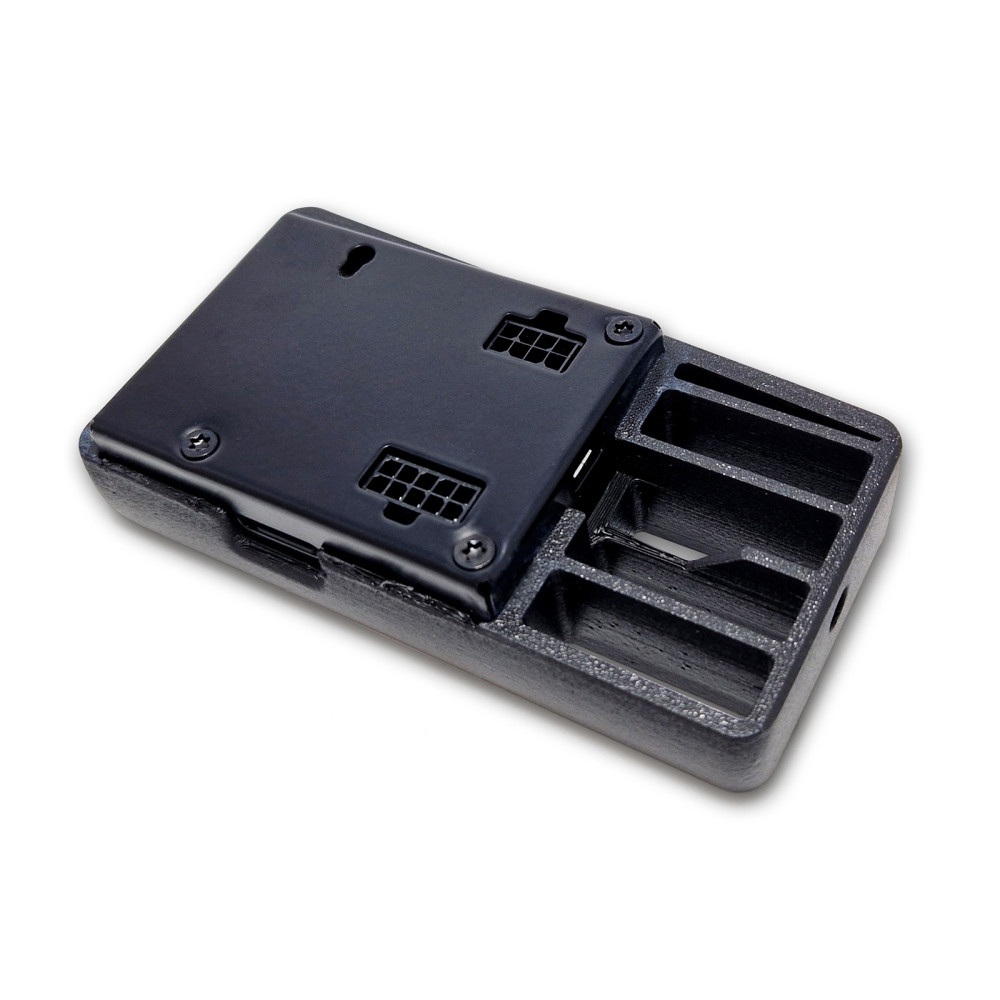

- Connector A (8-way Molex)
- Connector B (10-way Molex)
- Pre-assembled connection cables (20 cm) for power supply, CAN bus, analogue inputs, 5V, and sensor ground
- Crimp pins
- Two 1K resistors (pull-up for external NTC sensors)
- Quickstart guide
- USB data cable
- SD card (pre-installed)
- SD card adapter
- Display foil (anti-reflection)
Connections and expansion
Four analog inputs support linear 0–5V sensors and NTC sensors. CANchecked in-house sensors are already defined in the TRI/TRX files and only need to be connected:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K EGT converter/transducer (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)
An optional pre-assembled AIN wiring harness can be used for sensor connection. An external shift light with eight LEDs can also be connected, with colours and RPM limits configured directly on the display.
An ethanol sensor connects directly to the display and requires a 10K pull-up resistor between 5V and signal; ethanol content and temperature can then be displayed and logged.
Advanced functions
- Math Channels: Calculate values by combining sensors
- User Table: Create additional sensors using 2D or 3D maps
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – liquid temperature sensor (1/ inch" NPT)
- CC22903 TCC01 – Type K converter (0–1250°C)
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST10 – pressure sensor 6.5 bar relativ (95 psi)
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| VW | Golf | MK3 (Typ 1H) 1991 - 1998 | - |
CANchecked Display MFD28 Gen2 for VW Golf MK3 (Typ 1H) RHD 1991 - 1998
| Brand | Model | Generation | Engine |
|---|---|---|---|
| VW | Golf | MK3 (Typ 1H) 1991 - 1998 | - |
