CANchecked MFD28 Gen2 for VW Golf MK4 FL R32 / Bora

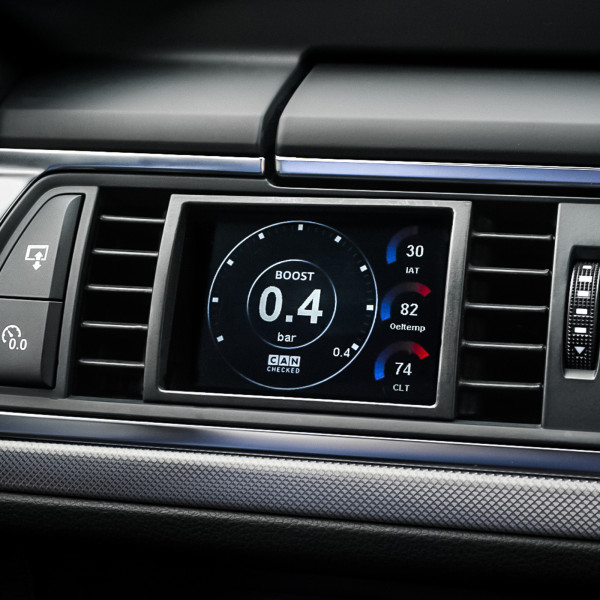

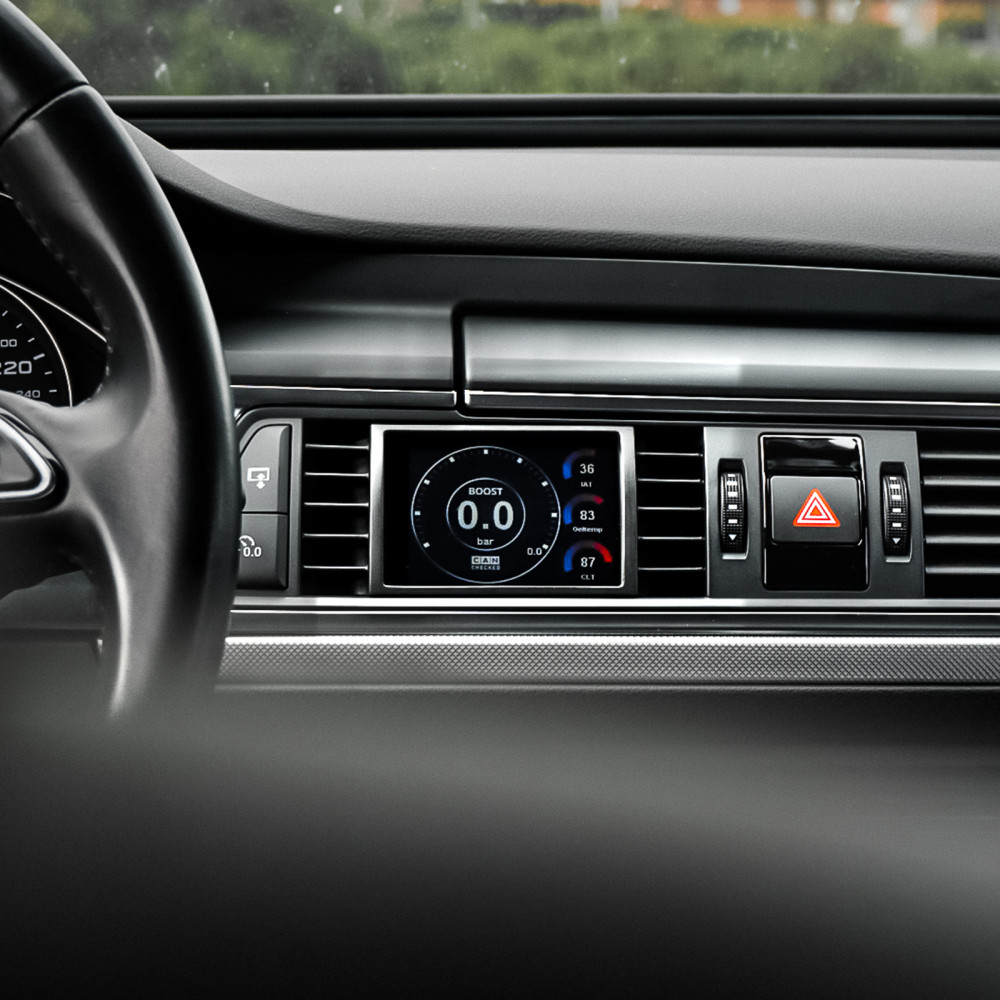

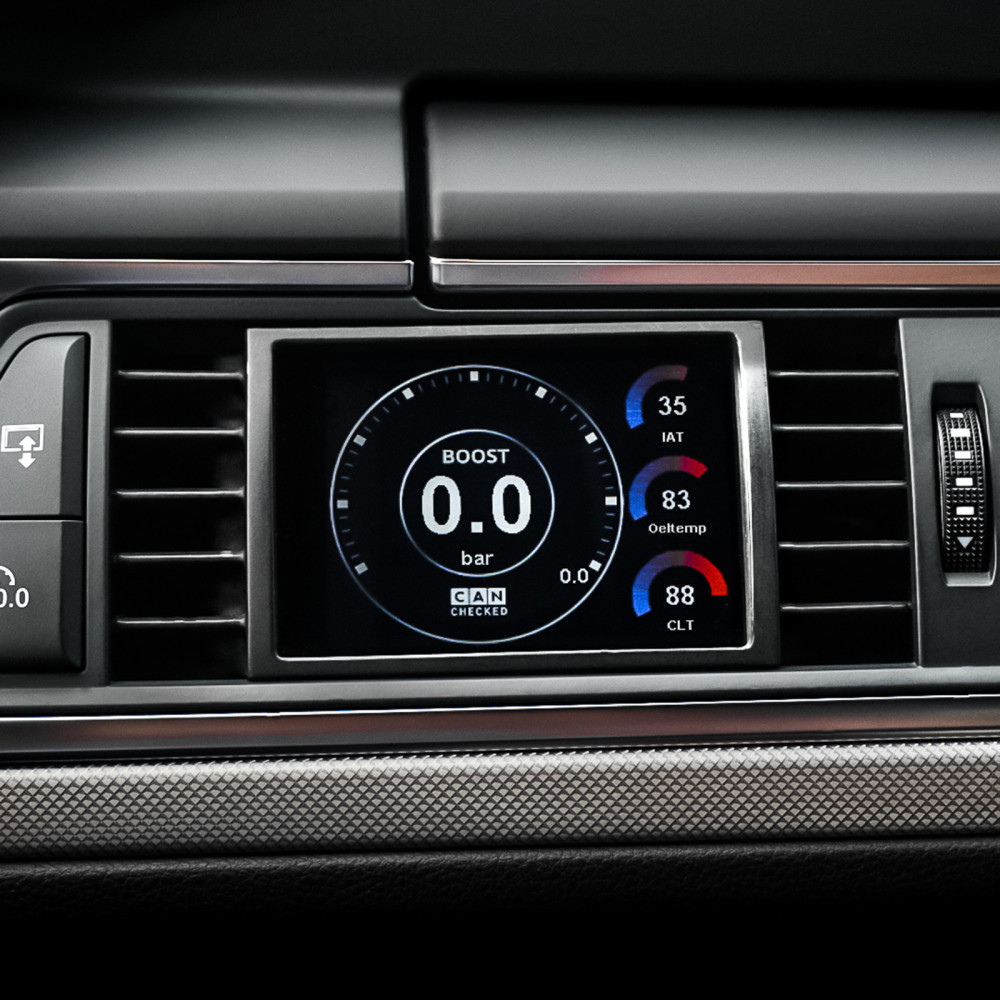

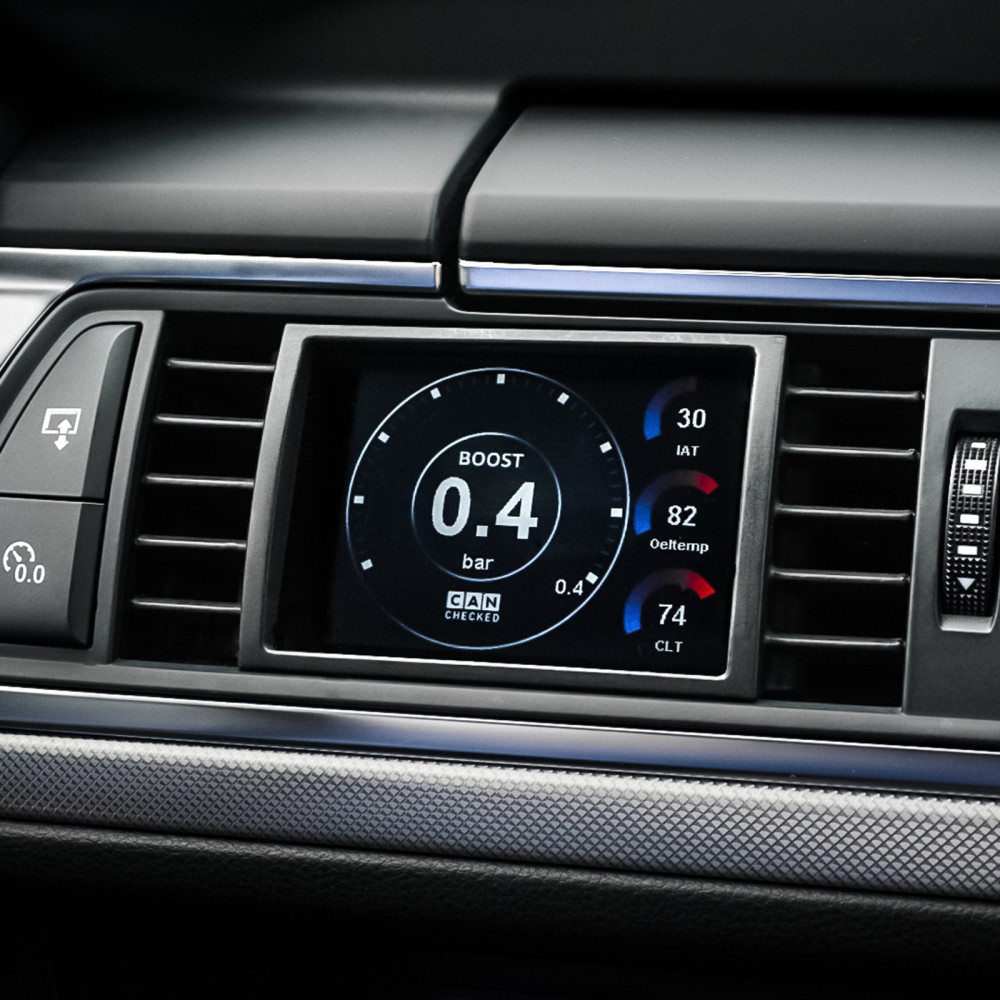

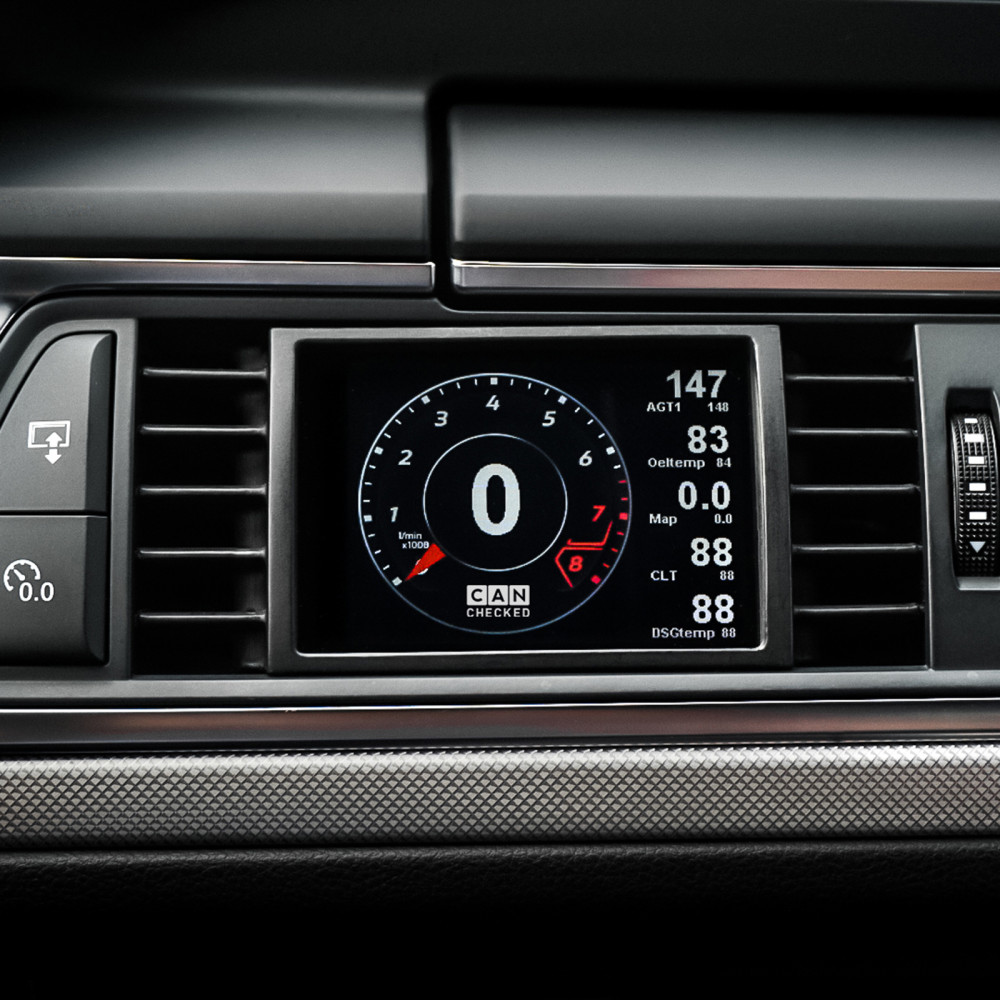

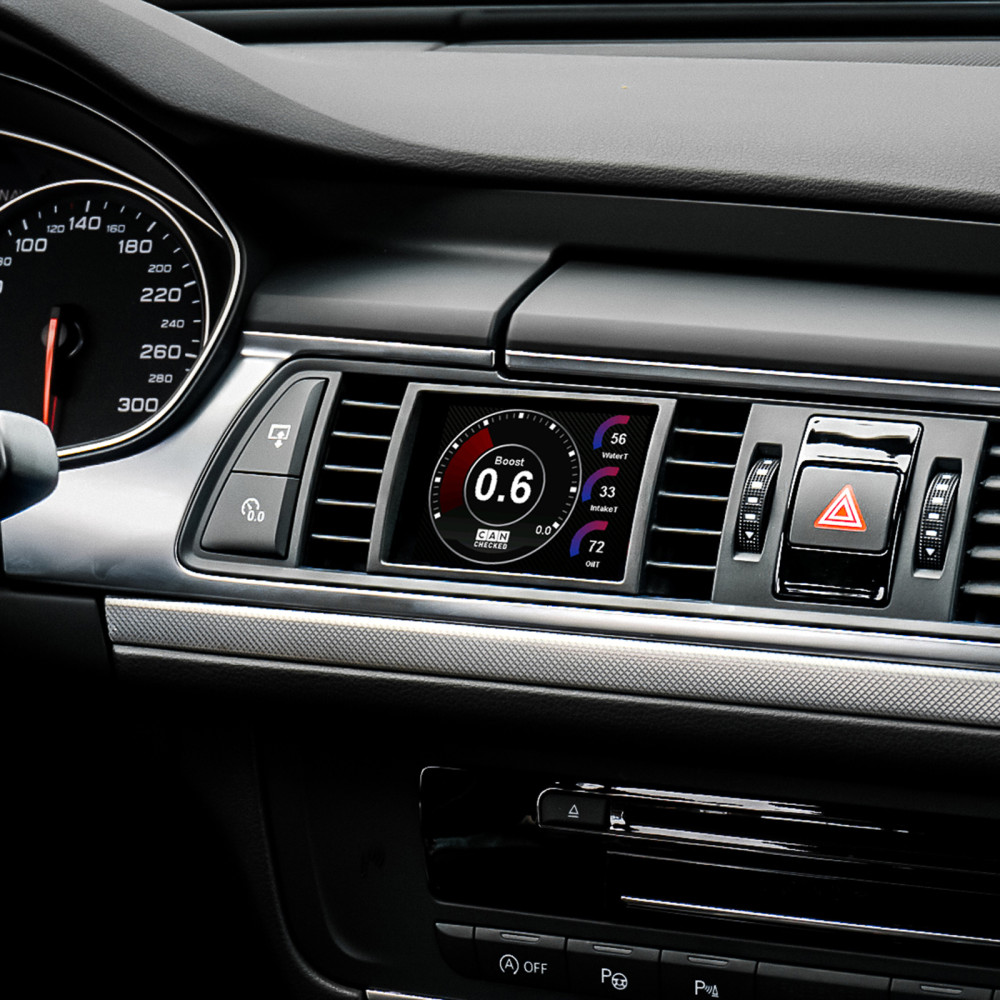

The MFD28 Gen2 replaces the air vent with a vehicle-specific display solution that keeps airflow available while putting key vehicle data in your line of sight. Installation is designed to be achievable without a workshop; illustrated instructions are available for many displays.
Key features
- OEM-style integration: Vehicle-specific bezel; airflow remains functional.
- CAN bus data: In-depth vehicle data readout comparable to manufacturer diagnostic tools.

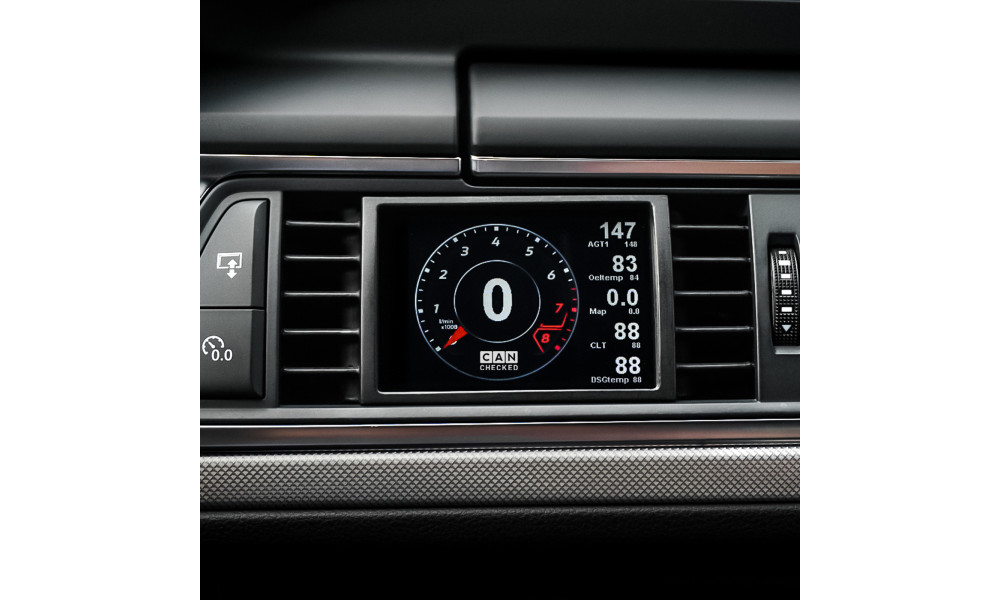

- Gear display: Via CAN bus or calculated from speed and RPM.
- Touchscreen operation: Page navigation via swipe gestures.

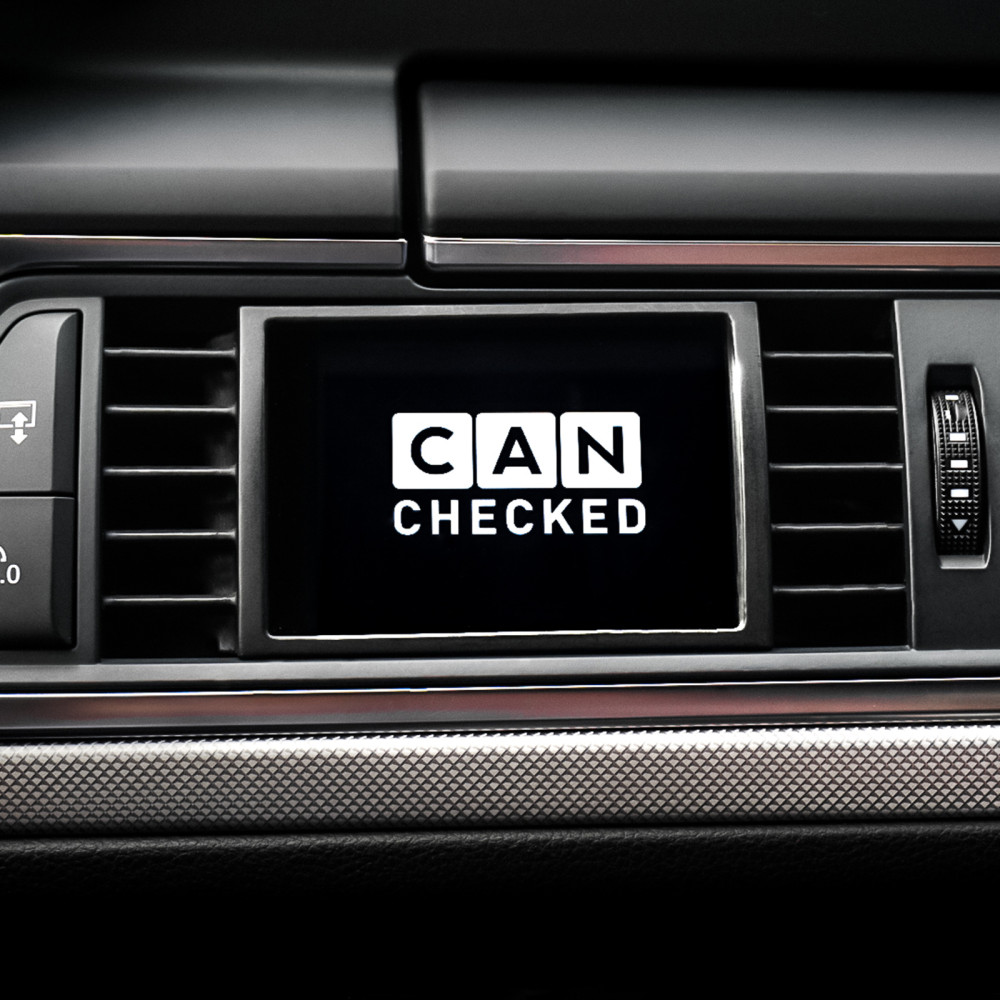

- Custom pages: Create your own layouts; add images or a start animation.
- Inputs: Up to 4 analog inputs plus direct ethanol sensor support.
- CAN switching: Use the display as a keypad and send custom CAN messages.
- Configurable alarms: Set warning thresholds (e.g., EGT warning above 900°C).
- Logging: Log to the internal SD card for later analysis.

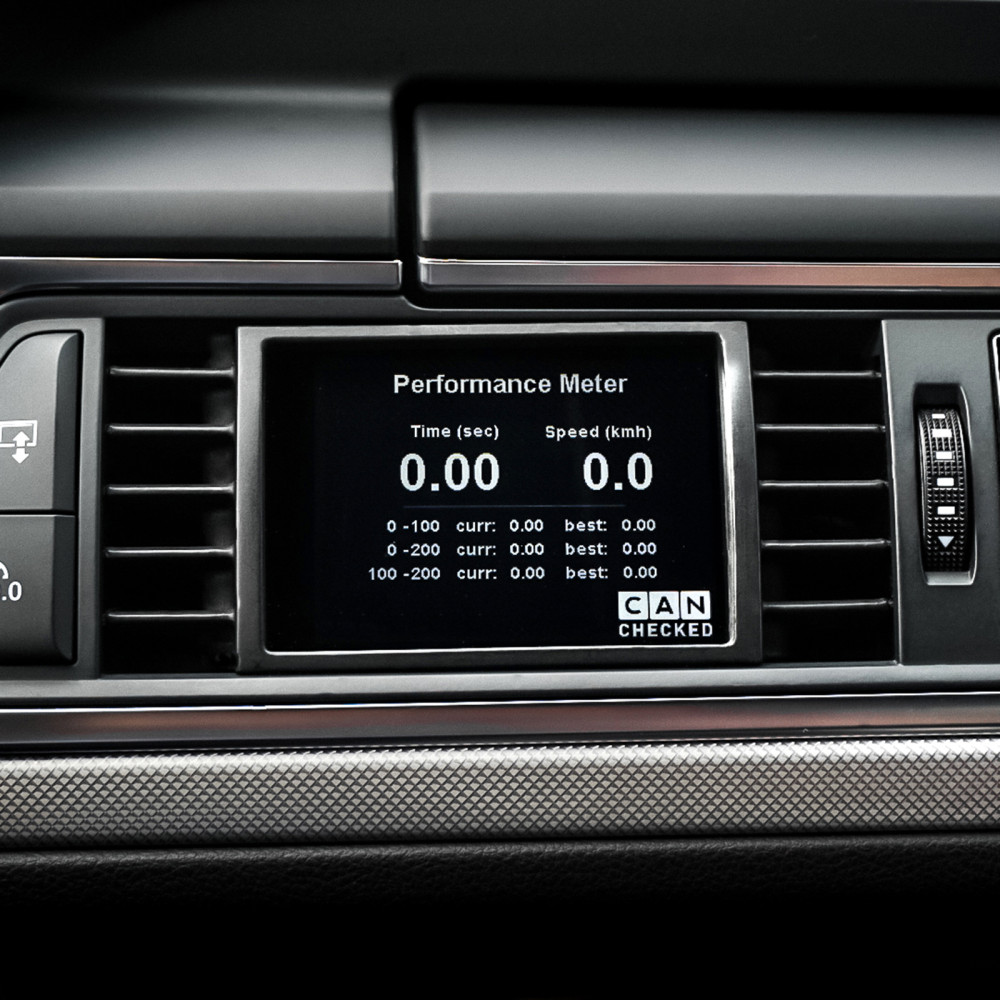

- Performance meter: Measure 0–100, 100–200, and 0–200 times without extra hardware.

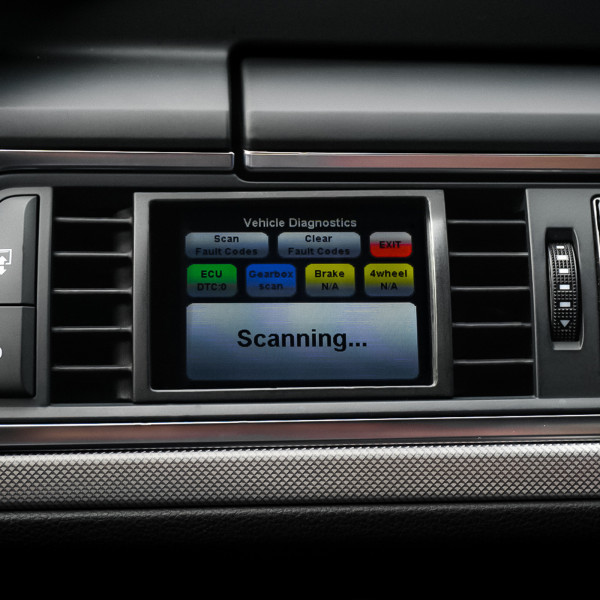

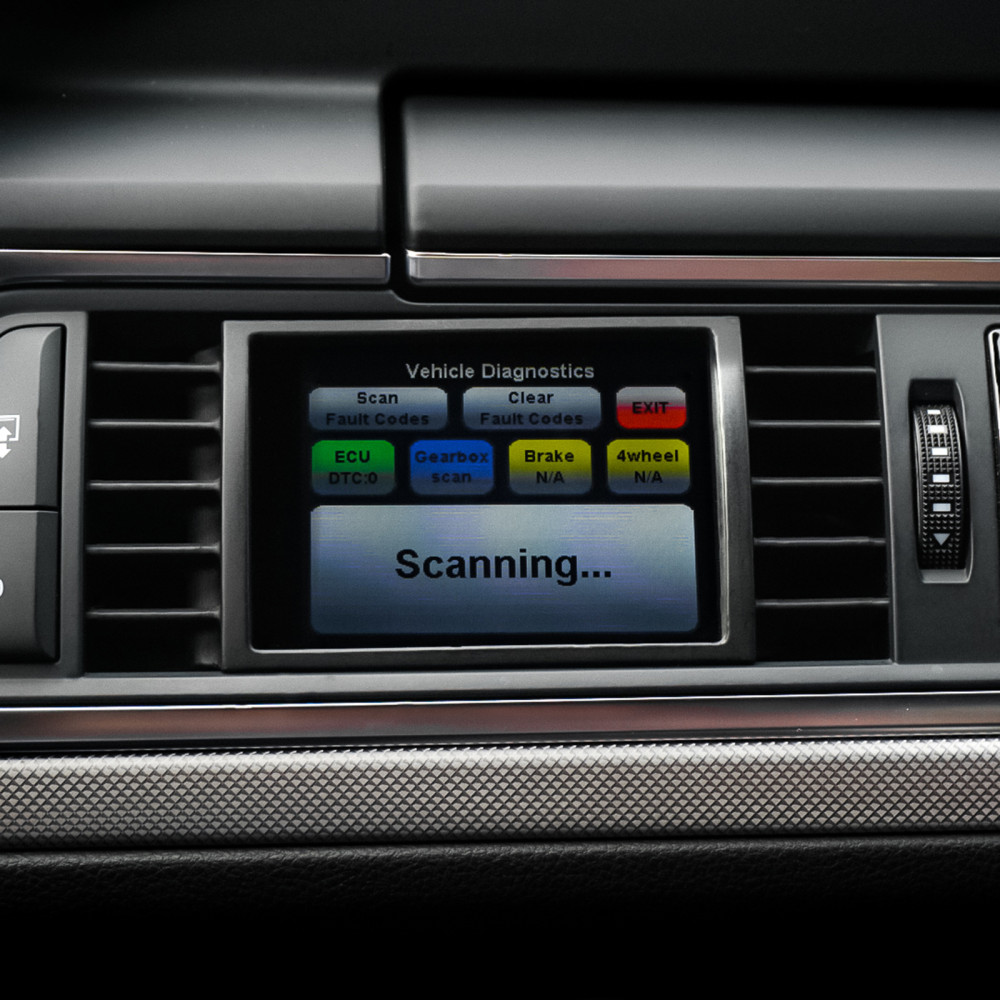

- DTC (protocol-dependent): Read/clear faults from engine ECU, transmission, ABS, and all-wheel drive.
- Auto dimming (protocol-dependent): Dims with the instrument panel.
Pages and views
- Delivered with predefined sample pages.
- Create your own pages (up to 10 pages).
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar).
- Drag-and-drop positioning; widgets scalable.
- Widget colors fully adjustable.
- Up to 64 widgets per page.
Display setup and configuration
Using CANchecked DSS software, the display can be fully customized. It includes a log viewer, CAN logger, and a TRI editor to adjust sensors (CAN bus or internal), set min/max values for warnings, and rename sensors.
Supported ECU data (examples)
The display supports CAN bus data query (UDS, TP2, and manufacturer-specific protocols). It is delivered with predefined TRI/TRX files; available sensors vary by engine and can be expanded later.
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda / mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values
Scope of delivery
- MFD28 Gen2 data display integrated in the ventilation insert for LHD vehicles
- Connector A (8-way Molex)
- Connector B (10-way Molex)
- Pre-assembled connection cables (20 cm) for power supply, CAN bus, analogue inputs, 5V, and sensor ground
- Pins for self-crimping
- Two 1K resistors (pull-up for connecting external NTC sensors)
- Quickstart guide
- USB data cable
- SD card (pre-installed)
- SD card adapter
- Display foil (to reduce reflections)
Connection and expansion
Sensors can be connected via four analog inputs; linear 0–5V and NTC sensors are supported. CANchecked sensors are stored in the TRI/TRX files by default and only need to be wired in.
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K exhaust gas temperature converter (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST10)
An external shift light with eight LEDs can be connected; flashing colors, speed limits, and colors are configurable on the display.
An ethanol sensor connects directly to the display. A 10K pull-up resistor between 5V and the signal is required to view and log ethanol content and temperature.
Advanced functions
- Math channels: Calculate values using multiple sensors.
- User table: Create additional sensors using 2D or 3D maps.
Optional accessories
- CC24000 SLM08 - external switching lightning module
- CC22780 ANC04 - four-way AIN harness
- CC22100 CBD08 - eight-way CAN distribution hub
- CC22902 NTC01 - temperature sensor for liquids, 1/ inch NPT
- CC22903 TCC01 - type K converter, 0–1250°C
- CC22901 FLP01 - pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST10 - pressure sensor 6.5 bar relative (95 psi)
* Not available on all protocols.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| VW | Bora | Golf MK4 1998-2005, Bora 1J2 1998-2005 | - |
| VW | Golf | Golf MK4 1998-2005, Bora 1J2 1998-2005 | - |
CANchecked Display MFD28 Gen2 for VW Bora 1J2 98-05 Golf MK4 R32 02-05
| Brand | Model | Generation | Engine |
|---|---|---|---|
| VW | Bora | Golf MK4 1998-2005, Bora 1J2 1998-2005 | - |
| VW | Golf | Golf MK4 1998-2005, Bora 1J2 1998-2005 | - |
