CANchecked MFD28 Gen2 for Toyota GT86 (ZN6)

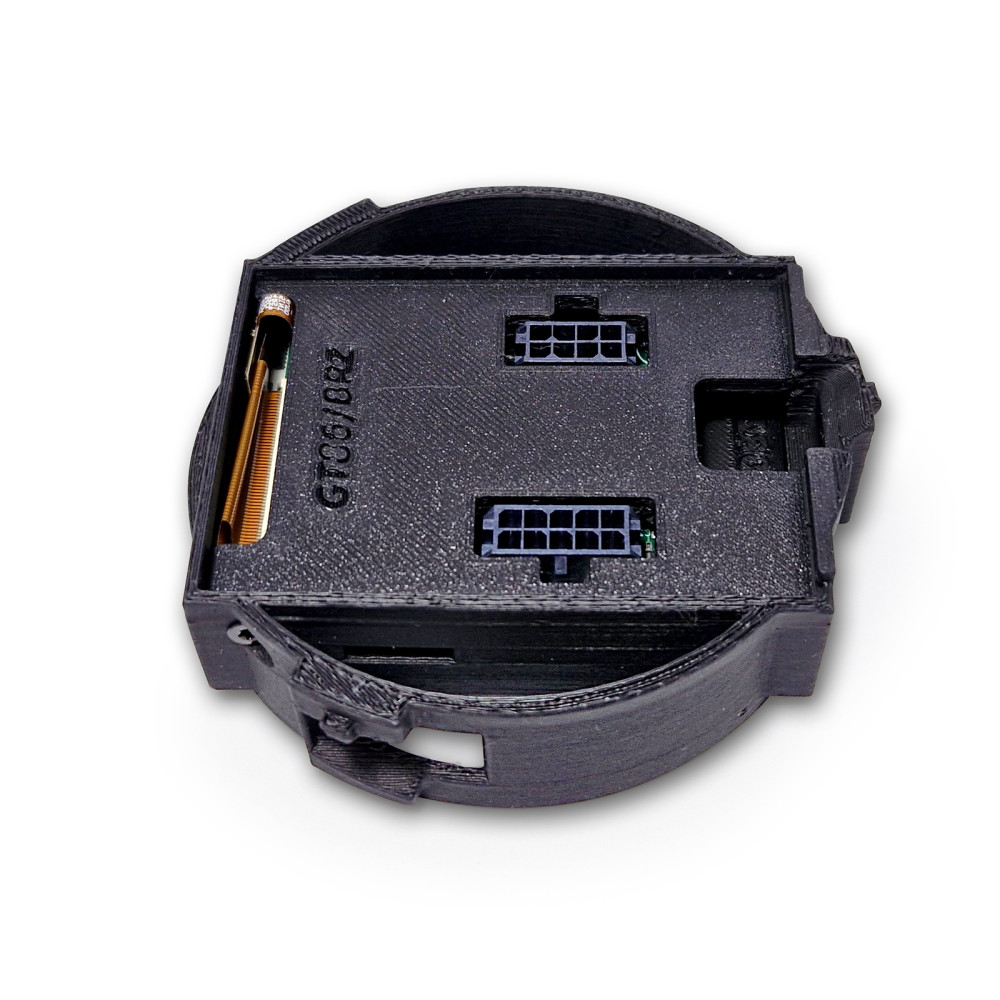

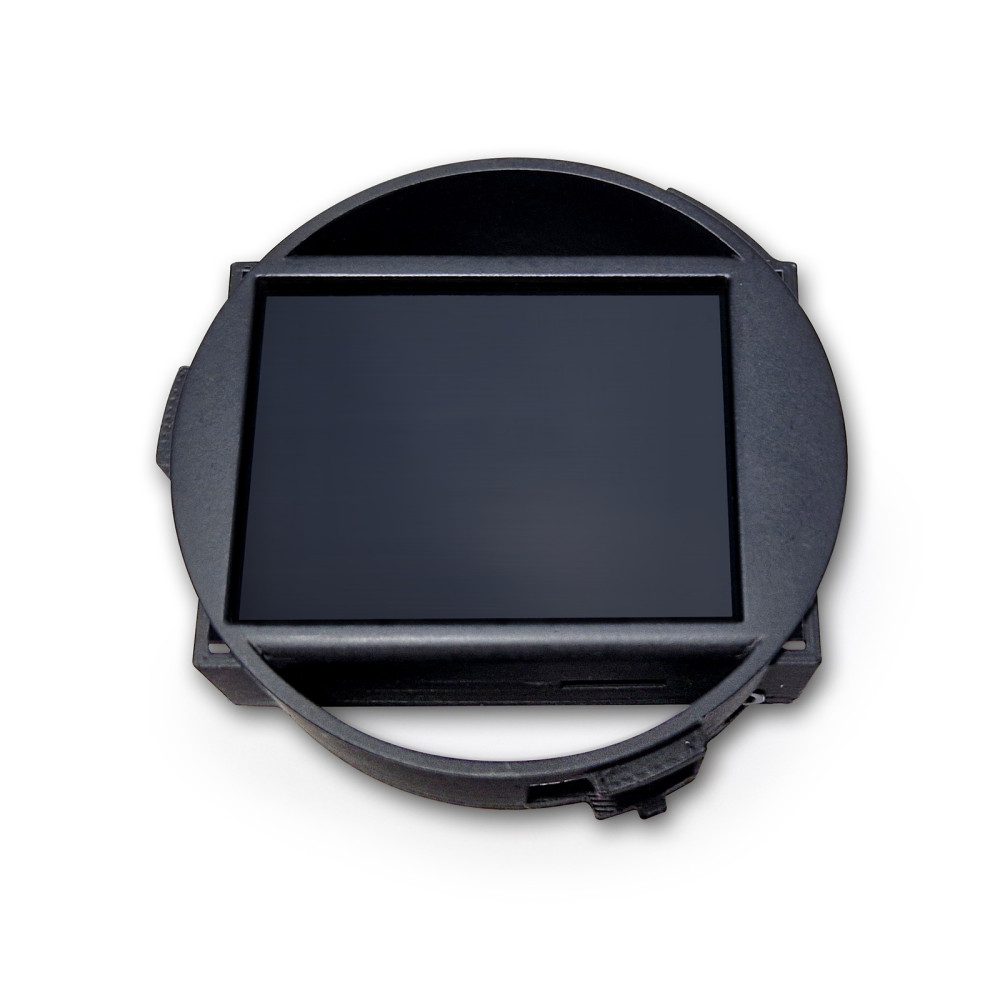

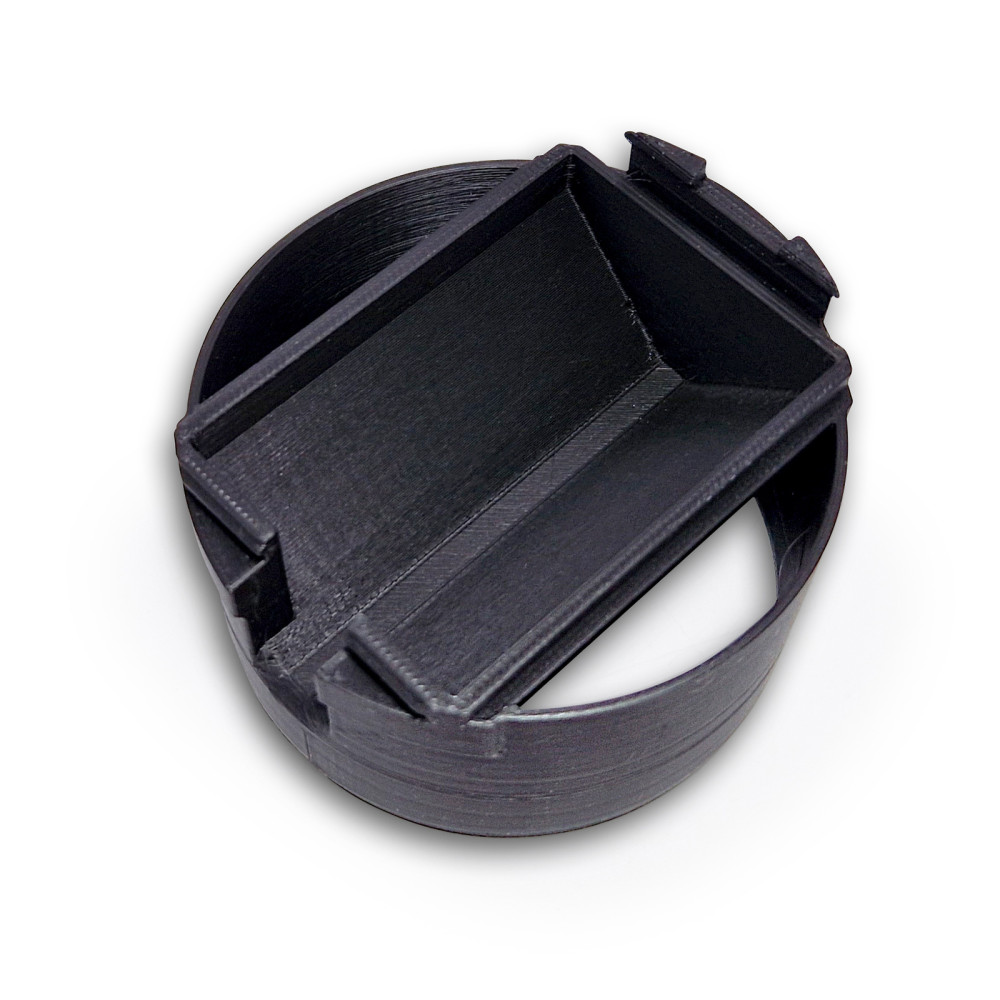

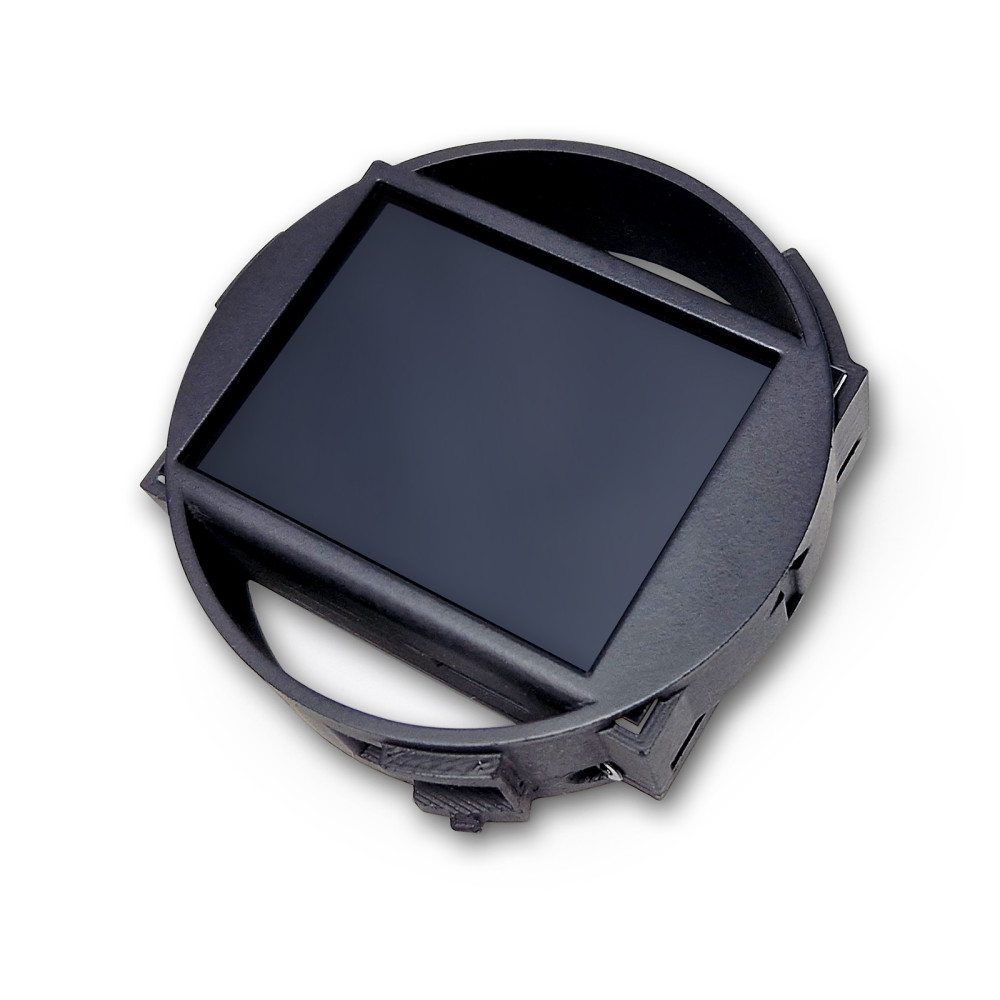

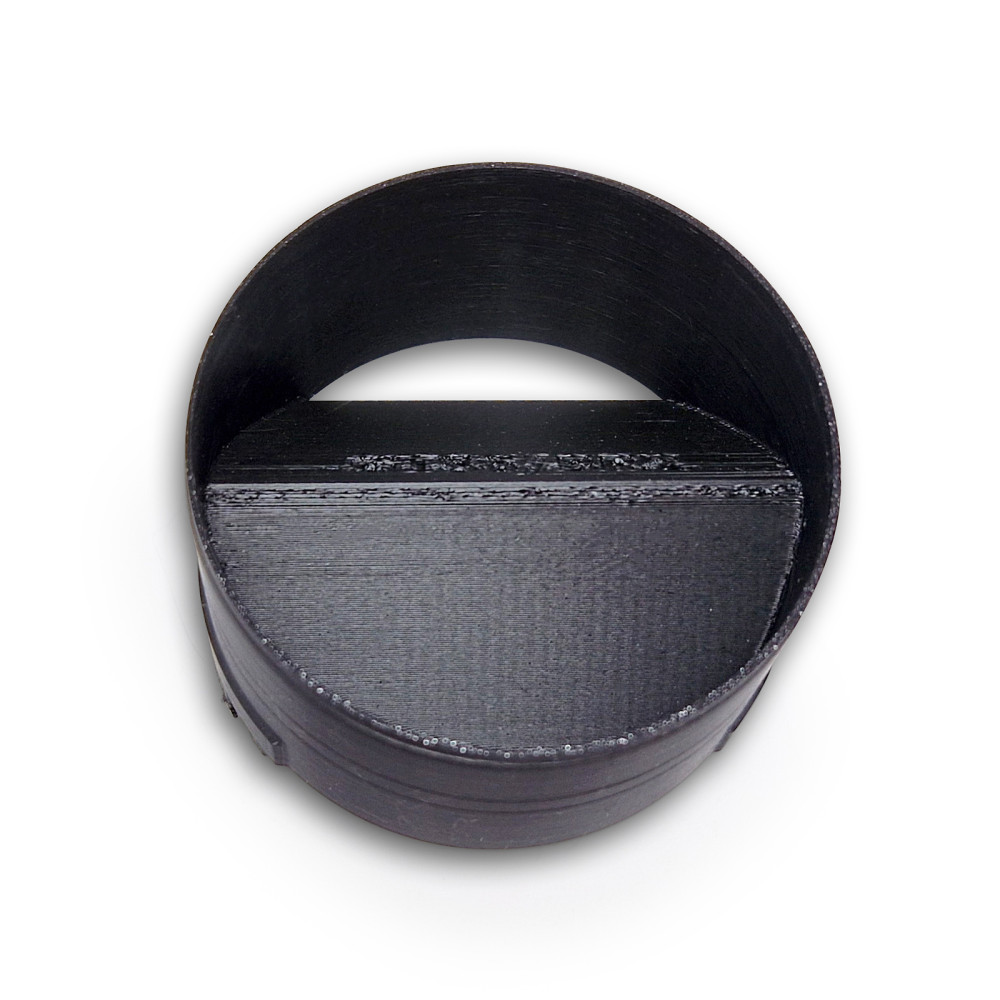

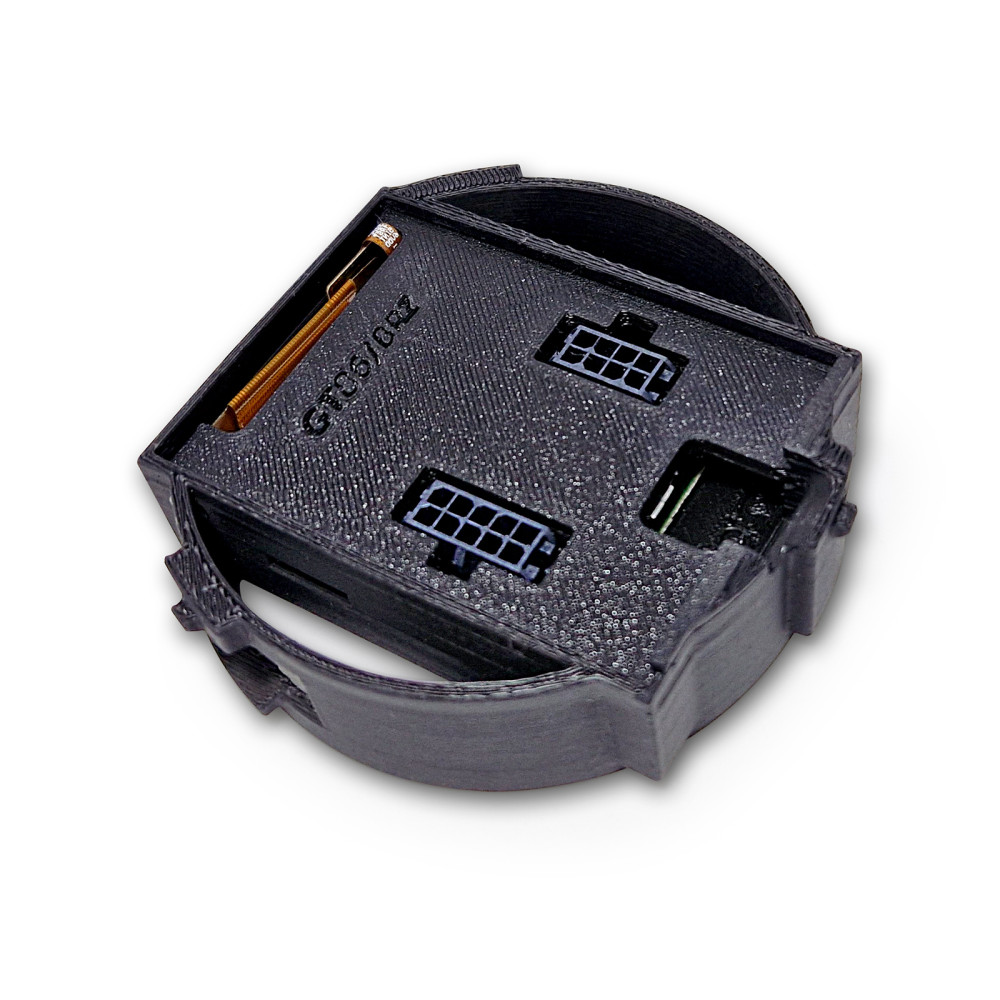

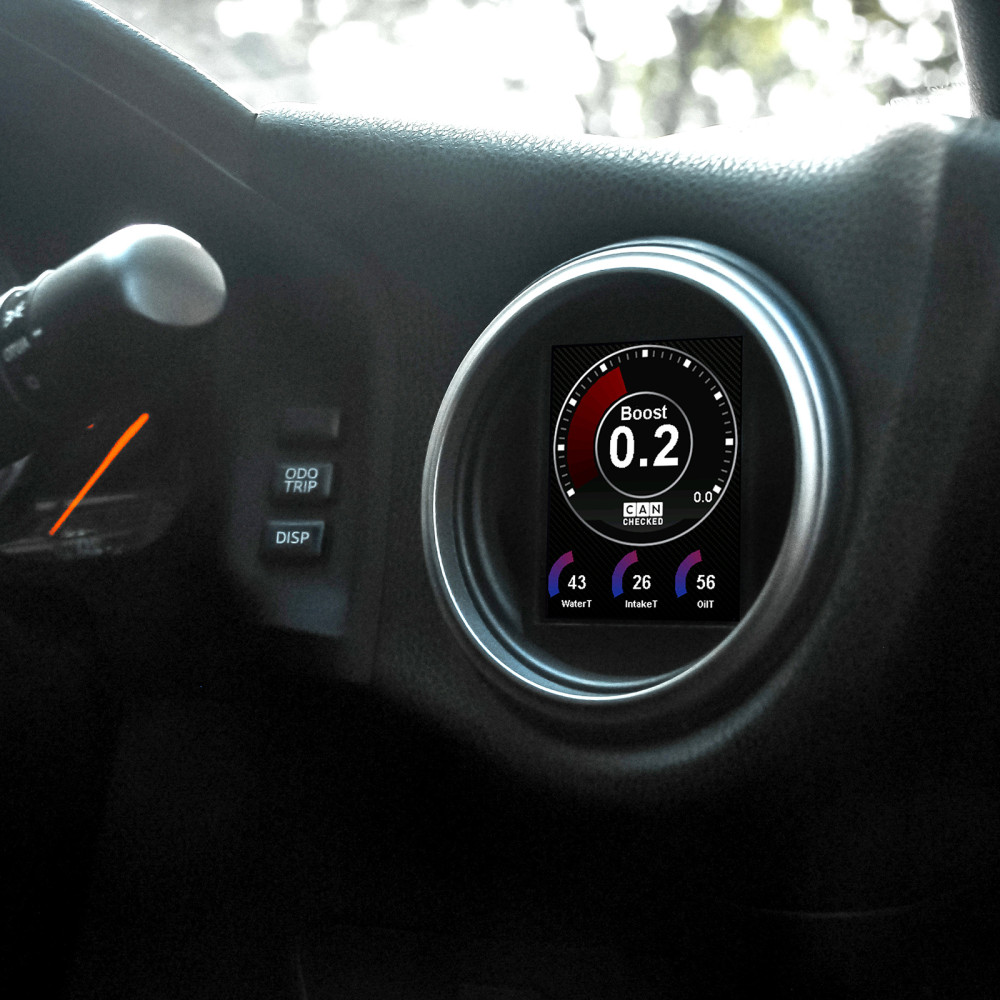

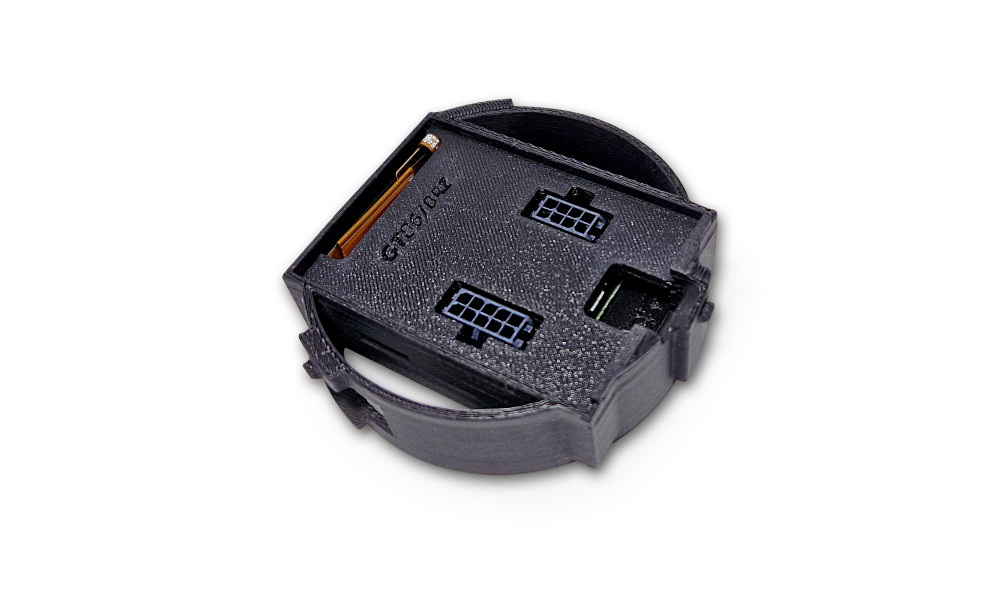

The MFD28 Gen2 replaces an air vent with a vehicle-specific display solution that keeps key vehicle data in your line of sight. The dedicated bezel is designed to retain airflow past the display. Installation is intended to be achievable without a workshop, with illustrated instructions available for most displays.
Key features
- Integrated fitment: Vehicle-specific bezel with continued vent airflow
- CAN Bus data: In-depth vehicle data readout (similar in scope to manufacturer diagnostic tools)
- Gear display: Via CAN Bus or calculated from vehicle speed and RPM
- Touchscreen control: Page navigation via swipe gestures
- Custom pages: Build your own layouts, add pictures, and set a start animation
- Sensor inputs: Up to 4 analog inputs plus a direct ethanol sensor input
- CAN switching: Use the display like a keypad to send custom CAN messages
- Configurable alarms: Set warning thresholds (e.g. prominent warning above 900° exhaust gas temperature)
- Data logging: Log to the internal SD card for later review
- Performance meter: 0–100, 100–200, and 0–200 measurements without additional hardware
- DTC functions*: Read and clear faults from ECU, transmission, ABS, and all-wheel drive
- Auto dimming*: Dims with the instrument panel
Display pages and layouts
- Supplied with predefined sample pages
- Create your own pages (up to 10 pages)
- 20 widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop positioning and scalable widgets
- Fully adjustable widget colours
- Up to 64 widgets per page
Display Setup Software (DSS)
The CANchecked DSS software is used to customize the display, download and view log files, and use the integrated CAN logger. The built-in TRI Editor lets you manage sensors (CAN Bus and internal), set min/max warning thresholds, and rename channels.
Supported data (examples)
Sensor availability varies by engine/ECU and protocol. The display supports CAN Bus data query (UDS, TP2, manufacturer-specific protocols) and K-Line query (ISO 9141). It ships with predefined TRI/TRX files that define the sensors being queried; additional values can be added later if needed.
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda / mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

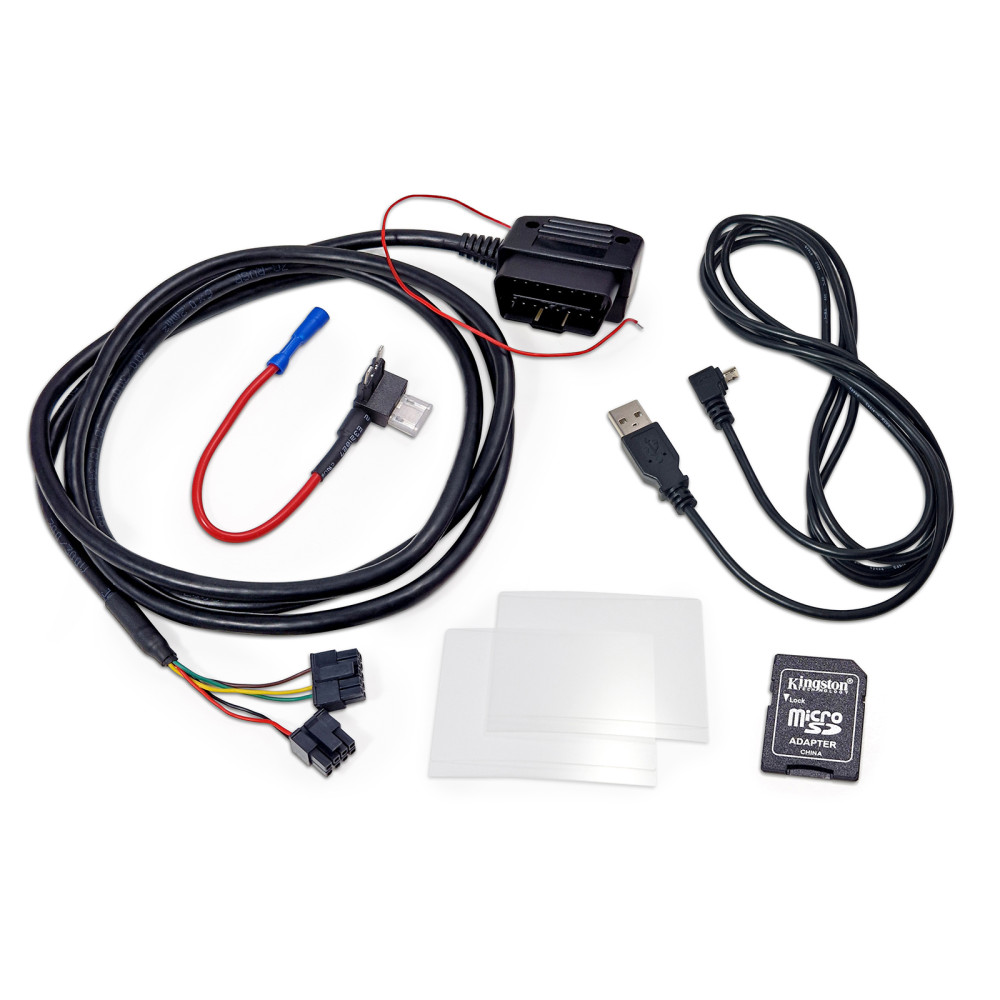

Scope of delivery
- MFD28 Gen2 data display integrated in the ventilation insert for RHD vehicles
- Vehicle-specific connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed)
- SD card adapter
- Anti-reflection display foil
Connection and expansion
External sensors can be connected via four analog inputs. Supported types include linear 0–5V and NTC sensors. CANchecked sensors are included in the TRI/TRX definitions by default and only need to be connected:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K exhaust gas temperature converter (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
A pre-assembled AIN wiring harness can be used for connection.
An external 8-LED shift light can also be connected, with colours and shift points configured directly on the display.
An ethanol sensor connects directly to the display. A 10k pull-up resistor between 5V and the signal is required to view and log ethanol content and temperature.
Advanced functions
- Math channels: Calculate channels using other sensors
- User table: Create additional sensors via 2D or 3D maps
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – temperature sensor for liquids, 1/8 inch NPT
- CC22903 TCC01 – type K converter, 0–1250°C
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)
* Not available on all protocols.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Subaru | BRZ | 2012 - 2020 | - |
| Subaru | GT86 | 2012 - 2020 | - |
| Toyota | BRZ | 2012 - 2020 | - |
| Toyota | GT86 | 2012 - 2020 | - |
