CANchecked MFD28 Gen2 for Nissan Patrol GYG1

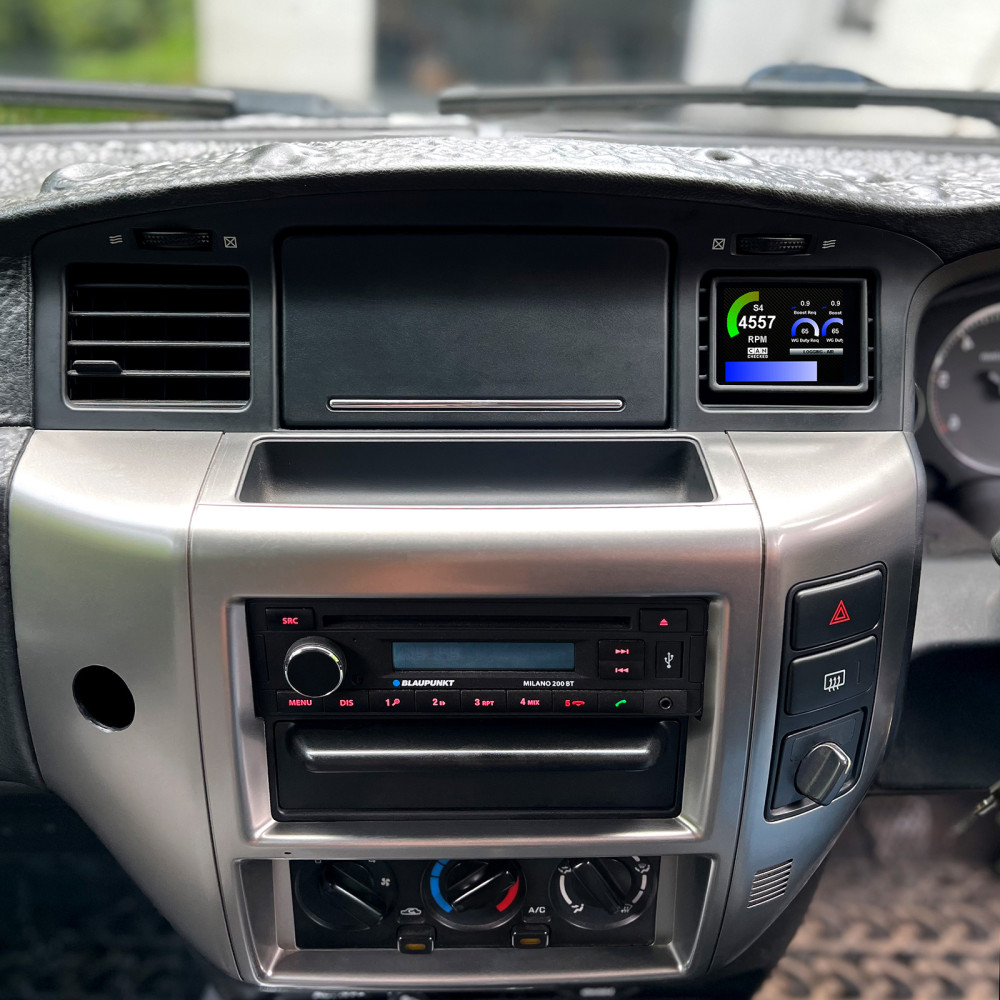

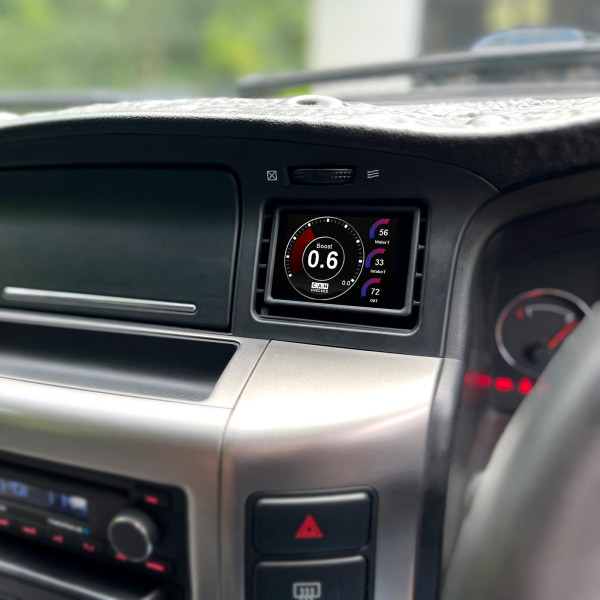

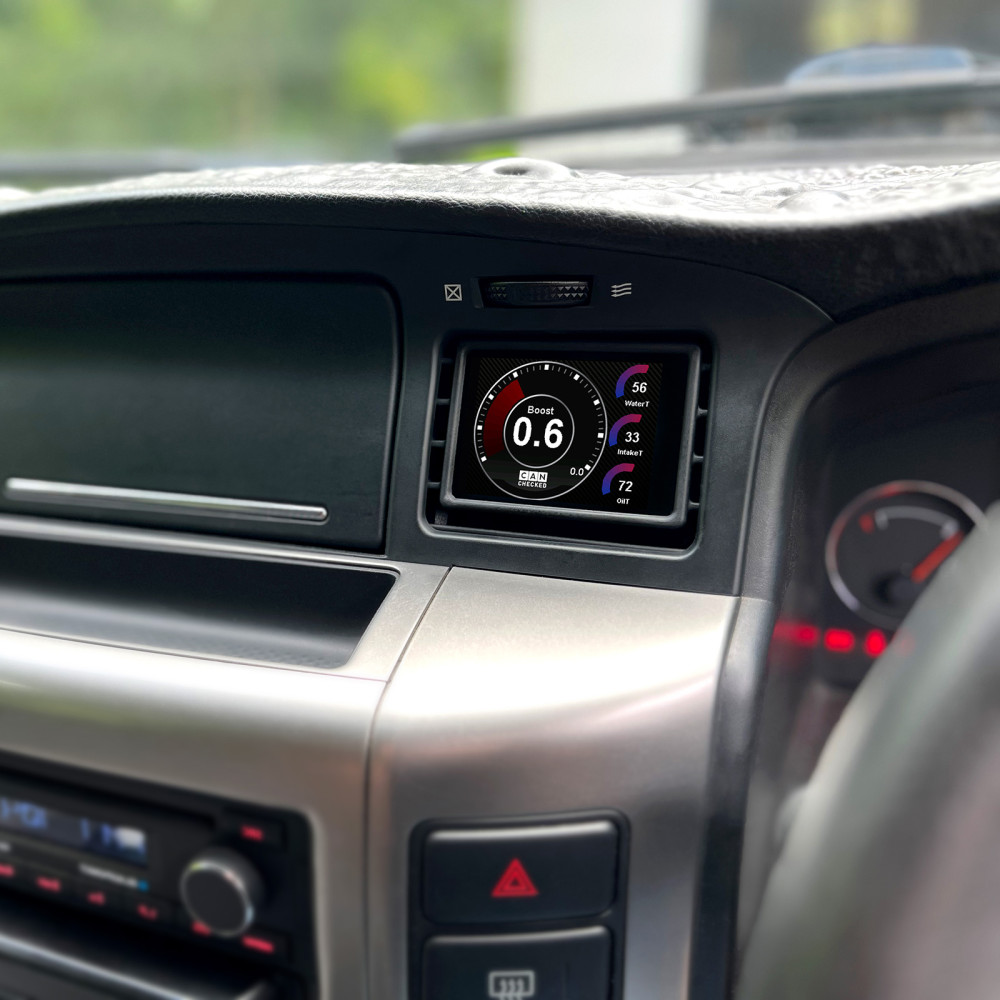

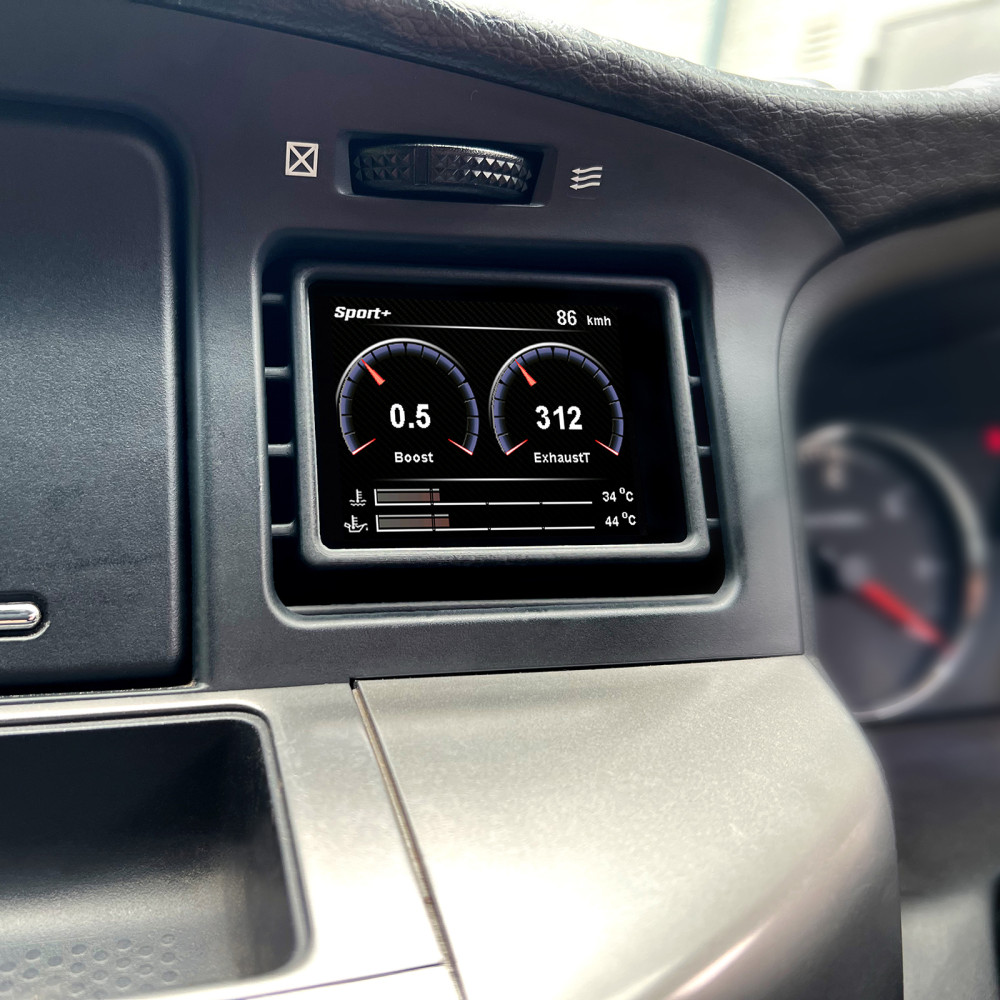

The vehicle-specific MFD28 Gen2 replaces an air vent with an integrated data display while still allowing airflow past the screen. Designed for straightforward installation, with illustrated instructions available for most displays.
Key features
- OEM-style integration: Vehicle-specific bezel with continued vent airflow
- CAN bus data: In-depth ECU data readout similar to manufacturer diagnostic tools
- Gear display: Via CAN bus or calculated from speed and RPM
- Touchscreen operation: Page navigation using swipe gestures
- Highly customizable: Build your own pages, add images, or use a start animation
- Extra inputs: Up to 4 analog inputs plus direct ethanol sensor input
- CAN switching: Use the display as a keypad and send your own CAN messages
- Configurable alarms: Set warning thresholds (e.g., EGT warning above 900°C)
- Data logging: Log to the internal SD card for later analysis
- Performance meter: 0–100, 100–200, and 0–200 timing without additional hardware
- DTC functions*: Read and clear faults from engine, transmission, ABS, and all-wheel drive
- Auto dimming*: Dims with the instrument panel
*Not available on all protocols.
Pages and layouts
Use the included sample pages or create your own:
- Up to 10 pages
- 20 widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Drag-and-drop placement with scalable widget sizing
- Fully adjustable widget colours
- Up to 64 widgets per page
Display setup and logging
With CANchecked DSS you can customize pages, manage sensors, and review logs. It includes a log viewer, a CAN logger, and a TRI Editor to rename sensors and set min/max warning values for CAN bus and internal/analog channels.
Supported ECU values
The display supports CAN bus data queries (UDS, TP2, manufacturer-specific protocols) and K-Line (ISO 9141). It is delivered with predefined TRI/TRX files; available sensors vary by engine and can be expanded later if values are missing.
Examples of available channels
Temperatures
- Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature
Pressures
- Boost pressure, ambient pressure, fuel pressure (pre-feed pump), rail pressure (actual/target)
Lambda/mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Other
- RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing (%), terminal 30 voltage, torque, gear, diesel-specific values

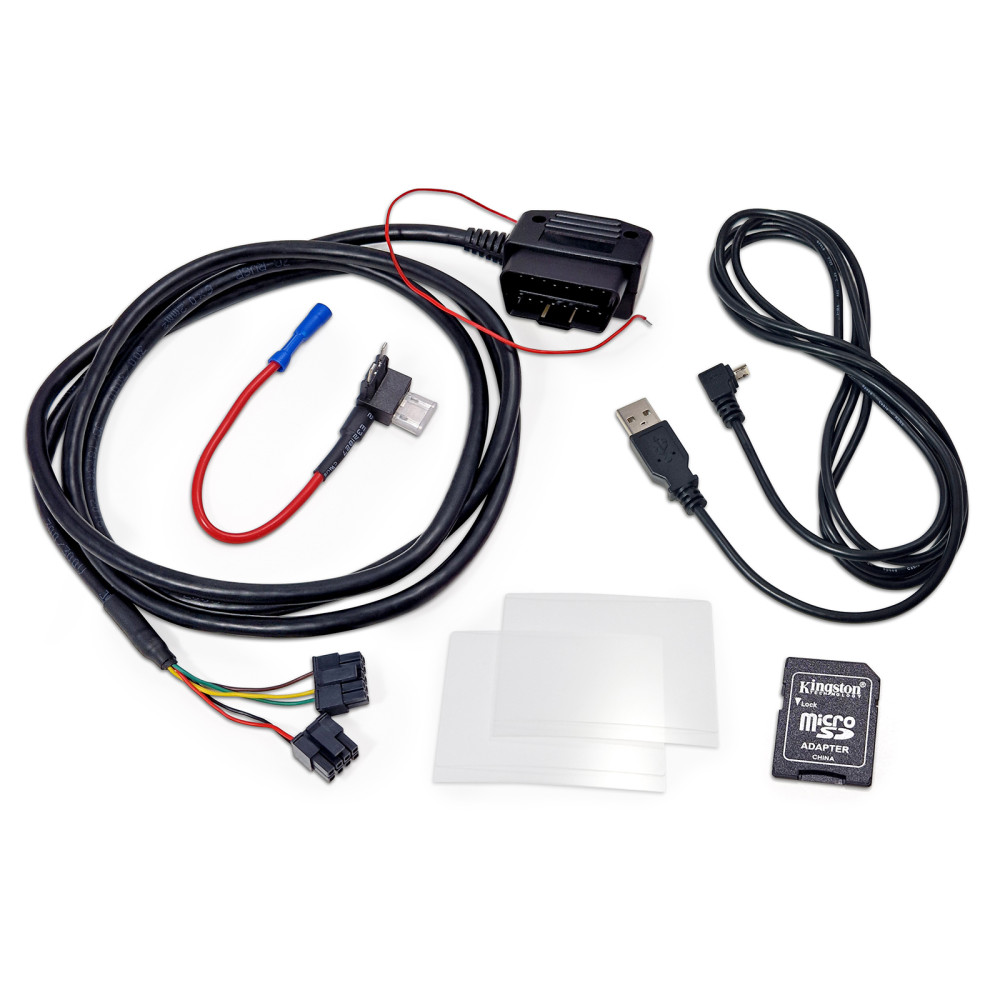

Scope of delivery

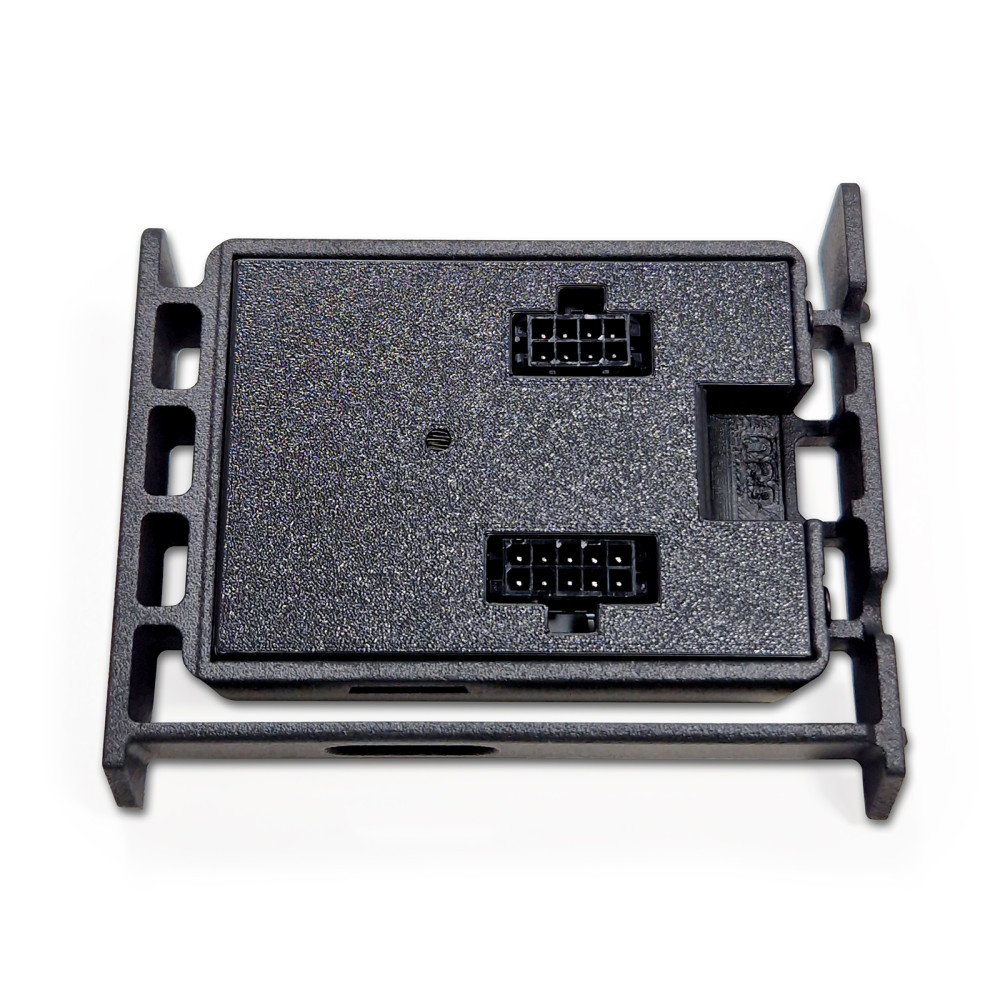

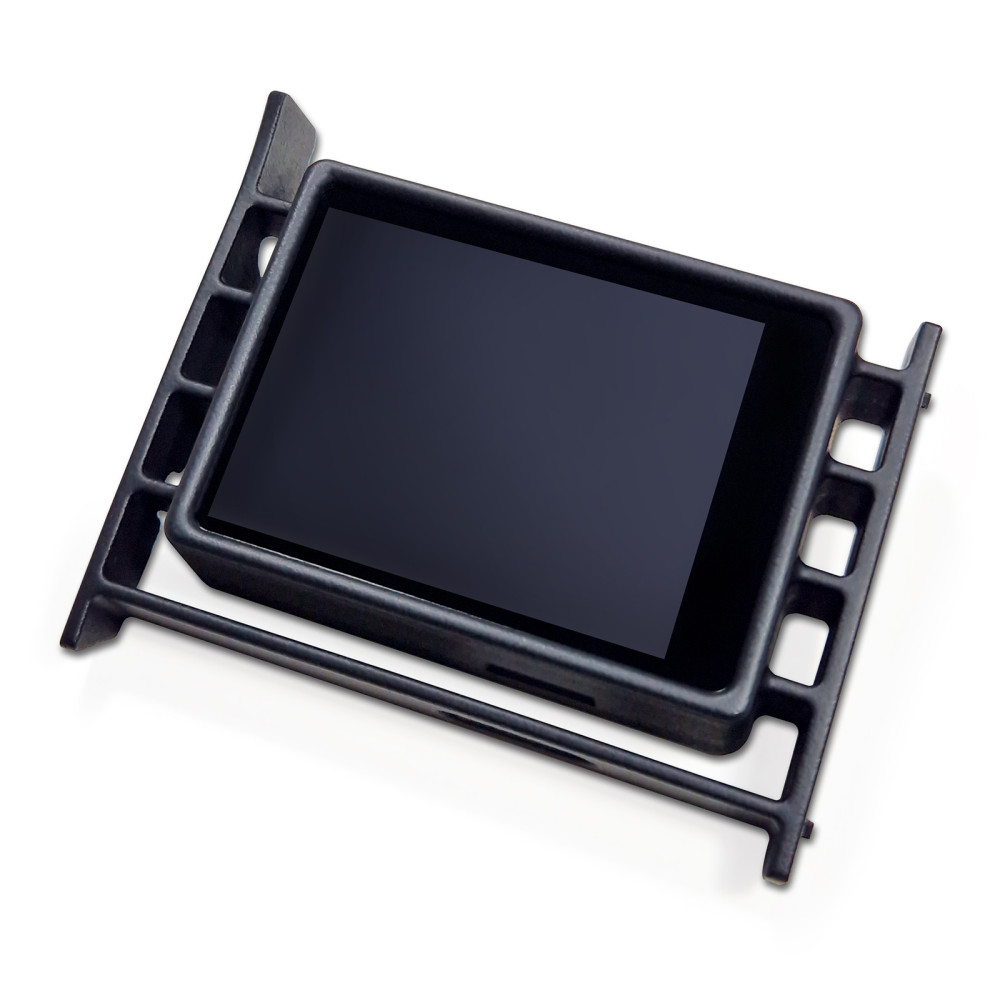

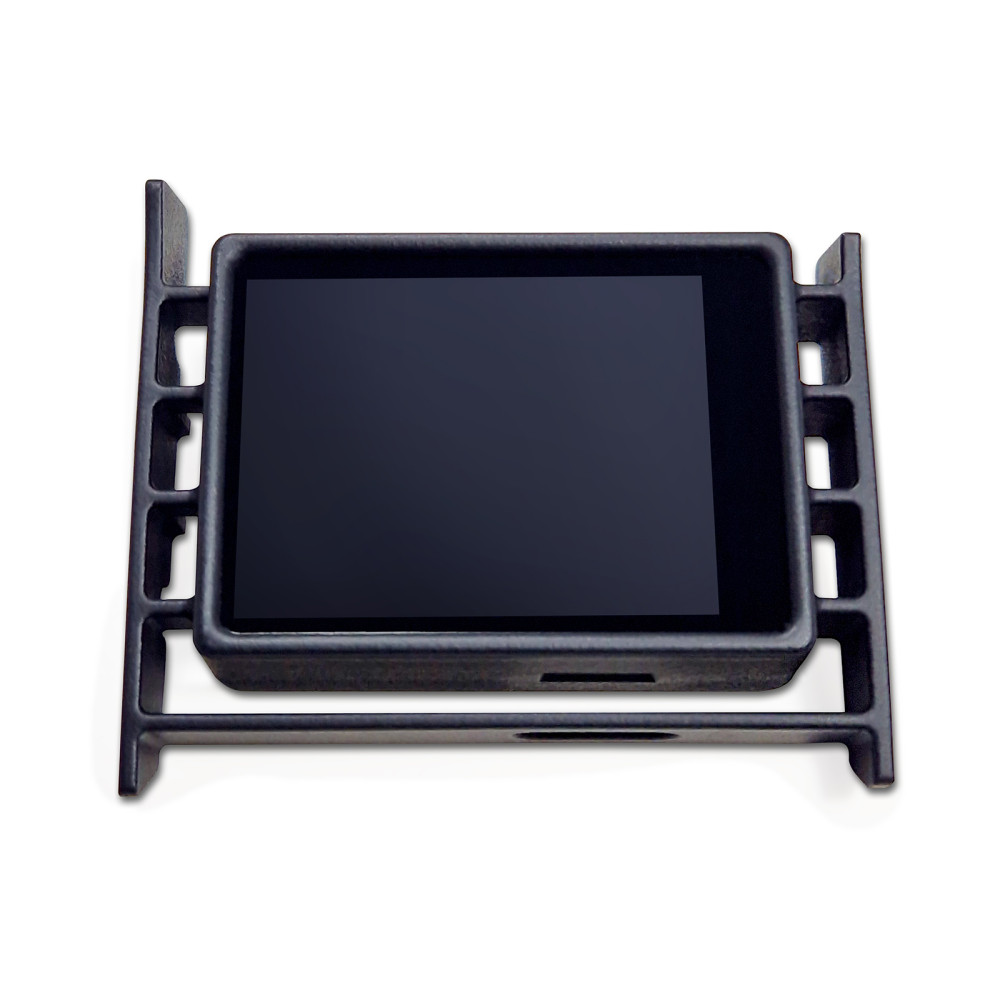

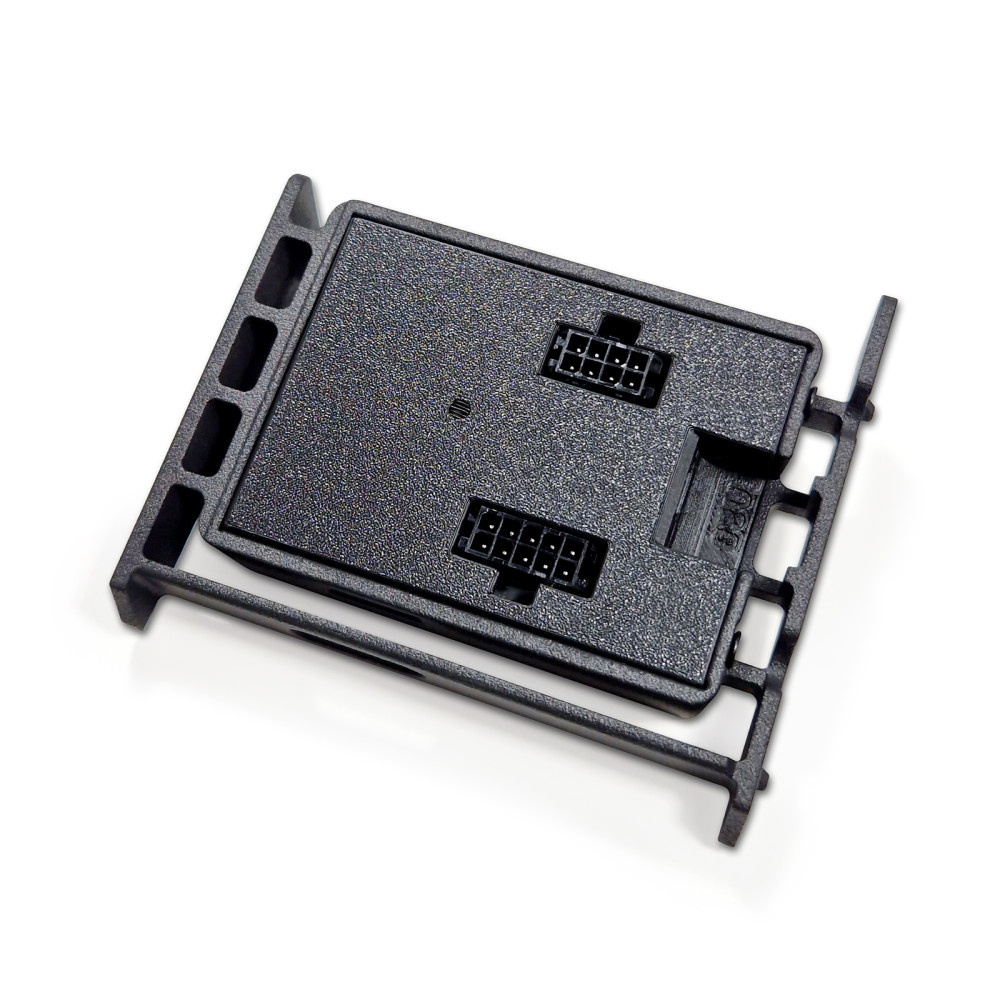

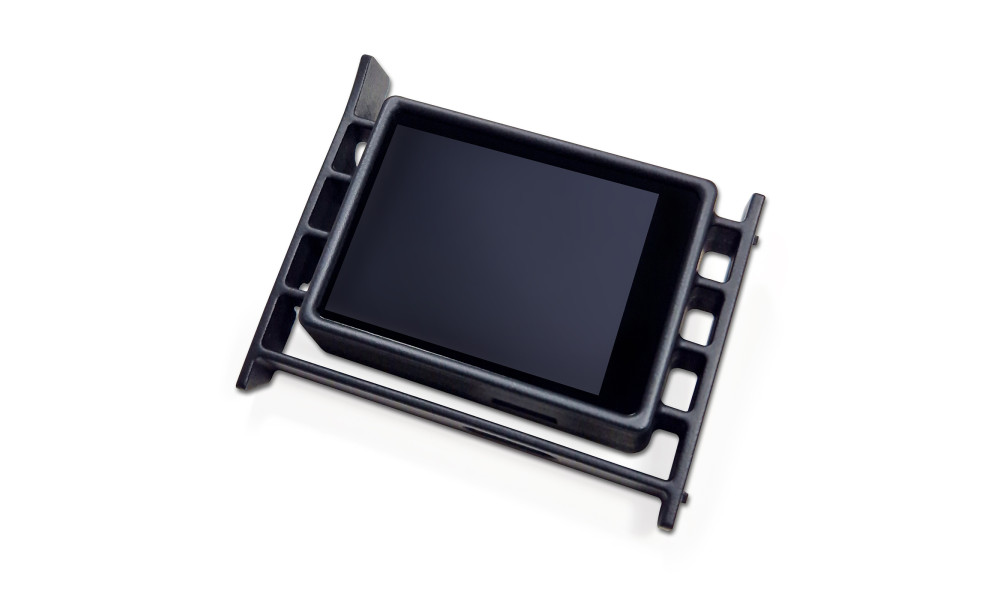

- MFD28 Gen2 data display integrated in the ventilation insert (RHD vehicles)
- Vehicle-specific connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Anti-reflection display foil
Connection and expansion
Four analog inputs support linear 0–5 V signals and NTC sensors. CANchecked in-house sensors are already defined in the TRI/TRX files and can be connected directly:
- AIN1: Temperature sensor (NTC01)
- AIN2: Type K exhaust gas temperature converter (TCC01)
- AIN3: Pressure sensor 0–10 bar (FLP01)
- AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
A pre-assembled AIN wiring harness can be used for connection.
You can also connect an external shift light with eight LEDs; flash colours and RPM limits are configured on the display.
An ethanol sensor can be connected directly. A 10 kΩ pull-up resistor is required between 5 V and the signal, enabling ethanol content and temperature display and logging.
Advanced functions
Math channels allow you to calculate new values from existing sensors. The User Table enables additional sensor generation using 2D or 3D maps.
Optional accessories
- CC24000 SLM08 – external switching lightning module
- CC22780 ANC04 – four-way AIN harness
- CC22100 CBD08 – eight-way CAN distribution hub
- CC22902 NTC01 – temperature sensor for liquids, 1/8 inch NPT
- CC22903 TCC01 – type K converter, 0–1250°C
- CC22901 FLP01 – pressure sensor 0–10 bar (145 psi), M10x1
- CC22900 BST01 – pressure sensor 0–5.5 bar absolute (80 psi)
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Nissan | Patrol | GYG1 | - |
CANchecked Display MFD28 Gen2 for Nissan Patrol GYG1 RHD 1997-2013
| Brand | Model | Generation | Engine |
|---|---|---|---|
| Nissan | Patrol | GYG1 | - |
