CANchecked MFD15 Gen2 CAN Display Kit (Renault Clio Mk4)

Vehicle-specific MFD15 Gen2 data display kit for the Renault Clio Mk4. The OLED screen remains easy to read in direct sunlight. Supplied with a model-specific bezel and connection kit. Operated via the two front push-buttons; an optional external rotary knob can be added.

Key features

• Compact size: 52 mm diameter, 12.5 mm depth
• Integrated front LED: configurable as shift light and/or warning LED
• CAN support: works with CAN ECUs, custom CAN streams, and OBD2 (11-bit/29-bit)
• WiFi configuration: connect via smartphone or PC using the web-based setup
• Analog inputs: up to 6 analog sensors; ethanol sensor input supported with additional license
• Alarms: preset alarms can be enabled and customized (e.g., EGT warning above 900°C)
• Personalization: custom startup image and color scheme
• Online logging: supported with additional license
• Flex fuel display: ethanol content and temperature with additional license
• CAN switching / AIN forwarding: supported with additional license

Display layouts

Select up to eight pages and tailor the layout to your needs:

• Analog pointer
• Single value
• Double value
• 4-fold values
• 6-fold values
• Gear indicator
• Round display
• Bar + double display
• Bar graph (double across)
• Performance meter
• Bar chart (1–6-fold upright)

WiFi setup with oDSS

The MFD15 Gen2 can be configured over WiFi using a smartphone or PC. With oDSS you can configure pages and sensors, upload a startup image, and update the device. Live logging in oDSS requires a license.

ECU / protocol support

Compatible with ISO 11898-2 and SAE J2284. Available values depend on what the ECU transmits over CAN; DBC files can be imported via DSS where available. Depending on manufacturer, up to 64 sensors can be queried.

OBD2 queries over CAN (11-bit/29-bit) are supported, as well as vehicle-specific protocols such as UDS and TP2.

Default implementations include:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

For VAG vehicles from model year 2008 (and in some cases older), in-depth protocol-based data can be displayed (e.g., oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle retard, high/low pressure, wastegate actuation).

Integrated LED (shift light / warning)

The internal LED can operate as a shift light or a warning LED.

• Shift light: up to 8 colors, RPM thresholds, and configurable flash point
• Warning LED: per-sensor min/max limits; flashes in the configured color when out of range (shift light is disabled during warnings)

Analog inputs and sensor support

Six analog inputs support linear 0–5 V and NTC sensors. CANchecked sensor curves are preloaded for plug-and-play use:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K EGT transducer (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
• AIN5: Not preconfigured
• AIN6: Not preconfigured

A pre-assembled 4-way AIN harness can be used for connection. With the appropriate license, an ethanol sensor can be connected directly via a separate pin.

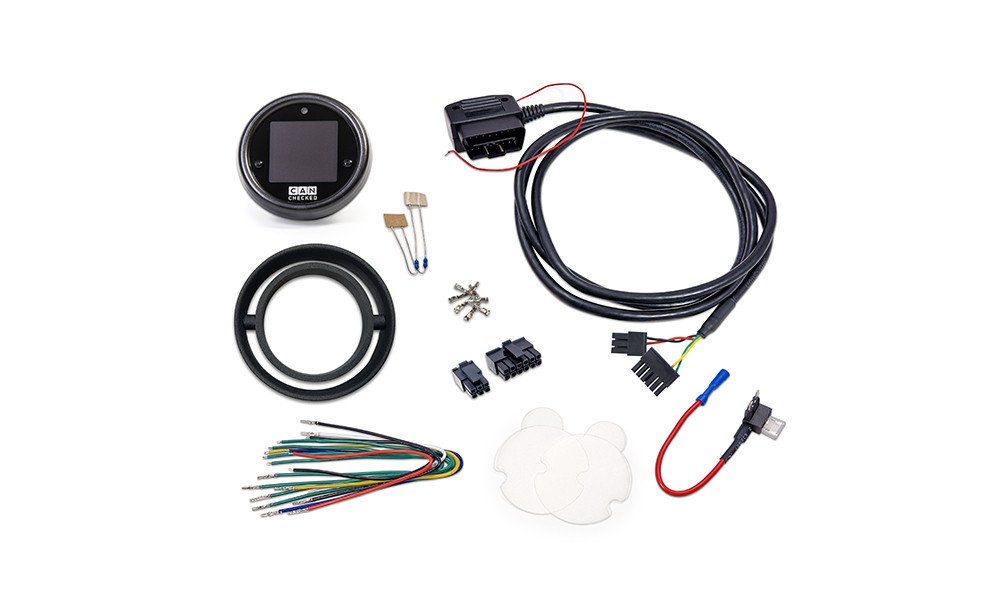

What’s included

• MFD15 Gen2 data display
• Vehicle-specific bezel (LHD & RHD)
• Vehicle-specific connection cable
• Quickstart guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Pre-assembled colored leads (20 cm) for power, CAN, analog inputs, 5 V, and sensor ground
• Crimp pins
• Two 1 kΩ resistors (NTC pull-up)

Optional accessories

• CC22501 ETK01: External rotary knob with PnP 50 cm cable
• CC22100 CBD08: 8-way CAN distribution hub
• CC22780 ANC04: 4-way AIN harness
• CC22902 NTC01: Liquid temperature sensor, 1/8" NPT
• CC22903 TCC01: Type K transducer, 0–1250°C
• CC22901 FLP01: Pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01: Pressure sensor 0–5.5 bar absolute (80 psi)

Additional licenses

Live logging

With the “Live Logging” license, sensor data can be logged into oDSS and downloaded to your smartphone or PC. For OBD and UDS, only the currently displayed sensors are logged.

Flex fuel (ethanol sensor)

With the ethanol sensor license, an ethanol sensor can be connected directly to the display. A 10 kΩ pull-up resistor is required between 5 V and signal. Ethanol content and fuel temperature can be displayed and logged.

CAN switching and AIN forwarding

With the CAN Switching / AIN forwarding license, the display buttons or rotary knob can be used to switch CAN switches, and analog input voltages can be forwarded onto the CAN bus.
