CANchecked MFD15 Gen2 CAN Data Display Kit for Renault Clio 3

This vehicle-specific MFD15 Gen2 kit puts key ECU and sensor data in your line of sight. The OLED screen stays readable even in direct sunlight. The kit includes a Renault Clio 3-specific bezel and connection harness, and is controlled via the two front push buttons (optional rotary knob supported).

Key features

• Compact size: 52 mm diameter, 12.5 mm depth
• Front LED: configurable as shift light and/or warning LED
• CAN support: CAN ECUs, custom CAN streams; OBD2 (11-bit/29-bit); supports vehicle-specific protocols such as UDS or TP2
• WiFi configuration: setup via smartphone or PC using the Web App / oDSS
• Analog inputs: up to 6 analog sensors (0–5 V linear or NTC); optional ethanol sensor connection via license
• Preset alarms: enable and customize predefined alerts (example given: EGT warning above 900°C)
• Customization: custom startup image and color scheme
• Online logging: log to smartphone/PC via oDSS (license required)
• Flex Fuel: display ethanol content and temperature (license required)
• CAN switching / AIN forwarding: switch CAN switches and forward analog input readings to CAN (license required)

Display pages (views)

You can configure up to eight pages from the available layouts:

• Analog pointer
• Double value
• Gear indicator
• 4-fold values
• 6-fold values
• Bar + double display
• Round display
• Bar graph (double across)
• Performance Meter
• Bar chart (1–6-fold upright)
• Single value

Setup and updates via oDSS (WiFi)

The MFD15 Gen2 can be accessed over WiFi for configuration using a smartphone or PC. With oDSS you can configure the display, upload a startup image, update the display, and log values (logging requires a license).

ECU / protocol support

The display is compatible with ISO 11898-2 and SAE J2284. Available ECU values depend on what the ECU transmits on CAN; documentation (including DBC files) may be required and can be imported via DSS. Depending on the manufacturer, up to 64 sensors can be queried.

OBD2 via CAN (11-bit/29-bit) is supported, and vehicle-specific protocols such as UDS and TP2 are available.

Included by default:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

If the required ECU is not listed, the appropriate TRI/TRX can be downloaded or requested from the database.

For VAG vehicles from model year 2008 (and in some cases older), in-depth protocol-based queries are available, including examples such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, and wastegate actuation.

Integrated LED (shift light / warning)

The internal LED can be configured as a shift light or a warning LED.

• Shift light: up to 8 colors, configurable RPM thresholds, and flash point
• Warning LED: assign min/max limits per sensor; LED flashes in the configured color when out of range (shift light is disabled during warnings)

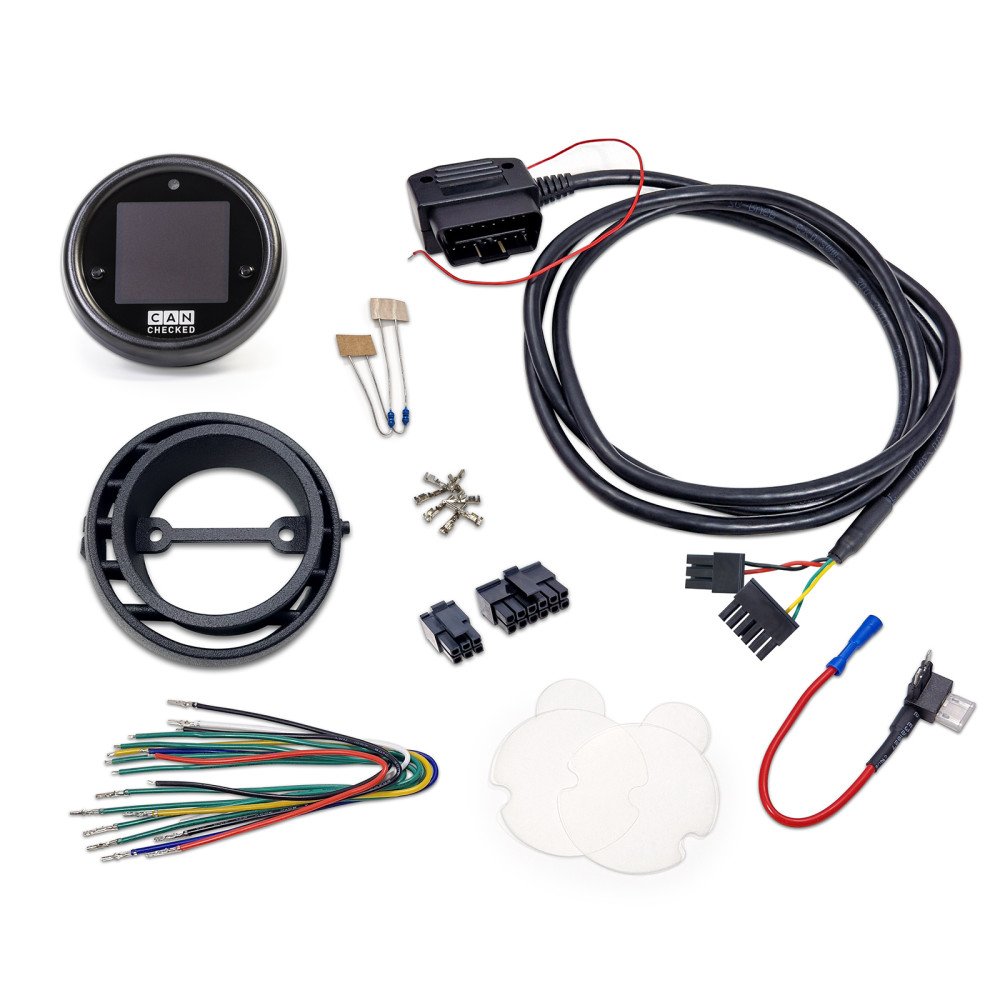

What’s included

• MFD15 Gen2 data display

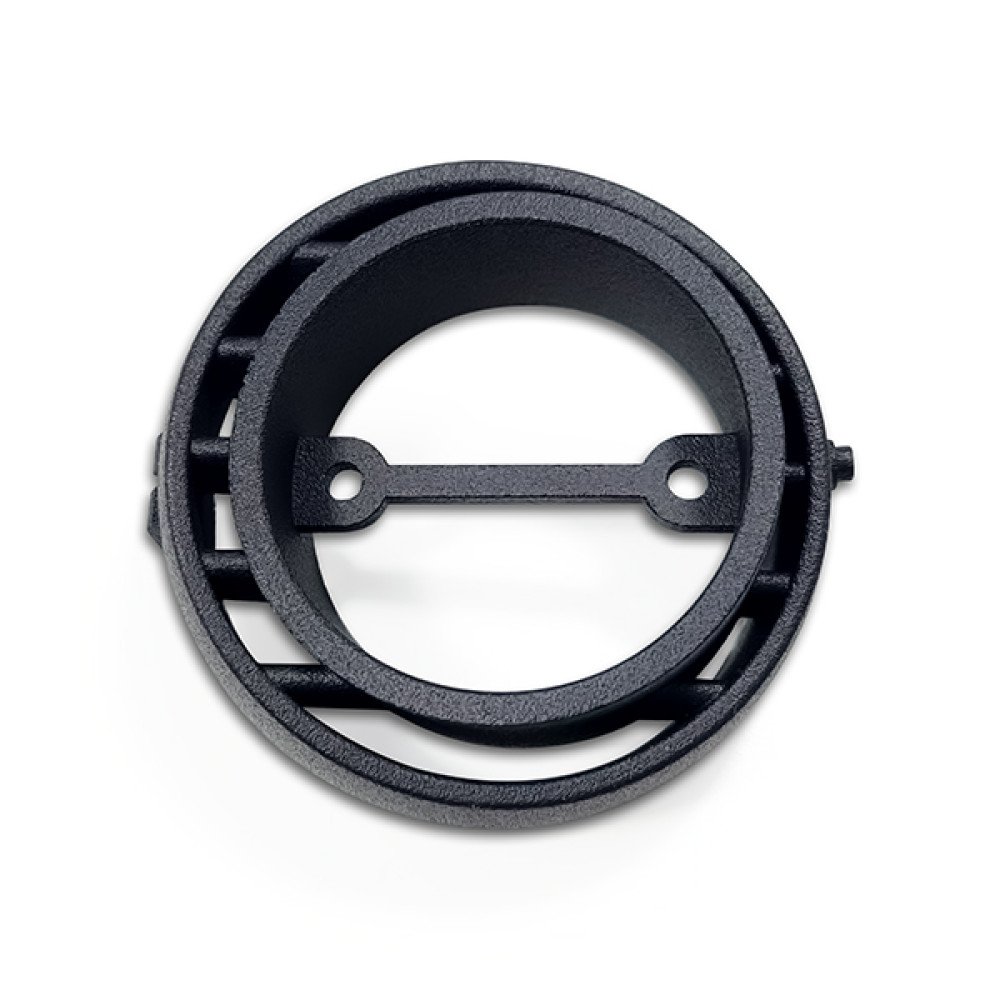

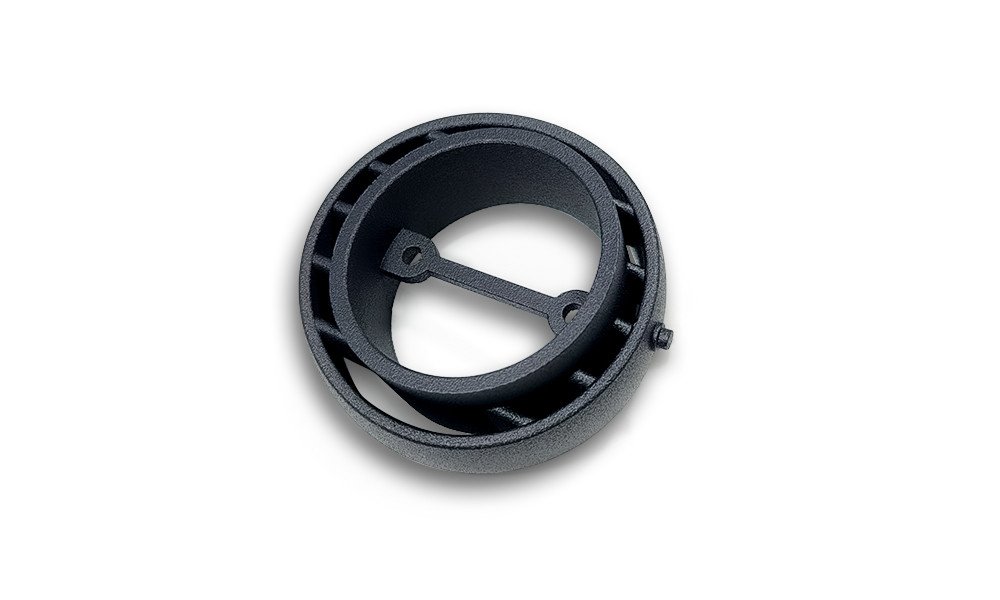

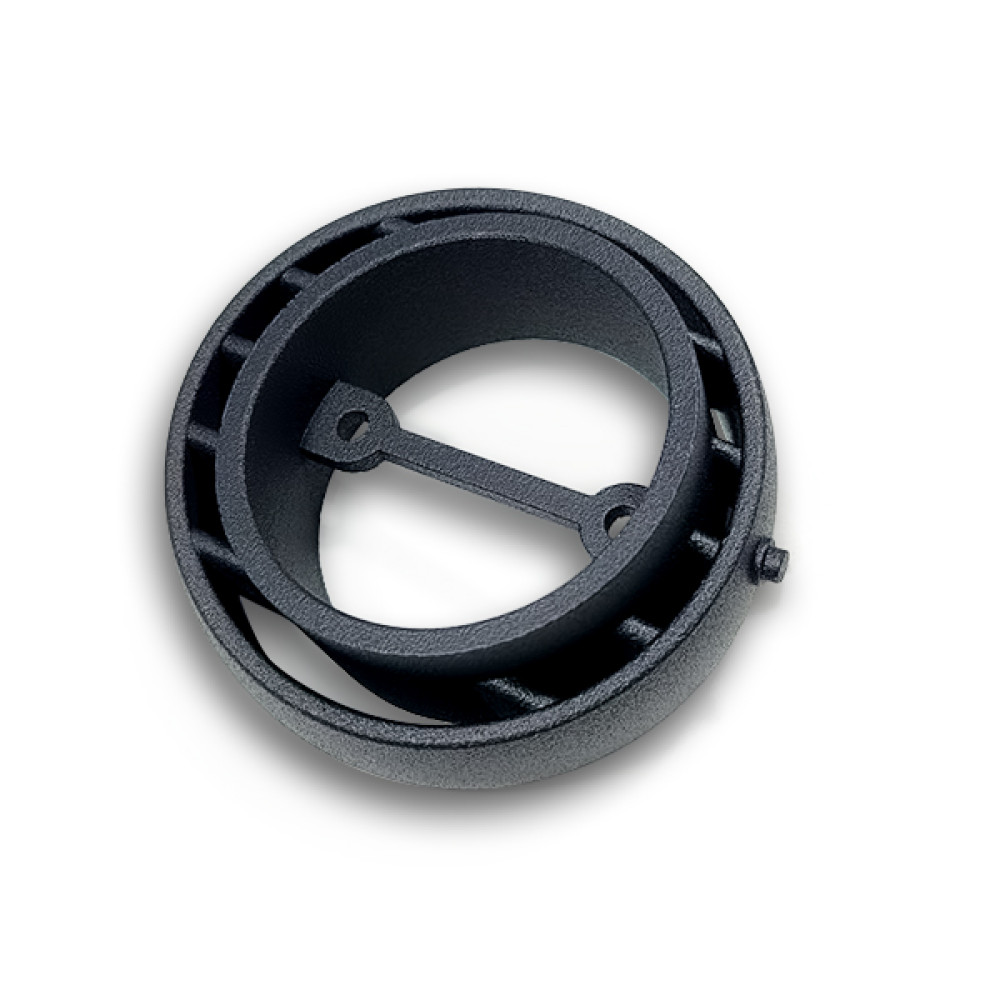

• Vehicle-specific bezel for LHD vehicles
• Vehicle-specific connection cable
• Quickstart guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Pre-assembled connection leads (20 cm) for power, CAN, analog inputs, 5 V, sensor ground
• Crimp pins
• Two 1K resistors (NTC pull-up)

Analog input support and sensor presets

Six analog inputs support linear 0–5 V sensors and NTC sensors. CANchecked sensor characteristic curves are stored on the display from the factory for plug-and-play use:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K EGT transducer (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
• AIN5: Not preconfigured
• AIN6: Not preconfigured

A pre-assembled 4-way AIN harness can be used for connection. With the appropriate license, an ethanol sensor can also be connected directly to the display via a separate pin.

Optional accessories

• CC22501 ETK01: External rotary knob with PnP 50 cm connection cable
• CC22100 CBD08: Eight-way CAN distribution hub
• CC22780 ANC04: Four-way AIN harness
• CC22902 NTC01: Temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01: Type K transducer, 0–1250°C
• CC22901 FLP01: Pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01: Pressure sensor 0–5.5 bar absolute (80 psi)

Additional licenses

Live Logging

With the “Live Logging” license, the display can log sensor data into oDSS and you can download the log file to a smartphone or PC. All sensors are logged, but for OBD and UDS only the currently displayed sensors are logged.

Flex Fuel ethanol sensor (direct to MFD15 Gen2)

With the ethanol sensor license, the sensor can be connected directly to the display. A 10K pull-up resistor between 5V and the signal is required. Ethanol content and fuel temperature can be displayed and logged.

CAN switching and AIN forwarding

With the CAN Switching / AIN Forwarding license, the display buttons or the rotary knob can be used to switch CAN switches and to apply analog input voltages to the CAN bus.
