CANchecked MFD15 Gen2 CAN Data Display Kit for Mini Cooper R55/R56/R57/R58/R59 (MK2)

The CANchecked MFD15 Gen2 is a compact OLED data display designed to keep key engine and vehicle parameters in view with excellent readability, including in direct sunlight. This Mini-specific kit includes a vehicle-specific bezel and connection cable set. Operation is via two faceplate push buttons, with support for an optional external rotary knob.

Key features

• Compact packaging: 52 mm diameter, 12.5 mm depth
• Integrated front LED: configurable as shift light and/or warning LED
• CAN capability: supports CAN bus ECUs, custom CAN streams, OBD2 via CAN (11-bit/29-bit), plus additional protocols (UDS, TP2)
• WiFi setup: configure via smartphone or PC using the oDSS web-based setup
• Analog inputs: up to 6 analog sensors (linear 0–5 V and NTC supported); optional direct ethanol sensor connection with license
• Alarms: preset alarms can be enabled and customized (example given: EGT alert above 900 degrees)
• Personalization: custom startup image and color scheme
• Optional online logging (license): log to oDSS via smartphone/PC and save for analysis
• Optional Flex Fuel (license): display ethanol content and temperature
• Optional CAN switching/AIN forwarding (license): switch CAN functions via display buttons/rotary knob and forward analog input readings onto CAN

Display pages and layouts

Select up to eight pages and configure the layout to suit your setup. Available views include:

• Analog pointer
• Single value
• Double value
• 4-fold values
• 6-fold values
• Gear indicator
• Bar + double display
• Round display
• Bar graph (double across)
• Performance meter
• Bar chart (1–6-fold upright)

WiFi configuration with oDSS

The MFD15 Gen2 can be accessed over WiFi for setup via smartphone or PC. oDSS allows full display configuration, firmware updates, startup image upload, and data logging (license required).

ECU/CAN and supported data sources

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284. Available values depend on what your ECU transmits on CAN; documentation (including DBC files) can be used for setup. Depending on manufacturer, up to 64 sensors can be queried.

OBD2 queries over CAN (11-bit/29-bit) are supported, along with vehicle-specific protocols such as UDS and TP2.

Default included profiles:

• OBD2 (11-bit and 29-bit)
• Ecumaster (Classic and Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 and 3

If a specific ECU is not listed, the appropriate TRI/TRX can be downloaded or requested from the CANchecked database.

For VAG vehicles from model year 2008 (in some cases older), protocol-based in-depth queries are available for values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, wastegate actuation, and more.

Integrated LED functions

The internal LED can be configured as:

• Shift light: up to 8 different colors, RPM limits, and a configurable flash point
• Warning LED: per-sensor minimum/maximum thresholds with flashing in the configured color; shift light is disabled during warning

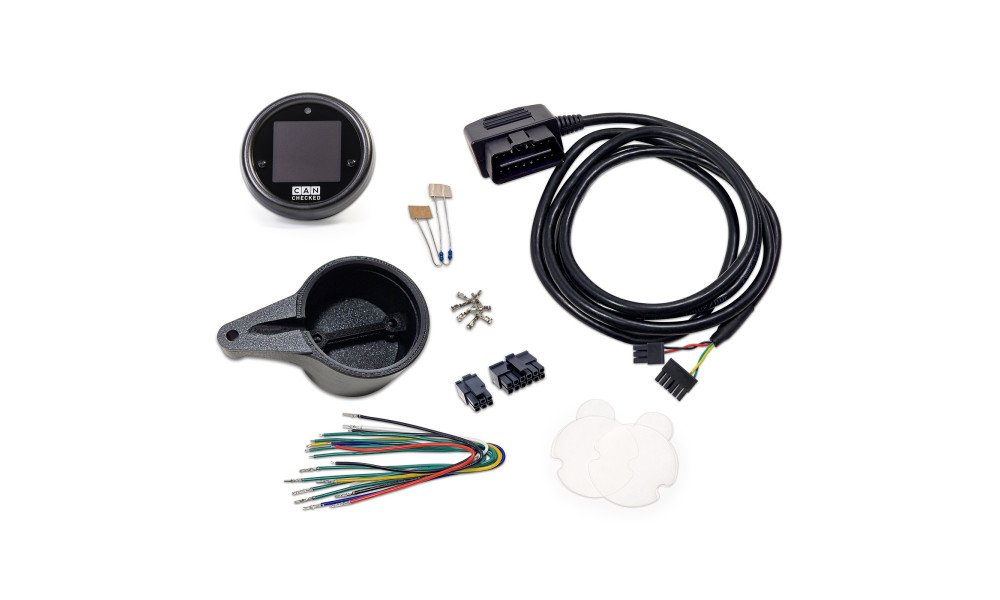

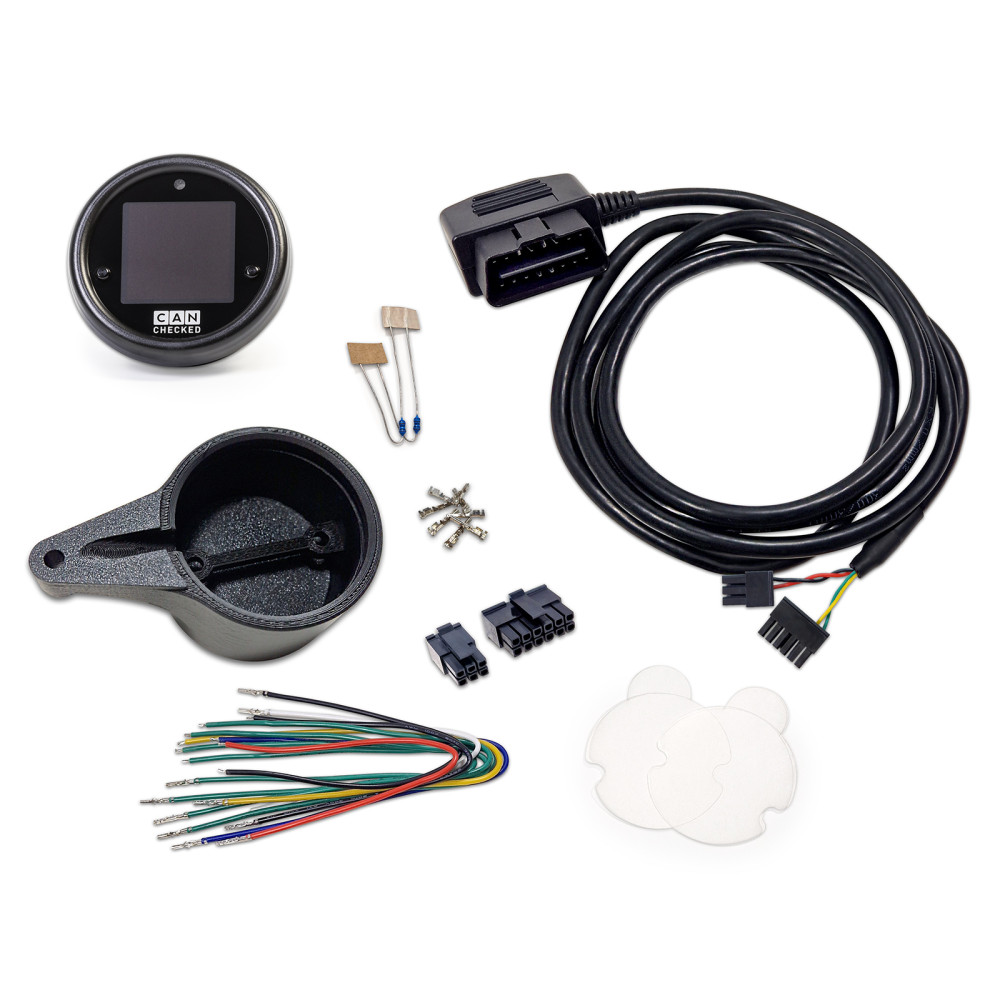

What’s included

• MFD15 Gen2 data display

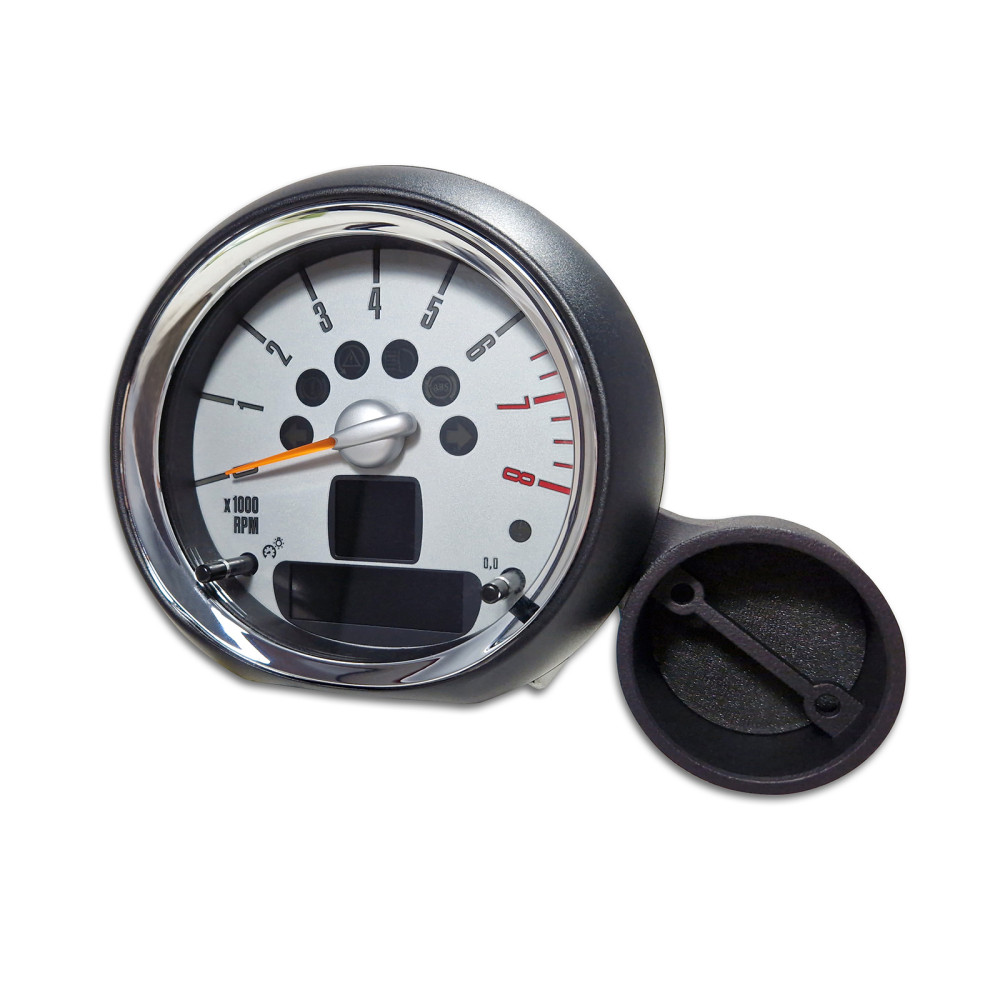

• Vehicle-specific bezel (LHD & RHD)
• Vehicle-specific connection cable
• Quickstart guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Pre-assembled connection leads (20 cm) for power, CAN bus, analog inputs, 5 V, sensor ground
• Crimp pins
• Two 1 kΩ resistors (NTC pull-up)

Analog inputs and sensor support

Six analog inputs support linear 0–5 V and NTC sensors. CANchecked sensor curves are preloaded for plug-and-play use on the following inputs:

• AIN1: Temperature sensor (NTC01)
• AIN2: Type K thermocouple transducer for EGT (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost pressure sensor 0–5.5 bar absolute (BST01)
• AIN5: Not preconfigured
• AIN6: Not preconfigured

A pre-assembled 4-way AIN harness can be used for connection. With the appropriate license, an ethanol sensor can also be connected directly to the display via a separate pin.

Optional accessories

• CC22501 ETK01: External rotary knob with PnP 50 cm connection cable
• CC22100 CBD08: Eight-way CAN distribution hub
• CC22780 ANC04: Four-way AIN harness
• CC22902 NTC01: Temperature sensor for liquids, 1/8 inch NPT
• CC22903 TCC01: Type K transducer, 0–1250°C
• CC22901 FLP01: Pressure sensor 0–10 bar (145 psi), M10x1
• CC22900 BST01: Pressure sensor 0–5.5 bar absolute (80 psi)

Additional licenses

Live Logging

With the “Live Logging” license, the display can log sensor data into oDSS and the log can be downloaded to your smartphone or PC. For OBD and UDS, only the currently displayed sensors are logged.

Flex Fuel (ethanol sensor)

With the ethanol sensor license, the sensor connects directly to the display. A 10 kΩ pull-up resistor is required between 5 V and the signal. Ethanol content, fuel temperature, and logging are supported.

CAN switching and AIN forwarding

With the CAN Switching/AIN Forwarding license, the display buttons or rotary knob can switch CAN functions and forward analog input voltages to the CAN bus.
