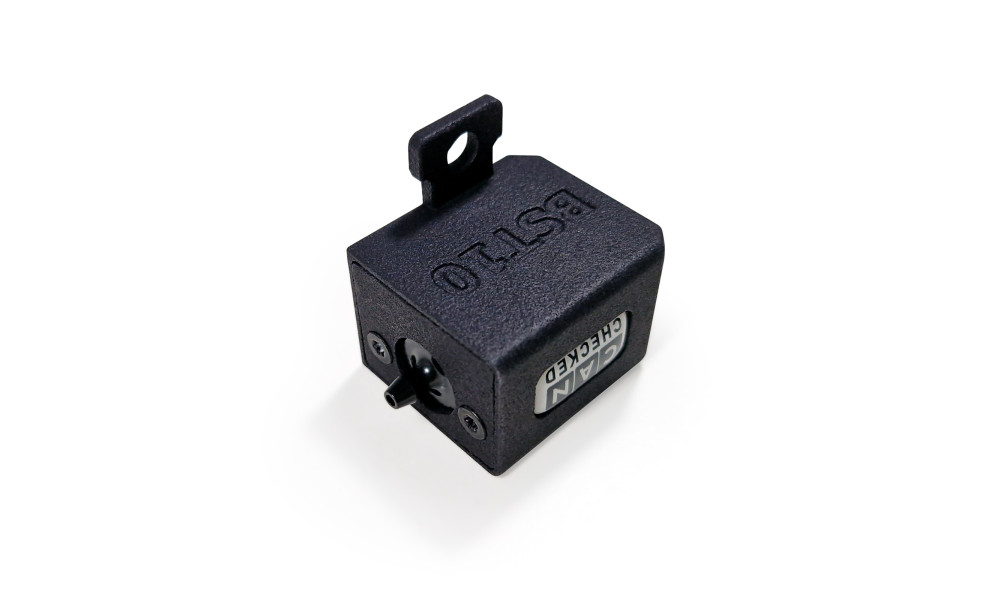

Boost Sensor BST10
The BST10 Boost Sensor is designed to display boost pressure directly on a CANchecked data display when connected to the AIN4 input using the ANC04 plug-and-play wiring harness (CC22780). It can also be wired directly to a programmable ECU.

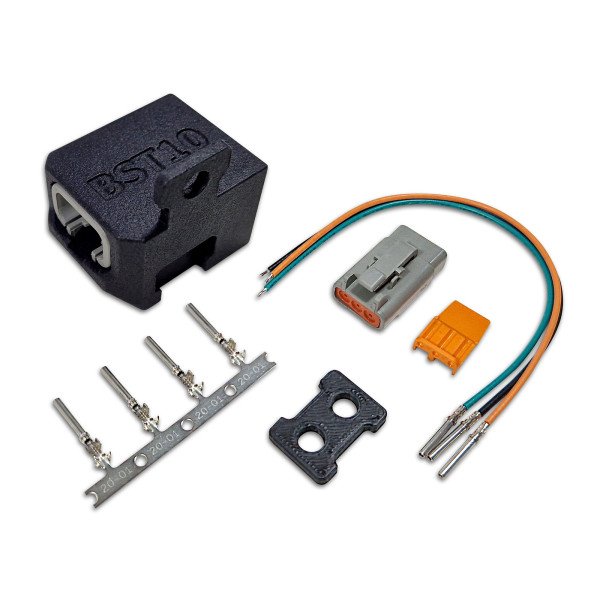

Included Accessories
- Sensor
- DTM 06-3S connector
- 4 pins for crimping
- Wedgelock
- Adapter piece
Sensor Calibration
Absolute Pressure Characteristic
| Voltage | Pressure (kPa) | Pressure (bar) | Pressure (psi) |
|---|---|---|---|
| 0V | -31.11 | -0.31 | -4.51 |
| 5V | 746.67 | 7.47 | 108.3 |
Relative Pressure Characteristic
| Voltage | Pressure (kPa) | Pressure (bar) | Pressure (psi) |
|---|---|---|---|
| 0V | -131.11 | -1.31 | -18.99 |
| 5V | 646.67 | 6.47 | 93.8 |
Universal Part: This product fits multiple vehicles (universal application).
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
CANchecked
CANchecked is a German manufacturer of CAN bus digital displays for motorsport and performance vehicles, offering real-time visualization of critical engine data.
Their vehicle-specific plug-and-play displays show boost pressure, oil temperature, lambda, EGT, and more via CAN bus or analog inputs.
Official page: www.canchecked.de
Their vehicle-specific plug-and-play displays show boost pressure, oil temperature, lambda, EGT, and more via CAN bus or analog inputs.
Official page: www.canchecked.de
CANchecked BST10 Boost Sensor 6.5bar (95psi) -relative
98.36€
97.38€
Excl. VAT: 80.48€
