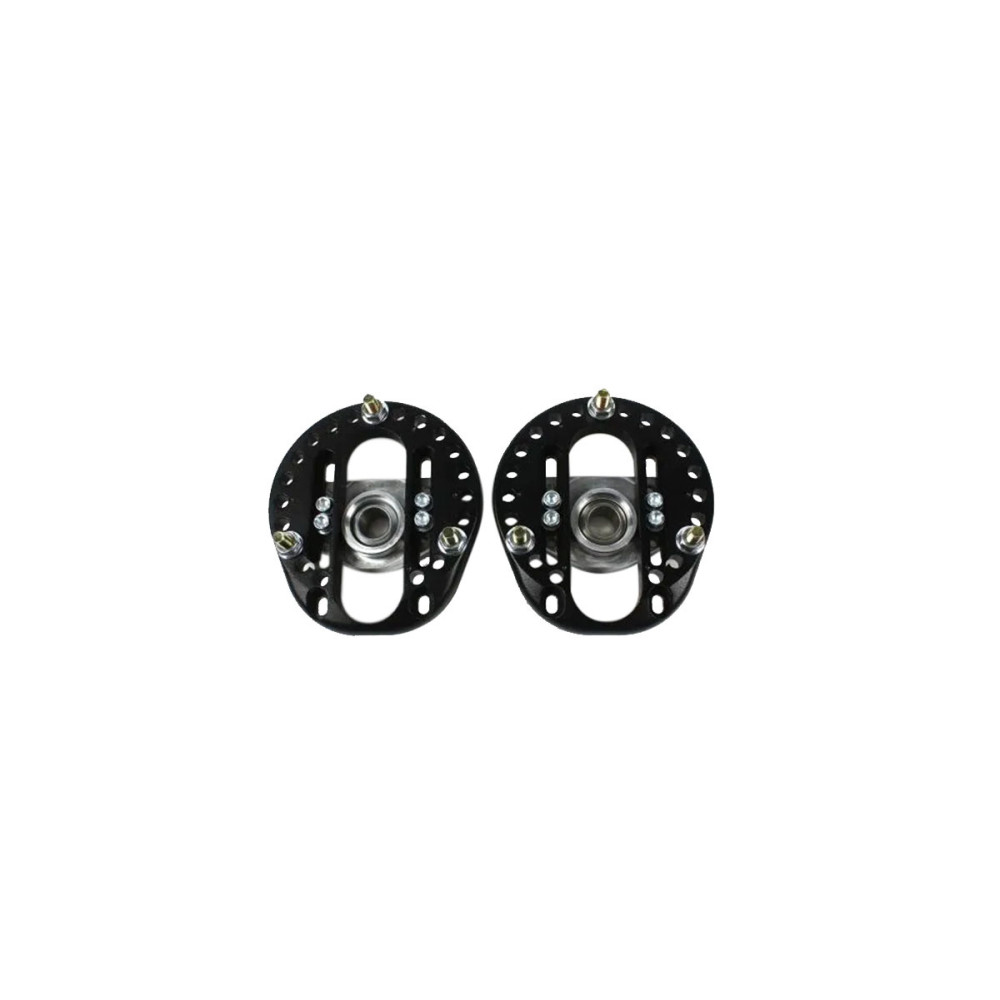

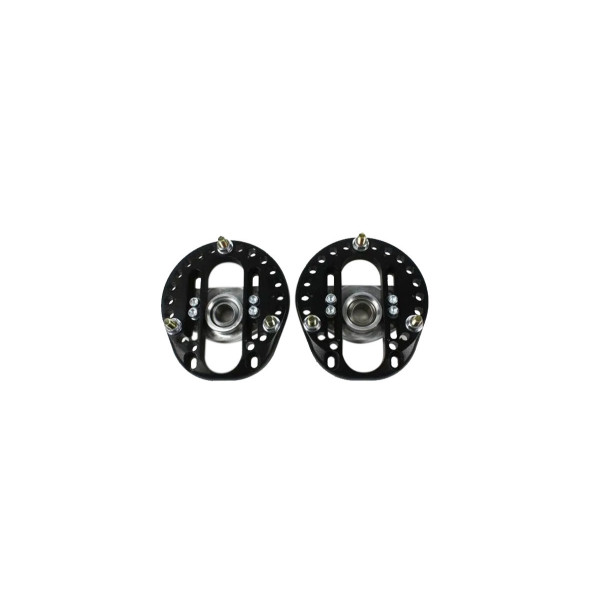

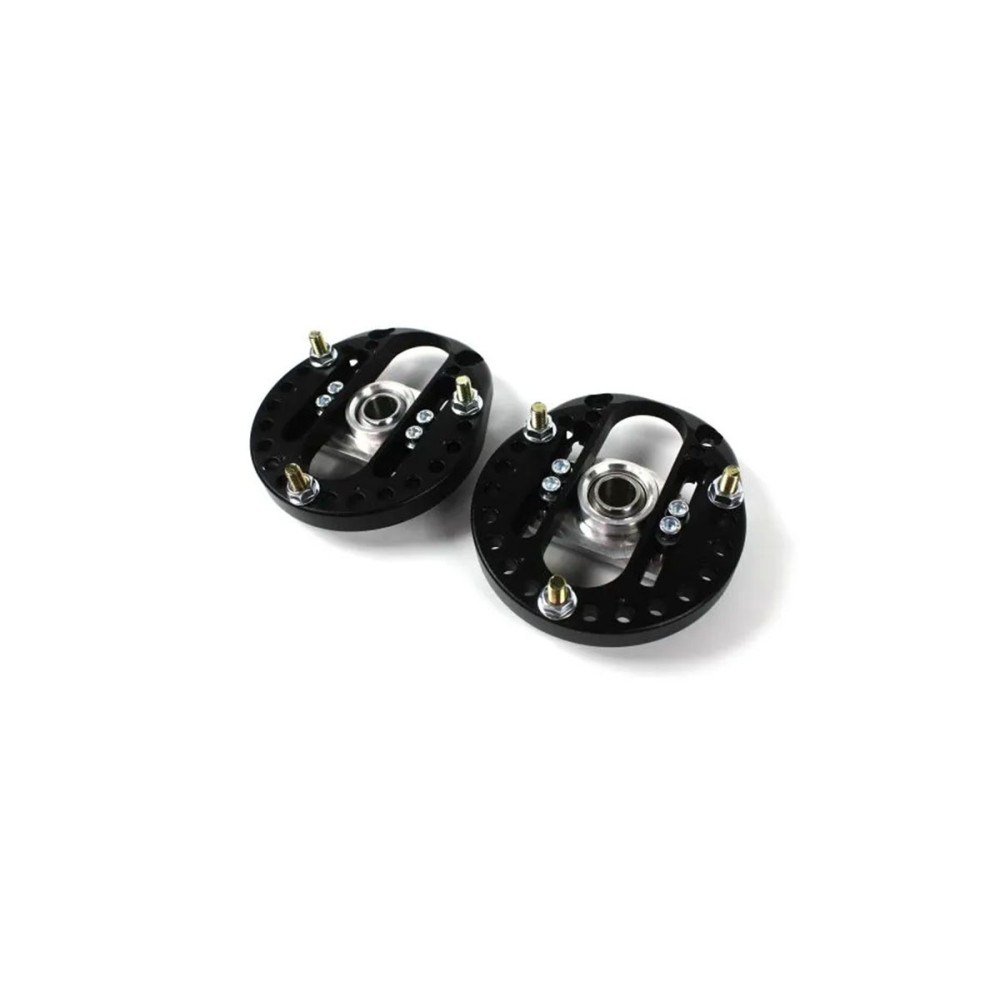

We offer a set of two pieces of CAMBER PLATES 3D with EXTENDED tilt range for the BMW E30 E36 E46 E38 E39 E90 E92 car. This set is specially designed to install front camber adjustment and KWSZ adjustment in the car. Thanks to this possibility, the car's steering can be adjusted to be as efficient as possible and the steering wheel bounces smoothly. This is useful both in various motorsports such as DRIFT, KJS, etc. Changing the angle of the front wheel allows the vehicle to have the most optimal handling characteristics for the owner.
On these cambers, you can both lean the wheel much more strongly and “straighten” the McPherson column to give it optimal working conditions.
NOTE: On a BMW E30, one pin hole must be drilled in the cup for installation. 5 minutes of work with your brother-in-law at the cup.
Technical description :
CAMBERA plate :
- is made of 15mm thick aluminum grade: PA6
- milled on CNC machines
- black anodized
Bearing holder :
- turned on CNC automatic machines
- made of high quality structural carbon steel
- additionally galvanized
Bearing :
- maintenance-free fluro with reduced bearing clearance
- for heavy duty applications made of stainless steel
Mounting screws m8 with fine thread galvanized .
Nuts with flange additionally schnorr washers to prevent loosening
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| BMW | E30, E36, E46, E38, E39, E90, E92 | - | - |
